Channel Vision HDM100 User Manual

Hdmi modulator
Hide thumbs Also See for HDM100:
Table of Contents

Advertisement

Quick Links

Download this manual
User's Manual
HDMI Modulator
ATSC 8VSB/QAM 65/256
Model No : HDM100

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HDM100 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Channel Vision HDM100

Summary of Contents for Channel Vision HDM100

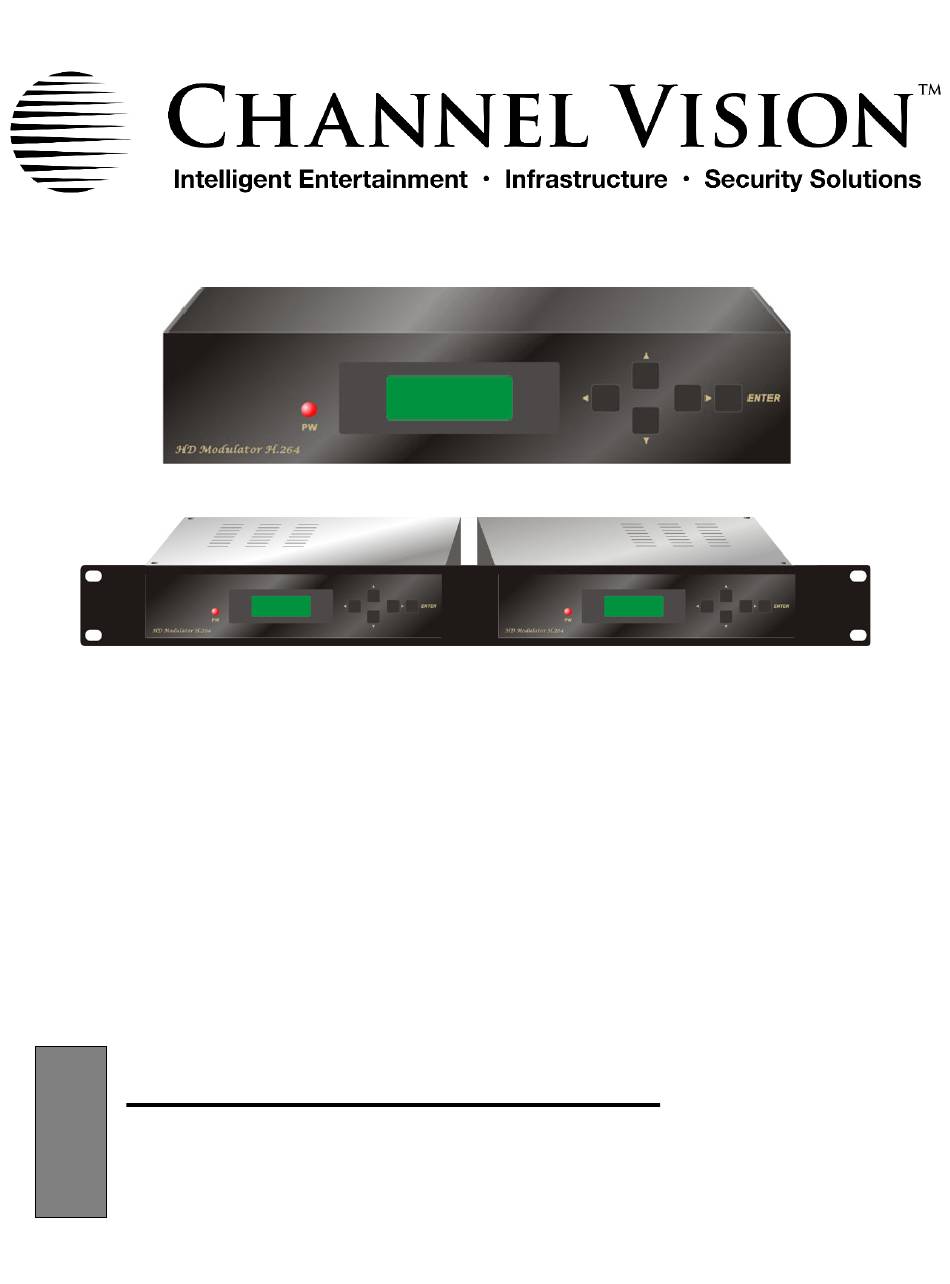

  • Page 1 User’s Manual HDMI Modulator ATSC 8VSB/QAM 65/256 Model No : HDM100...

  • Page 2: Table Of Contents

    Contents Safety Instructions & Precautions………………….…………… Operation Guide……………..………………………………… 2-1. Connection Diagram…………………………………………………. 2-2. Front Panel……..…………………………….………………………. 2-3. Rear Panel……..………..……………………………………………. 2-4. Functions of Operating Button ………………………………………. System Configurations………………………………………….. 3-1. Structure of System Menu……..…………………………………….. 3-2. Configuration through Control Panel………………………………… 3-2-1. Initial Display…………………………………………………… 3-2-2. Video……………………………………….…………………… 3-2-3. TS Stream………………………………………………………… 3-2-4.

  • Page 3: Safety Instructions & Precautions

    Safety Instructions & Precautions Do not operate the HD modulator in high-humidity areas or expose it to water or moisture. Objects filled with liquid should be placed on the device.  Disconnect the product from the wall outlet prior to cleaning. Use a light, damp cloth (no solvents) to dust or clean the product.

  • Page 4: Operation Guide

    Operation Guide 2-1. Connection Diagram A. Connect the power supply. B. Connect the video/audio source to the modulator using an HDMI cable. HDMI can reach HD resolution 1080p. C. Connect the RF Output to the RF network, STB or the TV set directly. * According to your headend system, set the output power attenuation on the modulator properly.

  • Page 5: Front Panel

    2-2. Front Panel 1. Power LED Indicator 2. LCD Display 3. Up / Down / Left / Right 4. Enter 2-3. Rear Panel 1. RF OUT：75 ohm F type connector for RF output 2. RJ 45：LAN port for remote configuration and system management setup 3.

  • Page 6: Functions Of Operating Button

    Please see following instructions of buttons on the front panel to operate in each setting category. 2-4. Functions of Operating Button “Enter” : Enter a category to configure settings Confirm selected item or numbers. (Please press ENTER after each setting to make it effective; ...

  • Page 7: Configuration Through Control Panel

    3-2. Configuration through Control Panel 3-2-1. Initial display Enter Ch 002-57000KHz QAM64- 5057 Ksps ATSC Bootup Up/Down Loading . . . ATSC_ANNEX B MAIN MENU HDMI:1080I Ch 002-57000KHz : RF output channel / frequency. If the RF is set to Frequency mode, it shows “DVBC 057000 KHz”...

  • Page 8: Ts Stream

    Major / Minor ch : Virtual channel setting Bitrate is adjustable in steps from 8-18 Mbps for MPEG2, 5-10 for H.264 HD, 2-4. Default rate  will be 18 Mbps  3-2-3. TS Stream– stream editing Video Pid 2.1. Video PID 0100 Audio Pid 0101...

  • Page 9: Qam

    3-2-4. QAM - constellation setup 3.1.1 ATSC-8VSB 3.1.2 QAM 64 3.1. Mod Mode 3.1.3 QAM 256 3-2-5. RF Setup Channel Mode 4.1.1. Channel 4.1. RF Mode 4.1.2. Frequency Channel No 4.2. Chan Number Frequency Mode RF Frequency KHz 4.2. RF Freq KHz 057000 4.3.1.

  • Page 10: Ethernet

    Attenuation 4.5. RF Attenuate Set RF output attenuation accordingly if the dB power is too high. FCC specification is 15.5dBmV at the TV set.  Attenuation Range: 0~31dB Digital cable tv optimum signal is 10dBmV   3-2-6. Ethernet – For Web Configuration: make note of IP Address 5.1.

  • Page 11: Misc

    3-2-7. Misc. – For system configuration (Please refer to Chapter 3-3-7 for Time/Date setting) ATSC_ANNEX B 6.1. Sys Version SW-v4.0 HW-v2.1 SW: Software version; HW: Hardware version  1.Preset 8VSB 2.Preset B-64 6.2. Factory set. 3.Preset B-256 Options of factory default setting： 8VSB (ATSC) / B-64 (Annex B, 64QAM) / B-256 (Annex B, 256QAM) ...

  • Page 12: Configure Through Web

    Set an IP address of the modulator from the front panel if you don’t want to use the default IP address. 3-3. Configure through web Connect the modulator to the computer through RJ45 cable. Enter the IP address of the modulator (Default address: 192.168.1.145) Internet Explorer browser ...

  • Page 13: Video

    In the Command Prompt window, type in “ipconfig” and press enter to find your computer’s IP address, subnet mask, and default gateway (your router’s IP address). Make sure to take note of your IP address, your network mask and default gateway so you can reference them later.
  • Page 14 3-3-3. QAM - constellation setup 3-3-4. RF - Output Configuration Channel Mode 12 | P a g e...
  • Page 15 Frequency Mode LEAVE “CW Signal” in “Disable”. This option is only for testing purposes at the factory. The modulator will NOT WORK if CW Signal is enabled.  RF Attenuation Range: 0~31dB  13 | P a g e...

  • Page 16: Ts Stream

    3-3-5. TS Stream– stream editing The value of Video PID /Audio PID /PCR PID/ PMT PID should be unique to each other. The software will synchronize time when the network connects to the internet. You can  also choose “Computer Time” to synchronize time by computer, the time /date will ...

  • Page 17: Ethernet

    3-3-6. Ethernet– For Web Configuration Settings are locked. Un-Check <Enable/Disable Editing> to change any of the network settings. • 15 | P a g e...

  • Page 18: Misc

    3-3-7. Misc– For system configuration 16 | P a g e...

  • Page 19: Save

    3-3-8. Save – To save changes of configuration 17 | P a g e...

  • Page 20: Copy

    3-3-9. Copy – To copy your exiting data, please take the following steps: Go to “Save” tab in browser. Click “Backup / Restore”. Click “Download backup Database” button. Setting will be exported into a configuration file. 3-3-10. Restore – To restore your saved data, please take the following steps: Go to “Save”...
  • Page 21 1. Vertical lines in picture with motion ANS: change Video source to 720P or 1080P Troubleshooting 2. Unable to find modulated channel ANS: Confirm CABLE or Antenna is set on TV ANS: Scan TV channels ANS: Confirm CW Signal is disabled 3.
  • Page 22 SPECIFICATIONS Video Input HDMI HDMI 1.4a, HDCP 1.4 HDMI / Stereo MPEG Audio AC3 Dolby ︰ MPEG-2 HD/SD Profile 2: Video Encoding ISO13818-2 MP@HL Data Rates 1080p@30fps, 1920x1080 full HD resolution Modulation Type Cable QAM/Air 8VSB 8VSB Constellation ︰ 64QAM/256QAM for Cable Bandwidth 6 MHz ︰...
  • Page 23 Tested to Com ply with FCC Standards This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: This device cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.
