  • Page 1 HDM100 HDM200R User’s Manual HDMI Modulator ATSC 8VSB/QAM 65/256 Model No : HDM100 / HDM200R...

  • Page 2: Table Of Contents

    CONTENTS Safety Instructions & Precautions………………….……………….. Operation Guide……………..……………………………………………... 2-1. Connection Diagram……………………………………………………. 2-2. Front Panel……..…………………………….…………………………….. 2-3. Rear Panel……..………..…………………………………………………... 2-4. Functions of Operating Button ……………………………………. System Configurations…………………………………………………… 3-1. Structure of System Menu……..…………………………………….. 3-2. Configuration through Control Panel…………………………… 3-2-1. Initial Display…………………………………………………… 3-2-2. Unlock Unit..…………………………………………………….. 3-2-3.
  • Page 3 Best Practices ………………………………………………………………. Basic Input and RF Settings ………………………………………….. Specifications ……………………………………………………………….

  • Page 4: Safety Instructions & Precautions

    1. Safety Instructions & Precautions Do not operate the HD modulator in high-humidity areas or expose it to water or moisture. Objects filled with  liquid should be placed on the device. Disconnect the product from the wall outlet prior to cleaning. Use a light, damp cloth (no solvents) to dust or ...

  • Page 5: Operation Guide

    2. Operation Guide 2-1. Connection Diagram A. Connect the power supply. B. Connect the video/audio source to the modulator using an HDMI cable. HDMI can reach HD resolution 1080p. C. Connect the RF Output to the RF network, STB or the TV set directly. * According to your headend system, set the output power attenuation on the modulator properly.
  • Page 6 32 TV’s receive the modulated satellite tv channel with 1080P picture quality • 1 RG6 coax to each TV Equipment list: 1ea. Satellite Dish 6ea. Satellite TV Receiver box 6ea. HDMI-10 cables 6ea. HDM100 modulator 3 | P a g e...
  • Page 7 (using Direct TV remote & 2 receiver ir codes) Equipment list: 1ea. Satellite Dish 2ea. Satellite TV Receiver box 2ea. HDMI-10 cables 1ea. IR-3002 ir flasher 2ea. HDM100 modulator 1ea. P0328 amplified splitter/combiner 8ea. IR-4101 receiver over coax 1ea. Antenna 8ea. 1080P tv’s RG6U Quad Coaxial Cable IR-4101...
  • Page 8 HDMI Modulator with Satellite Receivers and Antenna/Cable TV • Satellite Receiver is set on dedicated channel IE: ESPN receiver 1, FOX on receiver 2 etc… • Combine 3 HDMI Modulators together on different modulated channels • Antenna with amp to balance signal strength •...

  • Page 9: Front Panel

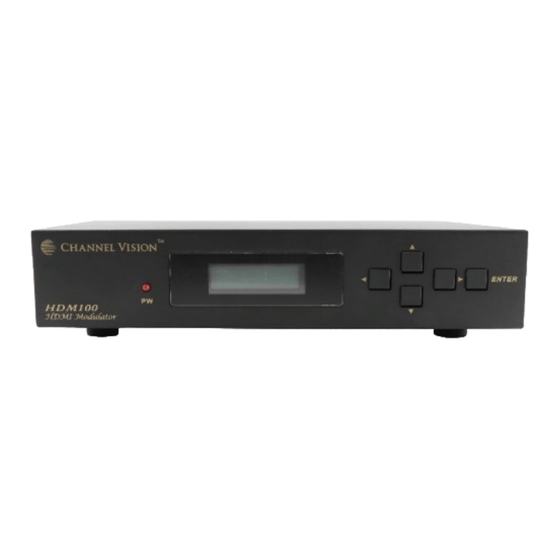

    3ea. HDMI-10 cables *Unlimited number of 1080P tv’s 3ea. HDM100 modulator RG6U Quad Coaxial Cable 1ea. HS-3 hybrid splitter / combiner *contact Channel Vision for rf design 1ea. Antenna 1ea. C-0317/CVT-15WB amplifier 2-2. Front Panel 1. Power LED Indicator 2. LCD Display 3.

  • Page 10: Functions Of Operating Button

    1. RF OUT：75 ohm F type connector for RF output 2. RJ 45：LAN port for remote configuration and system management setup 3. HDMI：Digital A/V input 4. Joint screw for ground wire (included) 5. DC 12V: 12VDC 1000mA power supply input 2-4.

  • Page 11: System Configurations

    3. System Configurations Configuration can be processed through control panel (front panel) or web. 3-1. Structure of System Menu Video / Audio Save Changes TS Stream Misc. Ethernet RF Setup 3-2. Configuration through Control Panel 3-2-1. Initial display Ch 002-57000KHz Enter QAM64- 5057 Ksps ATSC Bootup...
  • Page 12 QAM 64 : QAM (Quadrature Amplitude 1080I : Input resolution (auto adjust to source) Modulation with 64 point signal constellation (default) 5057 Ksps : Output symbol rate 3-2-2. Unlock Unit  Press and hold “Right” and “Enter” for 5 seconds at the same time to unlock. Installer code To Unlock 3-2-3.
  • Page 13 Audio Pid 2.2. Audio PID 0101 Clock PID 2.3 PCR PID Map Table Pid 2.3. PMT PID 0105 TS ID 2.4. TS ID 0064 Service ID 2.5. Service ID 0001 2.6.1. Enable 2.6. TDT Generation 2.6.2. Disable Network ID 2.7. Network ID 05184 The value of Video PID /Audio PID /PCR PID/ PMT PID should be unique to each other.
  • Page 14 QAM = QAM (Quadrature Amplitude Modulation with 64-point signal. Depending on the quality of the incoming signal, 64 is recommended unless all tv’s are new. With poor delivery systems from some cable operators, 256 will be pixelated. 64 is recommended for overall compatibility. 3-2-6.
  • Page 15 Set RF output attenuation accordingly if the dB power is too high. FCC specification is 15.5dBmV maximum at  the TV set. Too much power will cause pixilation problems. Attenuation Range: 0~31dB  Digital and analog tv optimum signal is 10dBmV ...

  • Page 16: Save Changes

    SW: Software version; HW: Hardware version  1.Preset 8VSB 2.Preset B-64 6.2. Factory set. 3.Preset B-256 Options of factory default setting：  8VSB (ATSC) / B-64 (Annex B, 64QAM) / B-256 (Annex B, 256QAM) Factory default is B-64  3-2-9. Save Changes Save Values 7.
  • Page 17 • Log in through IE (Internet Explorer) shown in 3-3. Verify your computer’s LAN settings via Command Prompt The easiest way to open Command Prompt on a Windows machine is to press Win+R on your keyboard. Hold the Windows key down and then press R.
  • Page 18 Major / Minor ch : Virtual channel setting will give you the digital tv channel.  Major=5 Minor=2 Digital channel will show up as 5-2 (both must be different)  Bitrate is adjustable in steps from 8-19 Mbps for MPEG2, 5-10 for H.264 HD, 2-4. Default and recommended rate ...

  • Page 19: Video

    Single-Program Decoder MPEG-2 Video MPEG-2 Display Bitstream Physical Decoder Process Channel Select Tuner AC-3 Trans- Bitstre port Decoder Transport 8-VSB Clock Recovery Stream and A/V Demod- Synchronization 19.4 Mb/s ulator Program Select Program (from User) Select Program Guide Database QAM = QAM (Quadrature Amplitude Modulation with 64-point signal. Depending on the quality of the incoming signal, 64 is recommended unless all tv’s are new.

  • Page 20: Ts Stream

    Frequency Mode Set frequency by Channel on the RF frequency setting (CATV or Antenna) LEAVE “CW Signal” in “Disable”. This option is only for testing purposes at the factory. The modulator will NOT  WORK if CW Signal is enabled. RF Attenuation Range: 0~31dB ...

  • Page 21: Ethernet

    The value of Video PID /Audio PID /PCR PID/ PMT PID should be unique to each other.  The software will synchronize time when the network connects to the internet. You can also choose “Computer  Time” to synchronize time by computer, the time /date will show on the page. 3-3-5.

  • Page 22: Misc

    Setup must match router Gateway, Subnet and Primary DNS settings • • IP address must be unique: to verify you can use free software by a 3 party: www.angryip.org/ 3-3-6. Misc– For system configuration 3-3-7. Save – To save changes of configuration 14 | P a g e...

  • Page 23: Copy

    3-3-8. Copy – To copy your exiting data, please take the following steps: Go to “Save” tab in browser. Click “Backup / Restore”. Click “Download backup Database”. Setting will be exported into a configuration file. 3-3-9. Restore – To restore your saved data, please take the following steps: Go to “Save”...

  • Page 24: Troubleshooting

    are the same as default. 8VSB B-64 (Default) Frequency plan: NTSC-AIR Frequency plan: NTSC-CATV Modulation mode: ATSC-8VSB Modulation mode: QAM_B_64 B-256 Frequency plan: NTSC-CATV Modulation mode: QAM_B_256 4. Troubleshooting 1. Vertical lines in picture with motion ANS: change Video source to 720P or 1080P 2.
  • Page 25 You may want to change the cable box/satellite receiver and TV to match 1080p or 1080i. Video Format Sets the video resolution for the HDMI input automatically. Each time either the channel source or broadcast changes, the HDM100/200 will adjust to match that resolution. Set all sources to 1080P or 1080i *Channel number The channel number you set the modulator on will correspond with the analog channel.
  • Page 26 18 | P a g e...
  • Page 27 19 | P a g e...
  • Page 28 SPECIFICATIONS Video Input HDMI ︰ HDMI 1.4a, HDCP 1.4 HDMI / Stereo MPEG Audio AC3 Dolby MPEG-2 HD/SD Profile 2: Video Encoding ISO13818-2 MP@HL Data Rates 1080p@30fps, 1920x1080 full HD resolution Modulation ︰ Cable QAM/Air 8VSB Type Constellation 8VSB 64QAM/256QAM for Cable Bandwidth ︰...
  • Page 29 FCC RF Radiation exposure limits set forth for an uncontrolled environment. This device and its antenna must not be located or operating in conjunction with any other antenna or transmitter Channel Vision 714.424.6500 www.channelvision.com 21 | P a g e...
