Summary of Contents for HDanywhere XTND 4K 100

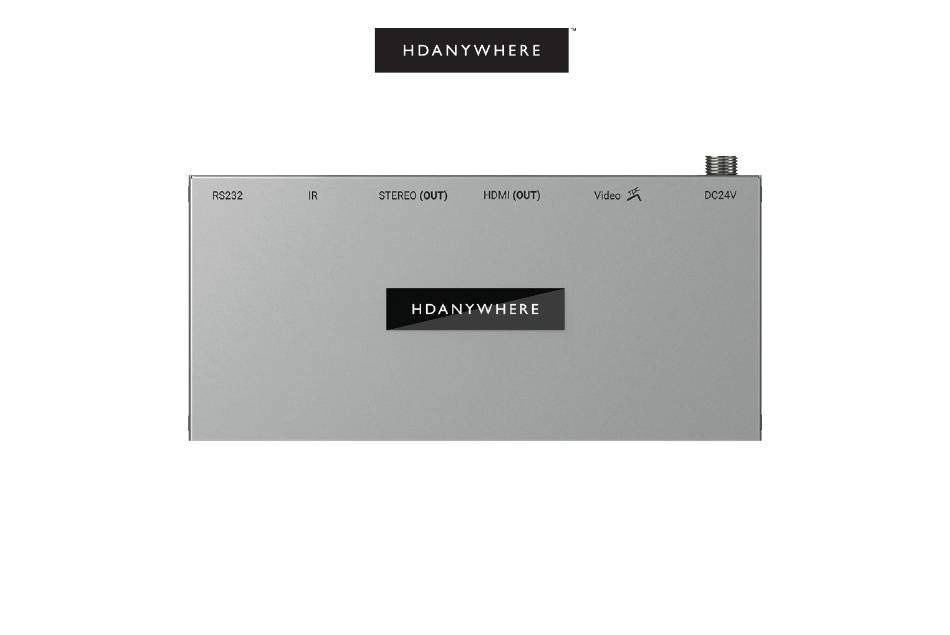

- Page 1 XTND 4K (100) with TPC CODE: XTND4K1002TPC Product Guide (English UK) Revision 1: 03/04/20...
- Page 2 XTND 4K (100) with TPC receiver port description 10-11 IR (Infrared) control, Testing IR works 12-13 Cabling 14-15 Example wiring diagram, Power up sequence 16-17 2 Year Product Guarantee 18-19 Conformity, Hire a HDA Pro Help is only an email away: support@hdanywhere.com.
-
Page 3: Glossary Of Terms
Glossary of terms HDBaseT Technology used to convert HDMI into a format which can be carried over network cable. Infrared (IR) Receiver (RX) and Transmitter (TX). The RX ‘receives’ a signal from another remote IR RX & IR TX control and the TX ‘transmits’ it. (See page 12) Video content such as Ultra HD 4K 60 4:4:4 uses up to 18Gbps of data at any one time which is not possible over current HDBaseT technology. - Page 4 Infrared Transmitter cable (1.5m) (IR TX) in order to protect and extend the life of your system. Infrared (20-60Khz) Receiver cable (1.5m) (IR RX) 24V 1A Power Supply with adapters (UK,EU,US,AU) Three-Pin Phoenix Connector Mounting Brackets User Manual Help is only an email away: support@hdanywhere.com.
- Page 5 Features Supports video picture formats up to 4K@60Hz (4:4:4) including HDR and Dolby Vision*. Supports 18Gbps bandwidth 4K up to 100m (328ft) Digital audio support up to and including Dolby Atmos and DTS:X Audio extraction over stereo (source audio). Bi-directional IR & RS232 Bi-directional Power *Only Dolby Vision Low Latency Mode is supported at 60Hz over HDBaseT.
-
Page 6: Specifications
PCM 2.0 / 5.1 / 7.1, Dolby Digital / Plus / EX / True HD / Atmos, DTS, DTS-EX, DTS-96 / 24, DTS High HDMI audio formats Res, DTS-HD Master Audio, DTS-X Stereo audio formats PCM 2.0 Infrared 20Khz - 60Khz Help is only an email away: support@hdanywhere.com. - Page 7 ±8kV (Air-gap discharge) ESD protection ±4kV (Contact discharge) Power consumption 9.36W (Maximum) Power supply 24V 1A Operating temperature 0°C - 40°C / 32°F - 104°F Storage temperature -20°C - 60°C / -4°F - 140°F Relative humidity 20 - 90% (Non-condensing) Housing Aluminium Colour...
-
Page 8: Transmitter Diagram
Transmitter Diagram RS232 HDMI (IN) HDMI (OUT) Video DC24V Help is only an email away: support@hdanywhere.com. - Page 9 Description 1. Power: Indicator light. If this light is on and solid then the XTND transmitter has power. 2. Firmware: Micro USB port to update XTND firmware. 3. RS232: Connect the three-pin phoenix connector to this port to send RS232 commands to the XTND receiver or vice-versa. 4.
-

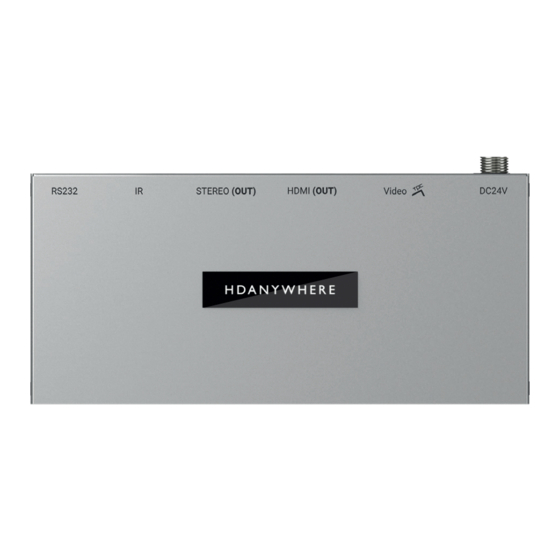

Page 10: Receiver Diagram
Receiver Diagram RS232 STEREO (OUT) HDMI (OUT) Video DC24V Help is only an email away: support@hdanywhere.com. - Page 11 Description 1. Power: Indicator light. If this light is on and solid then the XTND receiver has power. 2. Firmware: Micro USB port to update XTND firmware. 3. RS232: Connect the three-pin phoenix connector to this port to send RS232 commands to the XTND receiver or vice-versa. 4.
- Page 12 To send commands in the other direction (from the source / XTND transmitter) to a display, simply follow the process above but swap Ground any instance of an XTND transmitter with a XTND receiver. Power Power Signal Signal Help is only an email away: support@hdanywhere.com.
- Page 13 Testing that IR works This section aims to verify that your XTND’ s IR control system is setup correctly and assumes that all other setup has been followed as per the instructions laid out in this manual. Please refer to the XTND wiring diagrams in this document to ensure that your setup matches that before proceeding with the verification below.
- Page 14 If patch panels are terminated correctly then there is a minimal loss of distance. The use of wallplates and patch panels has the potential to cause increased resistance on the cable introducing pinch points for signal transmission and could reduce transmission lengths. TIP: Instead of using RJ45 wallplates use brush plates. Help is only an email away: support@hdanywhere.com.
- Page 15 HDMI cabling HDANYWHERE recommends using suitably robust and good quality HDMI cables. It is not advised to use passive HDMI cables over 5 metres in length either on the inputs or the outputs of the XTND system. Where HDMI cables longer than 5 metres are required, HDA...
-
Page 16: Example Wiring Diagram
If you are unsure how you 3.5mm Stereo HDBaseT might install this device in to your property then contact support@ IR RX/TX Cable hdanywhere.com or contact a HDA Pro (https://hdanywhere.com/ Speaker Cable dealers-and-installers/) for further assistance. Help is only an email away: support@hdanywhere.com. -
Page 17: Power-Up Sequence
Power up sequence Ensure that all devices are turned off. Connect HDMI source to “HDMI (IN)” port on the XTND transmitter. Connect the XTND transmitter and receiver together by using Cat 6/7 cable connected to the each end of the “Video TPC” port. Connect a display to the “HDMI (OUT)”... -
Page 18: Year Guarantee
OUR GUARANTEE TO YOU 2. We, HDANYWHERE warrant to you, the end user of the HDA hardware (the “Products”) that on the date of delivery of the Products to you, and for a period of 2 years from that date of delivery, the Products shall: (a) match any description that has been provided to you;... - Page 19 GUARANTEE CONTACT INFORMATION To contact (support@hdanywhere.com) or call HDANYWHERE Technical Support (call charges will depend on your telephone provider. Please check with your operator for exact charges).The team is available 9am - 5pm weekdays. To help us handle your query promptly, please have your invoice number and model SKU and serial ready.
- Page 20 Important information EU Conformity Hereby, HDANYWHERE declares that this HDMI connectivity device is in compliance with the essential requirements and other relevant provisions of the following Directives: 2006/95/EC (LVD Directive); 2004/108/EC (EMC Directive); 1999/5/EC (R&TTE Directive). The full text of the EU declaration of conformity is available in the compliance section at HDANYWHERE.com/legals Recycling your device properly In some areas, the disposal of certain electronic devices is regulated.
- Page 21 If cabling infrastructure, installation and control seem like too much to absorb and learn then why not hire a HDA Pro to do the work instead for you? Having your XTND system professionally installed should help to guarantee the system’ s long-term performance and ensure that it blends neatly with your decor. Find a HDA Pro anywhere in the world today https://hdanywhere.com/dealers-and-installers/...
- Page 22 Registered in England & Wales 06046737 VAT 913222367 HDANYWHERE assumes no responsibility for any inaccuracies that may be contained in this document. In no event will HDANYWHERE be liable for direct, indirect, special, incidental, or consequential damages resulting from any...
