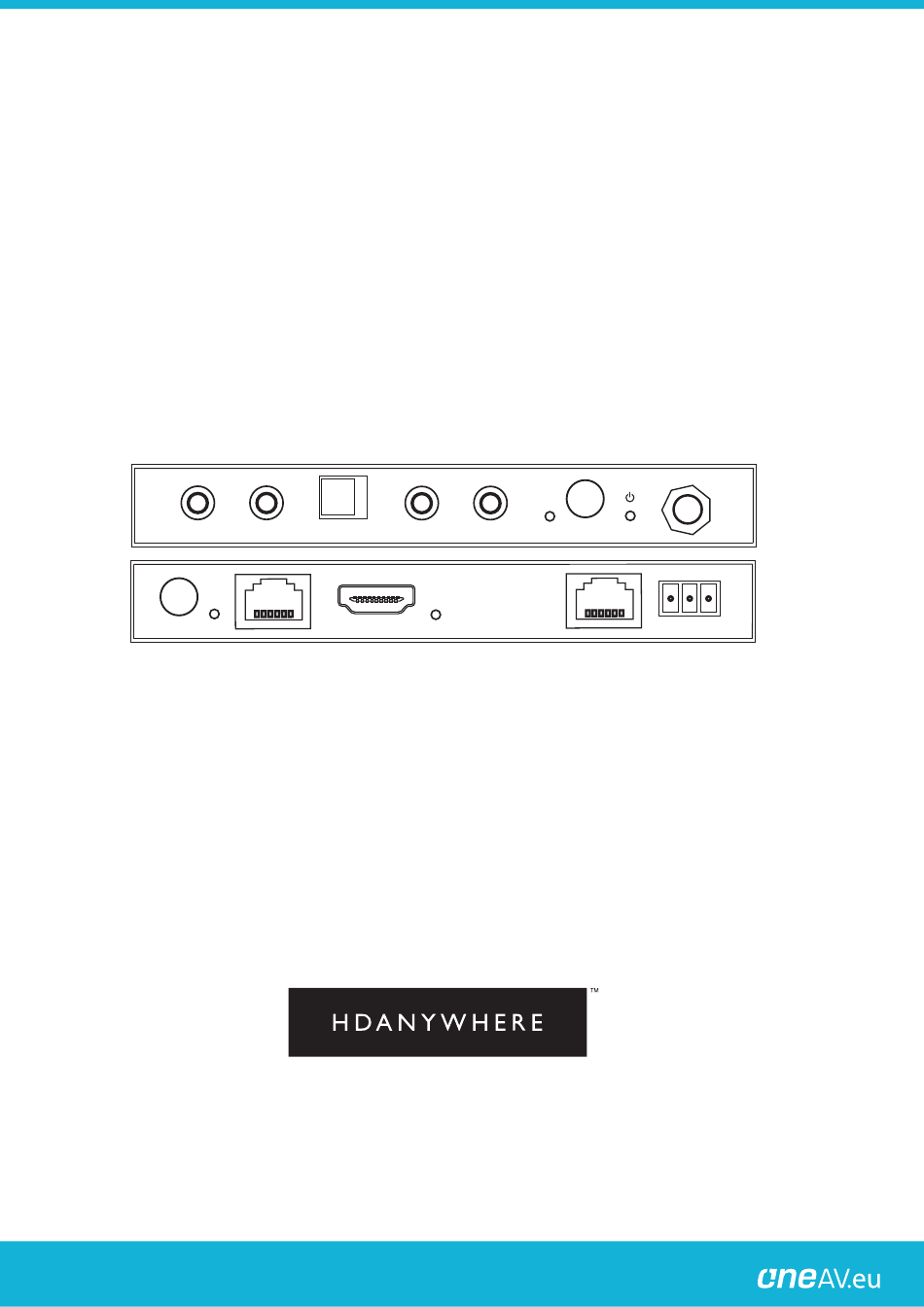

XTND 4K (100m) Extender Manual
Product Code: XTND4K100
OUT
IN
OUT
OUT
IN
Distribution:
PureLink GmbH
Available from B2B Online Portal

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XTND4K100 and is the answer not in the manual?

Questions and answers

Related Manuals for HDanywhere XTND4K100

Summary of Contents for HDanywhere XTND4K100

  • Page 1 XTND 4K (100m) Extender Manual Product Code: XTND4K100 Distribution: PureLink GmbH Available from B2B Online Portal...
  • Page 2 XTND 4K (100m) Extender Manual YOUR CO N TEN TS EX TEND ERS Use an XTND 4K (100m) extender to extend your favourite HDMI media Contents, introduction and box contents device (DVD/Blu-Ray player, Xbox, Apple TV etc) to a HDTV located up 5 minute quick setup guide and system features to 150m away for 1080p content or 100m away for 4K devices.

  • Page 3: Quick Setup

    XTND 4K (100m) Extender Manual Q UI CK S ETU P This quick setup guide will get your extender up and working in less than 5 minutes. If you need to integrate IR control then please continue on to page 6. 4.
  • Page 4 XTND 4K (100m) Extender Manual T RANS MIT TER (X1) 10 11 1. Stereo (OUT): Receive stereo audio from the 10. LRM Button: This button enables “Long Range Mode” receiver via 3.5mm jack cable this mode disables 4K supports but increases the effective transmission distance of 1080p content to 2.
  • Page 5 XTND 4K (100m) Extender Manual R ECE IVE R (X1 ) 10 11 1. Stereo (OUT): Receive stereo audio from the 10. LRM Button: This button enables “Long Range Mode” transmitter via 3.5mm jack cable this mode disables 4K supports but increases the effective transmission distance of 1080p content to 2.

  • Page 6: S Et T I Ng Up Ir Con Trol

    XTND 4K (100m) Extender Manual S ET T I NG UP IR CON TROL This will enable backwards and forewards IR control (the most common form of IR control) where IR signals from a remote in your distant location is sent back to the extender and sent to your source device to make it appear as though it is in the same room as you.

  • Page 7: Sta Ndar D W Ir In G D Iagra M

    XTND 4K (100m) Extender Manual STA NDAR D W IR IN G D IAGRA M This is a typical wiring diagram that shows how we would expect an XTND 4K (100m) Extender set up to look once installed. This diagram features a single HDMI source device (a BluRay player) being sent to 1 room, with a display located up to 150 metres away, and with IR controlling the source device via backwards IR.

  • Page 8: Specification

    XTND 4K (100m) Extender Manual SPEC IFICAT I O N Frequency bandwidth 297MHz (10.2Gbps) Transmitter input/output ports x1 HDMI input x1 Cat 5e/6 x1 IR Transmitter x1 IR Receiver x1 Phoenix connector (rs232) Receiver input/output ports x1 HDMI output x1 Cat 5e/6 x1 IR Transmitter x1 IR Receiver x1 Phoenix connector (rs232)
  • Page 9 G UARANT EE A one-year worldwide replacement guarantee covering HDanywhere™ electronic devices is provided by HD Connectivity Ltd. . If you need to use this guarantee, please contact HDanywhere Customer Services: support@ hdconnectivity.com or telephone (0)1648 576 348 during UK office hours.
