XTND 2K (40m) Extender Manual
Product Code: XTND2K40
IR (IN)
IR (OUT)
ON OFF
OUT
IR (IN)
IR (OUT)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XTND 2K (40m) and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for HDanywhere XTND 2K (40m)

Summary of Contents for HDanywhere XTND 2K (40m)

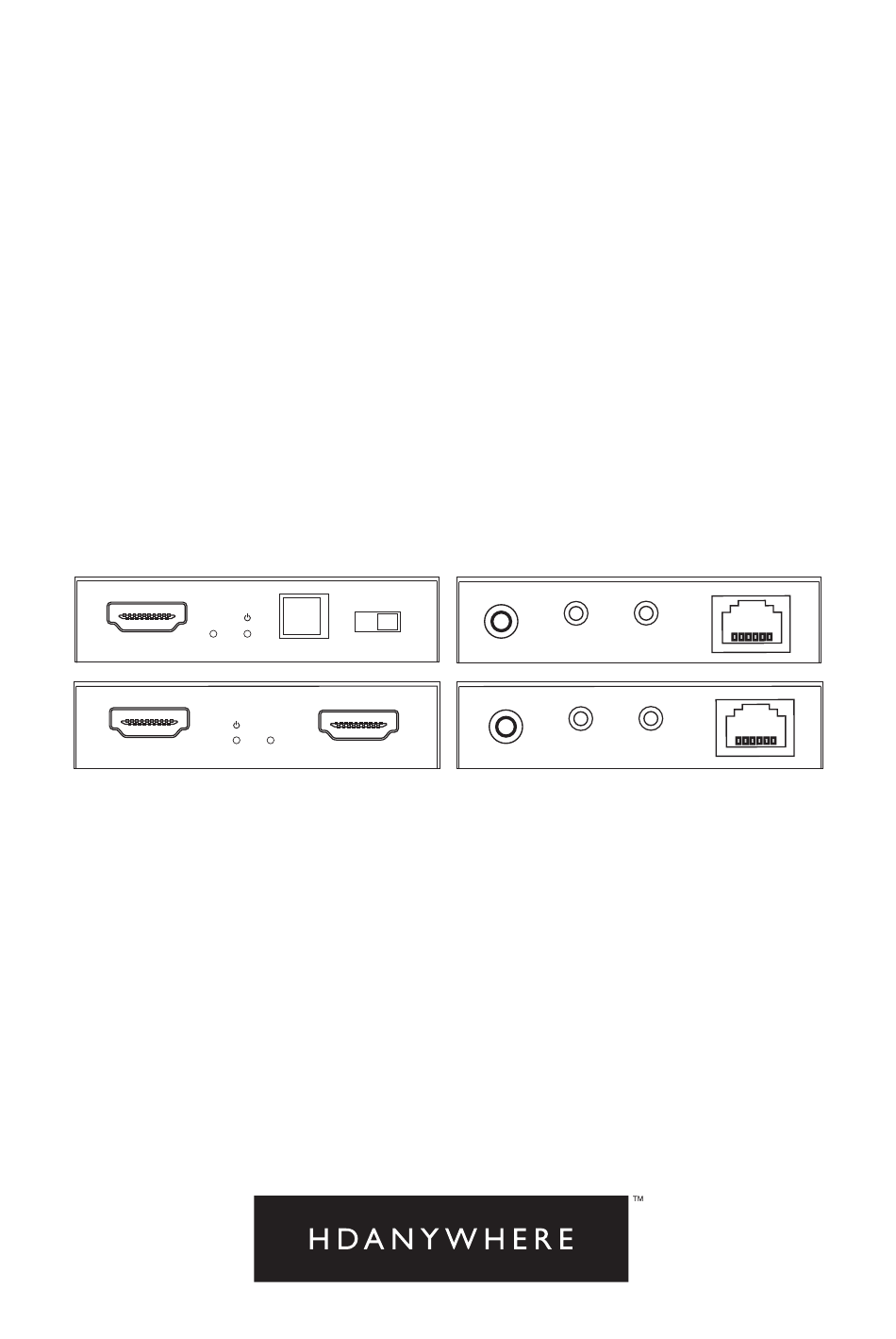

  • Page 1 XTND 2K (40m) Extender Manual Product Code: XTND2K40 IR (IN) IR (OUT) ON OFF IR (IN) IR (OUT)
  • Page 2 XTND 2K (40m) Extender Manual YO U R CO N T ENT S E X TE N D ER S Use an XTND 2K (40m) to extend your favourite HDMI media device Contents, introduction and box contents (DVD/Blu-Ray player, Xbox, Apple TV etc) to a HDTV located up to 40m 5 minute quick setup guide and system features away.

  • Page 3: Quick Setup

    XTND 2K (40m) Extender Manual QU I CK S ET U P This quick setup guide will get your extender up and working in less than 5 minutes. If you need to integrate IR control then please continue on to page 5. 5.
  • Page 4 XTND 2K (40m) Extender Manual T RA N S M IT T E R A N D R EC E I VE R (x1 ) IR (IN) IR (OUT) ON OFF IR (IN) IR (OUT) 11 12 1. HDMI OUT: Connect a local display or an AVR 8.

  • Page 5: S Et Ti Ng U P I R Co N T R O L

    XTND 2K (40m) Extender Manual S ET TI NG U P I R CO N T R O L This will enable backwards IR control (the most common form of IR control) where IR signals from a remote in your distant zone is sent back to the extender and sent to your source device to make it appear as though it is in the same room as you.

  • Page 6: Stan Dar D Wi R I Ng D I Ag Ra M

    XTND 2K (40m) Extender Manual STAN DAR D WI R I NG D I AG RA M This is a typical wiring diagram that shows how we would expect an XTND 2K (40m) Extender set up to look once installed. This diagram features a single HDMI source device (a BluRay player) being sent to 1 room, with a display located up to 40 metres away, and with IR controlling the source device via backwards IR.

  • Page 7: Edid Management

    XTND 2K (40m) Extender Manual ARC ( AU D I O R E T UR N CH A N N E L ) The Audio Return Channel (ARC) enables a display to send an audio signal from the built in freeview/smart functions upstream via a connected HDMI cable to an AV receiver or audio controller, eliminating the need for a separate audio cable.

  • Page 8: Specification

    XTND 2K (40m) Extender Manual SP EC IF ICAT I ON Frequency bandwidth 4.95 Gbps Transmitter input/output ports x1 HDMI input x1 Local HDMI output x1 Cat 5e/6 x1 IR Transmitter x1 IR Receiver Receiver input/output ports x1 HDMI x1 Cat 5e/6 x1 IR Transmitter x1 IR Receiver Power supply...
  • Page 9 GUA RA NT E E A one-year worldwide replacement guarantee covering HDanywhere™ electronic devices is provided by HD Connectivity Ltd. . If you need to use this guarantee, please contact HDanywhere Customer Services: support@ hdconnectivity.com or telephone (0)1648 576 348 during UK office hours.
