HDanywhere XTND4K100 Quick Start Manual

Q U I C K S T A R T G U I D E

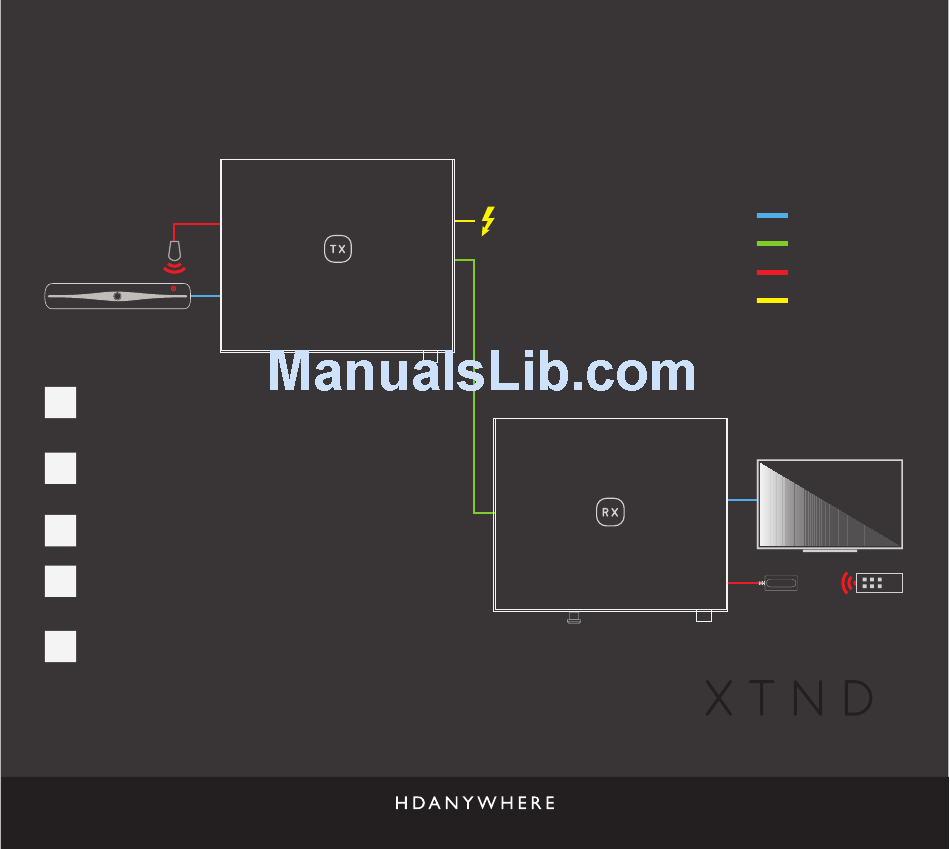

Connect a HDMI source (e.g Satellite/Cable TV, Apple TV,
1
Xbox etc) to the "HDMI IN" of the XTND transmitter
(labelled TX) using a HDMI cable.
Connect a Cat6 cable between the "HDBASET" port of the
2
XTND transmitter (TX) and the "HDBASET" port of the
XTND receiver (labelled RX).
Connect a display to the "HDMI OUT" of the XTND receiver
3
(RX) using a HDMI cable
Power on the XTND Extender by connecting the supplied
4
24V power supply to the XTND (TX). XTND will turn on and
a picture will display after several seconds.
To control your HDMI source from your display location
5
connect the IR TX to the "IR (OUT)" port on the XTND
transmitter (TX). Ensure that the IR TX is positioned over
the IR window on your source device.
Connect the IR RX to the "IR (IN)" port on the XTND
receiver (RX). Ensure that the IR RX is in-line-of-sight of
your source device remote control.
FU L L M AN UAL ON H DAN Y W HER E .COM /S U PPO RT
HDMI CABLE
CAT6 CABLE
INFRARED (IR) CABLE
POWER
H D M I E X T E N D E R
