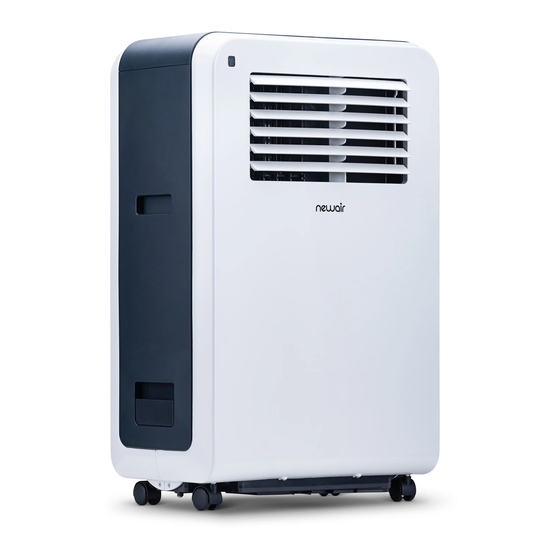

Summary of Contents for NewAir NAC12KWH01

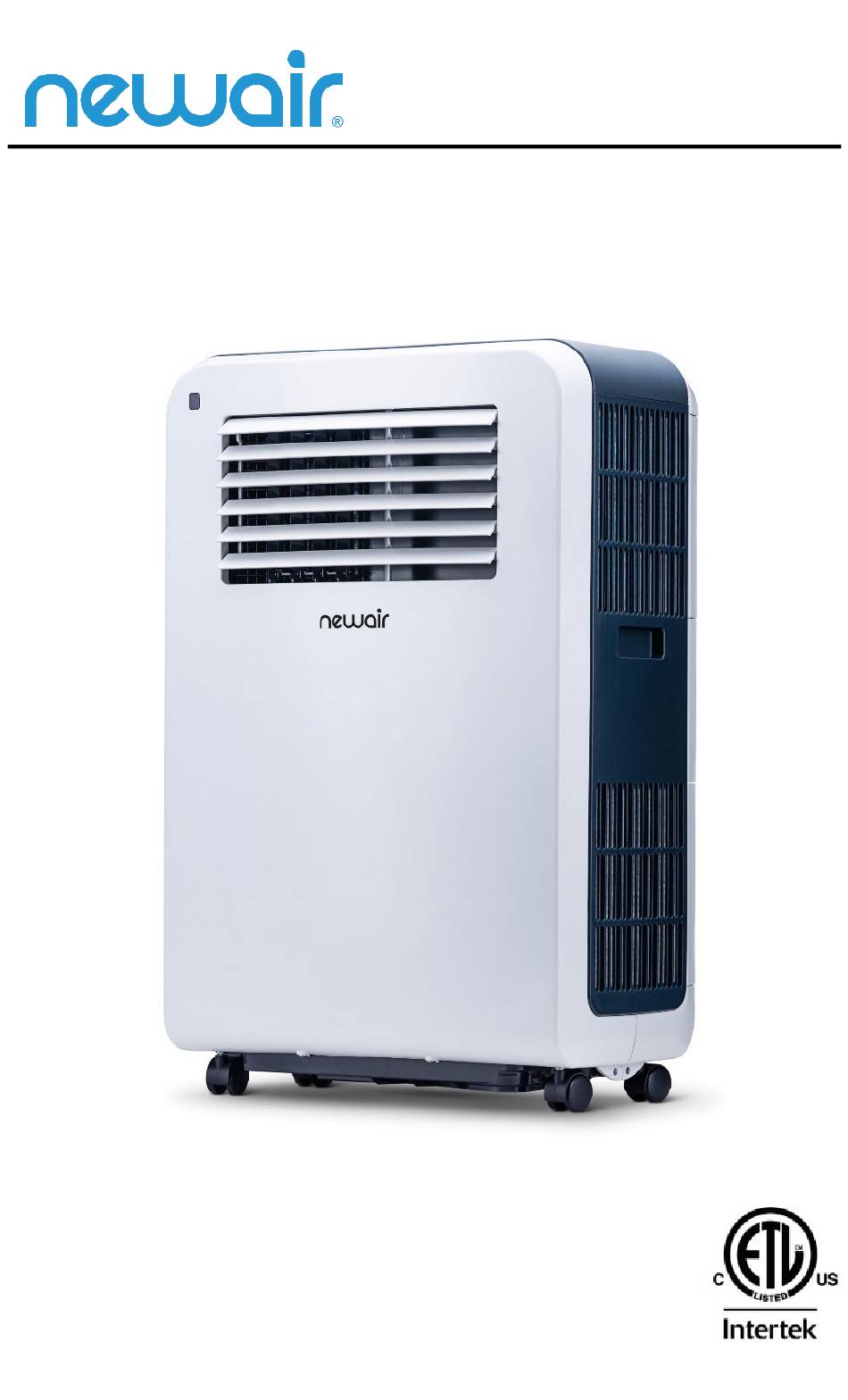

- Page 1 SKU: NAC12KWH01 Portable Air Conditioner OWNER’S MANUAL Read and save these instructions. Manual v1.0...
-
Page 2: Table Of Contents
Safety Information & Warnings ................4 Parts List ....................... 5 Assembly Instructions ..................6 Operating Instructions ..................9 Cleaning & Maintenance ..................15 Troubleshooting ....................16 Limited Manufacturer’s Warranty ..............18 SPECIFICATIONS NAC12KWH01 ODEL 115V OLTAGE 60Hz REQUENCY 1120W / 10.5A OWER ONSUMPTION 220.7 CFM... -
Page 3: Register Your Product Online
REGISTER YOUR PRODUCT ONLINE Register Your NewAir Product Online Today! Take advantage of all the benefits product registration has to offer: Service and Support Diagnose troubleshooting and service issues faster and more accurately Recall Notifications Stay up to date for safety, system updates and recall notifications... -
Page 4: Safety Information & Warnings
• Do not pull or strain the power cord when moving this appliance. • If the power cord is damaged, it must be replaced by an electrician or specialized technician authorized by NewAir. • Always operate the unit in an upright position and place it on a flat, level surface at least 14”... -
Page 5: Parts List
PARTS LIST Front Back Exhaust hose compartment Air filter (air inlet) Control panel 10. Carrying handle Remote control receiver 11. Cord compartment Carrying handle 12. Air filter (air inlet) Water funnel 13. Air filter (air inlet) Horizontal louver 14. Exhaust outlet Vertical louver 15. -
Page 6: Assembly Instructions
Unscrew the slide at the top. Remove the slider at the top. 3. Remove the exhaust hose. 4. Attach the exhaust hose to the vent. 5. To store the exhaust hose, reverse the steps. Remember to put the screw back in place. newair.com... - Page 7 Use only the provided hose and attach exhaust hose and adaptor to the back of the air conditioner Avoid kinks and bends in the exhaust hose as this will cause expelled humid air to build up causing the unit to overheat and shut down. The hose may extend from 12”...
- Page 8 1. Cut a 6” diameter hole in the wall or window. 2. Feed exhaust hose through the window or wall and attach the threaded adaptor from the outside as shown 3. When not in use, plug the opening with the provided cover. newair.com...
-
Page 9: Operating Instructions
OPERATING INSTRUCTIONS Power button 1. Water level indicator 7. Heat mode indicator Mode button 2. Compressor indicator 8. Timer indicator Timer button 3. Auto mode indicator 9. Sleep indicator Temp Down button 4. Cool mode indicator 10. High fan indicator Temp Up button 5. - Page 10 At this time, the indicator lights showing functions in progress will turn on. ° Please note that the display window will only show room temp from 32 ° to 122 • To shut the unit off, press the ON/OFF button once more. newair.com...
- Page 11 Setting the Mode Press the MODE button to select the desired function: Cooling, Fan or Dry • Setting the Temperature Press the temp increase or decrease button to adjust the set temp. • • The display window will then indicate the set temperature. If no temperature is set, the display will show the room’s ambient temp.
- Page 12 Self-diagnosis Function This machine is equipped with a self-diagnosis function. If there is an issue with the machine, the LCD will show an E1 or E2 error. Please contact NewAir if you see either of these errors. Remote Control All of the functions can be performed with the supplied remote control.
- Page 13 EFFICIENCY BOOSTER This unit is equipped with an Efficiency Booster function. By adding 2.5 pints (1.2L) of water to the funnel on the side of the unit, the energy efficiency can be elevated. The principle is that while the machine is working, the compressor will be getting hot.
- Page 14 • Flashing Water Full indicator will not function in this mode of drainage. • If you want to extend the water tube, you can connect it with another tube (OD: 0.7” / 18mm) newair.com...
-
Page 15: Cleaning & Maintenance
CLEANING & MAINTENANCE Always unplug the air conditioner from the outlet before cleaning. To maximize the efficiency of the air conditioner, clean the unit regularly. Cleaning the housing Use a soft, damp cloth to wipe the body clean. Never use aggressive chemicals, gasoline, detergents, chemically treated cloths, or other cleansing solutions. -
Page 16: Troubleshooting
The ambient room Lower the set temperature. temperature is lower than the set temperature. The unit is noisy. The unit is not leveled. Ensure the unit is positioned on a flat, level surface. newair.com... - Page 17 Problem Possible Causes Solution The compressor The compressor has Wait for temperature to does not work. overheated and shut drop and then turn the unit off. on again.
-
Page 18: Limited Manufacturer's Warranty
When making a warranty claim, please have the original bill of purchase with purchase date available. Once confirmed that your appliance is eligible for warranty service, all repairs will be performed by a NewAir™ authorized repair facility. The purchaser will be responsible for any removal or transportation costs.
