Summary of Contents for Alecto PAS-300

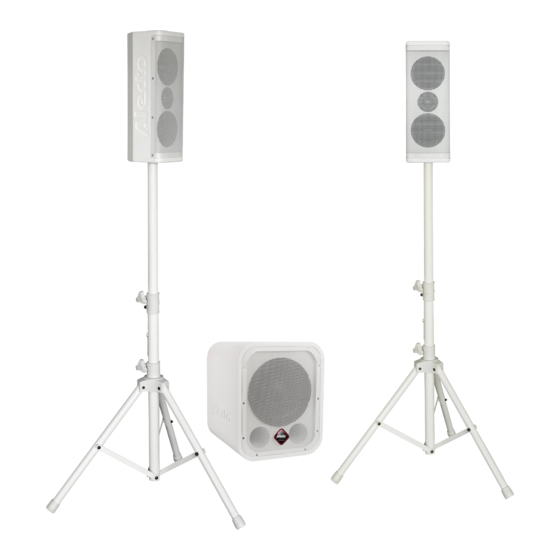

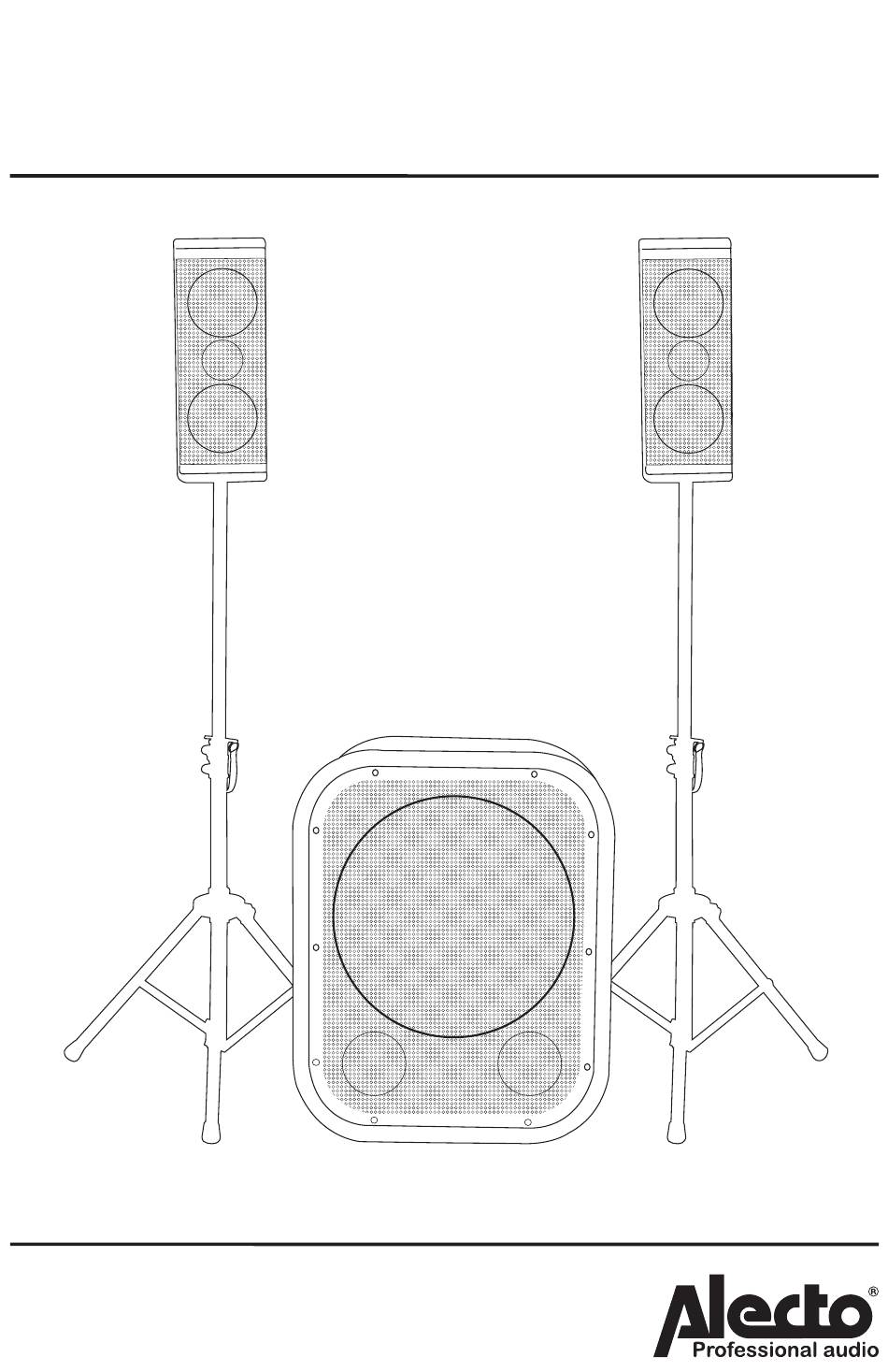

  • Page 1 USER’S MANUAL Active sound set PAS-300 PAS-300...
  • Page 2 PEAK PEAK SUBLEVEL RIGHT LEFT INPUT SUB250Watt SAT2x75Watt RIGHT LEFT LINK OUT SAT OUT Tripod ~100-240V T2.5A Satellete Connection Panel SATELITE PAS-300 INPUT 4Ω 1+ = positive 75Watt rms 1- = negative 2+ = no connection 2- = no connection...
  • Page 3 APPLICATION The PAS-300 is a sound system with 1 subwoofer and 2 satellite speakers. The PAS-300 is powered through a mixing panel or master output from another amplifier or audio source. The subwoofer contains three separate speakers. 1 for the subwoofer and 2 (left and right) for the satellite speakers. The satellite speakers may be placed onto the supplied tripods.
  • Page 4 Speakon plugs. MAINS VOLTAGE: Only connect the PAS-300 subwoofer to a mains voltage of 230 Volt. The mains in most European countries works on 230 Volt. Use the supplied power cord to connect the PAS-300 with the mains.
  • Page 5 6. Depending on the type of device that contains the music, you might have to set this device to send its audio signal to the PAS-300 and not to the headphones output or its own speaker; please refer to the user instructions of the external device.
  • Page 6 TECHNICAL SPECIFICATIONS PAS-300: Voltage: 230V~50Hz Fuse: T 2,5A 230V Woofer: 10” Satellite: 4” Mediant x 2 and 1” Neodymium Tweeter Impedance Satellite: 4Ω System Freq. Resp.: 45Hz~20KHz +/-3dB Subwoofer Freq. Resp.: 45Hz~140Hz +/-3dB Satellite Freq. Resp.: 140Hz~20KHz +/-3dB System Power:...
  • Page 7 CONNECTION DETAILS BALANCED/UNBALANCED Stereo headphones: balanced mono: unbalanced mono: Tip is left signal Tip is signal Tip is signal + Ring is right signal Ring is signal - Sleeve is mass, Sleeve is mass, Sleeve is mass, earth or shielding earth or shielding earth or shielding Ring...
  • Page 8 Service Help WWW.ALECTO.NL SERVICE@ALECTO.NL NL 073 6411 355 (Lokaal tarief) BE 03 238 5666 (Lokaal tarief) (Tarif local) DE 0180 503 0085 Lokale Festnetzkosten Hesdo, Australiëlaan 1 5232 BB, ‘s-Hertogenbosch The Netherlands WWW.ALECTO.NL Service SERVICE@ALECTO.NL NL 073 6411 355 (Lokaal tarief)
