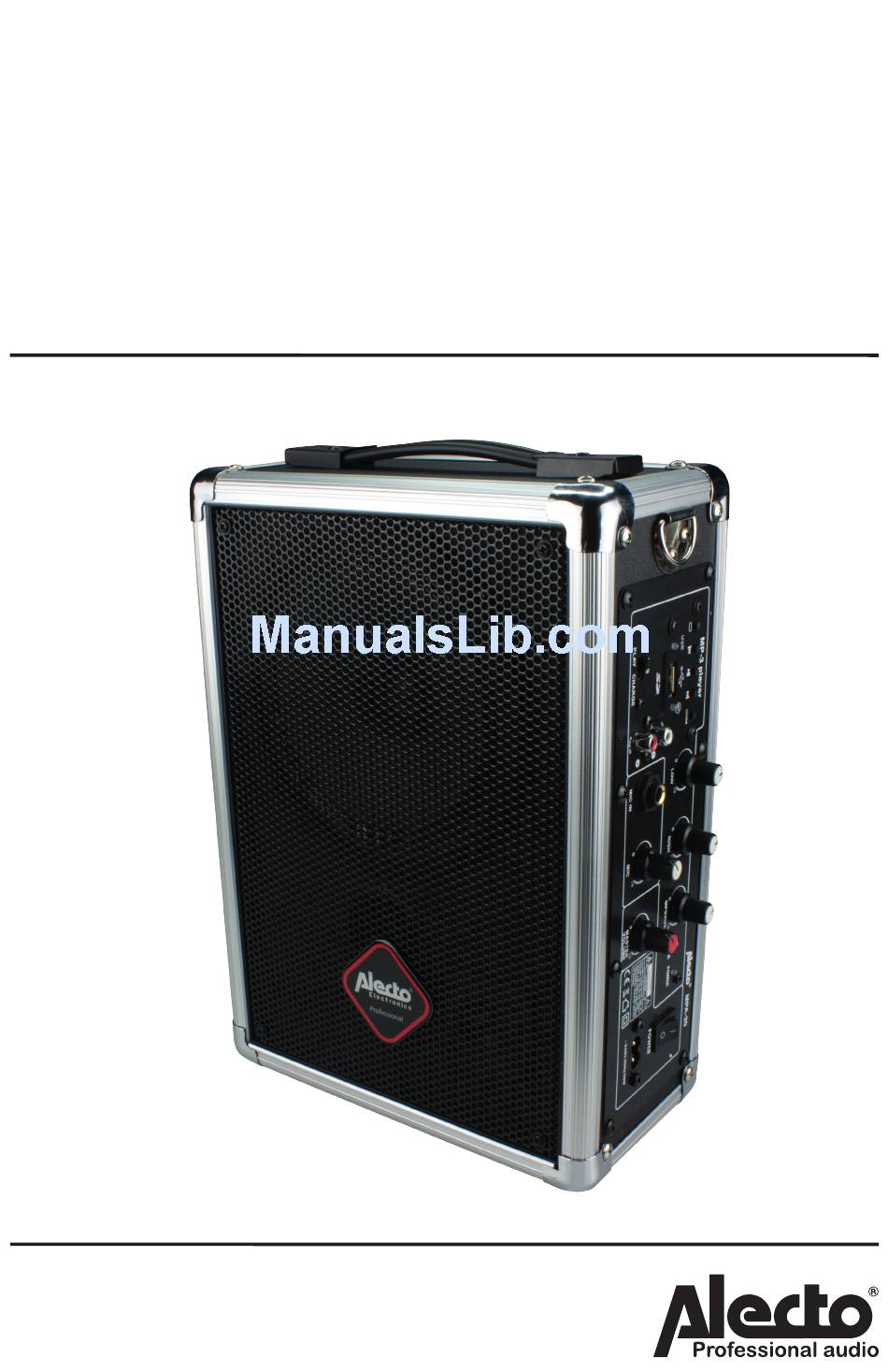

- Page 1 USER’S MANUAL MPA-20 PA System...
-
Page 2: Table Of Contents
TABLE OF CONTENTS FUNCTIONS ..................... 3 BEFORE USING ....................4 Battery ....................... 4 AMPLIFIER Power switch ..................... 5 Master volume ....................5 Tuning ........................ 5 MP3 PLAYER FUNCTION ................6 Turn on/off the player..................6 Control panel ..................... 6 Wirelessly stream music from a bluetooth® source (optionel) ......7 MAINTENANCE FREE LEAD-ACID BATTERY .......... -
Page 3: Functions
15. RCA Jack input for external source. Charging indicator. If the battery is empty and the MPA-20 is switched on the LED indicator is flashing red. If the battery is low-charged, the LED indicator is flashing red. The LED indicator is steady and green when the battery is fully charged. -
Page 4: Before Using
Note: The amplifier will only work for a short period of time. When the battery is fully charged, you can use the MPA-20 for 2 hours. This time depends on the volume selected. The battery needs to be charged when the... -
Page 5: Amplifier
The master volume control allows you to control the main volume of the MPA-20. When the control is turned completely on the left, it switches off the volume. NOTE: Before using the MPA-20, turn the control to the left to prevent the volume from being too loud. -
Page 6: Mp3 Player Function
WMA files from an SD-card or a USB drive or streaming audio via Bluetooth® TURN ON/OFF THE PLAYER: • The player switches on automatically when the MPA-20 is on. • When you briefly press the MODE button of the player the Bluetooth® function is on. -
Page 7: Wirelessly Stream Music From A Bluetooth® Source (Optionel)
2. Turn on the MP3 player and then press briefly and repeatedly the “MODE” button. If necessary, repeat until the LED lights to the left of the USB por. 3. Select “ALECTO MPA-20” in the list displayed on the device where the tracks are. -
Page 8: Maintenance Free Lead-Acid Battery
MAINTENANCE FREE LEAD-ACID BATTERY INSTRUCTIONS FOR MAINTENANCE FREE LEAD-ACID BATTERIES : • The battery operating temperature is between 15°C ~ 50°C. To increase the battery life, it is recommended to store the battery at a temperature between 5°C ~ 35°C. The best temperature is between 20°C ~ 25°C. When the temperature of the battery is below 15°C, a chemical process starts to avoid the battery to be charged. -
Page 9: Warning/Maintenance
• Do not short-circuit the junctions of the batteries and do not expose the batteries to a metallic surface. A short-circuit would lead to a high tension and cause a fire. • Only charge the battery when it is inside the MPA-20 and using the cable provided ENVIRONMENT: •... -
Page 10: Technical Specifications
City : This ALECTO MPA-20 is covered by a warranty of 24 months commencing on the day of your purchase. During this period we guarantee that any defects caused by errors in materials or construction will be repaired free of charge. The importer decides upon these conditions. - Page 12 Service Help Hesdo Azielaan 12 5232BA s’-Hertogenbosch The Netherlands WWW.HESDO-SERVICE.NL INFO@HESDO-SERVICE.NL SERVICE@HESDO.DE NL +31 (0) 73 6411 355 FR +32 (0) 3 238 5666 DE +49 (0) 180 503 0085 Festnetz 0,14 €/Minute Handy bis zu 0,42/Minute Hesdo Azielaan 12 Service 5232BA s’-Hertogenbosch...
