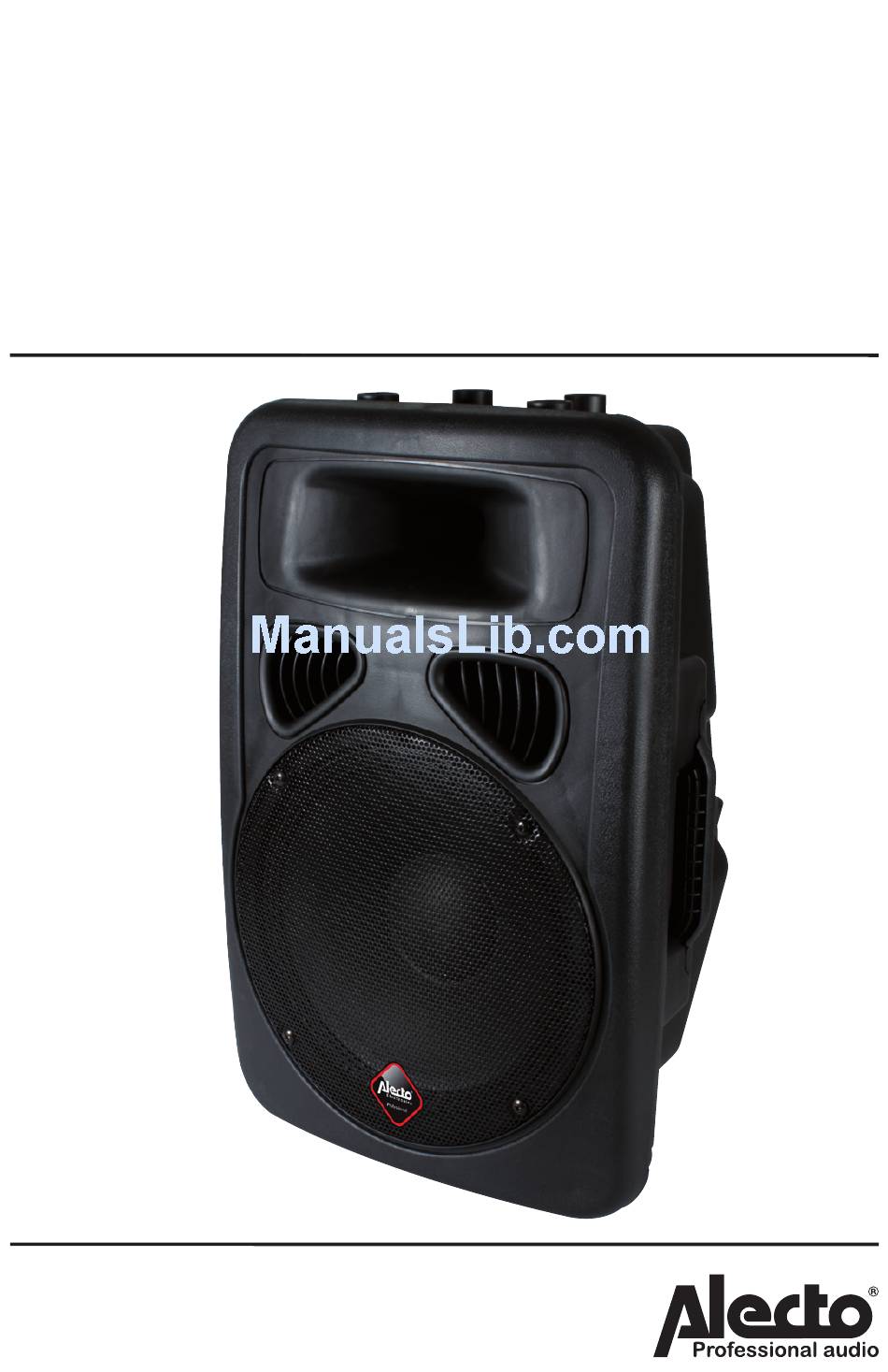

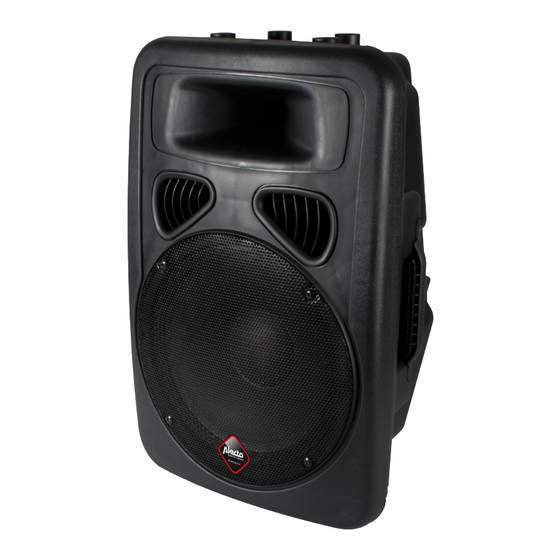

  • Page 1 USER’S MANUAL MPA-BOX ACTIVE ANNOUNCEMENT SYSTEM...
  • Page 2 Tripod Tripod is optional 1: height tube 2: retainer 3: height tube lock nut 4: tripod feet locknut...
  • Page 3 FUNCTIES 1. Heat-sink of the amplifier. Please keep unobstructed, may become hot. 2. MIC XLR input for microphone (symmetrical). 3. Volume control for MIC input. 4. 6.3mm jack MIC input for microphone (symmetrical). 5. Volume control for LINE IN input. 6. Stereo cinch connection input LINE IN (AUX). The amplifier converts the stereo signal into mono. 7. Master volume control for adjusting the total volume. 8. LINE IN XLR input for line signals (symmetrical). 9. Treble control. 10. 6.3mm jack output (symmetrical). Signal for an external device. 11. Bass control. 12. Power LED. Power indication. 13. CLIP LED. Illuminates at maximum power output. 14. Power switch. 15. 230V mains power input. WARNING / MAINTENANCE GENERAL: • Carefully read the user’s manual and follow all directions.

  • Page 4: Before Use

    BEFORE USE The MPA-BOX functions on the mains. MAINS POWER: Only connect the MPA-BOX to a mains power of 230 Volt. In most European countries, the mains operates on 230 Volts. Use the supplied power cord to connect the MPA-BOX with the mains. SPEAKER SETUP POWER SWITCH: Use the power switch to turn the speaker on and off. MASTER VOLUME (lower level button): The master volume control allows you to control the total volume level of the set. When this volume control is switched off (counter-clockwise), the set will not produce any sound. ATTENTION: Turn this control fully counter-clockwise before switching on the set to prevent the volume level from being too high. Separate equipment can be connected tot the MPA-BOX, e.g. a DVD player (ka- raoke), mini disk player or separate MP3 player. These devices must be provided with a line output. Use a suitable cable (not included) to connect these devices to the LINE IN input, the AUX input of the set. MIC VOLUME CONTROL (microphone) (upper level button): An external microphone or electric device with cables can be connected to the “MIC input” (XLR) (balanced/symetrical) and (Jack) (balanced/symmetrical).

  • Page 5: Optionally Available

    OPTIONALLY AVAILABLE EXTRA LSPEAKER: It’s possible to connect the MPA-BOX as an additional speaker to the MPA series. In this case, the signal comes from the MPA series speaker which already has a built-in audio source. Use the supplied signal cable to connect the twee speakers as below. The MPA-BOX can be ordered as an extra speaker for the MPA series. The MPA-BOX operates on 230V mains power, i.e. mains power must be present. The input of the MPA-BOX has two different input connections. This means you can use a XLR plug or a Jack plug CONNECTION OVERVIEW FOR THE ALECTO MPA series: POWER VOLUME VOLUME TREBLE BASS AUX/IPOD MASTER MPA series 1 = ground /shielding 2 = hot (+) 3 = cold (-)
  • Page 6 ENVIRONMENT: • The packaging of this telephone can be collected as old paper(except styrofoam and plastic). However, we recommend you to save it, to adequately protect the phone during transport. • When replacing this telephone, please return it to the supplier to ensure environment-friendly processing. CONNECTION DETAILS BALANCED/UNBALANCED Stereo headphones: balanced mono: unbalanced mono: Tip is left signal Tip is signal Tip is signal + Ring is right signal Ring is signal - Sleeve is mass, Sleeve is mass, Sleeve is mass, earth or shielding earth or shielding...

  • Page 7: Technical Specifications

    500mA 230V Bass speaker: 10” Treble driver: 34mm Frequency range: 50-17000 Hz RMS/MAX: 50/100Watts Dimensions: 350 x 340 x 520mm WARRANTY Name: Attach here Address: your receipt Post code / City: or voucher Model / Serial: For the Alecto MPA-BOX you have a warranty of 24 months from the date of purchase. During this period, we guarantee the free repair of defects caused by material and workmanship errors. All this subjected to the final assessment of the importer. HOW TO HANDLE: If you notice any defect, first refer to the user’s manual. Please contact the supplier of this telephone or contact customer service of Alecto: http://www.alecto.nl Telephone number +31 (0)73 6411 355. THE WARRANTY BECOMES NULL AND VOID: In case of improper use, incorrect connections, leaking and/or incorrectly installed batteries, use of unoriginal parts or accessories, negligence and in case of defects caused by moisture, fire, flooding, lightning and natural disasters. In case of unauthorised modifications and/or repairs performed by third parties. In case of incorrect transportation of the device without adequate packaging and when the device is not accompanied by this warranty card and proof of purchase. The warranty does not cover connecting cables, plugs and batteries. All further liability, especially concerning any consequential damages, is excluded.
  • Page 8 Service Help WWW.ALECTO.NL SERVICE@ALECTO.NL NL 073 6411 355 (Lokaal tarief) BE 03 238 5666 (Lokaal tarief) (Tarif local) DE 0180 503 0085 Lokale Festnetzkosten Hesdo, Australiëlaan 1 5232 BB, ‘s-Hertogenbosch The Netherlands WWW.ALECTO.NL Service SERVICE@ALECTO.NL NL 073 6411 355 (Lokaal tarief)
