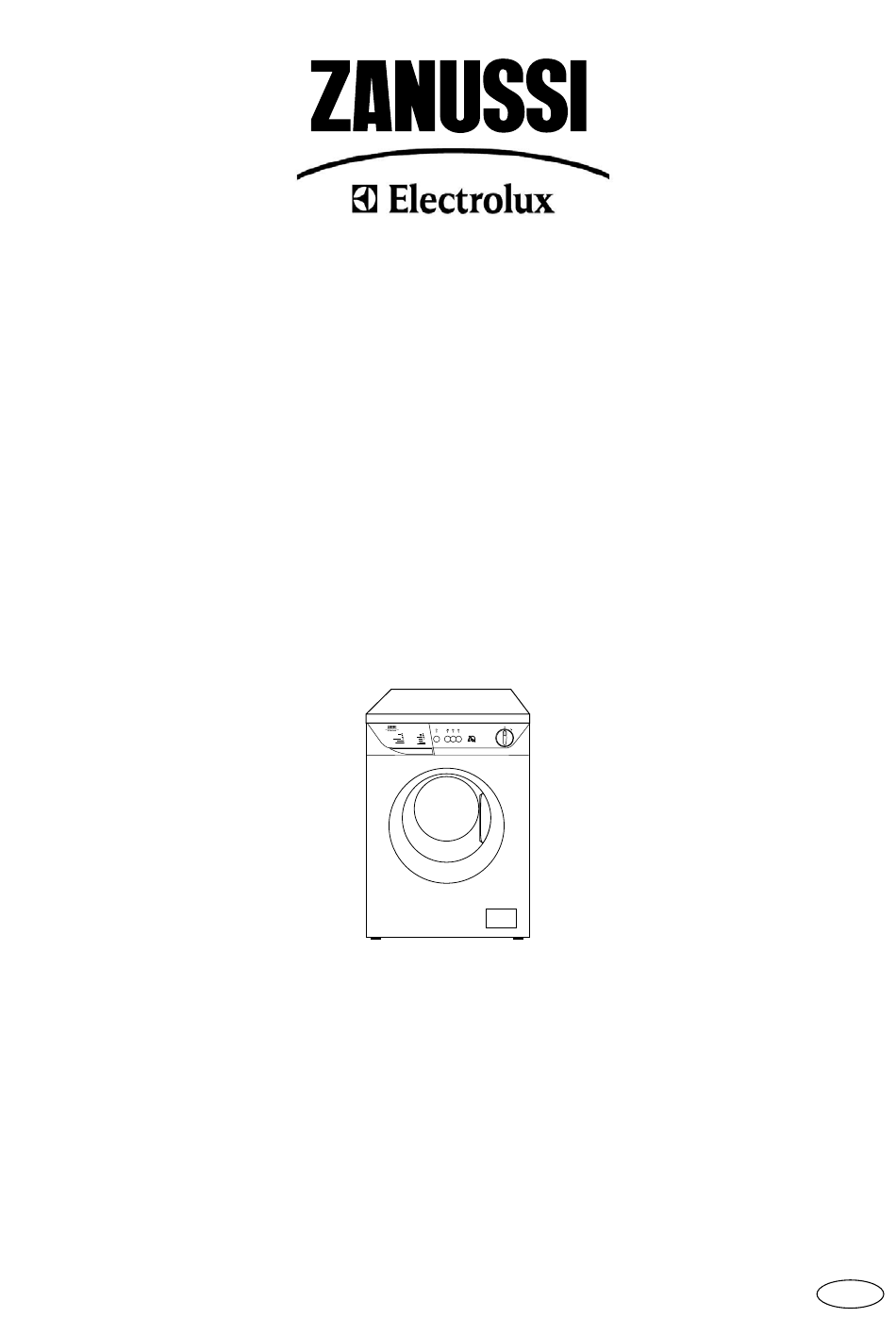

132992240
WASHING MACHINE
F1045 W
F1245 W
INSTRUCTION BOOKLET
AQUACYCLE 1000
F 1045W
H
ON-OFF
SPIN
HALF
FAST COLOUREDS
C
MIXED FABRICS
QUICK
D
REDUCTION
WASH
LOAD
NON FAST COLOUREDS
WOOL CARE
L
WHITES + PREWASH
A
DELICATES
M
WHITES
B
WORN ONCE
J
N
HAND RINSES
F
FRESHEN UP
LONG SPIN
SHORT SPIN
K
G
DRAIN
P
GB
Advertisement
Table of Contents
Related Manuals for Electrolux Zanussi F1045 W
Summary of Contents for Electrolux Zanussi F1045 W
- Page 1 WASHING MACHINE F1045 W F1245 W AQUACYCLE 1000 F 1045W ON-OFF SPIN HALF FAST COLOUREDS MIXED FABRICS QUICK REDUCTION WASH LOAD NON FAST COLOUREDS WOOL CARE WHITES + PREWASH DELICATES WHITES WORN ONCE HAND RINSES FRESHEN UP LONG SPIN SHORT SPIN DRAIN INSTRUCTION BOOKLET 132992240...
-
Page 2: Important Safety Information
Important Safety Information It is most important that this instruction book should be retained with the appliance for future reference. Should the appliance be sold or transferred to another owner, or should you move house and leave the appliance, always ensure that the book is supplied with the appliance in order that the new owner can get to know the functioning of the appliance and the relevant warnings. -
Page 3: Table Of Contents
Contents For the User For the Installer Important Safety Information Installation Instructions Your New Washing Machine Technical Specifications Description of the Appliance Unpacking Detergent dispenser drawer Positioning Water inlet Child safety feature Water drainage 23-24 The Control Panel Levelling Special conditions Operating sequence 7-10 In the interest of the environment... -
Page 4: Your New Washing Machine
Your New Washing Machine Your new washing machine meets all modern requirements for effective treatment of laundry with low water, energy and detergent consumption. Automatic cooling of the wash water to 60°C In the interest before draining, with the 95°C programme. This of the environment reduces thermal shock to fabrics, helping to prevent creasing. -
Page 5: Description Of The Appliance
Description of the Appliance 1 Detergent dispenser drawer 2 Programme guide 3 “Mains-on” light 4 ON/OFF button AQUACYCLE 1000 F 1045 W FAST COLOUREDS MIXED FABRICS ON-OFF SPIN QUICK HALF REDUCTION WASH LOAD NON FAST COLOUREDS WOOL CARE WHITES + PREWASH DELICATES WHITES WORN ONCE... -
Page 6: The Control Panel
The Control Panel PROGRAMME F 1045 W AQUACYCLE 1000 ON-OFF SPIN HALF QUICK REDUCTION LOAD WASH FAST COLOUREDS MIXED FABRICS NON FAST COLOUREDS WOOL CARE WHITES + PREWASH DELICATES WHITES WORN ONCE HAND RINSES FRESHEN UP ANUSSI UALITY LONG SPIN SHORT SPIN DRAIN 2 3 4 5 6... -
Page 7: Operating Sequence
Operating Sequence 3. Measure out the fabric Before the first wash, we recommend that you pour 2 litres of water into the main wash compartment softener the detergent drawer in order to activate the ECO valve. If required, pour fabric softener into the compartment Then run a cotton cycle at 60°C, without any laundry in marked (the amount used must not exceed the... -
Page 8: Start The Machine
6. Start the machine Before starting up the machine check that: the appliance is plugged in the water supply taps are turned on the drain hose is correctly and securely positioned the door and the detergent dispenser drawer are closed. Depress the ON/OFF button: the mains-on light will illuminate and the machine starts operating. -
Page 9: Washing 2 Kg Of Mixed Fabrics At 50°C
WASHING 2 KG OF MIXED FABRICS AT 50°C Suppose you have 2 kg of Mixed fabrics to wash. They are rather delicate fabrics and should not be washed at a 4. Select the required option high temperature. Depress the QUICK WASH or SPIN REDUCTION button if required. -
Page 10: At The End Of The Programme
7. At the end of the programme After the last rinse, the machine stops with the water left in the wash tub, to prevent the fabric from creasing. To drain the water, select programme “K” (short spin) or “P” (drain). The door is controlled by a safety device which releases 2 minutes after the end of the programme. -
Page 11: Washing Hints
Washing Hints Do NOT overload the machine. Weigh the laundry the For wool, use gentle detergent only in small first few times you use the appliance. quantities. Bleach is very corrosive; it should be used with care The average weights of the most common items are and kept out of reach of children. -
Page 12: Which Detergent
And in which form? Which detergent?..Not only are there different types of detergent, but they To ensure you obtain the best wash results from your are also available in different forms. Whether you chose appliance, it is important to use the right detergent in a powder or liquid in traditional or compact form is your everyday wash, and only detergents recommended your own personal choice. -
Page 13: Wash Care Symbols
Wash Care Symbols Wash care labels inside garments recommend how to launder your clothes with the best results. The care labelling code is in line with care labelling used in the rest of Europe. The symbols used make it easy to select the correct programme on your washing machine. -
Page 14: Washing Programmes
Washing Programmes Programmes for cotton and linen Progr. Wash programme/ Degree of soil Programme Possible time Description Washing symbol and type of laundry dial position options Load mins. Prewash at 40 °C WHITES QUICK WASH For heavy soiled cotton Wash at 95°C 4.5 kg HALF LOAD items. - Page 15 Washing Programmes Programmes for synthetics, mixed fabrics, delicates and wool Progr. Wash programme/ Degree of soil Programme Possible time Description Washing symbol and type of laundry dial position options Load mins. Synthetic or mixed Wash at 50 °C fabrics, underwear, QUICK WASH MIXED 3 rinses...
-
Page 16: Maintenance And Cleaning
Maintenance and Cleaning Before any maintenance or cleaning is carried out you must DISCONNECT the appliance from the electricity supply. Descaling The water we use normally contains lime. It is a good idea to periodically use a water softening powder in the C0073 C0072 machine. -
Page 17: The Dangers Of Freezing
• When no more water comes out, unscrew the pump Clean the filters using a hard bristle brush. cover and remove it. Always keep a rag nearby to dry Tighten up the inlet hoses. up spillage of water when removing the cover. P1090 P1115 The dangers of freezing... -
Page 18: Something Not Working
Something Not Working Certain problems are due to lack of simple maintenance or oversights, which can be solved easily without calling out an engineer. Before contacting your local Service Force Centre, please carry out the checks listed below. IMPORTANT: if you call out an engineer to a fault listed below, or to repair a fault caused by incorrect use or installation, a charge will be made even if the appliance is under guarantee. -
Page 19: Service And Spare Parts
For general enquiries concerning your Zanussi Before calling out an engineer, please ensure you have Electrolux appliance or for further information on read the details under the heading “Something Not Zanussi Electrolux products, please contact our Working”. -
Page 20: Guarantee Conditions
Standard guarantee conditions Exclusions This guarantee does not cover: We, Zanussi Electrolux, undertake that if, within 12 months of the date of the purchase, this ZANUSSI Damage or calls resulting from transportation, ELECTROLUX appliance or any part thereof is proved... -
Page 21: Installation Instructions
Installation Instructions It is dangerous to alter the specifications or attempt to modify this product in any way. Care must be taken to ensure that the appliance does not stand on the electrical supply cable. Any electrical work required to install this appliance should be carried out by a qualified electrician or competent person. -
Page 22: Unpacking
Unpacking Fill all the holes with the plastic plugs supplied with the instruction booklet. All transit bolts and packing must be removed before using the appliance. You are advised to keep all the packaging for re-use in case the machine is to be transported again. Using a spanner unscrew and remove the two rear bottom screws. -
Page 23: Water Inlet
Water inlet Water drainage The inlets on the back of the appliance are colour coded, This appliance is designed to be permanently plumbed blue for cold and red for hot. into your home's water supply and drainage system. Connect the hoses to a tap with a 3/4” thread. The appliance drain hose should hook into a standpipe, the hook in the drain hose is formed using the plastic Do not use already employed inlet hoses. -
Page 24: Levelling
Special conditions If you intend the drain hose to empty into a sink, make sure that the sink is empty and the plug hole is not If the floor is carpeted or covered with crumbly or soft blocked. Use the plastic “U-Piece” supplied. material, insert a rigid support base under the feet to prevent noise, vibration or displacement. -
Page 25: Electrical Connection
Electrical connection The wire coloured brown must be connected to the terminal marked «L» or coloured red. Any electrical work required to install this appliance Upon completion there must be no cut, or stray strands should be carried out by a qualified electrician or of wire present and the cord clamp must be secure over competent person. - Page 26 From the Electrolux Group. The world’s No. 1 choice The Electrolux Group is the world's largest producer of powered appliances for kitchen, cleaning and outdoor use. More than 55 million Electrolux Group products (such as refrigerators, cookers, washing machines, vacuum cleaners, chain saws and lawn mowers) are sold each year to a value of approx.
