Instructions for use
Refrigerator with freezer
KD84178BF
KD84178BFC

Advertisement

Table of Contents
loading

Related Manuals for Atag KD84178BF

Summary of Contents for Atag KD84178BF

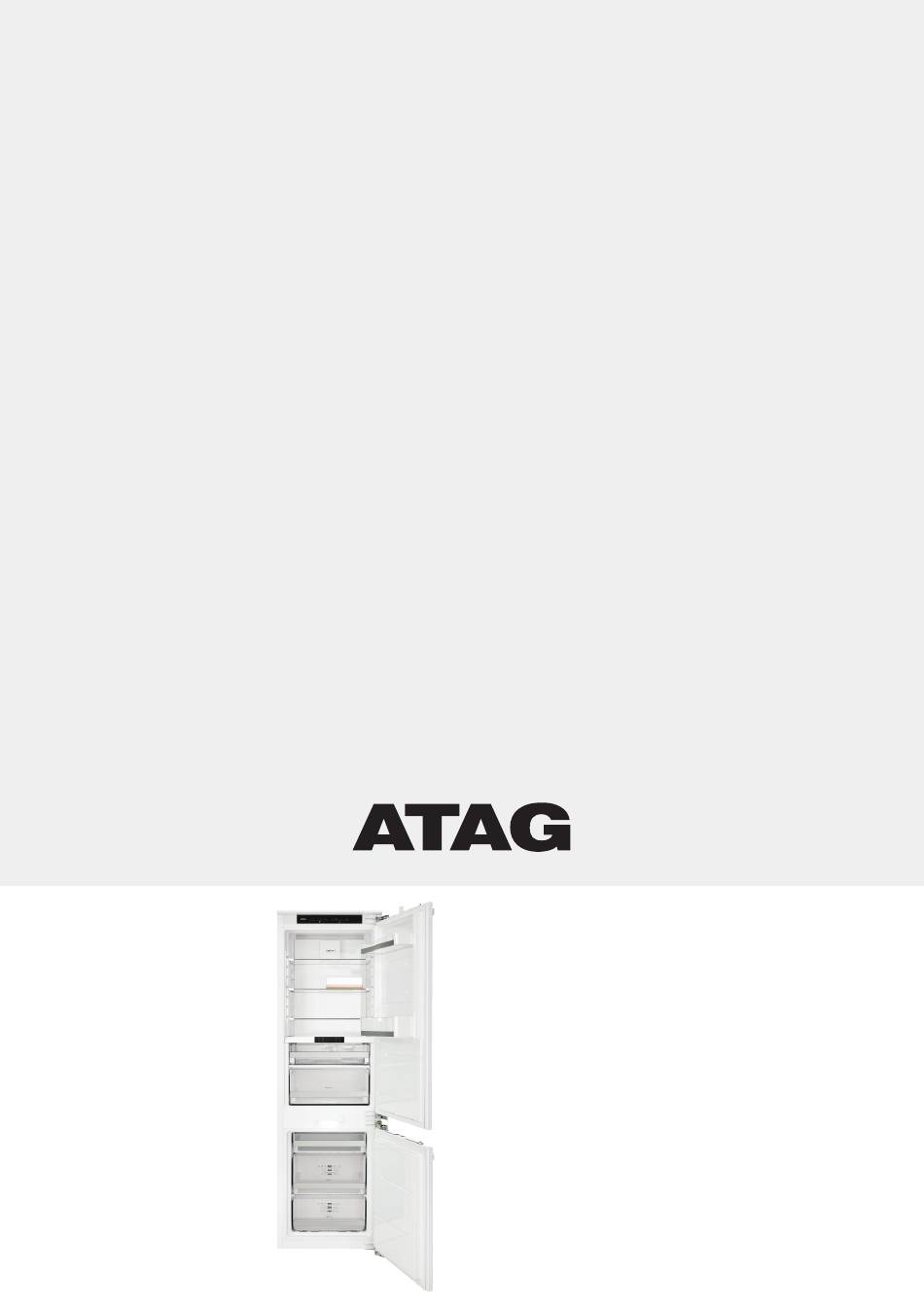

  • Page 1 Instructions for use Refrigerator with freezer KD84178BF KD84178BFC...

  • Page 2: Table Of Contents

    CONTENTS Your refrigerator with freezer Introduction Safety instructions Installation and connection Selecting the location Connecting the appliance Changing the side on which the door opens / building the appliance into a cupboard Before using the appliance for the first time Before you use the appliance for the first time Energy-saving advice Description of the appliance...
  • Page 3 CONTENTS Storing and freezing food Recommended distribution Avoid contamination of food Storing fresh food in the refrigerator Freezing and storing foods in the freezer Thawing frozen food Maintenance Defrosting the appliance Cleaning the appliance Faults Faults table Environmental aspects Disposal of packaging and appliance Pictograms used Important information EN 3...

  • Page 4: Your Refrigerator With Freezer

    YOUR REFRIGERATOR WITH FREEZER Introduction Congratulations on choosing this Atag refrigerator with freezer. This product is designed with simple operation and optimum comfort in mind. These instructions for use explain how you can make best use of this appliance. These instructions contain information about the operation of the appliance and background information that may be of help to you during its use.

  • Page 5: Safety Instructions

    SAFETY INSTRUCTIONS Before the installation and use of the appliance, carefully read the supplied instructions. The manufacturer is not responsible if an incorrect installation and use causes injuries and damages. Always keep the instructions with the appliance for future reference. Safety of children and vulnerable people •...
  • Page 6 SAFETY INSTRUCTIONS General safety • The lamp in this household appliance is only suitable for illumination of this appliance. The lamp is not suitable for household room illumination. • WARNING! This appliance is intended to be used in household and similar applications such as –...
  • Page 7 SAFETY INSTRUCTIONS Installation • WARNING! This appliance should only be connected by a registered installer. • Remove all the packaging. • Do not install or use a damaged appliance. • Obey the installation instruction supplied with the appliance. • Always be careful when you move the appliance because it is heavy.
  • Page 8 SAFETY INSTRUCTIONS Electrical connection • WARNING! Risk of fire and electrical shock. • The appliance must be earthed. • All electrical connections should be made by a qualified electrician. • Make sure that the electrical information on the rating plate agrees with the power supply.
  • Page 9 SAFETY INSTRUCTIONS • WARNING! Risk of injury, burns, electrical shock or fire. • Do not change the specification of this appliance. • Do not put electrical appliances (e.g. ice cream makers) in the appliance unless they are stated applicable by the manufacturer.
  • Page 10 SAFETY INSTRUCTIONS Disposal • WARNING! Risk of injury or suffocation • Disconnect the appliance from the mains supply. • Cut off the mains cable and discard it. • Remove the door to prevent children and pets to be closed inside of the appliance. •...

  • Page 11: Installation And Connection

    INSTALLATION AND CONNECTION Selecting the location • Place the appliance in a dry and well aired room. The permitted ambient temperature range for the appliance depends on the appliance's climate class, which is shown on the type plate. • Do not place the appliance near a source of heat, such as a gas cooker, radiator or boiler, etc., and do not expose it to direct sunlight.

  • Page 12: Connecting The Appliance

    INSTALLATION AND CONNECTION • The appliance must be placed at a distance of about 5 cm from the wall, back and sides of a cupboard. A kitchen cupboard above the refrigerator must have a gap of at least 5 cm between the back of the cupboard and the wall.

  • Page 13: Changing The Side On Which The Door Opens / Building The Appliance Into A Cupboard

    INSTALLATION AND CONNECTION Freeze burn hazard To avoid freeze burn, never put frozen food in your mouth and do not touch frozen food. In the event of a defect or power cut, do not open the freezer compartment unless the appliance has been out of operation for more than the hours indicated on the appliance’s type plate (temperature rise time).

  • Page 14: Before Using The Appliance For The First Time

    BEFORE USING THE APPLIANCE FOR THE FIRST TIME Before you use the appliance for the first time Do not connect the appliance to the mains until you have carefully read the instructions for the correct and safe use of the appliance. As these instructions are for various types and models, it is possible that the instructions for use refer to settings or parts that are not available on your appliance.

  • Page 15: Description Of The Appliance

    DESCRIPTION OF THE APPLIANCE Appliance Refrigerator 1. Control panel 2. CoolFlow+ 3. Glass shelves 4. Wooden bottle rack (BottleTray) 5. DuraFresh control panel 6. DuraFresh drawers 7. Door compartments Freezer 8. Freezer drawers 9. Glass shelf Best location for freezing fresh food. CoolFlow+ This system creates optimal air circulation to keep the temperature constant throughout the entire refrigerator compartment.
  • Page 16 DESCRIPTION OF THE APPLIANCE Drawers A number of drawers are mounted on fully extending telescopic rails and are fitted with a soft-close system. To remove a drawer from the rails, pull the drawer fully out. Lift the back of the drawer (1). Pull the drawer to you (2) and then lift the drawer from the rails.
  • Page 17 DESCRIPTION OF THE APPLIANCE Wooden bottle rack (BottleTray) Lay the bottle rack on one of the glass shelves and put the bottles on the rack. The rack is shaped to stop the bottles rolling sideways. The rack holds a maximum of three bottles or six cans. Ice cube tray (IceTray) To make ice cubes, fill the tray with water and lay it horizontally in the freezer.

  • Page 18: Control Panel

    Switch on the appliance (short touch); both compartments are turned on. ▷ Switch off the refrigerator compartment (touch for three seconds). B. Alarm key / WiFi key (depends on model, see also ‘Atag Connect Life’) C. SuperCool key (intensive cooling function) D. Temperature adjustment keys (refrigerator compartment) E.

  • Page 19: Durafresh Control Panel

    Some appliances can be controlled remotely using a smartphone or tablet. These appliances are equipped with a WiFi key. Instructions on making the connection are given in separate instructions for use (Atag Connect Life). References in these instructions to the alarm key that begins to flash are not applicable to the WiFi key.

  • Page 20: Operating The Appliance

    OPERATING THE APPLIANCE Switching on all compartments and setting the temperature 1. Touch the On/Off key of the refrigerator compartment. All compartments turn on. ▷ 2. Use the adjustment keys to adjust the temperature of the compartments. The temperature of the refrigerator compartment can be set to between +3 °C and +8 °C. The temperature of the top DuraFresh drawer can be set to -2, 0, 2 or 5 °C.

  • Page 21: Switching Only The Refrigeration And Durafresh Compartments Off

    OPERATING THE APPLIANCE Switching only the refrigeration and DuraFresh compartments off 1. Touch the On/Off key of the refrigerator compartment for three seconds. ▷ The refrigerator compartment and DuraFresh compartment turn off. The freezer compartment is not turned off. DuraFresh The DuraFresh refrigeration system keeps food fresh for longer.
  • Page 22 OPERATING THE APPLIANCE Selecting the temperature in the DuraFresh drawers The temperature of the top DuraFresh drawer can be set to -2, 0, 2 or 5 °C. The temperature of the bottom drawer depends on the temperature setting of the top drawer and is about 1 to 2 °C higher.
  • Page 23 OPERATING THE APPLIANCE Storing food in the DuraFresh drawers Meat Temperature, °C Storage life Beef 0 to 4 to 3 weeks Pork -1 to 4 3 days Poultry 0 to 4 3 days Lamb 0 to 4 14 days Fish 0 to 4 3 to 10 days Fish, molluscs and crustaceans...

  • Page 24: Intensive Cooling (Supercool)

    OPERATING THE APPLIANCE Intensive cooling (SuperCool) This appliance has an intensive cooling function. This function decreases the temperatures in the refrigeration compartment and DuraFresh compartment as quickly as possible. This is ideal for cooling products that have just been put into the refrigerator. Use this function when you put a large quantity of food in the appliance.

  • Page 25: Intensive Freezing (Fastfreeze)

    OPERATING THE APPLIANCE Intensive freezing (FastFreeze) This appliance has an intensive freezing function. This function decreases the temperature in the freezer compartment as quickly as possible. Activate this function 24 hours before you put a large quantity of fresh food in the appliance. When the intensive freezing function is selected, the appliance works at maximum capacity.

  • Page 26: Eco Function

    OPERATING THE APPLIANCE ECO function This appliance has an ECO function. When the ECO function is selected, the appliance works with the optimum settings. These settings are shown in the displays (5 °C / 2 °C / -18 °C). The ECO function has no time limit and remains activated until the function is disabled.

  • Page 27: Open Door Alarm

    OPERATING THE APPLIANCE Open door alarm An alarm signal sounds when a compartment door is open for too long. The alarm key flashes in the display. The lighting of the relevant compartment will begin to flash after a few minutes. Stopping the alarm 1.

  • Page 28: Power Failure Alarm

    OPERATING THE APPLIANCE Power failure alarm The appliance cannot cool/freeze during a power failure. Once the power has been restored, the temperature in the appliance will be measured. A signal will sound when the temperature in the appliance is too high. The alarm key will flash and ‘PF’ (Power Failure) will be shown in the relevant display.
  • Page 29 STORING AND FREEZING FOOD Recommended distribution Sections of the refrigeration compartment • Upper section: canned food, bread, wine and pastas, etc. • Middle section: dairy products, ready-to-cook meals, desserts, soft drinks, beer and cooked food, etc. • DuraFresh drawers: meat, meat products, dairy products, delicatessen products, fresh fruit, vegetables, root vegetables, salads, onions, garlic, cabbage and swedes/turnips, etc.
  • Page 30 STORING AND FREEZING FOOD Avoid contamination of food To avoid contamination of food, please respect the following instructions: • Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance. • Regularly clean surfaces that can come in contact with food and accessible drainage systems.
  • Page 31 STORING AND FREEZING FOOD Freezing and storing foods in the freezer Important recommendations for freezing fresh food • The maximum quantity of food that you can put in the freezer in one go is stated on the type plate. Putting more than this maximum quantity of food into the freezer will slow the freezing process and reduce the quality.
  • Page 32 STORING AND FREEZING FOOD Recommended storage times of frozen food in the freezer Type of food Storage life Fruit, beef 10 to 12 months Vegetables, veal, poultry 8 to 10 months Venison 6 to 8 months Pork 4 to 6 months Finely chopped or minced meat 4 months Bread, pastas, cooked dishes, whitefish...
  • Page 33 MAINTENANCE Defrosting the appliance Automatic defrost of the refrigeration compartment The refrigeration compartment defrosts automatically from time to time. Defrosting of the NoFrost freezer The NoFrost freezer defrosts automatically. Any frost deposits will then disappear. Any ice or frost deposits that nevertheless form in the freezer compartment can be caused by unusual use of the appliance (opening the door too often and too long or poorly sealing door, etc.).
  • Page 34 MAINTENANCE Cleaning the appliance Switch off the appliance and remove the plug from the socket before you start cleaning it. Do not use abrasive cleaning agents, as they can damage the surface. Activate the intensive freezing function 24 hours before you plan to clean the freezer. •...
  • Page 35 FAULTS Faults table When you have any doubts about whether your appliance is working properly you should not immediately assume that it is defective. We recommend that you should in any case check the points in the following table. Problem Cause/Solution Appliance is Check that the socket is live and that the appliance is switched on.
  • Page 36 FAULTS Problem Cause/Solution Alarm key and/or • The door has been opened for too long or too frequently. temperature • The door does not seal properly (the seal is dirty, the door is display flashing. misaligned or the seal is damaged, etc.). •...
  • Page 37 FAULTS Problem Cause/Solution Error code E1, E2 A temperature sensor is defective. Call the service centre to make an or E3 shown in the appointment for repair work. The appliance operates in the safe mode display. until it has been repaired. The appliance automatically retains the most suitable temperature for each compartment.
  • Page 38 ENVIRONMENTAL ASPECTS Disposal of packaging and appliance This appliance is made from sustainable materials. This appliance must be disposed of in a responsible manner at the end of its service life. Contact the local authorities for information about the method. See also the chapter ‘Disposal’...
  • Page 39 EN 39...
  • Page 40 *600107* 600107...
