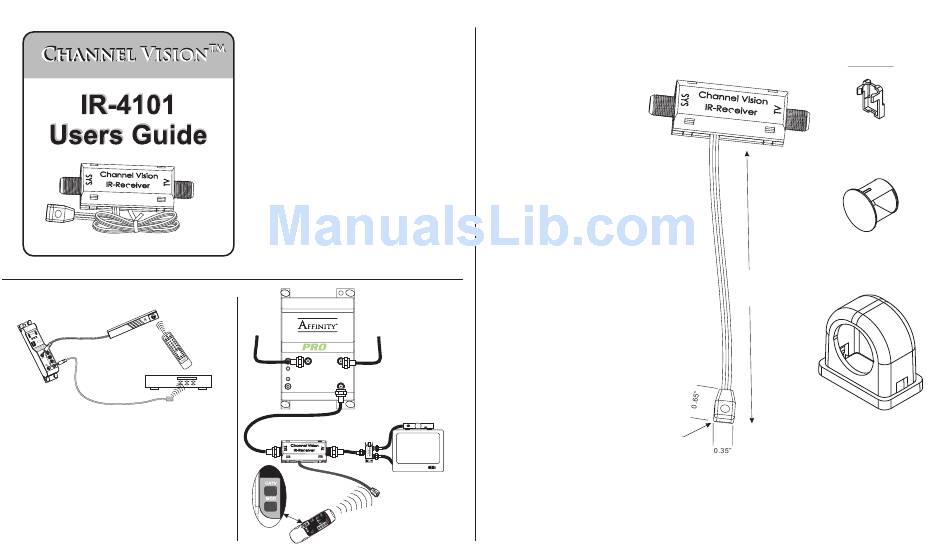

Channel Vision IR Reciever IR-4101 User Manual

How IR repeating works
The IR receiver is wired to
the IR hub which routes the
IR remote control
signal to IR emitters
at the IR receiver
And the emitter CD player
repeats the IR signal
in the other room.
Be sure the emitter is attached directly over the component's IR receiver.
To locate the IR receiver, shine a flashlight into the unit and look for the
sensor.
Specifications: (typical)
Voltage Requirements: 8 - 12 VDC
IR Freq. range supported: 30 kHz - 60 kHz
IR pickup range: 40 ft. @ 38kHz, 25 ft. @ 56kHz
IR receiver head dimensions: 0.65" x 0.35" x 0.25"
Color: Black
Specifications subject to change without notice.
CHANNEL VISION
Limited Warranty
Channel Vision Technology will repair or replace any defect in material or
workmanship which occurs during normal use of this product with new or rebuilt
parts, free of charge in the USA, for two years from the date of original purchase.
This is a no hassle warranty with no mail in warranty card needed. This warranty
does not cover damages in shipment, failures caused by other products not
supplied by Channel Vision Technology, or failures due to accident, misuse,
abuse, or alteration of the equipment. This warranty is extended only to the
original purchaser, and a purchase receipt, invoice, or other proof of original
purchase date will be required before warranty repairs are provided.
Mail in service can be obtained during the warranty period by calling (800) 840-
0288 toll free. A Return Authorization number must be obtained in advance and
can be marked on the outside of the shipping carton.
This warranty gives you specific legal rights and you may have other rights
(which vary from state to state). If a problem with this product develops during or
after the warranty period, please contact Channel Vision Technology, your dealer
or any factory-authorized service center.
Using the IR-4101 & P-0321
P-0321
Point an
Input from
Input from
CATV
Modulator
C C H A N N E L H A N N E L Model
V V I S I O N I S I O N P-0321
Pat. Pending TM TM
Power CATV Input MOD Input
IR Out
Output
IR-4101
A0502
CATV - Selects the CATV input on the P-0321
MOD - Selects the modulator input on the P-0321
The IR-4101 is an IR coax adaptor that works with
Channel Vision's IR coax engine to enable the
transmission of Infrared remote control signals onto
the same coax cable that delivers your cable TV.
Channel Vision's IR coax engine can be found in the
following products: IR-4000, E2200IR, E3200IR,
E4200IR, and P-0321.
500-167 rev A1
Digital CATV Box
Features:
!
Plasma Proof IR receiver
! Compatible with: IR-4000, E2200IR, E3200IR, E4200IR, & P-0321
!
Versatile mounting accessaries: Install as
TV set
Very small receiver
In-cabinet tube type receiver
Unobtrusive desktop type receiver
The IR-4101 includes these items:
1 - IR coax adaptor with IR receiver
36"
IR receiver head
Accessories
1 - IR receiver holster
1 - hole mount
1 - tabletop mount
