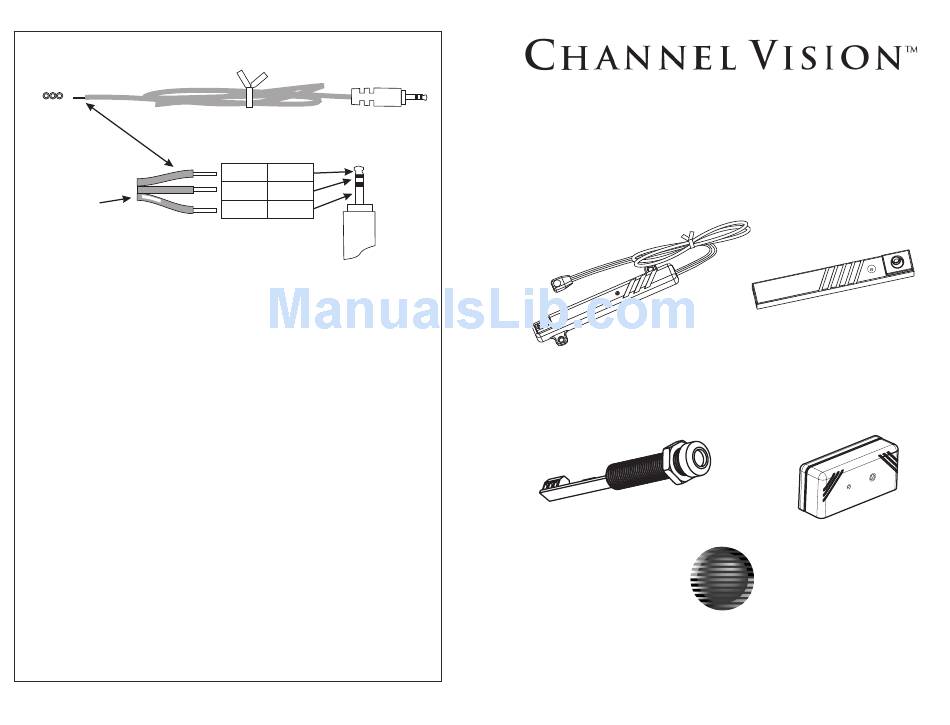

IR receiver wire pinout
End view
ribbon cable
+V
(white dash)
Specifications: (typical)
Power Supply Voltage:
IR Frequency range supported:
*Max. wire distance from IR hub:
IR pickup range:
Specifications subject to change without notice.
*To extend wire, simply cut and splice in a longer 3-conductor wire (Cat5
will work). Be sure to follow the wiring configuration above.
CHANNEL VISION
Limited Warranty
Channel Vision Technology will repair or replace any defect in material or workmanship which
occurs during normal use of this product with new or rebuilt parts, free of charge in the USA, for
two years from the date of original purchase. This is a no hassle warranty with no mail in warranty
card needed. This warranty does not cover damages in shipment, failures caused by other
products not supplied by Channel Vision Technology, or failures due to accident, misuse, abuse,
or alteration of the equipment. This warranty is extended only to the original purchaser, and a
purchase receipt, invoice, or other proof of original purchase date will be required before
warranty repairs are provided.
Mail in service can be obtained during the warranty period by calling (800) 840-0288 toll free. A
Return Authorization number must be obtained in advance and can be marked on the outside of
the shipping carton.
This warranty gives you specific legal rights and you may have other rights (which vary from
state to state). If a problem with this product develops during or after the warranty period, please
contact Channel Vision Technology, your dealer or any factory-authorized service center.
Typical IR receiver
connections (ref only)
Sig
Tip
Gnd
Collar
Ring
+V
8 - 12 VDC
38 kHz - 56 kHz
200 ft. (24 AWG)
40 ft. - 38kHz (25 ft. - 56kHz)
500-080 rev D
