Channel Vision IR-5000 User Manual

How IR repeating works
The IR receiver is wired to
the IR hub which routes the
signal to IR emitters
Point an
IR remote control
at the IR receiver
And the emitter
CD player
repeats the IR signal
in front of the component.
Be sure the emitter is attached directly over the component's IR receiver.
To locate the IR receiver, shine a flashlight into the unit and look for the
sensor.
CHANNEL VISION
Limited Warranty
Channel Vision Technology will repair or replace any defect in material or
workmanship which occurs during normal use of this product with new or rebuilt
parts, free of charge in the USA, for two years from the date of original purchase.
This is a no hassle warranty with no mail in warranty card needed. This warranty
does not cover damages in shipment, failures caused by other products not
supplied by Channel Vision Technology, or failures due to accident, misuse,
abuse, or alteration of the equipment. This warranty is extended only to the
original purchaser, and a purchase receipt, invoice, or other proof of original
purchase date will be required before warranty repairs are provided.
Mail in service can be obtained during the warranty period by calling (800) 840-
0288 toll free. A Return Authorization number must be obtained in advance and
can be marked on the outside of the shipping carton.
This warranty gives you specific legal rights and you may have other rights
(which vary from state to state). If a problem with this product develops during or
after the warranty period, please contact Channel Vision Technology, your dealer
or any factory-authorized service center.
Specifications
Specifications: (typical)
Power Supply Voltage: 8 - 12 VDC
IR Freq. range supported: 30 kHz - 60 kHz
IR pickup range: 40 ft. @ 38kHz, 25 ft. @ 56kHz
IR receiver head dimensions: 0.65" x 0.35" x 0.25"
IR emitter outputs: 4
Color: Black
Specifications subject to change without notice.
1 - hole mount
500-149 rev B
IR receiver head

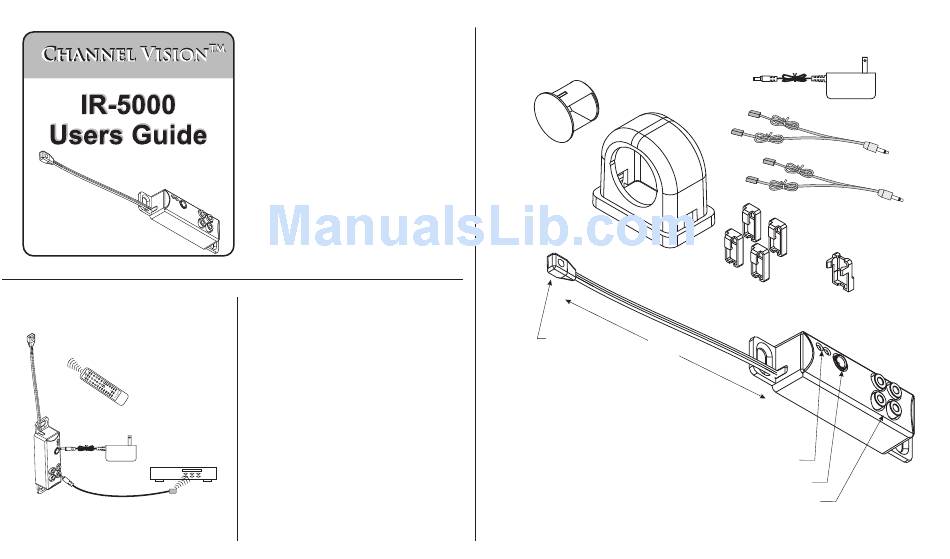

Features:
!
Plasma Proof IR receiver
!
4 IR emitters
!
Status LEDs for power and IR signal indication
!
Versatile mounting accessories included
The IR-5000 includes these items:
1 - tabletop mount
4 - IR emitter holsters
36"
LED Status indicators:
Power and IR data
DC Power input
4 IR emitter outputs
Power supply
2 - IR-3002 emitters
1 - IR receiver holster
