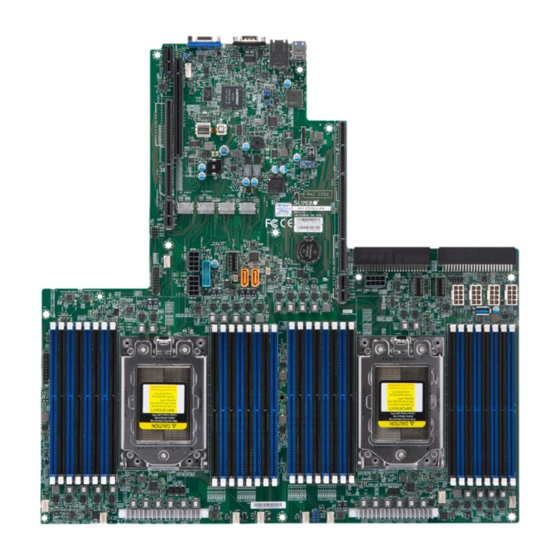

Supermicro H11DSU-iN User Manual
  1. Manuals
  2. Brands
  3. Supermicro Manuals
  4. Motherboard
  5. H11DSU-iN
  6. User manual

Supermicro H11DSU-iN User Manual

Hide thumbs Also See for H11DSU-iN:
Table of Contents

Advertisement

Quick Links

Download this manual
H11DSU-
N
i
USER'S MANUAL
Revision 1.1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the H11DSU-iN and is the answer not in the manual?

Questions and answers

Related Manuals for Supermicro H11DSU-iN

Summary of Contents for Supermicro H11DSU-iN

  • Page 1 H11DSU- USER’S MANUAL Revision 1.1...
  • Page 2 State of California, USA. The State of California, County of Santa Clara shall be the exclusive venue for the resolution of any such disputes. Supermicro's total liability for all claims will not exceed the price paid for the hardware product.
  • Page 3 About This Manual This manual is written for system integrators, IT technicians and knowledgeable end users. It provides information for the installation and use of the H11DSU-iN motherboard. About This Motherboard Built upon the functionality and capability of the EPYC 7001/7002* series processors , the H11DSU-iN motherboard provides superior graphics capability and system performance while consuming little power.
  • Page 4 H11DSU-iN User's Manual Contacting Supermicro Headquarters Address: Super Micro Computer, Inc. 980 Rock Ave. San Jose, CA 95131 U.S.A. Tel: +1 (408) 503-8000 Fax: +1 (408) 503-8008 Email: marketing@supermicro.com (General Information) support@supermicro.com (Technical Support) Website: www.supermicro.com Europe Address: Super Micro Computer B.V.

  • Page 5: Table Of Contents

    Preface Table of Contents Chapter 1 Introduction Quick Reference .......................11 Quick Reference Table ......................12 Motherboard Features .......................14 1.2 Processor and Chipset Overview ..................17 1.3 Special Features ........................17 Recovery from AC Power Loss ..................17 1.4 System Health Monitoring ....................18 Onboard Voltage Monitors ....................18 Fan Status Monitor with Firmware Control ...............18 Environmental Temperature Control .................18 System Resource Alert......................18...
  • Page 6 H11DSU-iN User's Manual 2.7 Connectors .........................40 Power Connections ......................40 Headers ..........................41 2.8 Jumper Settings .........................44 How Jumpers Work ......................44 2.9 LED Indicators ........................46 Chapter 3 Troubleshooting 3.1 Troubleshooting Procedures ....................47 Before Power On ......................47 No Power ..........................47 No Video ...........................48 System Boot Failure ......................48...
  • Page 7 Preface Chapter 5 BIOS (EPYC 7002 Series) 5.1 Introduction .........................85 Starting the Setup Utility ....................85 5.2 Main Setup .........................86 5.3 Advanced ..........................88 5.4 IPMI ..........................105 5.5 Event Logs ........................108 5.6 Security ..........................110 5.7 Boot ..........................113 5.8 Save & Exit ........................115 Appendix A Software Installation A.1 Installing Software Programs ...................117 A.2 SuperDoctor...

  • Page 8: Chapter 1 Introduction

    • Product safety info: http://www.supermicro.com/about/policies/safety_information.cfm • If you have any questions, please contact our support team at: support@supermicro.com This manual may be periodically updated without notice. Please check the Supermicro website for possible updates to the manual revision level.
  • Page 9 Chapter 1: Introduction Figure 1-1. H11DSU-iN Motherboard Image Note: All graphics shown in this manual were based upon the latest PCB revision available at the time of publication of the manual. The motherboard you received may or may not look...
  • Page 10 H11DSU-iN User's Manual Figure 1-2. H11DSU-iN Motherboard Layout COM1 JSDCARD1 LEDM1 JBT1 P2_NVME1 P1_NVME1 P2_NVME0 P1_NVME0 H11DSU-i(N) REV:1.01 JS1: SATA8~11 Battery PSU2 PSU1 JPW2 JPW3 JGPW1 SATA0~3 SATA4~7 JPW1 JPW4 JUSBA1 CPU2 CPU1...

  • Page 11: Quick Reference

    Chapter 1: Introduction Quick Reference IPMI LAN COM1 USB0/1 JBR2 LED1 COM1 SXB1A JIPMB1 JUIDB2 Switch and UID LED JSDCARD1 SXB2 JSDCARD1 JPB1/JPG1/JWD1/ LEDM1 LEDM1 SXB3A JBT1 NVMe Ports P2_NVME1 P1_NVME1 SXB1B JBT1 P2_NVME0 P1_NVME0 SXB3B H11DSU-i(N) REV:1.01 GPU PWR2 SATA12/13 SGPIO USB3/4...

  • Page 12: Quick Reference Table

    H11DSU-iN User's Manual Quick Reference Table Jumper Description Default Setting CPLD Code Programming Debug message through CPU UART0 JBR2 Debug Mode for IPMI Use Pins 1-2 (Normal) JBT1 CMOS Clear Open (Normal) JPG1 VGA Enable/Disable Pins 1-2 (Enabled) JVR1 VRM Code Programming...
  • Page 13 Chapter 1: Introduction Connector Description USB0/1 Back panel Universal Serial Bus (USB) 3.0 Ports VGA Video Port Note: Jumpers in the table not described are for manufacturing testing purposes only and are not covered in this manual.

  • Page 14: Motherboard Features

    H11DSU-iN User's Manual Motherboard Features Motherboard Features • Dual EPYC 7001/7002 series, processor with Socket SP3. Note: AMD EPYC 7002 series drop-in support requires board revision 2.x Memory • 4TB of ECC DDR4 2666 MHz speed/ 8TB of ECC DDR4 3200 MHz* speed, RDIMM/LRDIMM/3DS/NVDIMM memory in Sixteen (16) slots (*Board reversion 2.x required)
  • Page 15 Chapter 1: Introduction Motherboard Features Power Management • ACPI power management (S5) • Power button override mechanism • Power-on mode for AC power recovery System Health Monitoring • Onboard voltage monitoring for +3.3V, +3.3V Standby, +5V, +5V Standby, +12V, VBAT, Memory, PCH Temp., System Temp., Memory Temp.
  • Page 16 H11DSU-iN User's Manual Figure 1-3. System Block Diagram H11DSU-iN IPMI LAN RJ45 AMD SP3 Rev. 1.02 Rear USB Micro SD RTL8211F DDR4 NCSI USB3 AST2500 CTRL Ultra IO BMC ROM 32MB CPU1 P0 [2] CPU1 USB CPU1 P1 [15:8] CPU1 P0 [0]...

  • Page 17: Processor And Chipset Overview

    Built upon the functionality and capability of the EPYC 7001/7002 series processor in an Socket SP3 socket (*AMD EPYC 7002 series drop-in support requires board revision 2.x), and a System on Chip chipset. The H11DSU-iN motherboard offers maximum I/O expendability, energy efficiency, and data reliability in a 14nm/7nm process architecture, and is optimized for embedded storage solutions, networking applications, or cloud-computing platforms.

  • Page 18: System Health Monitoring

    H11DSU-iN User's Manual 1.4 System Health Monitoring This section describes the health monitoring features of the H11DSU-iN motherboard. The motherboard has an onboard chip that supports system health monitoring. Once a voltage becomes unstable, a warning is given or an error message is sent to the screen. The user can adjust the voltage thresholds to define the sensitivity of the voltage monitor.

  • Page 19: Acpi Features

    Chapter 1: Introduction 1.5 ACPI Features ACPI stands for Advanced Configuration and Power Interface. The ACPI specification defines a flexible and abstract hardware interface that provides a standard way to integrate power management features throughout a computer system including its hardware, operating system and application software.

  • Page 20: Chapter 2 Installation

    H11DSU-iN User's Manual Chapter 2 Installation 2.1 Static-Sensitive Devices Electrostatic Discharge (ESD) can damage electronic com ponents. To prevent damage to your motherboard, it is important to handle it very carefully. The following measures are generally sufficient to protect your equipment from ESD.

  • Page 21: Motherboard Installation

    Chapter 2: Installation 2.2 Motherboard Installation All motherboards have standard mounting holes to fit different types of chassis. Make sure that the locations of all the mounting holes for both the motherboard and the chassis match. Although a chassis may have both plastic and metal mounting fasteners, metal ones are highly recommended because they ground the motherboard to the chassis.
  • Page 22 H11DSU-iN User's Manual Figure 2-1. Motherboard Mounting Holes...

  • Page 23: Installing The Motherboard

    Chapter 2: Installation Installing the Motherboard 1. Install the I/O shield into the back of the chassis. 2. Locate the mounting holes on the motherboard. See the previous page for the location. 3. Locate the matching mounting holes on the chassis. Align the mounting holes on the motherboard against the mounting holes on the chassis.

  • Page 24: Processor And Heatsink Installation

    CPU socket cap is in place and none of the socket pins are bent; otherwise, contact your retailer immediately. • Refer to the Supermicro website for updates on CPU support. Installing the Processor and Heatsink 1. Unscrew the screws holding down Force Frame in the sequence of 3-2-1. The screws are numbered on the Force Frame next to each screw hole.
  • Page 25 Chapter 2: Installation 2. The spring-loaded Force Frame will raise up after the last screw securing it (#1) is removed. Gently allow it to lift up to its stopping position. 3. Lift the Rail Frame up by gripping the lift tabs near the front end of the rail frame. While keeping a secure grip of the Rail Frame, lift it to a position so you can do the next step of removing the External Cap.
  • Page 26 H11DSU-iN User's Manual 4. Remove the External Cap from the Rail Frame by pulling it upwards through the rail guides on the Rail Frame. External Cap PnP Cover Cap 5. The CPU Package is shipped from the factory with the blue Carrier Frame pre- assembled.
  • Page 27 Chapter 2: Installation Note: You can only install the CPU inside the socket in one direction with the handle at the top. Make sure that it is properly inserted into the CPU socket before closing the Rail Frame plate. If it doesn't close properly, do not force it as it may damage your CPU. Instead, open the Rail Frame plate again, and double-check that the CPU is aligned properly.
  • Page 28 H11DSU-iN User's Manual 9. Gently lower the Force Frame down onto the Rail Frame and hold it in place until it is seated in the Socket housing. Note that the Force Frame is spring loaded and has to be held in place before it is secured. Important: Use a torque screwdriver, set it at 16.1 kgf-cm (14.0 lbf-in) with a Torx T20 screw head bit, to prevent damage to the CPU.
  • Page 29 Chapter 2: Installation 11. After the Force Frame is secured and the CPU package is in place, now you must install the heatsink to the frame. Lower the heatsink down till it rests securely over the four screw holes on CPU Package on the socket frame. 12.
  • Page 30 H11DSU-iN User's Manual Un-installing the Processor and Heatsink 1. Remove the heatsink attached to the top of the CPU Package by reversing the installation procedure. 2. Clean the Thermal grease left by the heatsink on the CPU package lid to limit the risk of it contaminating the CPU package land pads or contacts in the socket housing.

  • Page 31: Memory Support And Installation

    Memory Support The H11DSU-iN supports up to 4TB of ECC DDR4 2666 MHz speed or 8TB of ECC DDR4 3200 MHz speed (board reversion 2.x required), RDIMM/LRDIMM/3DS/NVDIMM memory in 16 slots . Refer to the table below for additional memory information.
  • Page 32 H11DSU-iN User's Manual Populating RDIMM/RDIMM 3DS/LRDIMM/LRDIMM 3DS DDR4 Memory Modules with 7002 Processor Maximum DIMM DIMM Population Maximum Frequency Capacity (GB) Type (MHz) DIMM1 DIMM2 1 Channel 8 Channel 32GB 256GB 3200 64GB 512GB 2933 RDIMM 2R or 2DR 64GB...

  • Page 33: Dimm Module Population Sequence

    Chapter 2: Installation DIMM Module Population Sequence When installing memory modules, the DIMM slots should be populated in the following order: DIMMA2, DIMMB2, DIMMC2, DIMMD2, DIMME2, DIMMF2, DIMMG2, DIMMH2, then DIMMA1, DIMMB1, DIMMC1, DIMMD1, DIMME1, DIMMF1, DIMMG1, DIMMH1. • The blue slots must be populated first. •...

  • Page 34: Dimm Installation

    H11DSU-iN User's Manual DIMM Installation 1. Insert the desired number of DIMMs into the memory slots, starting with DIMMA2, DIMMB2, DIMMC2, DIMMD2, DIMME2, DIMMF2, DIMMG2, DIMMH2, then DIMMA1, DIMMB1, DIMMC1, DIMMD1, DIMME1, DIMMF1, DIMMG1, DIMMH1. For best performance, please use the memory modules of the same type and speed.

  • Page 35: Rear I/O Ports

    Chapter 2: Installation 2.5 Rear I/O Ports See Figure 2-1 below for the locations and descriptions of the various I/O ports on the rear of the motherboard. COM1 JSDCARD1 LEDM1 JBT1 P2_NVME1 P1_NVME1 P2_NVME0 P1_NVME0 H11DSU-i(N) REV:1.01 JS1: SATA8~11 Battery PSU2 PSU1 JPW2...
  • Page 36 H11DSU-iN User's Manual Universal Serial Bus (USB) Ports There are two USB 3.0 ports (USB0/1) on the I/O back panel. The motherboard also provides two USB 3.0 connections via USB headers (USB3/4). The JUSBA1 header is USB Type A. The onboard headers can be used to provide front side USB access with a cable (not included).

  • Page 37: Front Control Panel

    JF1 contains header pins for various buttons and indicators that are normally located on a control panel at the front of the chassis. These connectors are designed specifically for use with Supermicro chassis. See the figure below for the descriptions of the front control panel buttons and LED indicators.
  • Page 38 H11DSU-iN User's Manual Power Button The Power Button connection is located on pins 1 and 2 of JF1. Momentarily contacting both pins will power on/off the system. This button can also be configured to function as a suspend button (with a setting in the BIOS - see Chapter 4). To turn off the power in the suspend mode, press the button for at least 4 seconds.
  • Page 39 Note: UID can also be triggered via IPMI on the serverboard. For more information on IPMI, please refer to the IPMI User's Guide posted on our website @ http://www.supermicro.com. UID Switch Pin#...

  • Page 40: Connectors

    H11DSU-iN User's Manual Power LED The Power LED connection is located on pins 15 and 16 of JF1. Power LED Pin Definitions (JF1) Pin# Definition 3.3V Power LED NMI Button The non-maskable interrupt button header is located on pins 19 and 20 of JF1.

  • Page 41: Headers

    Chapter 2: Installation Headers Fan Headers There are eight fan headers on the motherboard. These are 4-pin fan headers; pins 1-3 are backward compatible with traditional 3-pin fans. The onboard fan speeds are controlled by Thermal Management (via Hardware Monitoring) in the BIOS. When using Thermal Management setting, please use all 3-pin fans or all 4-pin fans.
  • Page 42 It enables the motherboard to deny access if the TPM associated with the hard drive is not installed in the system. Please go to the following link for more information on TPM: http://www.supermicro.com/ manuals/other/TPM.pdf. Trusted Platform Module Header...
  • Page 43 UltraO Riser Card LAN LED Header JF2 is a header for the UltraO Riser Card LAN LED header. SATA Ports The H11DSU-iN has fourteen (14) SATA 3.0 ports (SATA0-13) that are supported by the System on Chip chipset. NVM Express Connections Four NVM Express ports are located on the serverboard (two for each processor).

  • Page 44: Jumper Settings

    H11DSU-iN User's Manual 2.8 Jumper Settings How Jumpers Work To modify the operation of the motherboard, jumpers can be used to choose between optional settings. Jumpers create shorts between two pins to change the function of the connector. Pin 1 is identified with a square solder pad on the printed circuit board. See the diagram below for an example of jumping pins 1 and 2.
  • Page 45 Chapter 2: Installation VGA Enable/Disable JPG1 allows you to enable or disable the VGA port. The default position is on pins 1 and 2 to enable VGA. See the table below for jumper settings. VGA Enable/Disable Jumper Settings (JPG1) Jumper Setting Definition Pins 1-2 Enabled...

  • Page 46: Led Indicators

    H11DSU-iN User's Manual 2.9 LED Indicators LAN Port LEDs The IPMI Ethernet port has two LED indicators. The Activity LED is yellow and indicates connection and activity. The Link LED may be green, amber, or off to indicate the speed of the connection.

  • Page 47: Chapter 3 Troubleshooting

    Chapter 3: Troubleshooting Chapter 3 Troubleshooting 3.1 Troubleshooting Procedures Use the following procedures to troubleshoot your system. If you have followed all of the procedures below and still need assistance, refer to the ‘Technical Support Procedures’ and/ or ‘Returning Merchandise for Service’ section(s) in this chapter. Always disconnect the AC power cord before adding, changing or installing any non hot-swap hardware components.

  • Page 48: No Video

    H11DSU-iN User's Manual No Video 1. Check that the VGA cable is connected properly, and the monitor is on. 2. Set JPG1 to [1-2] and check if you follow the guidelines to install the memory module (see DIMM Module Population in chapter 2).

  • Page 49: When The System Becomes Unstable

    2. Memory support: Make sure that the memory modules are supported by testing the modules using memtest86 or a similar utility. Note: Refer to the product page on our website at http:\\www.supermicro.com for memory and CPU support and updates. 3. HDD support: Make sure that all hard disk drives (HDDs) work properly. Replace the bad HDDs with good ones.

  • Page 50: Technical Support Procedures

    H11DSU-iN User's Manual 6. To find out if a component is good, swap this component with a new one to see if the system will work properly. If so, then the old component is bad. You can also install the component in question in another system.
  • Page 51 Updated BIOS files are located on our website at http://www. supermicro.com. Please check our BIOS warning message and the information on how to update your BIOS on our website. Select your motherboard model and download the BIOS.
  • Page 52 H11DSU-iN User's Manual Question: Why did the system freeze and fail to begin installation when I tried to install Windows Server 2016? Answer: Windows Sever 2016 support is limited to less than 255 logical processors, and it does not support x2APIC. Follow the steps to solve the problem.

  • Page 53: Returning Merchandise For Service

    Shipping and handling charges will be applied for all orders that must be mailed when service is complete. For faster service, RMA authorizations may be requested online (http://www.supermicro.com/ support/rma/). This warranty only covers normal consumer use and does not cover damages incurred in shipping or from failure due to the alteration, misuse, abuse or improper maintenance of products.

  • Page 54: Battery Removal

    H11DSU-iN User's Manual Battery Removal To remove the onboard battery, follow the steps below: 1. Power off your system and unplug your power cable. 2. Locate the onboard battery as shown below. 3. Using a tool such as a pen or a small screwdriver, push the battery lock outwards to unlock it.

  • Page 55: Chapter 4 Bios (Epyc 7001 Series)

    (EPYC 7001 Series) 4.1 Introduction This chapter describes the AMIBIOS™ Setup utility for the H11DSU-iN motherboard. The BIOS is stored on a chip and can be easily upgraded using a flash program. Note: Due to periodic changes to the BIOS, some settings may have been added or deleted and might not yet be recorded in this manual.

  • Page 56: Main Setup

    H11DSU-iN User's Manual 4.2 Main Setup When you first enter the AMI BIOS setup utility, you will enter the Main setup screen. You can always return to the Main setup screen by selecting the Main tab on the top of the screen. The Main BIOS setup screen is shown below.
  • Page 57 Chapter 4: BIOS (EPYC 7001 Series) CPLD Version This item displays the version of the CPLD firmware used in the system. Memory Information Total Memory This item displays the total size of memory available in the system.

  • Page 58: Advanced

    H11DSU-iN User's Manual 4.3 Advanced Use the arrow keys to select Boot Setup and press <Enter> to access the submenu items. Warning: Take caution when changing the Advanced settings. An incorrect value, a very high DRAM frequency, or an incorrect DRAM timing setting may make the system unstable.
  • Page 59 Chapter 4: BIOS (EPYC 7001 Series) Bootup NumLock State Use this feature to set the Power on state for the <Numlock> key. The options are Off and On. Wait For "F1" If Error Use this feature to force the system to wait until the 'F1' key is pressed if an error occurs. The options are Disabled and Enabled.
  • Page 60 H11DSU-iN User's Manual PSP Firmware Versions  This section displays the Platform Security Processor (PSP) firmware versions. PSP Directory Level 1 (Fixed) • PSP Recovery BL Ver • SMU FW Version • ABL Version • APCB Version • APOB Version •...
  • Page 61 Chapter 4: BIOS (EPYC 7001 Series) CPU Configuration  SMT Mode Use this setting to specify Simultaneous Multithreading. Options include Off for 1T single thread and Auto for 2T two-thread if your system is capable of it. Core Performance Boost This setting is used to configure for Core Performance Boost.
  • Page 62 H11DSU-iN User's Manual • L1 Data Cache (Size/Method) • L2 Data Cache (Size/Method) • L3 Cache per Scoket (Size/Method) NB Configuration  Determinism Slider Use this setting to configure the Determinism Slider. Options include Auto, Power and Performance. cTDP Control Use this setting to configure the cTDP Control.
  • Page 63 Chapter 4: BIOS (EPYC 7001 Series) CPU1/CPU2 Memory Information  These sections are for informational purposes. They will display some details about the detected memory according to each CPU on the motherboard, such as: • Detected Size (per slot, in MB) •...
  • Page 64 H11DSU-iN User's Manual Change Settings This feature specifies the base I/O port address and the Interrupt Request address of a serial port specified by the user. Select Auto to allow the BIOS to automatically assign the base I/O and IRQ address. The options are Auto, (IO=2F8h; IRQ=3;); (IO=3F8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12;);...
  • Page 65 Chapter 4: BIOS (EPYC 7001 Series) as a parity bit to be sent along with the data bits. Select Space to add a Space as a parity bit to be sent with your data bits. The options are None, Even, Odd, Mark, and Space. Stop Bits A stop bit indicates the end of a serial data packet.
  • Page 66 H11DSU-iN User's Manual and function key support. Select ANSI to use the Extended ASCII Character Set. Select VT-UTF8 to use UTF8 encoding to map Unicode characters into one or more bytes. The options are VT100, VT100+, VT-UTF8, and ANSI. Bits per second Use this feature to set the transmission speed for a serial port used in Console Redirection.
  • Page 67 Chapter 4: BIOS (EPYC 7001 Series) Putty KeyPad This feature selects the settings for Function Keys and KeyPad used for Putty, which is a terminal emulator designed for the Windows OS. The options are VT100, LINUX, XTERMR6, SC0, ESCN, and VT400. Legacy Console Redirection Legacy Console Redirection Settings Redirection COM Port...
  • Page 68 H11DSU-iN User's Manual UTF8 encoding to map Unicode characters into one or more bytes. The options are VT100, VT100+, VT-UTF8, and ANSI. Bits per Second This item sets the transmission speed for a serial port used in Console Redirection. Make sure that the same speed is used in the host computer and the client computer.
  • Page 69 Chapter 4: BIOS (EPYC 7001 Series) advertised by the UPstream component in its training sequences. When Auto is selected, the HW initialized data will be used. VGA Priority Use this setting to select between onboard or offboard VGA support The options are Onboard and Offboard NVMe Firmware Source Use this setting to select between the AMI Native firmware support or the device vendor-...
  • Page 70 H11DSU-iN User's Manual Onboard LAN1 Option ROM Use this setting to select which firmware function is to be loaded for onboard LAN1 on the system. Options include Disabled and Legacy. Onboard LAN2 Option ROM Use this setting to select which firmware function is to be loaded for onboard LAN2 on the system.
  • Page 71 Chapter 4: BIOS (EPYC 7001 Series) Network Stack Configuration Network Stack This setting allows you to Enable or Disable the UEFI Network Stack. Ipv4 PXE Support This setting allows you to Enable or Disable IPv4 PXE boot support. If disabled, IPv4 PXE boot support will not be available.
  • Page 72 H11DSU-iN User's Manual SATA Information This section displays information on the detected SATA devices: • CPU1 SATA0 ~ CPU1 SATA7 iSCSI Configuration  iSCSI Initiator Name This feature allows the user to enter the unique name of the iSCSI Initiator in IQN format.

  • Page 73: Ipmi

    Chapter 4: BIOS (EPYC 7001 Series) 4.4 IPMI This tab allows you to configure the following IPMI settings for the system. Use this feature to configure Intelligent Platform Management Interface (IPMI) settings. BMC Firmware Revision This item indicates the IPMI firmware revision used in your system. IPMI Status (Baseboard Management Controller) This item indicates the status of the IPMI firmware installed in your system.
  • Page 74 H11DSU-iN User's Manual Erasing Settings Erase SEL Select Yes, On next reset to erase all system event logs upon next system reboot. Select Yes, On every reset to erase all system event logs upon each system reboot. Select No to keep all system event logs after each system reboot. The options are No, Yes, On next reset, and Yes, On every reset.
  • Page 75 Chapter 4: BIOS (EPYC 7001 Series) Station IP Address This item displays the Station IP address for this computer. This should be in decimal and in dotted quad form. Subnet Mask This item displays the sub-network that this computer belongs to. The value of each three- digit number separated by dots should not exceed 255.

  • Page 76: Event Logs

    H11DSU-iN User's Manual 4.5 Event Logs This tab allows the user to configure the following event logs settings for the system. Change SMBIOS Event Log Settings  This feature allows the user to configure SMBIOS Event settings. Enabling/Disabling Options SMBIOS Event Log Select Enabled to enable SMBIOS (System Management BIOS) Event Logging during system boot.
  • Page 77 Chapter 4: BIOS (EPYC 7001 Series) When Log is Full Select Erase Immediately to immediately erase all errors in the SMBIOS event log when the event log is full. Select Do Nothing for the system to do nothing when the SMBIOS event log is full.

  • Page 78: Security

    H11DSU-iN User's Manual 4.6 Security This tab allows you to configure the following security settings for the system. Administrator Password Press Enter to create a new, or change an existing Administrator password. Note that if the Administrator Password is erased, the User Password will be cleared as well.
  • Page 79 Chapter 4: BIOS (EPYC 7001 Series) Secure Boot This option allows you specify when the Platform Key (PK) is enrolled. When enabled, the System Mode is user deployed, and the CSM function is disabled. Options include Enabled and Disabled. Secure Boot Mode Use this item to select the secure boot mode.
  • Page 80 H11DSU-iN User's Manual Append Key Select Yes to add the KEK from the manufacturer's defaults list to the existing KEK. Select No to load the KEK from a file. The options are Yes and No.  Authorized Signatures Set New Key Select Yes to load the database from the manufacturer's defaults.

  • Page 81: Boot

    Chapter 4: BIOS (EPYC 7001 Series) 4.7 Boot Use this tab to configure Boot Settings: Boot Mode Select Use this item to select the type of device that the system is going to boot from. The options are LEGACY, UEFI, and DUAL. The default setting is DUAL. Legacy to EFI Support This option Enables or Disables the system to boot to an EFI OS after the boot failed from the legacy boot order.
  • Page 82 H11DSU-iN User's Manual  UEFI Application Boot Priorities This feature allows the user to specify which UEFI devices are boot devices. • UEFI Boot Order #1  Hard Disk Drive BBS Priorities This feature allows the user to specify which hard disk drive devices are boot devices.

  • Page 83: Save & Exit

    Chapter 4: BIOS (EPYC 7001 Series) 4.8 Save & Exit Select the Save & Exit tab to enter the Save & Exit BIOS Setup screen. Discard Changes and Exit Select this option to quit the BIOS Setup without making any permanent changes to the system configuration, and reboot the computer.
  • Page 84 H11DSU-iN User's Manual Default Options Restore Defaults To set this feature, select Restore Defaults from the Save & Exit menu and press <Enter>. These are factory settings designed for maximum system stability, but not for maximum performance. Save as User Defaults To set this feature, select Save as User Defaults from the Exit menu and press <Enter>.

  • Page 85: Chapter 5 Bios (Epyc 7002 Series)

    (EPYC 7002 Series) 5.1 Introduction This chapter describes the AMIBIOS™ Setup utility for the H11DSU-iN motherboard. The BIOS is stored on a chip and can be easily upgraded using a flash program. Note: Due to periodic changes to the BIOS, some settings may have been added or deleted and might not yet be recorded in this manual.

  • Page 86: Main Setup

    H11DSU-iN User's Manual 5.2 Main Setup When you first enter the AMI BIOS setup utility, you will enter the Main setup screen. You can always return to the Main setup screen by selecting the Main tab on the top of the screen. The Main BIOS setup screen is shown below.
  • Page 87 Chapter 5: BIOS (EPYC 7002 Series) Build Date This item displays the date when the version of the BIOS firmware used in the system was built. CPLD Version This item displays the version of the CPLD firmware used in the system. Memory Information Total Memory This item displays the total size of memory available in the system.

  • Page 88: Advanced

    H11DSU-iN User's Manual 5.3 Advanced Use the arrow keys to select a top item and press <Enter> to access the submenu items. Warning: Take caution when changing the Advanced settings. An incorrect value, a very high DRAM frequency, or an incorrect DRAM timing setting may make the system unstable.
  • Page 89 Chapter 5: BIOS (EPYC 7002 Series) Bootup NumLock State Use this feature to set the Power on state for the <Numlock> key. The options are On and Off. Wait For "F1" If Error Use this feature to force the system to wait until the 'F1' key is pressed if an error occurs. The options are Disabled and Enabled.
  • Page 90 H11DSU-iN User's Manual PSP Firmware Versions  This section displays the Platform Security Processor (PSP) firmware versions. PSP Directory Level 1 (Fixed) • PSP Recovery BL Ver • SMU FW Version • ABL Version PSP Directory Level 2 (Updateable) • PSP Bootloader Version •...
  • Page 91 Chapter 5: BIOS (EPYC 7002 Series)  Serial Port 1 Configuration Serial Port Select The options are Disabled and Enabled. Device Settings This item displays the status of a serial part specified by the user. Change Settings This feature specifies the base I/O port address and the Interrupt Request address of a serial port specified by the user.
  • Page 92 H11DSU-iN User's Manual Bits per second Use this feature to set the transmission speed for a serial port used in Console Redirection. Make sure that the same speed is used in the host computer and the client computer. A lower transmission speed may be required for long and busy lines. The options are 9600, 19200, 38400, 57600 and 115200 (bits per second).
  • Page 93 Chapter 5: BIOS (EPYC 7002 Series) Console Redirection Select Enabled to enable SOL console redirection support for a serial port specified by the user. The options are Disabled and Enabled. *If the item above set to Enabled, the following items will become available for user's configuration: Console Redirection Settings Terminal Type...
  • Page 94 H11DSU-iN User's Manual is full. Send a "Start" signal to start sending data when the receiving buffer is empty. The options are None and Hardware RTS/CTS. VT-UTFB Combo Key Support Select Enabled to enable VT-UTF8 Combination Key support for ANSI/VT100 terminals.
  • Page 95 Chapter 5: BIOS (EPYC 7002 Series) *If the item above set to Enabled, the following items will become available for user's configuration: Console Redirection Settings Out-of-Band Mgmt Port The feature selects a serial port in a client server to be used by the Microsoft Windows Emergency Management Services (EMS) to communicate with a remote host server.
  • Page 96 H11DSU-iN User's Manual Stop Bits A stop bit indicates the end of a serial data packet. Select 1 Stop Bit for standard serial data communication. Select 2 Stop Bits if slower devices are used. The options are 1 and 2.
  • Page 97 Chapter 5: BIOS (EPYC 7002 Series) • Processor Family • Processor Model • Microcode Patch Level • L1 Instruction Cache (Size/Method) • L1 Data Cache (Size/Method) • L2 Cache (Size/Method) • L3 Cache per Scoket (Size/Method) CPU2 Information  These sections are for informational purposes. They will display some details about the detected CPUs on the motherboard, such as: •...
  • Page 98 H11DSU-iN User's Manual IOMMU Use this setting to enable/disable IOMMU. Options include Disabled, Enabled, and Auto. ACS Enable Use this setting to enable/disable ACS. Options include Enabled, Disabled and Auto. Package Power Limit Control Use this setting for Package Power Limit Control. Options include Manual and Auto.
  • Page 99 Chapter 5: BIOS (EPYC 7002 Series) DRAM Scrub Time This setting provides a value that is the number of hours to scrub memory. The options are Disabled, 1 hour, 4 hours, 8 hours, 16 hours, 24 hours, 48 hours and Auto. CPU1 Memory Information These sections are for informational purposes.
  • Page 100 H11DSU-iN User's Manual VGA Priority Use this setting to select between onboard or offboard VGA support The options are Onboard and Offboard NVMe Firmware Source Use this setting to select between the AMI Native firmware support or the device vendor- defined firmware support.
  • Page 101 Chapter 5: BIOS (EPYC 7002 Series) Onboard LAN2 Option ROM Use this setting to select which firmware function is to be loaded for onboard LAN2 on the system. Options include Disabled and Legacy. P1_NVMe0 OpROM Use this setting to select which firmware function is to be loaded for P1_NVMe0 OpROM on the system.
  • Page 102 H11DSU-iN User's Manual IPv6 HTTP Support This setting allows you to enable or disable IPv6 HTTP boot support. If disabled, IPv6 HTTP boot support will not be available. The options are Disabled and Enabled. PXE boot wait time This setting allows you to set in a number field the wait time to press <ESC> to abort the PXE boot.
  • Page 103 Chapter 5: BIOS (EPYC 7002 Series) SATA Hotplug This item enables or disables the onboard SATA controller's hot plug feature (PCH). The options include Disabled and Enabled. SATA Information This item displays information on the detected SATA devices connected and are detected. HTTP BOOT Configuration HTTP Boot One Time When the HTTP boot option is created, this option when enabled, will allow the system to...
  • Page 104 H11DSU-iN User's Manual TLS Authenticate Configuration This submenu allows the user to configure Transport Layer Security (TLS) settings. Server CA Configuration Enroll Certification Enroll Certification using File Use this feature to enroll certification from a file. Certification GUID Use this feature to input the certification GUID.

  • Page 105: Ipmi

    Chapter 5: BIOS (EPYC 7002 Series) 5.4 IPMI This tab allows you to configure the following IPMI settings for the system. Use this feature to configure Intelligent Platform Management Interface (IPMI) settings. BMC Firmware Revision This item indicates the IPMI firmware revision used in your system. IPMI Status (Baseboard Management Controller) This item indicates the status of the IPMI firmware installed in your system.
  • Page 106 H11DSU-iN User's Manual Erasing Settings Erase SEL Select Yes, On next reset to erase all system event logs upon next system reboot. Select Yes, On every reset to erase all system event logs upon each system reboot. Select No to keep all system event logs after each system reboot. The options are No, Yes, On next reset, and Yes, On every reset.
  • Page 107 Chapter 5: BIOS (EPYC 7002 Series) Station IP Address This item displays the Station IP address for this computer. This should be in decimal and in dotted quad form. Subnet Mask This item displays the sub-network that this computer belongs to. The value of each three- digit number separated by dots should not exceed 255.

  • Page 108: Event Logs

    H11DSU-iN User's Manual 5.5 Event Logs This tab allows the user to configure the following event logs settings for the system. Change SMBIOS Event Log Settings This feature allows the user to configure SMBIOS Event settings. Enabling/Disabling Options SMBIOS Event Log Select Enabled to enable SMBIOS (System Management BIOS) Event Logging during system boot.
  • Page 109 Chapter 5: BIOS (EPYC 7002 Series) When Log is Full Select Erase Immediately to immediately erase all errors in the SMBIOS event log when the event log is full. Select Do Nothing for the system to do nothing when the SMBIOS event log is full.

  • Page 110: Security

    H11DSU-iN User's Manual 5.6 Security This tab allows you to configure the following security settings for the system. Administrator Password Press Enter to create a new, or change an existing Administrator password. Note that if the Administrator Password is erased, the User Password will be cleared as well.
  • Page 111 Chapter 5: BIOS (EPYC 7002 Series) Secure Boot This option allows you specify when the Platform Key (PK) is enrolled. When enabled, the System Mode is user deployed, and the CSM function is disabled. Options include Disabled and Enabled . Secure Boot Mode Use this item to select the secure boot mode.
  • Page 112 H11DSU-iN User's Manual Append Select Yes to add the KEK from the manufacturer's defaults list to the existing KEK. Select No to load the KEK from a file. The options are Yes and No. Authorized Signatures Update Select Yes to load the database from the manufacturer's defaults. Select No to load the DB from a file.

  • Page 113: Boot

    Chapter 5: BIOS (EPYC 7002 Series) 5.7 Boot Use this tab to configure Boot Settings: Boot Mode Select Use this item to select the type of device that the system is going to boot from. The options are Legacy, UEFI, and Dual. The default setting is Dual. Legacy to EFI Support This option enables or disables the system to boot to an EFI OS after the boot failed from the legacy boot order.
  • Page 114 H11DSU-iN User's Manual UEFI Application Boot Priorities This feature allows the user to specify which UEFI devices are boot devices. • Boot Option #1 Hard Disk Drive BBS Priorities This feature allows the user to specify which hard disk drive devices are boot devices.

  • Page 115: Save & Exit

    Chapter 5: BIOS (EPYC 7002 Series) 5.8 Save & Exit Select the Save & Exit tab to enter the Save & Exit BIOS Setup screen. Discard Changes and Exit Select this option to quit the BIOS Setup without making any permanent changes to the system configuration, and reboot the computer.
  • Page 116 H11DSU-iN User's Manual Default Options Restore Optimized Defaults To set this feature, select Restore Defaults from the Save & Exit menu and press <Enter>. These are factory settings designed for maximum system stability, but not for maximum performance. Save as User Defaults To set this feature, select Save as User Defaults from the Exit menu and press <Enter>.

  • Page 117: Appendix A Software Installation

    Appendix A Software Installation A.1 Installing Software Programs The Supermicro FTP site contains drivers and utilities for your system at ftp://ftp.supermicro. com. Some of these must be installed, such as the chipset driver. After accessing the FTP site, go into the CDR_Images directory and locate the ISO file for your motherboard.

  • Page 118: Superdoctor ® 5

    SMTP services to optimize the efficiency of your operation. Note: The default Username and Password for SuperDoctor 5 is ADMIN / ADMIN. Figure A-2. SuperDoctor 5 Interface Display Screen (Health Information) Note: The SuperDoctor 5 program and user’s manual can be downloaded from the Supermicro website at http://www.supermicro.com/products/nfo/sms_sd5.cfm.

  • Page 119: Appendix B Standardized Warning Statements

    The following statements are industry standard warnings, provided to warn the user of situations which have the potential for bodily injury. Should you have questions or experience difficulty, contact Supermicro's Technical Support department for assistance. Only certified technicians should attempt to install or configure components.
  • Page 120 H11DSU-iN User's Manual Attention Danger d'explosion si la pile n'est pas remplacée correctement. Ne la remplacer que par une pile de type semblable ou équivalent, recommandée par le fabricant. Jeter les piles usagées conformément aux instructions du fabricant. ¡Advertencia! Existe peligro de explosión si la batería se reemplaza de manera incorrecta. Reemplazar la batería exclusivamente con el mismo tipo o el equivalente recomendado por el fabricante.

  • Page 121: Product Disposal

    Appendix C: Warning Statements Product Disposal Warning! Ultimate disposal of this product should be handled according to all national laws and regulations. 製品の廃棄 この製品を廃棄処分する場合、 国の関係する全ての法律 ・ 条例に従い処理する必要があります。 警告 本产品的废弃处理应根据所有国家的法律和规章进行。 警告 本產品的廢棄處理應根據所有國家的法律和規章進行。 Warnung Die Entsorgung dieses Produkts sollte gemäß allen Bestimmungen und Gesetzen des Landes erfolgen.

  • Page 122: Appendix C Uefi Bios Recovery

    Warning: Do not upgrade the BIOS unless your system has a BIOS-related issue. Flashing the wrong BIOS can cause irreparable damage to the system. In no event shall Supermicro be liable for direct, indirect, special, incidental, or consequential damages arising from a BIOS update.
  • Page 123 USB flash drive with FAT16 or FAT32 format and rename the file to SUPER.ROM. Note: If you cannot locate the "SUPER.ROM" file in your driver disk, visit our website at www.supermicro.com to download the correct BIOS image into a USB flash device and rename it "SUPER.ROM".
  • Page 124 SUPERMICO BIOS Update: https://www.youtube.com/watch?v=S8z6iOEHGwY * If the BIOS flash recovery fails, contact our RMA Department to have the BIOS chip reprogrammed. This will require shipping the board to Supermicro for repair. Submit your RMA request at https://www.supermicro.com/support/rma Please make sure to follow all instructions when returning the motherboard.
