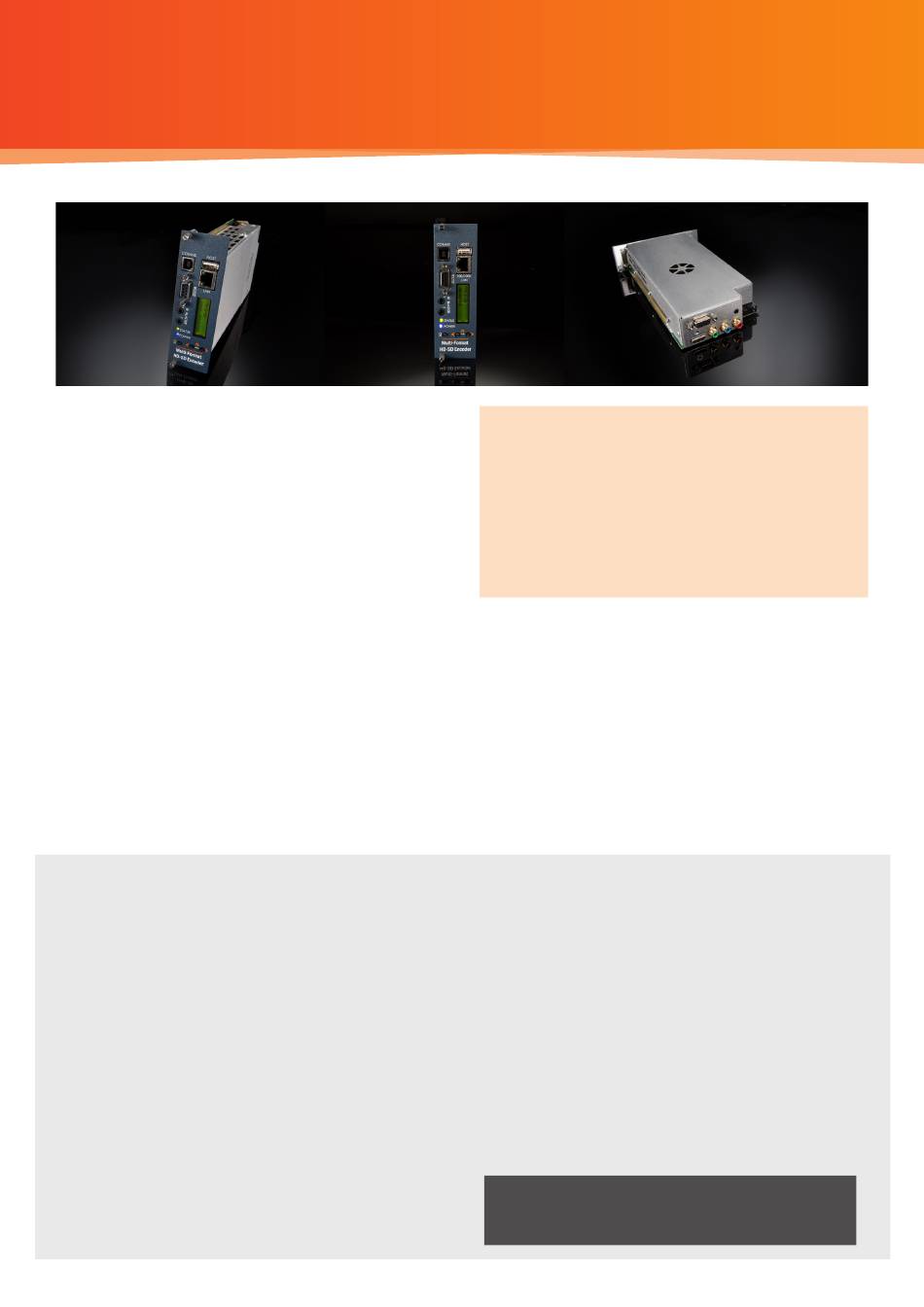

Mediastar Evolution 778 Series Quick Start Manual

QUICK START GUIDE
MediaStar 778 Multi Format Input SD-HD Encoder
Models: 778-S-SD, 778-S-HD, 778-D-HD
The MediaStar Evolution 778 Encoder is a
MPEG2 or MPEG4-10/H264 video and audio
encoder that is housed in a MediaStar 770
3RU 19" rack. It can take the video input
from a variety of different source formats
(Composite, S-Video, YPbPr, RGB, VGA or
HDMI) and will scale the images to either
SD or HD resolutions.
The MediaStar Evolution 778 Encoder is a MPEG2 or
MPEG4-10/H264 video and audio encoder that is housed
in a MediaStar 770 3RU 19" rack. It can take the video
input from a variety of different source formats
(Composite, S-Video, YPbPr, RGB, VGA or HDMI) and
will scale the images to either SD or HD resolutions.
The video and accompanying audio is then encoded
into MPEG2 or H264 data, and is then streamed onto
a LAN. Separate decoder units or PC software clients
can then display the video and audio at any network
enabled location.
Important Safety Instructions
1. Read and keep these instructions.
2. Follow the instructions and heed all warnings.
3. Do not use this apparatus near water.
4. Clean only with a dry cloth.
5. Do not block any ventilation openings. Install in accordance
with the manufacturer's instructions.
6. Do not install near any heat sources such as radiators, heat
registers, stoves or other apparatus (including amplifiers)
that produce heat.
7. Do not defeat the safety purpose of the polarised or ground-
ing-type plug. A polarised plug has two blades with one wider
than the other. A grounding type plug has two blades and a third
grounding prong. The wide blade or the third prong is provided
for your safety. If the provided plug does not fit into your outlet,
consult an electrician for replacement of the obsolete outlet.
8. Protect the power cord from being walked on or pinched
particularly at plugs, convenience receptacles, and the point
where they exit from the apparatus.
200-2430 V2
What's in the box:
• 778 Encoder blade
• 2m CAT-5 patch lead
• 1.5m HDMI cable
• 1.5m YPbPr component video cable
• 2m SVGA cable (15 way HDD plugs)
• 1m 3.5mm Jack to 2 x Phono (audio) cable
The unit has a front panel mounted LCD and push
buttons to allow easy network setup and source selec-
tion, with an embedded http web page server providing
configuration web pages for more advanced features.
The 778 unit may be purchased with a single or dual
set of video inputs (778-S-xx and 778-D-xx units), and
also with either an SD output stream resolution, or a
selectable SD/HD output stream resolution (778-x-SD
or 778-x-HD). Please note: 778-D-xx units have two
sets of video/audio input cables included.
9. Only use attachments/accessories specified by the
manufacturer.
10. Use only with the cart, stand tripod, bracket, or table specified
by the manufacturer, or sold with the apparatus. When a cart
is used, use caution when moving the cart/apparatus
combination to avoid injury from tip-over.
11. Unplug this apparatus during lightning storms or when
unused for long periods of time.
12. Refer all servicing to qualified service personnel. Servicing is
required when the apparatus has been damaged in any way,
such as power-supply cord or plug is damaged, liquid has
been spilled or objects have fallen into the apparatus, the
apparatus has been exposed to rain or moisture, does not
operate normally, or has been dropped.
WARNING:
THERE ARE NO USER SERVICEABLE
PARTS WITHIN A MEDIASTAR 778 UNIT.
1/8
