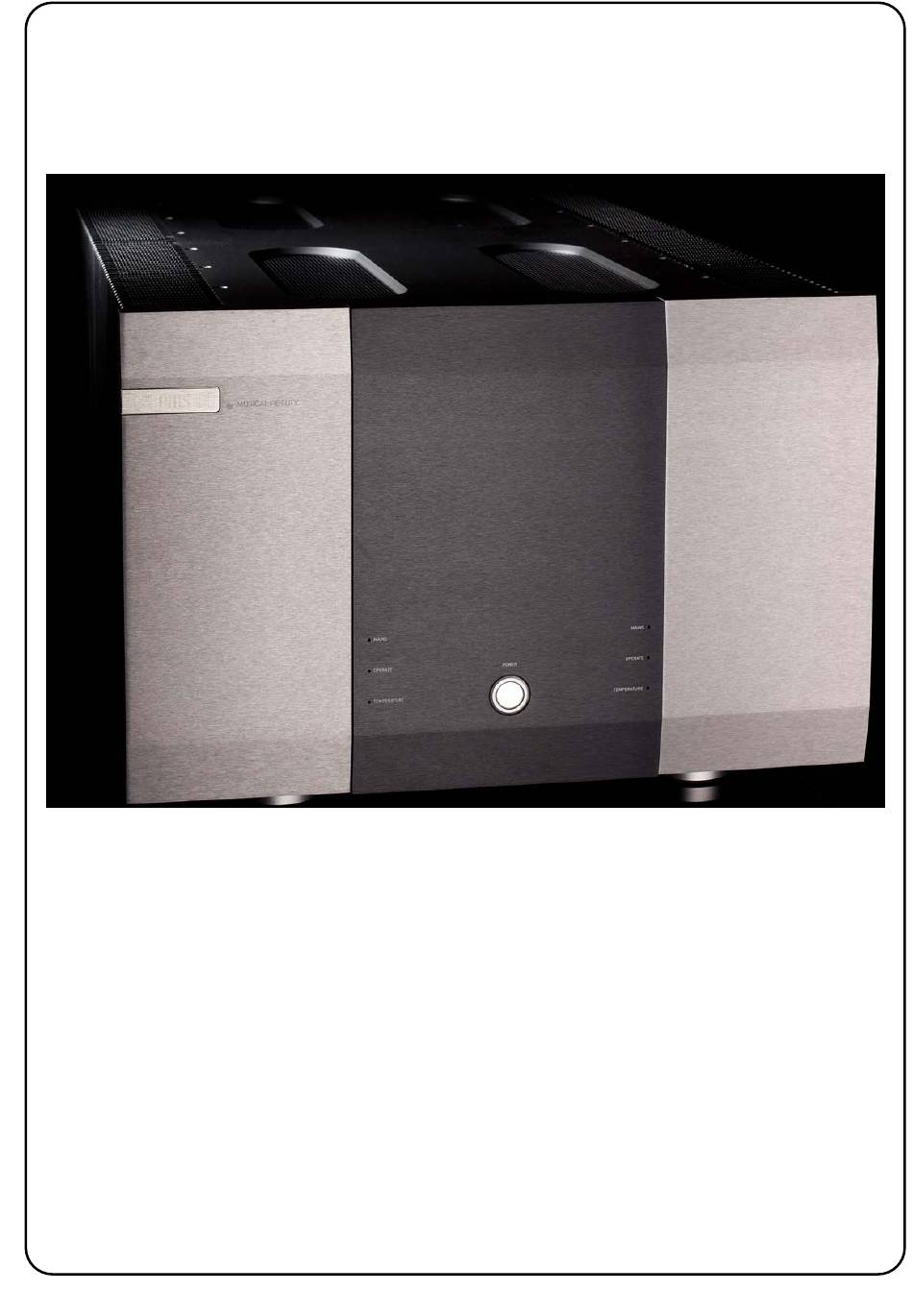

AMS100
ANTONY MICHAELSON SIGNATURE
100W Pure Class A Dual Mono Power Amplifier
Thank you for purchasing the Musical Fidelity AMS100.
The AMS100 uses the latest in low distortion circuitry in a bridged configuration which delivers 100 watts of pure class A power.
The AMS100 is designed with pure undistorted experience in mind. Overall the listening experience is greatly improved because of
dramatically lower distortion and increased dynamic range.
The AMS100 accepts both XLR balanced and RCA line level inputs. When driven from a balanced pre-amplifier the sound
quality is greatly improved because the balanced cable cancels out noise and interference artefacts, giving up to 12dB increase in
dynamic range.
The Primo Pre-amplifier is an ideal partner as it features a fully valve signal path and true balanced operation throughout
Alternatively, the AMS100 can be used as a conventional power amplifier driven by a high quality preamp.
The AMS100 is a perfect answer to pure musicality in a single beautifully engineered package. Used properly and carefully, it
should give many years of outstanding musical reproduction.
Dust regularly with a soft duster or soft brush, but be careful when using cleaning or polishing agents - they may harm the surface
finish.
If there are further questions about any Musical Fidelity component, please consult the dealer from whom it was purchased, who is
there to help and give advice.
Advertisement
Related Manuals for Musical Fidelity AMS100
Summary of Contents for Musical Fidelity AMS100
- Page 1 Thank you for purchasing the Musical Fidelity AMS100. The AMS100 uses the latest in low distortion circuitry in a bridged configuration which delivers 100 watts of pure class A power. The AMS100 is designed with pure undistorted experience in mind. Overall the listening experience is greatly improved because of dramatically lower distortion and increased dynamic range.
-
Page 2: Table Of Contents
AMS100 CONTENTS PAGE Section Mains plug (U.K. only) Safety information Modification warning Installation precautions General advice User information EU disposal information Item disposal information Introduction Installation Installation Audio connection Cleaning Illustrations - front and rear panels Connections Operation and features... -
Page 3: Safety Information
If connecting to a BS1363 plug, a 13 amp fuse must be used. WARNING: ANY MODIFICATIONS TO THIS PRODUCT NOT EXPRESSLY APPROVED BY MUSICAL FIDELITY WHO IS THE PARTY RESPONSIBLE FOR STANDARDS COMPLIANCE COULD VOID THE USER'S AUTHORITY TO OPERATE THIS EQUIPMENT. -
Page 4: General Advice
If after-sales service is required, to help your dealer identify the AMS100 please quote the serial number located on the rear panel of the unit. -
Page 5: Item Disposal Information
AMS100 ITEM DISPOSAL INFORMATION DISPOSAL AFVAL The crossed out wheeled bin label that appears on the Het label op de achterzijde van dit apparaat, een back panel of the product indicates that the product must not be afvalbak op wielen met een kruis doorgehaald, geeft aan dat dit disposed of as normal household waste. -
Page 6: Installation
A remote triggering input is available to allow the amplifier to be turned on automatically by other AUDIO CONNECTIONS Inputs: The AMS100 has a pair of RCA (single ended), equipment. This is a 2-way 3.5mm jack on the back of and XLR (balanced) level inputs. Choose which inputs the unit labelled “TRIGGER”. -
Page 7: Connections
AMS100 AMPLIFIER CONNECTIONS FRONT PANEL 1. LEFT CHANNEL Mains LED 5. RIGHT CHANNEL Temperature LED 2. LEFT CHANNEL Operate LED 6. RIGHT CHANNEL Operate LED 3. LEFT CHANNEL Temperature LED 7. RIGHT CHANNEL Mains LED 4. POWER Switch BACK PANEL 8. -
Page 8: Amplifier Operation
Once all connections are made, switch on the unit, using the ON/OFF rocker switch on the back panel. On the front panel of the AMS100 the front MAINS LEDs glow to indicate mains is present. To switch the unit on use front panel button, press once and the operate LEDs will light (and mains LEDs extinguish), indicating the unit is ready for use. -
Page 9: Amplifier Problems
If none of these actions affect a cure, please contact your dealer, or an authorised Musical Fidelity service agent. Remember; never open the case of the AMS100 yourself, as this will invalidate the guarantee. -
Page 10: Amplifier Specifications
34⅔ inches deep (front to back) including terminals Standard accessories: IEC type mains lead (10-Amp type), Musical Fidelity reserves the right to make improvements which may result in specification or feature changes without notice. Issue 1 Page 10 of 11... - Page 11 AMS100 MANUAL REVISION RELEASE DATE CHANGES Issue 1 July 2010 issue Issue 1 Page 11 of 11...
