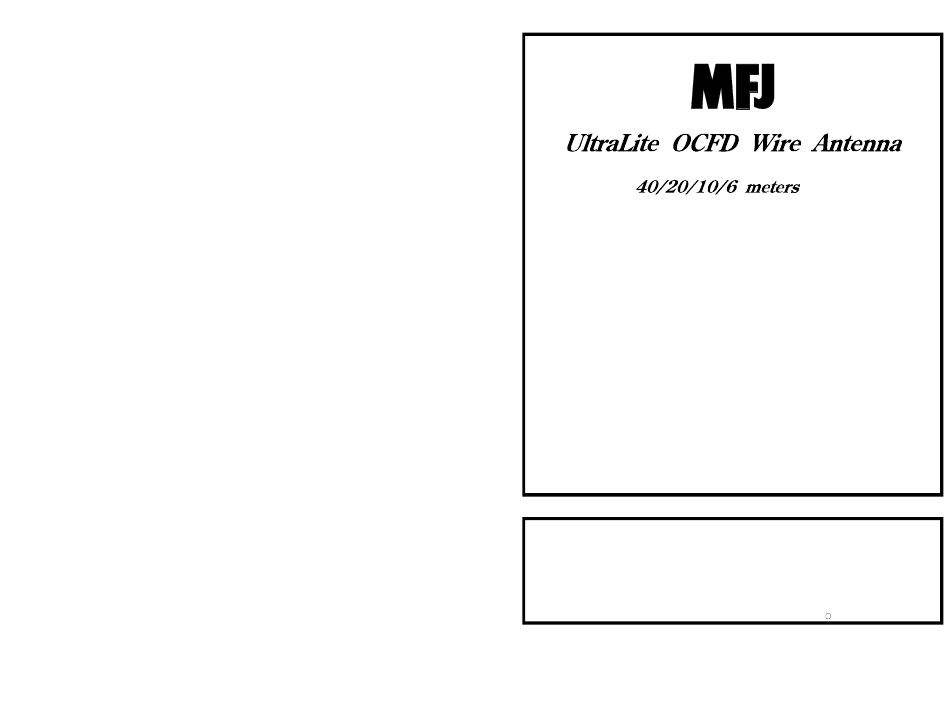

- Page 1 Model MFJ-2010 INSTRUCTION MANUAL CAUTION: Read All Instructions Before Operating Equipment MFJ ENTERPRISES, INC. 300 Industrial Park Road Starkville, MS 39759 USA Tel: 662-323-5869 Fax: 662-323-6551 COPYRIGHT 2009 MFJ ENTERPRISES, INC. VERSION 1A...
- Page 2 Customers using this manual should report errors omissions, recommendations for improvements, or other comments to MFJ Enterprises, 300 Industrial Park Road, Starkville, MS 39759. Phone: (662) 323-5869; FAX: (662) 323-6551. Business hours: M-F 8-4:30 CST.

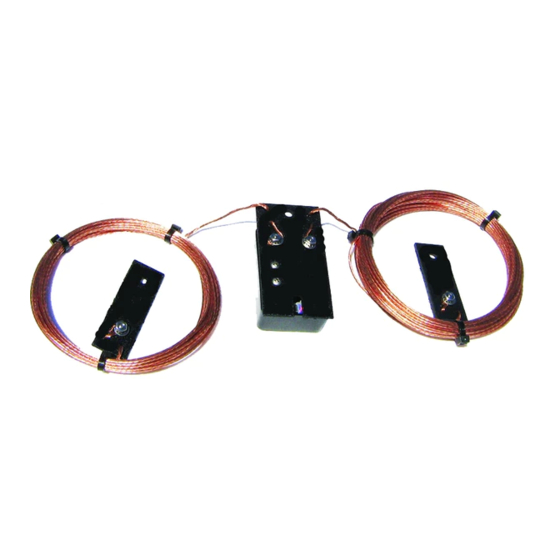

- Page 3 General Installation The MFJ-2010 is 67 feet long -- the same length as a 40-meter dipole. Recommended mounting height is between 30 and 70 feet above ground. When possible, choose a location that is in the clear and free from large conductive surfaces or parallel wires that could interfere with normal operation.
- Page 4 MFJ-2010 Instruction Manual Ultralite OCFD Portable Installation PVC-jacketed wire permits some contact with branches and leaves, but avoid routing wire through dense vegetation as it may degrade performance significantly. If end supports are too close together for installing full length, the insulators provide the option to “droop” one or both antenna legs by a few feet.
- Page 5 RG-8 low-loss direct-burial cable for the building run. Power Rating The MFJ-2010 is rated for 300-Watts PEP on SSB and CW. However, this rating may be adjusted when known feedline losses are present. For example, if your coax has a calculated loss of 3-dB on a given band, you may safely run up to 600 Watts PEP without damaging the matching network which is located at the far end of the cable.
- Page 6 If you have any problem with this unit first check the appropriate section of this manual. If the manual does not reference your problem or your problem is not solved by reading the manual you may call MFJ Technical Service at 662-323-0549 or the MFJ Factory at 662-323-5869 . You will be best helped if you have your unit, manual and all information on your station handy so you can answer any questions the technicians may ask.
- Page 7 2. MFJ Enterprises, Inc. agrees to repair or replace at MFJ's option without charge to the original owner any defective product under warrantee provided the product is returned postage prepaid to MFJ Enterprises, Inc.
- Page 8 MFJ ENTERPRISES, INC. MFJ-2010 Manual 300 Industrial Park Road Version 2B Starkville, MS 39759 Printed In U.S.A.
