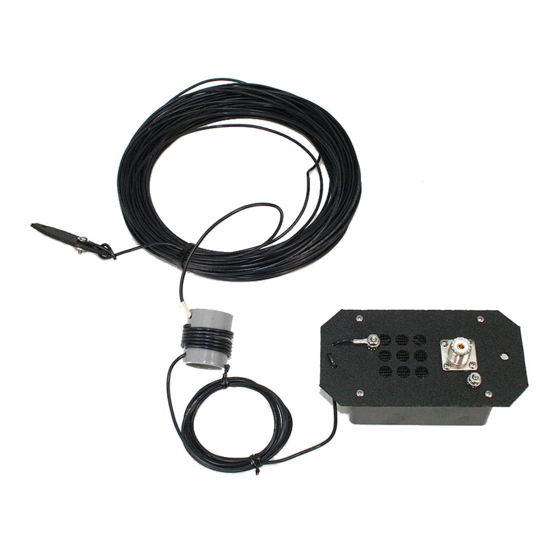

End-Fed H orizontal
Wire Antennas
Models:
MFJ-1982LP/ MP/ HP
MFJ-1984LP/ MP/ HP
INSTRUCTION MANUAL
CAUTION: Read All Instructions Before Operating Equipment
MFJ ENTERPRISES, INC.
300 Industrial Park Road
Starkville, MS 39759 USA
Tel: 662-323-5869 Fax: 662-323-6551
COPYRIGHT
2017 MF J ENT ERPRISES, INC.
VERSION 1A
Advertisement
Table of Contents
Related Manuals for MFJ MFJ-1982LP
Summary of Contents for MFJ MFJ-1982LP
- Page 1 End-Fed H orizontal Wire Antennas Models: MFJ-1982LP/ MP/ HP MFJ-1984LP/ MP/ HP INSTRUCTION MANUAL CAUTION: Read All Instructions Before Operating Equipment MFJ ENTERPRISES, INC. 300 Industrial Park Road Starkville, MS 39759 USA Tel: 662-323-5869 Fax: 662-323-6551 COPYRIGHT 2017 MF J ENT ERPRISES, INC.
- Page 2 Also, note that there is small 6-turn inductor wound into the antenna wire about 6-feet from the matching unit. All MFJ-1984 models come with 66 feet of wire and cover 40, 30, 20,15, and 10 meters. Note that 17 and 12 Meters are not covered because they are not harmonically related to the shorter wire length.
- Page 3 Installation Instructions Supports: Install the antenna wire using one or more high supports (typically tree limbs). Note that the "no-snag" end insulator is especially shaped to slide through branches in both directions to make installation and take-down easier. Typical Residential Setup: Tall Antenna Wire Support...
- Page 4 Supports Black polyester or parachute cord works well (not supplied, but available from MFJ). As previously noted, the coax feed and the ground wire should hang below the matching network to orient the suspended matching network with its weather cap up and the air vents facing down. Also, as noted, do not allow the antenna to...
- Page 5 Shorten to increase frequency and lengthen to lower frequency. For all MFJ-1982 models, be sure to make any length adjustments at the far end of the wire to avoid changing the spacing between the compensating coil and the matching network.
- Page 6 Wired and tested PC board products are covered by this warranty provided only the wired and tested PC board product is returned. Wired and tested PC boards installed in the owner's cabinet or connected to switches, jacks, or cables, etc. sent to MFJ Enterprises, Inc. will be returned at the owner's expense unrepaired.
- Page 7 Customers using this manual should report errors omissions, recommendations for improvements, or other comments to MFJ Enterprises, 300 Industrial Park Road, Starkville, MS 39759. Phone: (662) 323-5869; FAX: (662) 323-6551. Business hours: M-F 8-4:30 CST.
- Page 8 MFJ ENTERPRISES, INC. MFJ-1982/1984 Manual 300 Industrial Park Road Version 1A Starkville, MS 39759 Printed In U.S.A.
