Virage
Models/Modelos/Modèles
65430LF-p & 65430LF-p-ECO
Write purchased model number here.
Escriba aquí el número del modelo comprado.
Inscrivez le numéro de modèle ici.
pSpecify Finish / Especifíque el Acabado / Précisez le Fini
You may need/Usted puede necesitar/Articles dont vous pouvez avoir besoin:
For easy installation of your Brizo
faucet you will need:
• To READ ALL the instructions completely before
beginning.
• To READ ALL warnings, care, and
maintenance information.
• To purchase the correct water supply hook-up.
Para instalación fácil de su llave
Brizo
usted necesitará:
®
• LEER TODAS las instrucciones completamente
antes de empezar.
• LEER TODOS los avisos, cuidados, e
información de mantenimiento.
• Comprar las conexiones correctas para el
suministro de agua.
Pour installer votre robinet Brizo
facilement, vous devez:
• LIRE TOUTES les instructions avant de débuter;
• LIRE TOUS les avertissements ainsi que toutes
les instructions de nettoyage et d'entretien;
• Acheter le bon nécessaire de raccordement.
www.brizo.com
86534
2.5 mm
(3/32")
®
®
86534
1
TWO HANDLE DECK VESSEL
WIDESPREAD LAVATORY FAUCETS
LLAVES DE AGUA DE DOS MANIJAS
PARA LAVAMANOS Y ARTESAS
ROBINETS À DEUX POIGNÉES
POUR LAVABO ET CUVETTE
?
01/22/2018
Rev. E
Advertisement

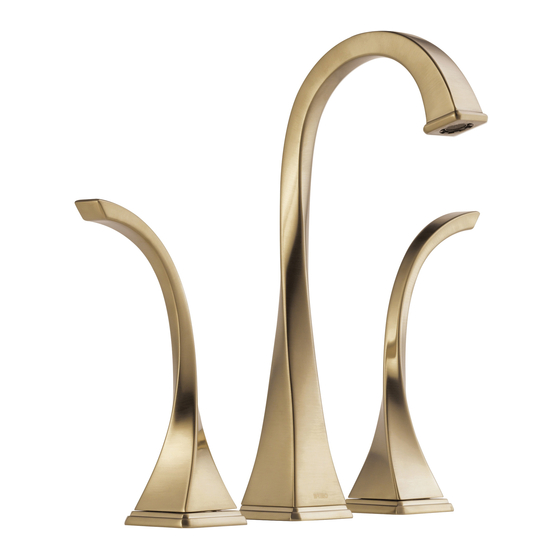

Related Manuals for Brizo Virage 65430LF-GL
Summary of Contents for Brizo Virage 65430LF-GL

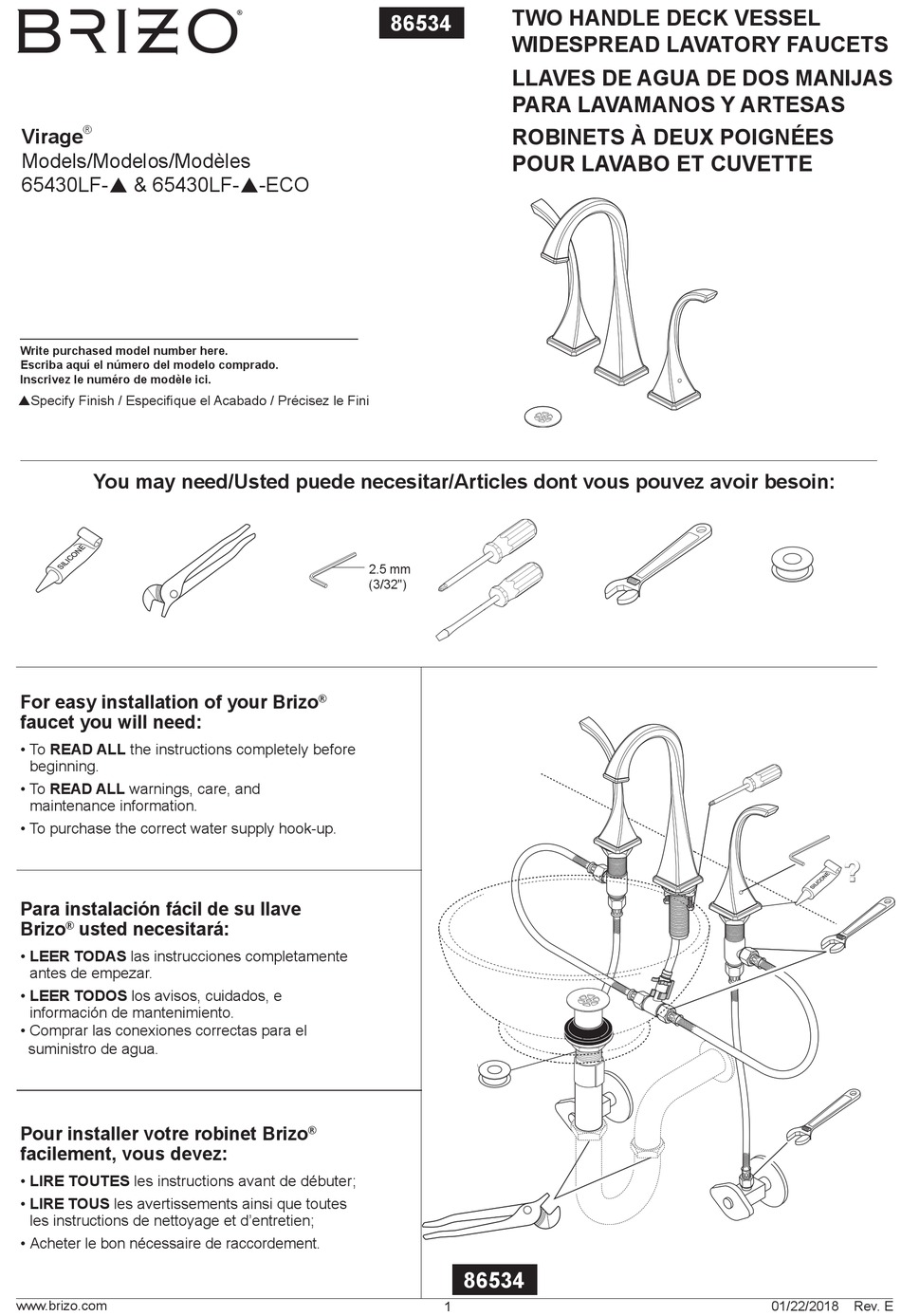

- Page 1 Finish / Especifíque el Acabado / Précisez le Fini You may need/Usted puede necesitar/Articles dont vous pouvez avoir besoin: 2.5 mm (3/32") For easy installation of your Brizo ® faucet you will need: • To READ ALL the instructions completely before beginning.
- Page 2 1 1/8" (29 mm) 1 1/8" Diameter (29 mm) Min. Diameter Min. INSTALLATION OF VALVE ASSEMBLIES & TRIM Note: When drilling holes for supply valves, it is recommended that hole size must be a minimum of 1 1/8" (29 mm). Look for a blue label or dot on cold valve assembly and red INSTALLATION OF SPOUT label or dot on hot valve assembly and install them on appropriate side.
- Page 3 Make sure valve is in off position. Place glide ring (1) into the groove in the bottom of handle (2). Place handle & body assembly (2) over end valve stem (3), being careful to align handle in direction desired. Screw handle & body assembly onto valve assembly by turning body portion clockwise. Tighten by hand only.
- Page 4 1/2" (12.7 mm) IPS Connect flexible outlet hoses (1) to valve outlet and spout inlet ports as MAKE CONNECTIONS TO WATER LINES: shown. Tighten nuts firmly with a wrench, but do not over tighten. Choose hook-ups for 1/2" I.P.S. connections: (1) Ball nose riser (3/8"...
- Page 5 Grid Strainer Installation Remove tailpiece (1) and apply Plumber tape (2) to threads. Replace tailpiece. Remove grid flange (1). Screw nut and washer (2) down as far as possible. Push gasket (3) down to nut and washer. Apply silicone sealant to underside of grid flange (1). Insert grid strainer assembly (2) Pull grid strainer straight down into drain hole and secure gasket up through bottom of lavatory.
- Page 6 1/8" (3.17mm) Maintenance SHUT OFF WATER SUPPLIES BEFORE SERVICING FAUCET. If your faucet leaks out of spout outlet or around handle body, replace valve cartridge (1). A. Remove handle & body assembly (2) by turning body counterclockwise by hand. B. Remove screw (3) and stem adapter (4) using allen wrench provided with faucet. C.
- Page 7 APPLIES TO THE PRODUCT USING CERAMIC CARTRIDGE VALVE: RP90520p Hot & Cold Handle Assemblies Ensambles de Manijas Para Caliente y Fría Eau chaude et eau froide manettes RP62374p Handle Buttons, Set Screws & Allen Wrench Botones para la Manija, Tornillos de Ajuste y Llave Allen Clé...
- Page 8 APPLIES TO THE PRODUCT USING WASHERLESS VALVE: RP62433p RP62374 Hot & Cold Handle Buttons, Set Screws & Handle Assemblies Allen Wrench Ensambles de Manijas Botones para la Manija, Tornillos de Para Caliente y Fría Ajuste y Llave Allen Eau chaude et eau Clé...
- Page 9 86534 Rev. E...
-
Page 10: Cleaning And Care
Brizo Kitchen & Bath Company. Esta garantía le aplica sólo a las llaves de agua de Brizo ®...
