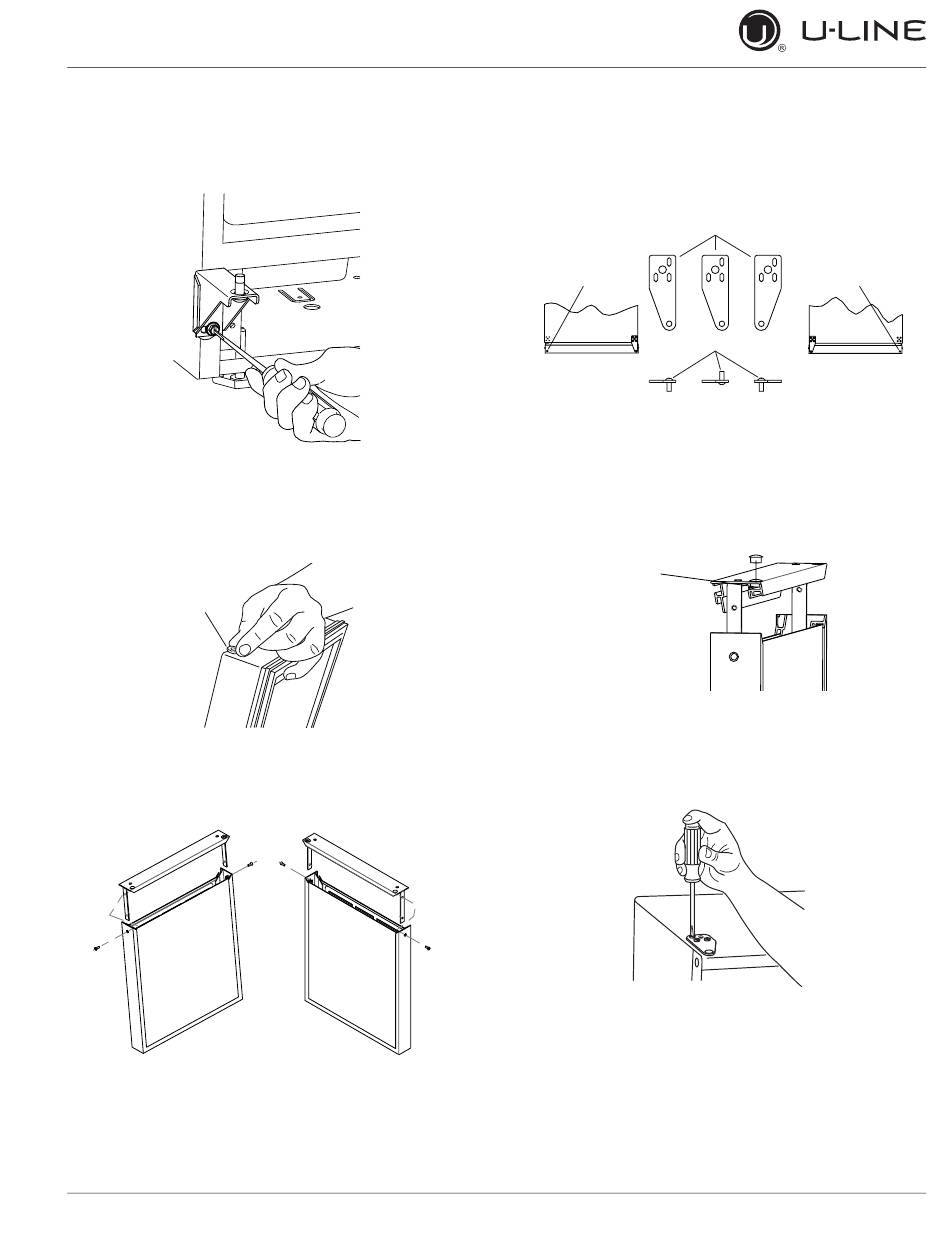

6. Install hinge on opposite side at bottom of cabinet.
Align hinge outer edge with cabinet before tightening
screws.
7. Relocate plastic spacer/bushing on top and bottom of
door to opposite side. Clean out bushing hole in door
bottom with a screwdriver if necessary.
1
8. Using a Phillips screwdriver, remove the two screws
holding the handle.
9. Remove plastic hole plug from door handle and
relocate to opposite side. Lift the handle slightly and
press on the locking tab, then gently pry the hole plug
out of the hole, being careful not scratch the top cap.
Plastic
Hole Plug
Right Side
Door Swing
Right Side
Hinge
10.Remove pivot screw from top hinge, invert screw and
reinstall pivot screw in top hinge.
Press in locking tab, then
lightly pry up to remove
hole plug and move to
opposite side
11.Place door on lower hinge pin. Invert and install upper
hinge on door. Fasten upper hinge to unit (three
screws). Partially tighten screws.
12.Adjust door to ensure proper seal. Tighten upper and
lower hinge screws securely.
13.Fill holes with remaining screws.
14.Replace the grille.
18
u-line.com
Hinge
Plastic
Hole Plug
Screw
Left Side
Door Swing
Invert Invert
Screw Hinge
Door Adjustments 2
