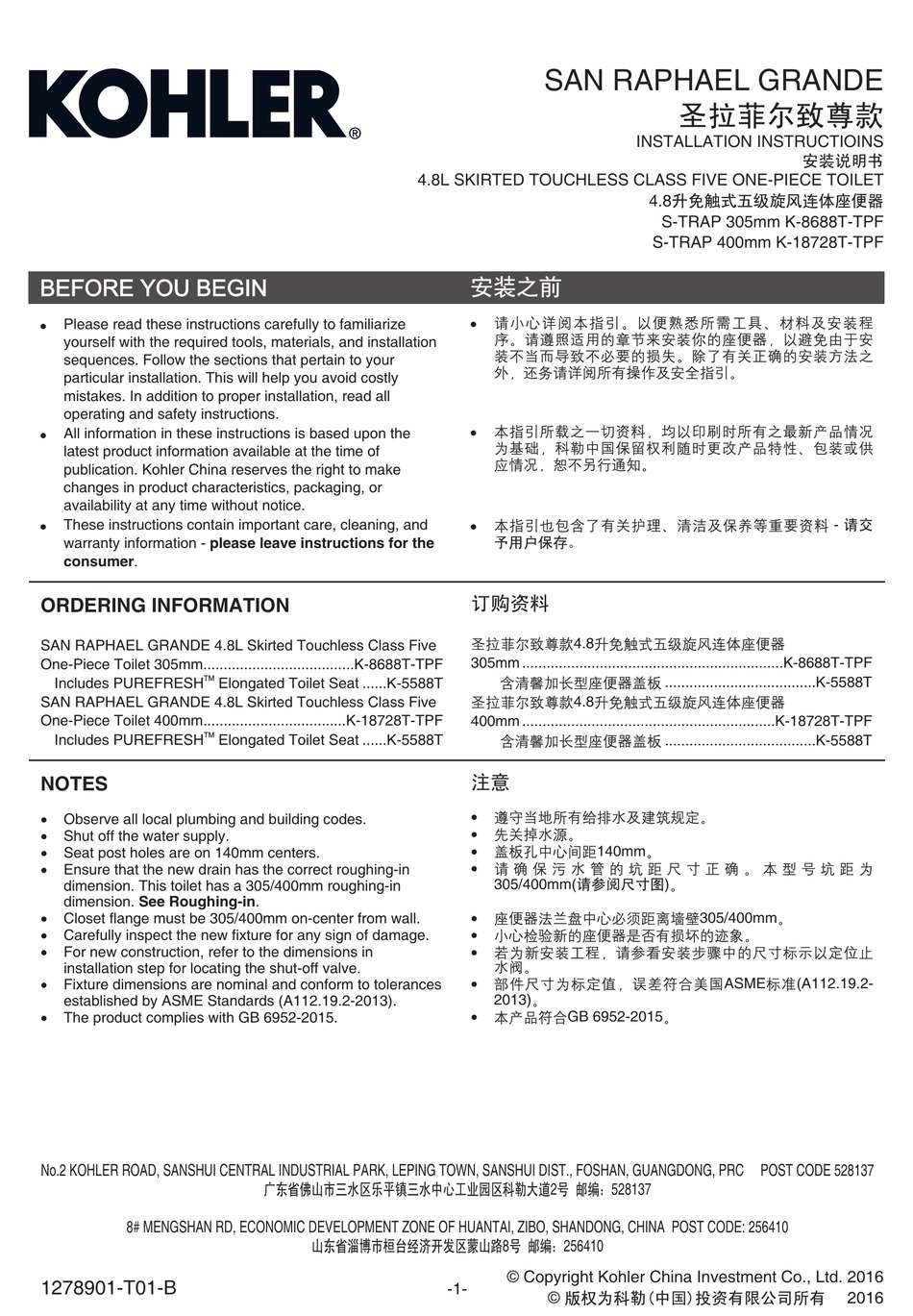

Kohler SAN RAPHAEL GRANDE K-8688T-TPF Installation Instructions Manual

Kohler SAN RAPHAEL GRANDE K-8688T-TPF Installation Instructions Manual

4.8l skirted touchless class five one-piece toilet, s-trap 305/400mm

Advertisement

!
Please read these instructions carefully to familiarize
yourself with the required tools, materials, and installation
sequences. Follow the sections that pertain to your
particular installation. This will help you avoid costly
mistakes. In addition to proper installation, read all
operating and safety instructions.
!
All information in these instructions is based upon the
latest product information available at the time of
publication. Kohler China reserves the right to make
changes in product characteristics, packaging, or
availability at any time without notice.
!
These instructions contain important care, cleaning, and
warranty information -
please leave instructions for the
consumer
.
ORDERING INFORMATION
SAN RAPHAEL GRANDE 4.8L Skirted Touchless Class Five
One-Piece Toilet 305mm.....................................K-8688T-TPF
TM
Includes
PUREFRESH Elongated Toilet Seat ......K-5588T
SAN RAPHAEL GRANDE 4.8L Skirted Touchless Class Five
One-Piece Toilet 400mm...................................K-18728T-TPF
TM
Includes
PUREFRESH Elongated Toilet Seat ......K-5588T
NOTES
·
Observe all local plumbing and building codes.
·
Shut off the water supply.
·
Seat post holes are on 140mm centers.
·
Ensure that the new drain has the correct roughing-in
dimension. This toilet has a 305/400mm roughing-in
dimension.
See Roughing-in
·
Closet flange must be 305/400mm on-center from wall.
·
Carefully inspect the new fixture for any sign of damage.
·
For new construction, refer to the dimensions in
installation step
for locating the shut-off valve.
·
Fixture dimensions are nominal and conform to tolerances
established by ASME Standards (A112.19.2-2013).
·
The product complies with GB 6952-2015.
No.2 KOHLER ROAD, SANSHUI CENTRAL INDUSTRIAL PARK, LEPING TOWN, SANSHUI DIST., FOSHAN, GUANGDONG, PRC POST CODE 528137
8# MENGSHAN RD, ECONOMIC DEVELOPMENT ZONE OF HUANTAI, ZIBO, SHANDONG, CHINA POST CODE: 256410
1278901-T01-B
4.8L SKIRTED TOUCHLESS CLASS FIVE ONE-PIECE TOILET
.
SAN RAPHAEL GRANDE
!
!
!
4.8
305mm ................................................................K-8688T-TPF
4.8
400mm ..............................................................K-18728T-TPF
·
·
·
140mm
·
305/400mm(
·
·
·
·
2013)
·
GB 6952-2015
2
528137
8
256410
©
Copyright Kohler China Investment Co., Ltd. 2016
-1-
©
INSTALLATION INSTRUCTIOINS
4.8
S-TRAP 305mm K-8688T-TPF
S-TRAP 400mm K-18728T-TPF
.....................................
.....................................
)
305/400mm
ASME
(A112.19.2-
-
K-5588T
K-5588T
2016

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SAN RAPHAEL GRANDE K-8688T-TPF and is the answer not in the manual?

Questions and answers

Summary of Contents for Kohler SAN RAPHAEL GRANDE K-8688T-TPF

  • Page 1 GB 6952-2015 The product complies with GB 6952-2015. No.2 KOHLER ROAD, SANSHUI CENTRAL INDUSTRIAL PARK, LEPING TOWN, SANSHUI DIST., FOSHAN, GUANGDONG, PRC POST CODE 528137 528137 8# MENGSHAN RD, ECONOMIC DEVELOPMENT ZONE OF HUANTAI, ZIBO, SHANDONG, CHINA POST CODE: 256410 256410 ©...
  • Page 2: Tools And Materials Required

    WARNING: Risk of personal injury or product damage : Handle vitreous china products very carefully. Vitreous china can break and chip if you overtighten bolts and nuts. WARNING: Risk of external leakage . The fill valve nut has been factory-tightened to design specifications. If re-tightening is required, wrench tighten one turn past finger tight .
  • Page 3: Installation

    FRONT OF BOWL Supply OF OUTLET Fig.#1 Kohler reserves the right to change marked dimensions without prior notice. INSTALLATION TO REMOVE EXISTING TOILET Turn off the water supply. Flush the toilet, and use a sponge to remove the remaining water from the tank and bowl.
  • Page 4 TO INSTALL SUPPLY SHUT-OFF VALVE Supply Shut-Off Valve Install the supply shut-off valve so it is 160mm 160mm above the finished floor line, and 260mm to the left of the closet flange centerline. Closet Flange Centerline 305/400 67mm; The centerline of the supply shut-off valve outlet should extend 67mm from the finished wall.
  • Page 5 Install plastic to ground and mounted with 3 set of bolts firmly. NOTE: Must use the toilet installation gasket ring (not supplied) to seal the area where the waste pipe contacts Fig.#8 the construction section to avoid leakage. Thread the supply hose (not supplied) onto the fill valve shank.
  • Page 6 Carefully align and lower the bowl. Apply weight to the bowl rim to let the outlet insert into plastic trap. Outlet Plastic Trap Fig.#12 Carefully thread the screws into the brackets, until toilet is secure. Alternately tighten left and right sides to prevent pulling the toilet off center.
  • Page 7: Water Level

    IMPORTANT: Before turning on the supply valve for the first time, follow the steps below to clear sand, debris and rust from the system: Make sure water sure water supply is off. Remove valve END by rotating it 1/8 turn counterclockwise. While holding a container over the uncapped VALVE to prevent splashing, turn water supply on and off a few times.
  • Page 8 To lower water level: Move water cup down to a proper height and rotate Screw screw anticlockwise to achieve the desired water level. (Refer to float adjustment instructions.) Fig.#18b To elevate water level: Rotate screw clockwise and raise float to the desired water level.
  • Page 9 A. Partially close the water supply shut-off valve if the water pressure to the toilet is too tank is filling. high. Check the toilet performance following any such adjustment. B. Remove dirt or obstructions from the valve head. Flush the lines. IMPORTANT: Use only genuine Kohler parts as shown to avoid property damage. 1278901-T01-B...
  • Page 10: Consumer Responsibilities

    CAUTION: Don t use any cement while installing the toilet. Heat expansion of the toilet may damage the feet of the toilet. Kohler will not be responsible for any damage because of using cement. WARNING: Risk of product damage. Do not throw into the toilet what is easy to block it, such as newspaper, paper pilch, sanitary towel.
