JetStream L2/L2+ Managed Switch
SFP/SFP+ Slot
SFP slot is designed to install the 1 Gbps SFP module. SFP+ slot is designed to install the 10 Gbps SFP+
module.
Port Feature
Model
TL-SX3008F
TL-SG3210
TL-SG3210XHP-M2
TL-SG3428 V2.0
TL-SG3428MP V2.0
TL-SG3428X
TL-SG3428XMP
TL-SG3452
TL-SG3452P
Rear Panel
■

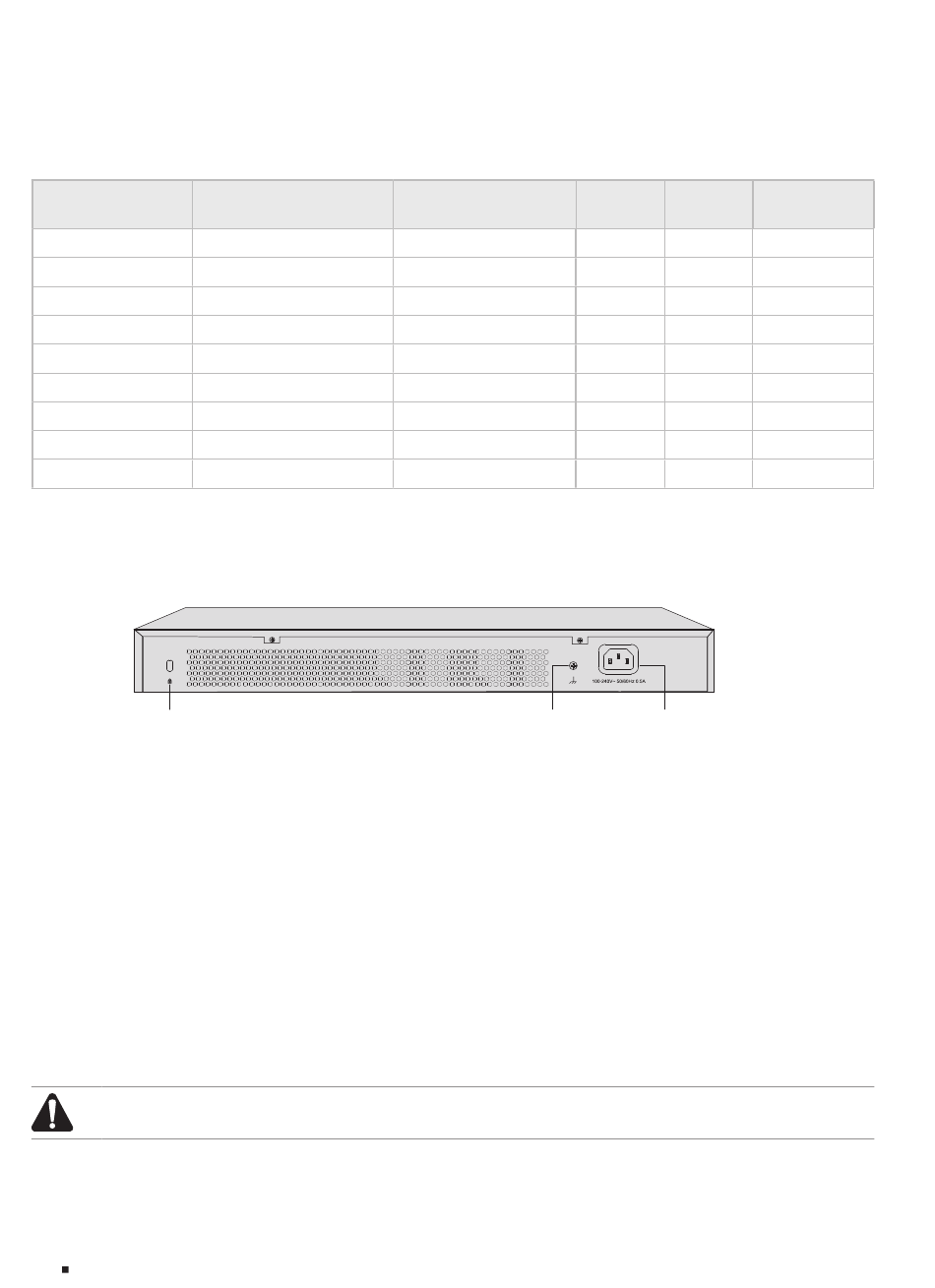

The rear panel is shown as the following figure. The figure is for demonstration purposes only. Your
switch may differ in appearance from the depicted.
Figure 1-10 Rear Panel
Kensington Security slot
Kensington Security Slot
Secure the lock (not provided) into the security slot to prevent the device from being stolen.
Grounding Terminal
The switch already comes with lightning protection mechanism. You can also ground the switch through
the PE (Protecting Earth) cable of AC cord or with Ground Cable. For detailed lightning protection
measures, go to https://www.tp-link.com/support, search the model number of your switch and go to
the product Support web page, refer to the Lightning Protection Guide from the Related Documents:
https://www.tp-link.com/us/configuration-guides/lightning_protection_guide/.
Power Socket
Connect the female connector of the power cord here, and the male connector to the AC power outlet.
Make sure that the voltage of the power supply meets the requirement of the input voltage (100–240 V~
50/60 Hz).
Caution:
Please use the provided power cord.
08 Introduction
100M/1000M/2.5G
RJ45 Port
/
/
8
/
/
/
/
/
/
10/100/1000 Mbps
SFP+ Slot SFP Slot
RJ45 Port
/
8
/
24
24
24
24
48
48
Grounding Terminal
Console Port
8 /
/ 2
2 /
/ 4
/ 4
4 /
4 /
/ 4
/ 4
Power Socket
2
2
2
2
2
2
2
2
2
