Instruction Manual

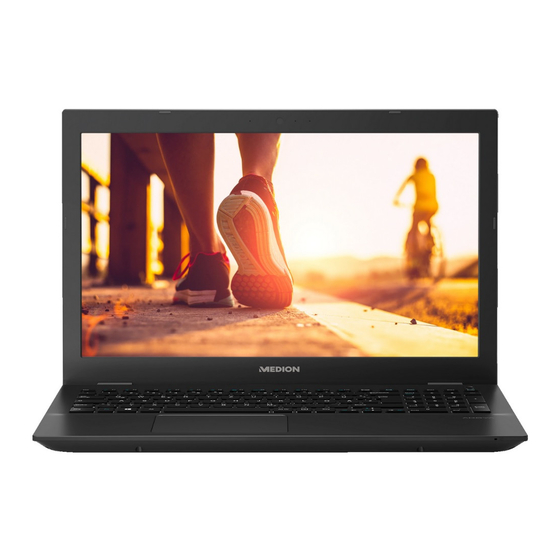

39.6 cm / 15.6" Notebook

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Akoya P6685 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Medion Akoya P6685

Summary of Contents for Medion Akoya P6685

  • Page 1 Instruction Manual 39.6 cm / 15.6“ Notebook...

  • Page 2: Table Of Contents

    Table of Content About these Instructions ................4 1.1. Explanation of Symbols ..................4 1.2. Proper Use........................ 5 Declaration of Conformity ................6 2.1. Information on WLAN ..................7 Information on trademarks ................ 7 Safety Instructions ..................8 4.1. Dangers for children and people with reduced ability to operate electronics........................
  • Page 3 Sound System .................... 29 13.1. External Audio Connections ................29 Network Operation ..................30 14.1. Network Connection ..................30 14.2. Wi-Fi (Wireless Network) ...................30 14.3. Bluetooth .......................30 14.4. Airplane Mode ......................31 Multi Card Reader ..................31 15.1. Inserting a Memory Card ..................31 15.2.

  • Page 4: About These Instructions

    1. About these Instructions Before using the device for the first time, please read these operating instructions carefully, paying special attention to the safety notices. This device should only be used as designated and as described in these instructions. Please keep these instructions in a safe place for future reference. Always include these instructions if selling or giving away the device.

  • Page 5: Proper Use

    Indoor use Devices with this symbol are only suitable for use indoors. Polarity symbols Fig. A On devices with barrel connectors, these symbols indicate the polarity of the plug. There are two variants for the polarity: Fig. B either the inner contact is positive and the outer contact is negative (Fig.

  • Page 6: Declaration Of Conformity

    Should your device work with a network connection in the 5 GHz frequency range of the inbuilt wireless LAN solution, use in EU countries (see table) is only permitted inside buildings. Medion AG hereby declares that this product conforms with the essential requirements and the remaining relevant regulations: •...

  • Page 7: Information On Wlan

    2.1. Information on WLAN Frequency range: 2.4 GHz/5 GHz Wi-Fi standard: 802.11 a/b/g/n/ac Encryption: WEP/WPA/WPA2 Frequency range/MHz Channel Max. transmission power/dBm 2400 - 2483,5 1 - 13 < 20 5150 - 5250 36 - 48 < 23 5250 - 5350 52 - 64 <...

  • Page 8: Safety Instructions

    4. Safety Instructions 4.1. Dangers for children and people with reduced ability to operate electronics This device may be used by children over the age of 8 and by persons with limited physical, sensory or mental abilities or by those without experience and knowledge, if they are supervised or have been instructed in the safe use of the device and understand the ensuing dangers.
  • Page 9 ` In order to avoid any damage to the device, ensure that the plug contacts do not come into contact with water under any circumstances. If this should occur, it is imperative that the plug contacts are dried thoroughly before the device is used again. In case of open housing / AC adapter / battery there is a danger of electric shock or fire.

  • Page 10: Never Carry Out Repairs Yourself

    4.3. Never carry out repairs yourself CAUTION! Risk of electric shock! There is a risk of electric shock if repairs are not carried out by qualified personnel! ` Never try to open or repair the product yourself! ` In the event of a fault, please contact the Service Centre or an approved repair specialist.

  • Page 11: Environmental Requirements

    4.6. Environmental Requirements • The notebook is most reliably operated at an ambient temperature between 5 °C (+41 °F) and 30 °C (+86 °F) and at a relative humidity between 20% and 80% (without condensation). • When powered off, the notebook can be stored at temperatures between 0 °C and 60 °C (+32 °F and 140 °F).

  • Page 12: Cabling

    • The only devices which may be connected to the device are those that meet the requirements set out in the EN60950 standard “Information Technology Equipment – Safety” or devices that meet the EN60065 standard “Audio, video and similar electronic apparatus – Safety requirements”. PLEASE NOTE! Risk of damage! Unsuitable mains adapters may cause damage to the...

  • Page 13: Notes On The Battery

    • In addition, when connecting your peripherals only use the connecting cables supplied with those devices. • Ensure that all connection cables are connected to their corresponding peripheral device to avoid any interference radiation. • Disconnect any cables that are not required. 4.9.

  • Page 14: Information About The Touchpad

    • Ensure the notebook is switched off before replacing the battery. • If the battery is integrated into the device it cannot be readily replaced by the user themselves. In this case the battery must be replaced by a service technician. 4.10.

  • Page 15: Ergonomics

    ` If the screen breaks, there is a danger of injury. If this happens, pick up the shattered pieces wearing protective gloves and send them to your service centre for professional disposal. Finally, wash your hands with soap, as the pieces may have been contaminated with chemicals.

  • Page 16: Included With Your Notebook

    6. Included with your Notebook Please check that the contents are complete and notify us within 7 days of purchase if any of the following components are missing: • notebook • Battery • AC adapter DANGER! Risk of suffocation! Packaging film can be swallowed or used improperly. Therefore, there is a risk of suffocation! ` Keep packaging material such as plastic film or plastic bags away from children.

  • Page 17: Views

    7. Views...
  • Page 18 Microphone Webcam Webcam LED Display Stereo Speakers Power ON/OFF Keyboard Touchpad Battery LED Kensington®Lock LAN Port (RJ-45) HDMI Connector USB Ports 3.0 (type A) Audio combo (mic in & audio out) Multi-card reader USB Port 3.1 (type C) (optional) USB Port 2.0 Optical Drive (optional) Disc Eject Button (optional) Emergency Ejection (on the bottom) (optional)

  • Page 19: Preparation For Starting-Up

    8. Preparation for Starting-Up To operate your notebook safety and ensure a long service life, you should read the “Operational Safety” chapter at the beginning of this manual. All operating software is already fully preinstalled on the notebook so there is no need for you to install any more drivers and you can get started right away.

  • Page 20: Power Supply

    9. Power Supply 9.1. On/Off Switch ` Open the notebook and hold the on/off switch down briefly to switch the notebook on or off. Regardless of the operating system, the notebook will switch off if the switch is held down for longer than 4 seconds continuously. PLEASE NOTE Do not switch your notebook off while the HDD/SSD or optical drive is being accessed.

  • Page 21: Changing The System Language

    Licence Agreement Please read through the licence agreement carefully. It provides important legal information about the use of your software product. To view the text in full, you must slide the scroll bar downwards using the mouse until you reach the end of the document.

  • Page 22: General Handling Of Rechargeable Batteries

    Now click the Set default button to make the selected language the system language. Select the language again, click Options and install your language pack by clicking the Download button. PLEASE NOTE! If further Download buttons are now available, click them in succession –...

  • Page 23: Battery Mode

    9.5. Battery Mode PLEASE NOTE! Batteries store electrical energy in their cells and then release it again as required. Please charge and discharge the new battery completely two or three times consecutively to ensure that it reaches its optimum performance! 9.5.1.
  • Page 24 Power Management (Power Options) Your notebook offers automatic and user selectable power-saving and energy functions that can be used to optimise battery life and reduce the overall operating costs. 9.5.4. Energy Saving Tips • Utilize the Fn+F1 sleep mode keys to turn into power saving mode. •...

  • Page 25: Display

    10. Display 10.1. Opening and Closing the Display The special design of the display hinges keeps the display closed without the need for an additional catch. ` To open the notebook, fold the display up to the desired position using your thumb and forefinger.

  • Page 26: Data Input

    11. Data Input 11.1. Keyboard The double assignment of certain keys means that the range of functions available to you is the same as on a conventional Windows keyboard. Some functions are entered using the Fn key (standard on most notebooks). 11.1.1.

  • Page 27: Touchpad

    Short Description Cuts Keyboard lighting down (optional) Fn + Reduces the lightning of the keyboard. Keyboard lighting up (optional) Fn + Increases the lightning of the keyboard. 11.2. Touchpad PLEASE NOTE! Risk of damage! If unsuitable objects are used to control the device, this could permanently damage the touchpad.

  • Page 28: Playing/Reading Discs

    ` With the device switched on, press the eject button on the optical drive to open the drawer. ` Insert the disc into the drawer with the label up and carefully press it down. The disc now lies flat in the drawer and audibly clicks onto the disc mount. ` Check that the disc can turn freely and then carefully slide the drawer back into the optical drive until it clicks into place.

  • Page 29: Issues Relevant To The Burner

    PLEASE NOTE! The region setting can be changed up to five times via the viewing software before the last setting becomes permanent. If you then wish to change the region setting again, this must be carried out by the manufacturer. Any shipping and configuration costs must be borne by the user.

  • Page 30: Network Operation

    14. Network Operation 14.1. Network Connection Connect one end of a cable with a RJ45 connection (western jack) to your Notebook’s network interface and the other to a different computer or hub/switch. You can find more details about the network in the Windows® help. 14.2.

  • Page 31: Multi Card Reader

    • Using a Bluetooth keyboard and mouse. • Connecting to a PAN (Personal Area Network). The Bluetooth wireless technology data transfer speed can vary depending on the device or environmental factors. Data can be transferred through walls, jacket pockets and briefcases using a Bluetooth device. The transfer between Bluetooth devices occurs at the high frequency of 2.4 Gigahertz (GHz).

  • Page 32: Usb Port

    16. USB Port The universal serial bus is a standard for connecting input devices, scanners and other peripherals. The USB 3.0 ports are fully backwards compatible. PLEASE NOTE! Due to the arrangement of the contacts, the plug will only fit into the socket in one position (exception USB type C).

  • Page 33: Resetting The Notebook To Its Factory Settings

    17.3. Fingerprint Sensor (optional) 17.3.1. Setting up the fingerprint sensor ` Open the Start menu and click/tap on Settings -> Accounts -> Sign-in options. ` Click/tap on the Set up button under the heading Fingerprint in the section Windows Hello. PLEASE NOTE! If you have not yet created a PIN for the sign-in process, this needs to be created first.
  • Page 34 18.1.1. Start system restore ` Restart the device and press the F11 button during the boot process to start PowerRecover. ` Click on the PowerRecover app in the Start menu to start the program. You will be offered the following options: Create driver and tool rescue media •...

  • Page 35: System Restore With Windows Recovery Options

    18.2. System restore with Windows Recovery Options If you experience problems with your device, you can refresh or reset it. Windows is reinstalled when you refresh your device. Your personal files and settings are retained. Windows is also reinstalled when you reset your device. However, your files, settings and apps –...

  • Page 36: Uefi Configuration

    19. UEFI Configuration The UEFI configuration (basic hardware configuration of your system) provides you with a number of options for the configuration and operation of your notebook. For example, you can modify the operating mode for interfaces, security features or power supply management. The notebook has already been configured by the manufacturer to ensure optimum operation.
  • Page 37 The screen is black. • This fault can have various causes: − The operating light (on/off switch) does not light up and the Notebook is in hibernation. Solution: Press the on/off switch. − The sleep light is flashing. The Notebook is in sleep mode. Solution: Press the on/off switch.

  • Page 38: Customer Service

    You’ve checked through the suggestions in the previous section and you’re still having problems with your device? Then call our hotline or contact us at www.medion.com. We’ll be glad to help you. Before contacting your technology centre, however, prepare the following information: •...

  • Page 39: Transport

    Please use the service address for the country where the device was purchased. 21.5. Transport Please note the following information if you wish to transport the Notebook: ` Switch the notebook off. Remove any inserted DVDs/CDs. ` After transporting the notebook, wait until the appliance has reached room temperature before switching it on.

  • Page 40: Upgrading/Modifying And Repair

    22. Upgrading/Modifying and Repair Upgrades and modifications to your notebook should only be carried out by qualified specialists. If you do not have the necessary qualifications, have the work carried out by a qualified service technician. Please contact your customer service department if you have technical problems with your notebook.

  • Page 41: Recycling And Disposal

    However, these approaches were mostly very complicated and varied from one manufacturer to the next. When handling warranty issues for all of its display products, MEDION therefore adheres to the strict and transparent requirements of the standard EN ISO 9241-307, Class II; which has been briefly summarised below.
  • Page 42 Pixel defect types: • Type 1: permanently illuminated pixel (bright, white dot) even when not activated. A white pixel occurs due to the illumination of all three sub-pixels. • Type 2: non-illuminated pixel (dark, black dot) even when activated. • Type 3: abnormal or faulty red, green or blue sub-pixel (e.g.

  • Page 43: Legal Notice

    Germany The operating manual can be reordered via the service hotline and is available for download via the service portal at www.medion.com/gb/service/start/. You can also scan the QR code above and download the operating manual onto your mobile device via the service portal.

  • Page 44: Index

    26. Index Maintenance ..........39 Battery Mode ..........23 Network Operation ........30 Battery Performance ......23 Requirements ......... 30 Charging the Battery ......23 Wi-Fi (Wireless Network) ....30 Discharging the Battery ...... 23 Notes for Service Technicians ....40 Bluetooth ............
