QualGear QG-PRO-PM-CA-B Installation Manual

Single joist ceiling adapter with cover

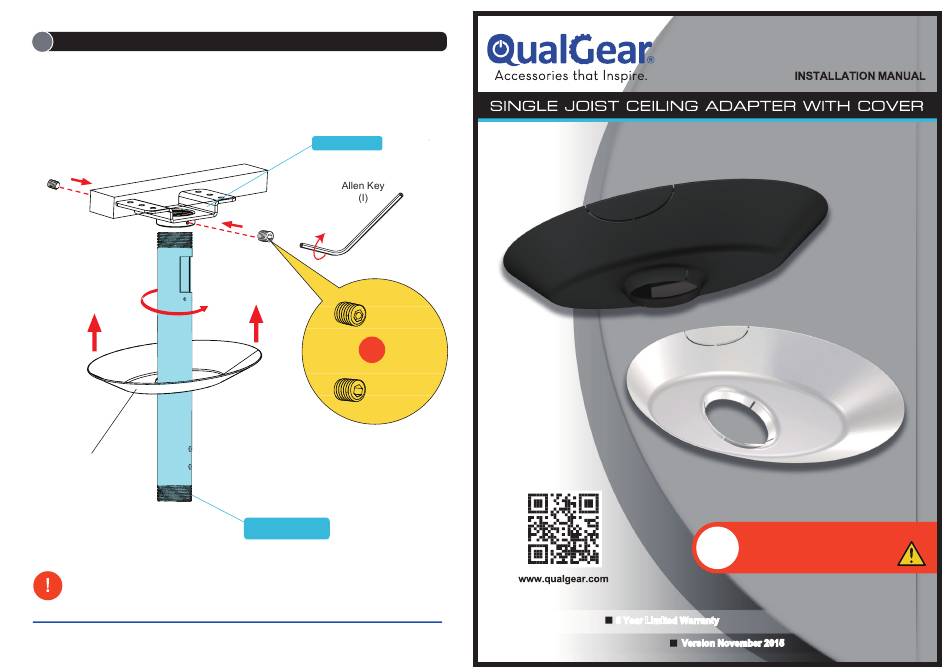

Installing the Decorative Cover

To connect a 1.5" NPT pipe to the mounted adapter plate, twist the male threaded end to

the female thread on the adapter. Using allen key (I), tighten screws (D or E) onto the pipe

and secure the position. Then pull the decorative cover (B) up the pipe to conceal the

adapter plate (A) for a neat look.

Decorative

Cover (B)

IMPORTANT!

Do not loosen screws all the way when making adjustments, this will disconnect the

parts and may cause injury or property damage.

Adapter Plate

(D) x 2

(E) x 2

1.5" NPT Pipe

(not included)

CAUTION!

54.5kg

Do not exceed the maximum rated weight

(120lbs)

specified. Otherwise, serious injury or

RATED

property damage may occur.

5 Year Limited Warranty

Version November 2015

QG-PRO-PM-CA-B

QG-PRO-PM-CA-W

Table of Contents

Do you have a question about the QG-PRO-PM-CA-B and is the answer not in the manual?

Page 1 QG-PRO-PM-CA-B Installing the Decorative Cover QG-PRO-PM-CA-W To connect a 1.5" NPT pipe to the mounted adapter plate, twist the male threaded end to the female thread on the adapter. Using allen key (I), tighten screws (D or E) onto the pipe and secure the position.
Page 2 Before starting installation, please check that all parts shown in this checklist IMPORTANT: are included. If any parts are missing or damaged, contact your local distributor or support@qualgear.com for replacement parts and do not start assembly and installation WARNING until you receive all the parts.
Page 3 Mounting to a Wooden Joist or Wooden Stud Ceiling For concrete ceiling mounting, NOTE follow step 1b. Stud Finder Using a power drill and a 5/32" wood drill bit, drill holes of 5/32" (4mm) diameter, and 2.5" (65mm) depth at the marked locations. Using an edge-to-edge stud finder, find the Using a straight edge, mark the centerline edges of the stud.
Page 4 Mounting to a Concrete Ceiling Make sure drilled holes are free of dust so the anchors will be set properly. Metal Expansion Anchor (F) Using wall marking template (H), mark on the concrete the locations of where you want to mount the ceiling adapter.
