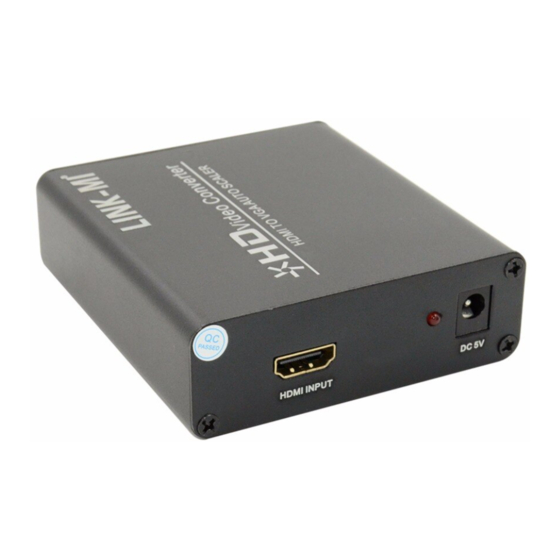

LINK-MI LM-HV01 Operating Instructions

Thank you for purchasing this product. For optimum performance and safety, please read these instructions
carefully before connecting, operating or adjusting this product. Please keep this manual for future
reference.

Introduction

The HDMI to VGA sclaer converter which can convert mobile or HDMI digital video audio signal to analog
VGA signal and the FL / FR stereo audio signal, while support DVI system sideline signals. Help users convert
the high quality of digital signal to analog signal.So that can play on CRT/LCD/LED monitor,HDTV or
projector.

Features

1.No need to install drivers, portable, flexible, plug and play.
2.High quality scaling technology for input resolutions .
3.Multiple output resolution set in OSD menu.
4.Compliant with HDMI1.3,DVI1.0 Standard.
5.Share your photos, music and movies with your family and friends on the TV.

Package

1.HDMI to VGA Converter
2.5V1A DC Power Supply Adaptor
3.Operation Manual

Specification

Input ports
Output ports
Dimensions(mm)
Wight (g)
HDMI input resolution
VGA output resolution
Operating Temperature
Storage Temperature
Relative Humidity
Power Consumption (Max)
ESD Protection
HDMI to VGA Scaler Converter
1 pcs
1 pcs
1 pcs
1xHDMI
1xVGA,1xEarphone
100(D)x84(W)x28(H)
300
480i/60Hz,480p/60Hz,576i/60Hz,576p/60Hz,
720p50/60Hz,1080i50/60Hz,1080p50/60Hz
800x600@60Hz,1024x768@60Hz,1360x768@60Hz,
1440x900@60Hz,1280x1024@60Hz,1680x1050@60Hz,
1600x1200@60Hz,1920x1080@60Hz
0℃~ 40℃ / 32℉~ 104℉
-20℃ ~ 60℃ / -4℉ ~ 140℉
20 ~ 90% RH (Non-condensing)
3W
Human Body Model:
± 8kV (air-gap discharge)
± 4kV (contact discharge)
LM-HV01
