Summary of Contents for audiophony MOJO2200CURVE

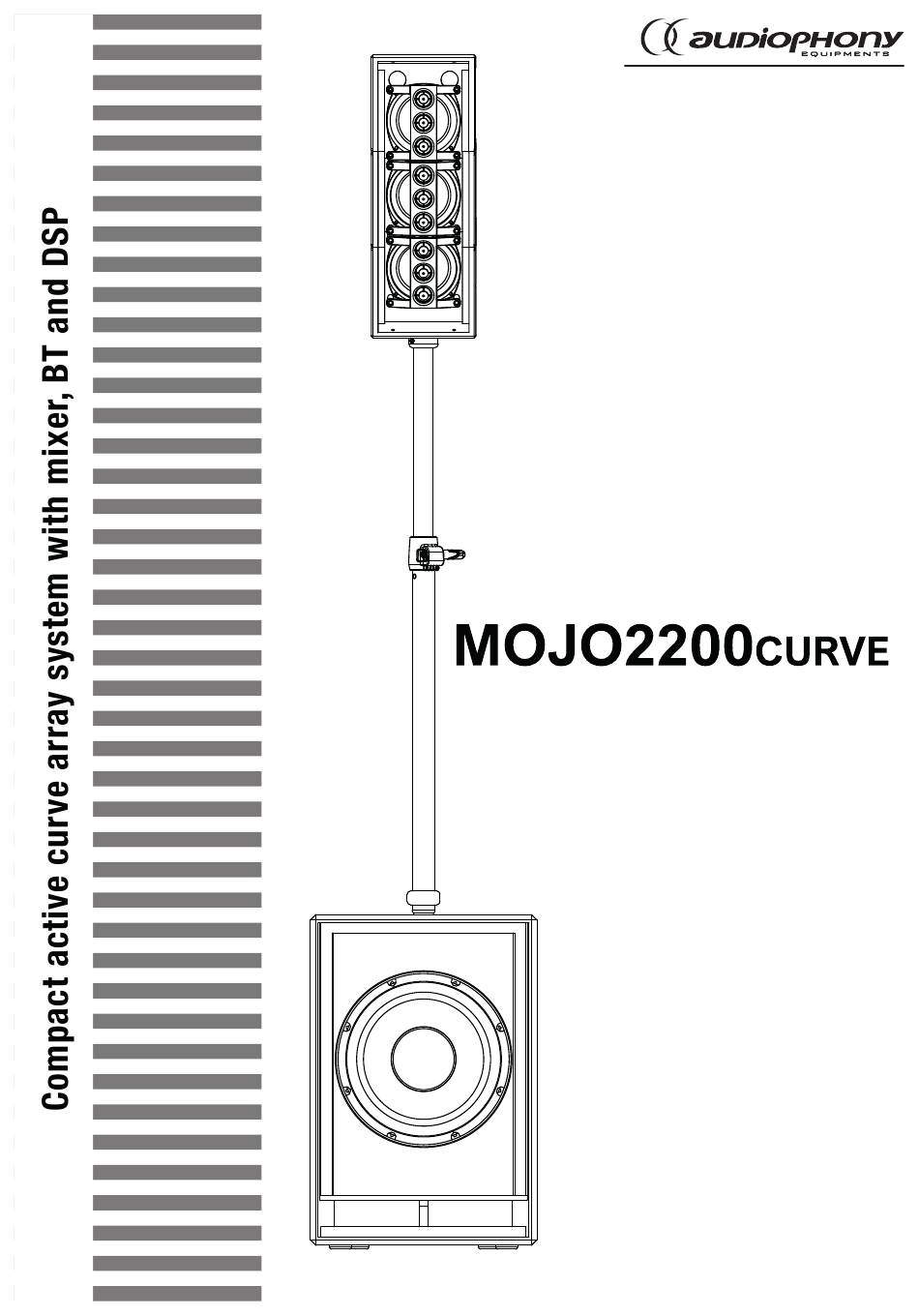

  • Page 1 USER GUIDE H11175 - Version 1 / 06-2020...
  • Page 2: Safety Information

    English MOJO2200curve - Compact active curve array system with mixer, BT and DSP 1 - Safety information Important safety information This unit is intended for indoor use only. Do not use it in a wet, or extremely cold/hot locations. Failure to follow these safety ins-...
  • Page 3: Technical Specifications

    MOJO2200curve - Compact active curve array system with mixer, BT and DSP English 2 - Technical specifications COLUMN Power handling 300W RMS - 600W max Nominal impedance 6 Ohms Boomer 3 X 5" neodynium Tweeter 1 x 1" Dispersion 120° x 70° (HxV) (-10dB)
  • Page 4 English MOJO2200curve - Compact active curve array system with mixer, BT and DSP 3 - Presentation A- Rear view CH 1 CH 2 CH 3 CH 4/5 Page 4...
  • Page 5 The Bluetooth logo is blinking quickly on the display to indicate that its searching a Bluetooth connexion. ® On your smartphone or computer select the "MOJO2200curve" in the list of the Bluetooth devices to connect it. ® The Bluetooth logo is blinking slowly on the display and a sound signal indicate that your device is connected.
  • Page 6 English MOJO2200curve - Compact active curve array system with mixer, BT and DSP 4 - DSP 4.1 - Level bargraph : Limiter threshold Master level and limiter indicator Channel level The display show the of each 4 channels and of the Master.
  • Page 7 Bluetooth source (phone, tablet, ... etc). Switching on the TWS mode : 1 - If you have already paired one of the two MOJO2200CURVE, go to the Bluetooth management of your source and deactivate Bluetooth. 2 - On both MOJO2200CRVE, activate the TWS mode. A "Left Channel" or "Right Channel" voice message will be emitted to confirm that the TWS mode is active.
  • Page 8 English MOJO2200curve - Compact active curve array system with mixer, BT and DSP 5 - Column How to plug the satellite on the subwoofer The MOJO2200curve satellite is directly mounted above the subwoofer thanks to its contact slot. This slot guarantees the transmission of the audio signal between the column and the subwoofer.
  • Page 9 MOJO2200curve - Compact active curve array system with mixer, BT and DSP English 6 - Connections CH2 : MIC CH1 : LINE CH4/5 : Bluetooth ® Please make sure to properly configure the sound levels of your system. In addition to being unpleasant for the audience, improper settings can damage your whole sound system.
  • Page 10 That is why technical specifications and the products physical configuration might differ from the illustrations. Make sure you get the latest news and updates about the AUDIOPHONY ® products on www.audiophony.com ®...
