- Page 1 USER GUIDE 9587 - December 2009 Version 1.0...
-
Page 2: Safety Information
ENGLISH SELF-POWERED SOUND SYSTEM WITH USB READER AND UHF MIC 1 - Safety information Important safety information This unit is intended for indoor use only. Do not use it in a wet, This product contains non-isolated electrical components. Do not or extremely cold/hot locations. - Page 3 ENGLISH SELF-POWERED SOUND SYSTEM WITH USB READER AND UHF MIC Instructions and recommendations 1 - Please read carefully : We strongly recommend to read carefully and understand 12 - Cleaning precautions : the safety instructions before attempting to operate this unit. Unplug the product before attempting any cleaning operation.

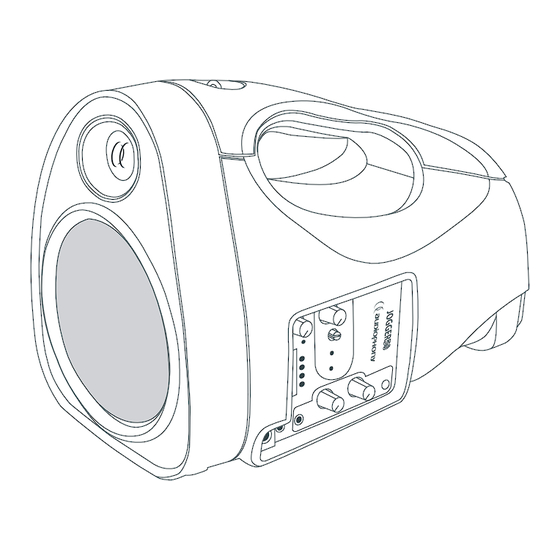

- Page 4 ENGLISH SELF-POWERED SOUND SYSTEM WITH USB READER AND UHF MIC 2 - Introduction Thank you for purchasing the JOGGER50. The JOGGER50 is a battery-operated amplified sound system producing 45 W RMS. It features a speaker with a built-in amplification module, a USB reader compatible with MP3 files, a handheld UHF microphone and its protective cover.
- Page 5 ENGLISH SELF-POWERED SOUND SYSTEM WITH USB READER AND UHF MIC 4 - Description 4 - A : UHF receiver module VOL. 1 - Volume control fader. Clockwise: from minimum to maximum. 2 - Channel selector, position it on the same channel as the transmitter.
- Page 6 ENGLISH SELF-POWERED SOUND SYSTEM WITH USB READER AND UHF MIC 4 - C : USB reader 1 - Volume control fader. From OFF to MAX. 2 - Reader status indicator. The indicator flashes if an error occur while playing audio files. The indicator remains lit if everything goes well.
- Page 7 ENGLISH SELF-POWERED SOUND SYSTEM WITH USB READER AND UHF MIC 4 - H : UHF handheld microphone 1 - Grille : Protects the capsule. 2 - Capsule: converts the sound pressure into a signal. 3 - Lockring. 4 - Battery charge level indicator. Flashes then stays lit when the batteries are empty.
-
Page 8: Power Management
ENGLISH SELF-POWERED SOUND SYSTEM WITH USB READER AND UHF MIC 5 - Power management Power management indicators: 1 - BL indicator: Battery level indicator. This red indicator MAIN VOL. TONE flashes when the battery needs to be charged. 19V/3.15A This red indicator stays lit when the battery is charged enough. - Page 9 ENGLISH SELF-POWERED SOUND SYSTEM WITH USB READER AND UHF MIC 7 - Safety precautions when using the battery 1 - This device features a 14.4 V / 2.6 Ah Lithium-ion battery allowing an average battery life of 4 hours. 2 - The complete charging process duration is approximately 2 hours. 3 - A built-in power management system indicates if the battery needs to be charged.
-
Page 10: Technical Specifications
ENGLISH SELF-POWERED SOUND SYSTEM WITH USB READER AND UHF MIC 8 - Technical specifications Loudspeaker 5’’ (13cm) broadband louspeaker Power 50W class D amplifiier UHF Mic UHF with 16 frequencies Frequency range UHF 863-865 Mhz Reader USB reader (key/HDD) Autonomy approximately 4 hours Recharge time 2 hours... -
Page 11: Accessories And Spare Parts
ENGLISH SELF-POWERED SOUND SYSTEM WITH USB READER AND UHF MIC 9 - Accessories and spare parts LT2600 260mA Lithium-ion battery for JOGGER50. The extra battery is perfect for extensive uses of theJOGGER50. LTPOW 260mA Lithium-ion battery charger for JOGGER50. This extra charger allows you to charge your battery independently from the JOGGER50. - Page 12 Because AUDIOPHONY® takes the utmost care in its products to make sure you only get the best possible quality, our products are subjects to modifications without prior notice. That is why technical specifications and the products physical configuration might differ from the illustrations.
