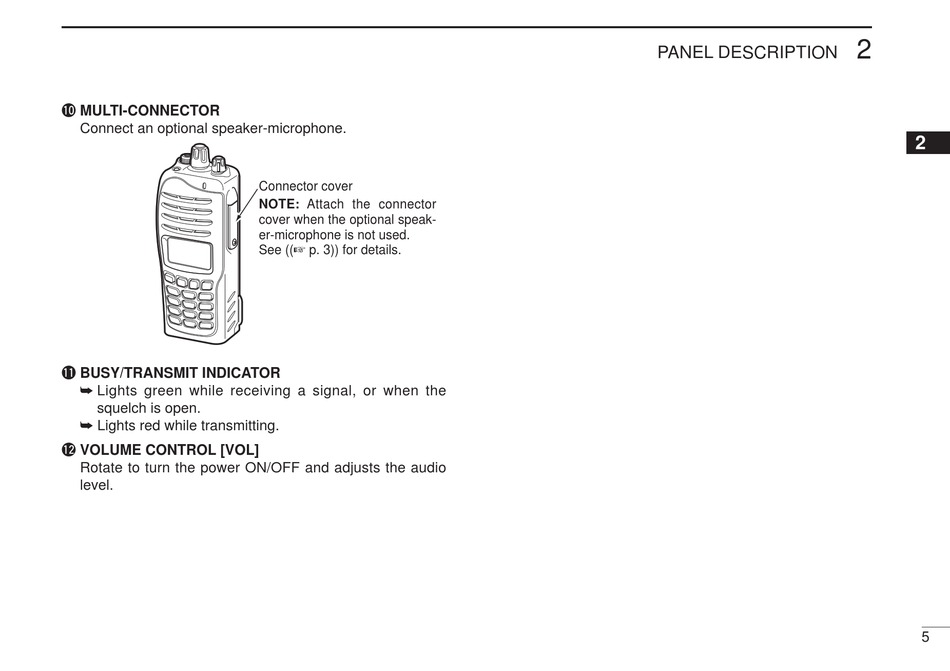

!0 MULTI-CONNECTOR
Connect an optional speaker-microphone.
!1 BUSY/TRANSMIT INDICATOR
➥ Lights green while receiving a signal, or when the
squelch is open.
➥ Lights red while transmitting.
!2 VOLUME CONTROL [VOL]
Rotate to turn the power ON/OFF and adjusts the audio
level.
Connector cover
NOTE: Attach the connector
cover when the optional speak-
er-microphone is not used.
See ((☞ p. 3)) for details.
PANEL DESCRIPTION
2
2
5
