Abex Exhibits LUMIWALL LW-48 Technical Specifications And Assembly Manual

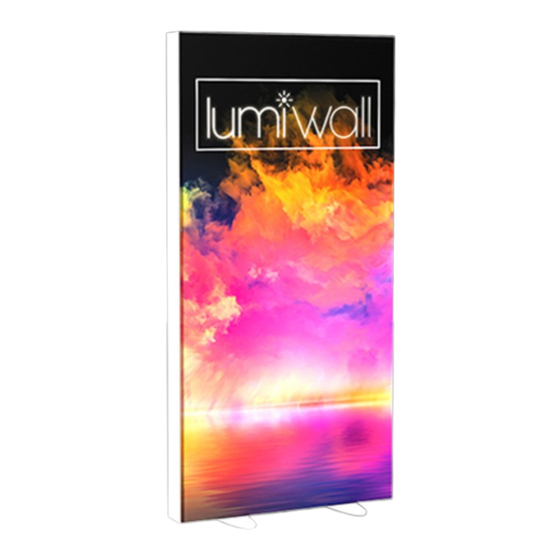

LUMIWALL LED Backlit fabric display
LUMIWALL is constructed of aluminum extrusion and features
SEG press fit fabric graphics for hassle free set up. Heavy duty
aluminum feet ensure maximum stability. Graphics are printed
on premium fabric designed to provide maximum illumination
while maintaining vibrant colors. The entire unit disassembles
and packs flat in a single wheeled rotomolded case for
unparalleled protection.
MODEL #: LW-48
SPECIFICATIONS / ASSEMBLY
3D VIEW
Details
• Aluminum Extrusion Frame
• Single or double-sided SEG press fit
dye-sublimated fabric graphics
• Easy assembly
• Packs in a single 4825 rotomolded,
wheeled, flat transport case
• Limited Lifetime Warranty
• Made in the USA
Dimensions
Assembled unit:
47.5"w x 95.25"h x 17.5"d
1206mm x 2419mm x 444mm
60 lbs / 27.2 kgS
Graphic area:
47"w x 94.5"h
1194mm x 2400mm
95"
Additional information
Power/Wattage Requirements: 60w
Set-Up Time: 25-30min
Lead Time: 10 Days
Warranty: Limited Lifetime Warranty
Includes
• 4' x 8' Lumiwall Frame
• Lumiwall Stabilizer Feet
• Backlit Front Fabric
• White Backing Fabric
• LED Backlighting Kit (800
Lumens, 6500k Daylight White)
• Lumiwall Tool Kit
• Rotomolded Case
47 1/2"
95 1/4"
12 1/4"
17 1/2"
FRONT VIEW
RIGHT VIEW
Shipping
Packs in ( 1 ) 4825 case
Shipping dimensions:
50"h x 27"w x 7"d
1270mm x 685mm x 178mm
60 lbs / 27.2 kgS
