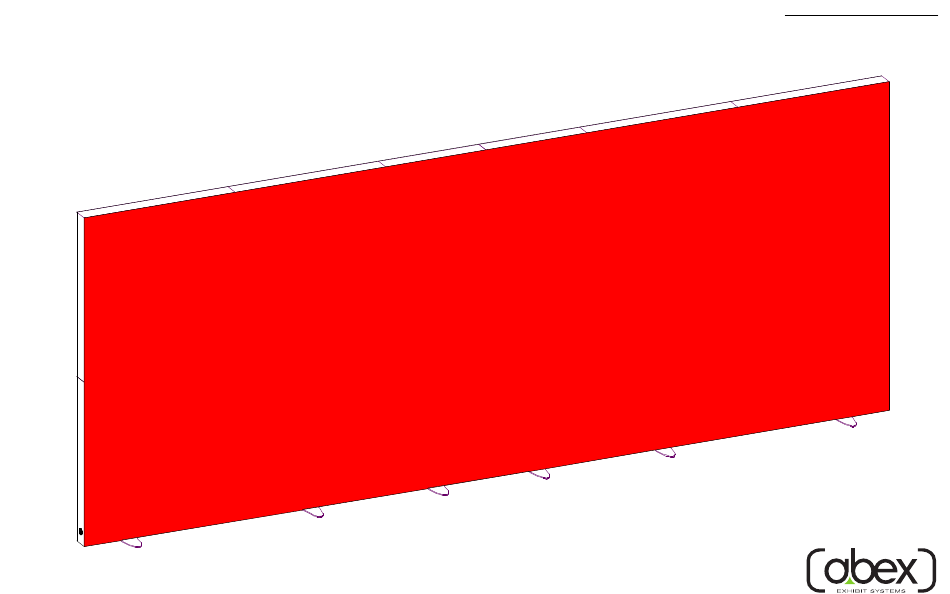

- Page 1 LUMIWALL (20'W x 8'H) ASSEMBLY INSTRUCTIONS CLIENT: ORDER: INSTR: LW-208-INSTR Abex Exhibit Systems • 355 Parkside Drive, San Fernando, CA 91340 • (800) 537-0231...
- Page 2 PAGE 1 Z965 - Corner Connector (2) Bottom view Loosen the screws on base plate but do not remove them. Than swivel base plates. Wire Managment Z961/13 - Tension Lock Z967 - Straight Connector (2) Bottom view Tighten both screw firmly. Z965 - Corner Connector Wire Managment Connect frame extrusions together,...
- Page 3 PAGE 2 Profile Label Description 240" 1/4" ALUMINIUM OVAL BASE PLATE 17.5" (444.5mm) x 4.72" (120mm) M1901 - 45" (1143mm) EXTRUSION W/ (1) 45° CUT, (2) HOLES FOR BASE PLATE & LIGHTS M1901 - 45" (1143mm) EXTRUSION W/ (2) HOLES FOR BASE PLATE & LIGHTS M1901 - 30"...
- Page 4 PAGE 3 ULTRAFORM CASE #2 ULTRAFORM CASE #1 20'W x 8'H Configuration 10'W x 8'H Configuration END VIEW END VIEW NOTE: DO NOT DISCARD ANY PACKING MATERIAL. LEVELS OF PARTS MAY BE SEPARATED BY BLACK SHEETS OF PLASTIC Fabric (COROPLAST). Fabric Uprights Uprights w/power supply...
- Page 5 LUMIWALL TRAPEZOID ASSEMBLY INSTRUCTIONS CLIENT: ORDER: INSTR: LW-58-INSTR Abex Exhibit Systems • 355 Parkside Drive, San Fernando, CA 91340 • (800) 537-0231...
- Page 6 PAGE 1 43 1/4" (2) Z965B (2) Z964 Bottom view Bottom view Loosen the screws on base plate but do not remove them. Than swivel Tighten both screw firmly. base plates. Z965B - Corner Connector Z964 - Adjustable Corner Connector 96 7/16"...
- Page 7 PAGE 2 SEG GRAPHIC PACKING DIAGRAM NOTE: DO NOT DISCARD SEG GRAPHIC ANY PACKING Extrusion fabric groove MATERIAL. LEVELS OF PARTS MAY BE SEPARATED BY WHITE SHEETS OF PLASTIC, fabric graphic COROPLAST OR w/silicon edge CARDBOARD. Insert the silicon edge of the fabric into the groove of the extrusions.
