SPECIFICATIONS

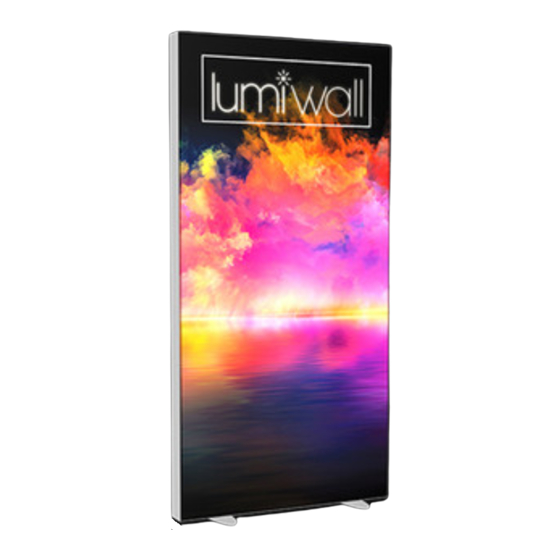

LUMIWALL LED Backlit fabric display
LUMIWALL is constructed of aluminum extrusion and features SEG press fit fabric graphics
for hassle free set up. Heavy duty aluminum feet ensure maximum stability. Graphics are
printed on premium fabric designed to provide maximum illumination while maintaining
vibrant colors. The entire unit disassembles and packs flat in a single wheeled rotomolded
case for unparalleled protection.
MODEL #: LW-46
Details
• Aluminum Extrusion Frame
• Single or double-sided SEG press fit
dye-sublimated fabric graphics
• Easy assembly
• Packs in a single 4825 rotomolded
wheeled, flat transport case
3D VIEW
• Limited Lifetime Warranty
• Made in the USA
Dimensions
Assembled unit:
47.5"w x 72"h x 17.5"d
55 lbs / 25 kgS
Graphic area:
47 5/16"w x 71 13/16"h
Additional information
Power/Wattage Requirements: 60w
Set-Up Time: 25-30min
Lead Time: 10 Days
Warranty: Limited Lifetime Warranty
4ft x 6ft
Includes
• 4' x 6' Lumiwall Frame
• Lumiwall Stabilizer Feet
• Backlit Front Fabric
• White Backing Fabric
• LED Backlighting Kit (800
Lumens, 6500k Daylight White)
• Lumiwall Tool Kit
• Rotomolded Case
48 13/16"
72 13/16"
12 1/4"
17 1/2"
FRONT VIEW
RIGHT VIEW
Shipping
Packs in ( 1 ) 4825 case
Shipping dimensions:
50"h x 27"w x 7"d
1270mm x 685mm x 178mm
50 lbs / 25 kgS
72"
