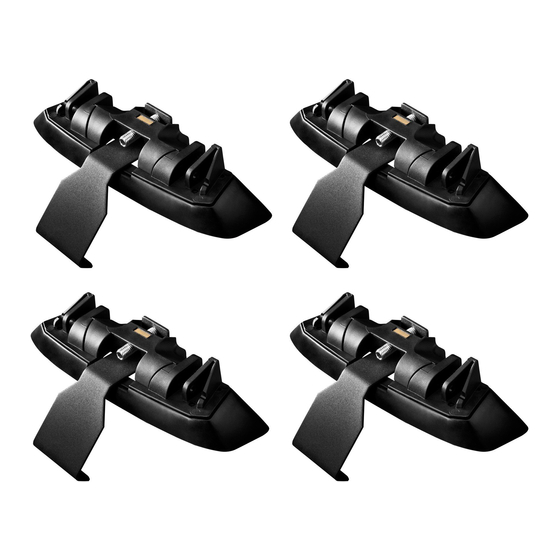

- Page 1 K512W Fitting Kit Fitting Instructions for Basic Carrier Revision No: 3C...
- Page 2 Fitting Kit K512W MAX kgs (lbs) Seat Leon II 1P, 5dr Hatch May 05-12 60 kgs (132 lbs) 60 kgs (132 lbs)
-
Page 3: First Time Installation

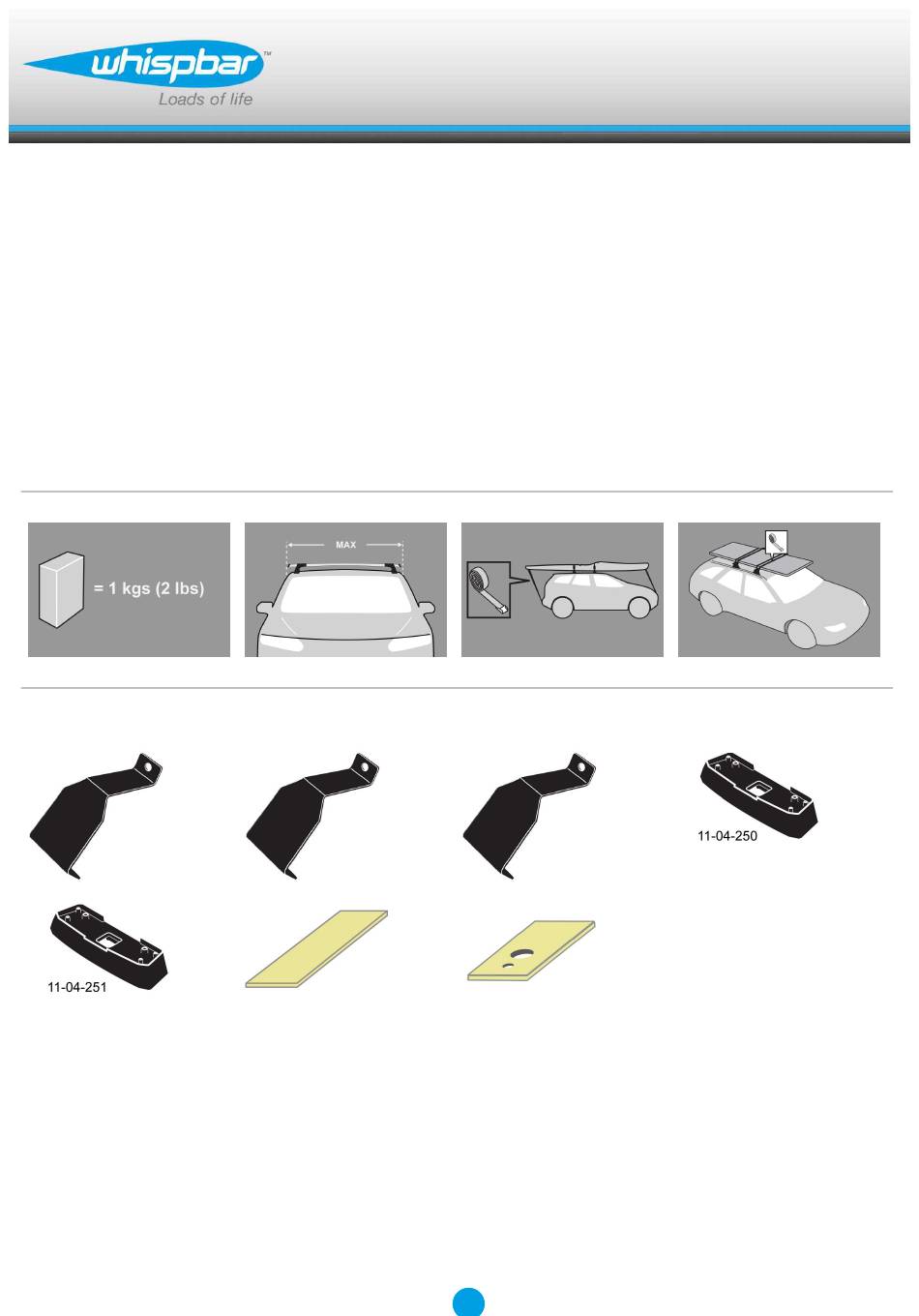

Fitting Kit K512W First Time Installation Remove parts from inside the package and check. Contact your dealer if any parts are missing or damaged. This kit fits type A, B, C and D. These instructions show type A crossbar fitted. They also apply to type B, C and D. - Page 4 Fitting Kit K512W Use keys to remove covers. Use hex screwdriver to reverse adjusting screw 10 turns. Press adjusting screw and pull crossbar legs out. Refer to the crossbar instructions for crossbar adjustment method. Ensure each end of the crossbar is...
- Page 5 Fitting Kit K512W Remove locking screw. Apply protective strip as shown. Trim if required. It is important to put the clamps in the correct position on the vehicle. Letters refer to the part numbers stamped on clamps. Clamp Part Number:...
- Page 6 Fitting Kit K512W Attach clamp to each leg. NOTE; clamps may have labels showing their positions on the vehicle (For example; "Front Right"). Refit locking screw so that it goes through the hole in the clamp. Do not begin to tighten the locking screw.
- Page 7 Fitting Kit K512W It is important to put the pads in the correct position on the vehicle. Letters refer to the pad part numbers and position. Pad Part Number: A = 11-04-250 B = 11-04-251 Fit rubber pads (supplied with fitting kit) to foot.
- Page 8 Fitting Kit K512W Fitment Place crossbar on vehicle. Minimum recommended spacing between the bars is 700mm (27 1/2") (unless otherwise stated). Please check the rear of this manual for information relating specifically to your vehicle. Locate vehicle's fixed points. Clamps directly to edge of roof under the...
- Page 9 Fitting Kit K512W Tighten adjusting screw to 5 Nm (3.7 ft lb) hand tight. Tighten locking screw on both legs evenly. Check crossbar is securely attached to the vehicle. Use keys to fit and lock covers...
- Page 10 Fitting Kit K512W CAUTION: Recheck all fasteners immediately after a load is applied to the crossbars. Regularly check screws are tight.
-
Page 11: Maintenance
Fitting Kit K512W Maintenance Clean the car roof and surfaces of the product that will be in contact with the car roof. Follow the fitting instructions for fitting the product to your vehicle. Make sure all steps are carried out in order. - Page 12 Fitting Kit K512W Check and replace worn out or defective parts. Keep the product clean and maintained. Never drive into a car wash with the roof rack system fitted. Lubricate locks and adjusting screws at regular intervals. Remove the products from the vehicle when not in use.
- Page 13 Fitting Kit K512W Leon II, 5dr Hatch May 05-12 (EU) -300mm 410mm 878mm 803mm -11 -13/16ths" 16 1/8ths" 34 9/16ths" 31 5/8ths"...
-
Page 14: Warranty And Disclaimer
Make a claim as soon as practicable by contacting the Whispbar dealer from whom you purchased the product, who will give you instructions on how to proceed. If you are unable to contact the Whispbar dealer, or the dealer is not able to remedy the defect, you should contact Yakima as soon as practicable at: Call: 0800 4776 722 (NZ) or 1800 143 548 (AU) Email: warranty@yakima.co.nz or warranty@yakima.com.au... - Page 15 Yakima or the Whispbar dealer will be borne by you. Following receipt of the product and purchase invoice or receipt, Yakima or the Whispbar dealer must inspect the product to determine whether the claim falls within the warranty. If: 4.1 the claim falls within the warranty, Yakima will remedy any defects in materials or workmanship becoming apparent during the...
