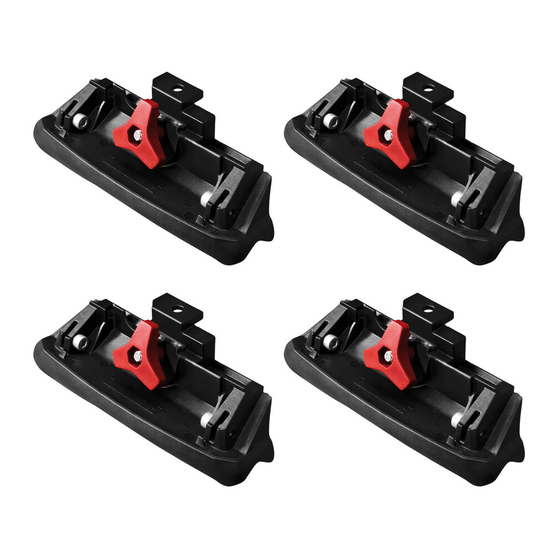

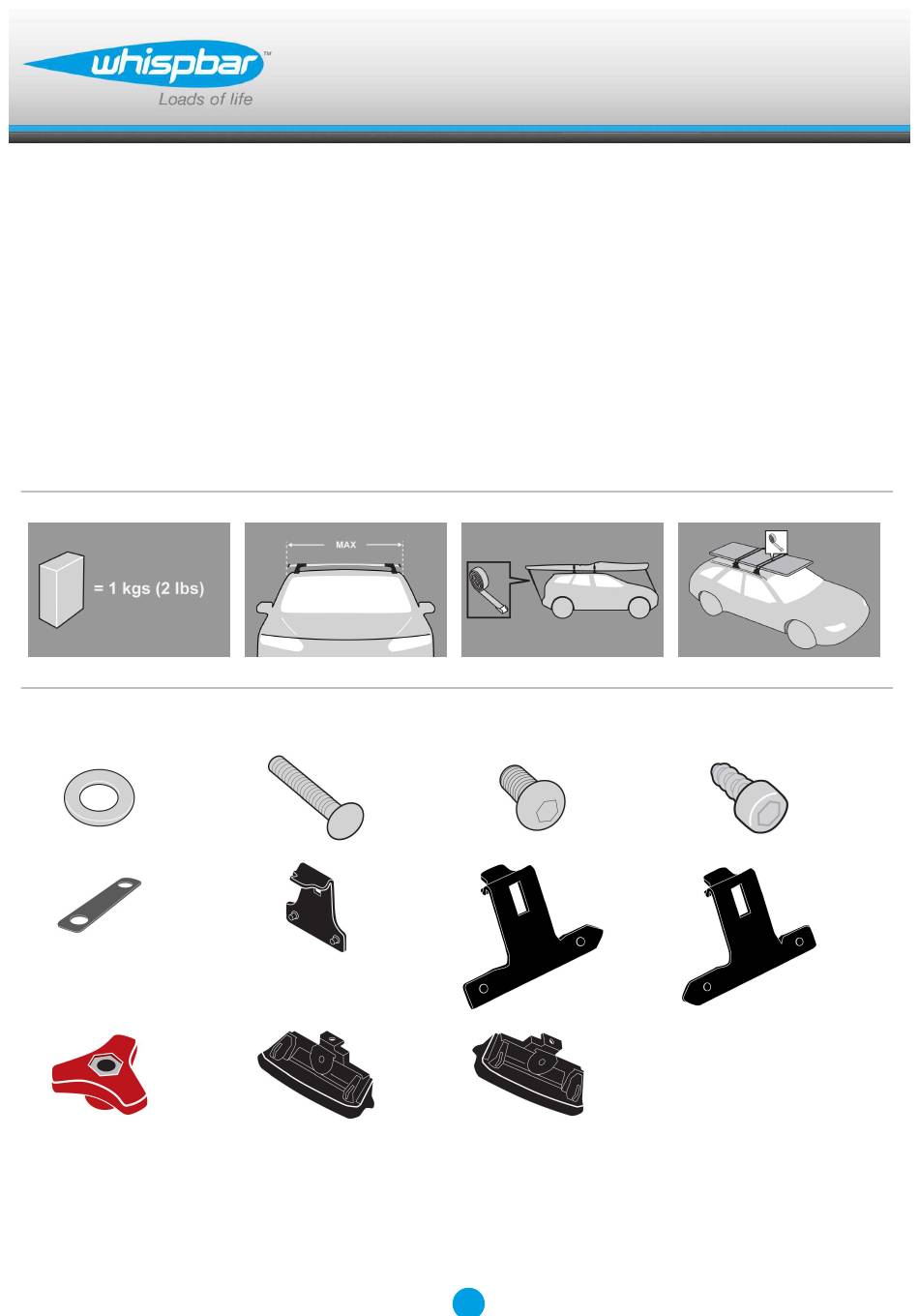

- Page 1 K505W Fitting Kit Fitting Instructions for Basic Carrier Revision No: 7C...
- Page 2 Fitting Kit K505W MAX kgs (lbs) Hyundai ix35 , 5dr SUV 10-+ 75 kgs (165 lbs) 75 kgs (165 lbs)
-
Page 3: First Time Installation
Fitting Kit K505W First Time Installation Remove parts from inside the package and check. Contact your dealer if any parts are missing or damaged. This kit fits type A, B, C and D. These instructions show type A crossbar fitted. They also apply to type B, C and D. - Page 4 Fitting Kit K505W Use hex screwdriver to reverse adjusting screw 10 turns. Press adjusting screw and pull crossbar legs out. Refer to the crossbar instructions for crossbar adjustment method. Ensure each end of the crossbar is adjusted equally. Set bars to length (revert to rear of these instructions).
- Page 5 Fitting Kit K505W Tighten adjusting screw to 5 Nm (3.7 ft lb) hand tight. Remove plastic clamp block by gripping bar leg with fingers and push firmly with thumbs until clamp block drops out behind leg. Remove both pins from each leg. Use tapered end of spanner located inside left hand cover to assist.
- Page 6 Fitting Kit K505W Detach foot from leg. Store loose parts in a safe place. Repeat for all legs. Select four feet assemblies and match the left and right assemblies to the left and right roof rack legs. Assemble foot from kit into leg by pressing it down.
- Page 7 Fitting Kit K505W Use two M5 x 12 mm self tapping screws to secure the assembly onto the leg. Do not over tighten. Fitment Locate two holes at each position along the inside of the roof rails. Place crossbars approximately above these holes on roof rails.
- Page 8 Fitting Kit K505W Apply protective strip as shown. Trim if required. It is important to put the clamps in the correct position on the vehicle. Letters refer to the part numbers stamped on clamps. Clamp Part Number: A = 685D...
- Page 9 Fitting Kit K505W Thread the coach bolt through the clamp and the leg. Ensure the two pins of the clamp engages correctly with the holes in the roof rail. Tighten the plastic knob. Ensure the plastic knob is in the position shown when fully tightened.
- Page 10 Fitting Kit K505W CAUTION: Recheck all fasteners immediately after a load is applied to the crossbars. Regularly check screws are tight.
-
Page 11: Maintenance
Fitting Kit K505W Maintenance Clean the car roof and surfaces of the product that will be in contact with the car roof. Follow the fitting instructions for fitting the product to your vehicle. Make sure all steps are carried out in order. - Page 12 Fitting Kit K505W Check and replace worn out or defective parts. Keep the product clean and maintained. Never drive into a car wash with the roof rack system fitted. Lubricate locks and adjusting screws at regular intervals. Remove the products from the vehicle when not in use.
- Page 13 Fitting Kit K505W ix35, 5dr SUV 10-+ (EU) -50mm 800mm 850mm 810mm -1 -15/16ths" 31 1/2ths" 33 7/16ths" 31 7/8ths"...
-
