Summary of Contents for Yakima K096W

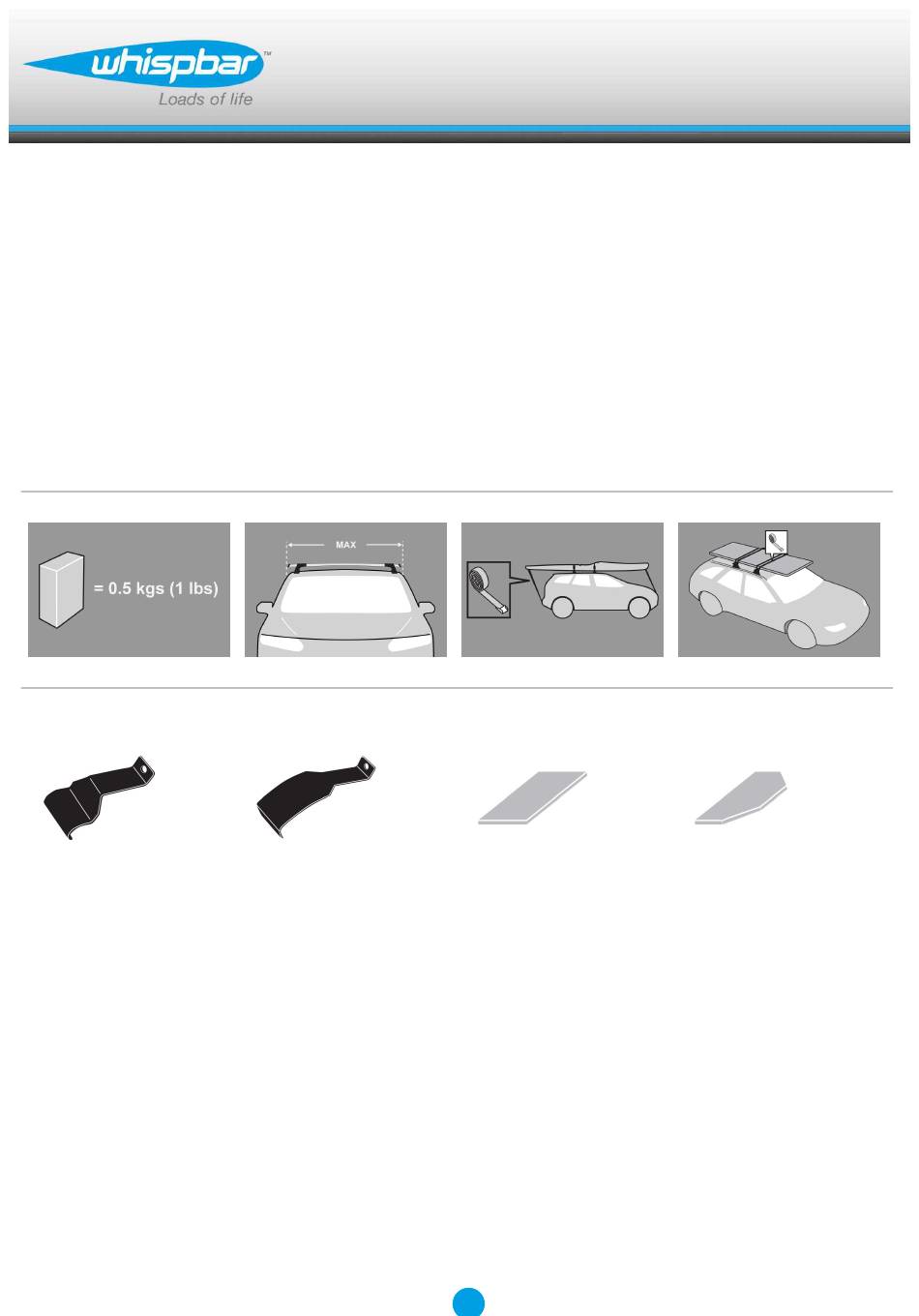

- Page 1 K096W Fitting Kit Fitting Instructions for Basic Carrier Revision No: 2C...
- Page 2 Fitting Kit K096W MAX kgs (lbs) Fiat Punto , 3dr Hatch 93-99 75 kgs (165 lbs) 75 kgs (165 lbs) Punto , 3dr Hatch Aug 93-99 75 kgs (165 lbs) 75 kgs (165 lbs)
-
Page 3: First Time Installation
Fitting Kit K096W First Time Installation Remove parts from inside the package and check. Contact your dealer if any parts are missing or damaged. This kit fits type A, B, C and D. These instructions show type A crossbar fitted. They also apply to type B, C and D. - Page 4 Fitting Kit K096W Use keys to remove covers. Use hex screwdriver to reverse adjusting screw 10 turns. Press adjusting screw and pull crossbar legs out. Refer to the crossbar instructions for crossbar adjustment method. Ensure each end of the crossbar is...
- Page 5 Fitting Kit K096W Remove locking screw. NOTE: FRONT CROSSBAR ONLY Apply protective strip as shown. Trim if required. Clamps over rubber door frame mouldings. NOTE: REAR CROSSBAR ONLY Apply protective strip as shown. Trim if required. Clamps directly to edge of roof above rear...

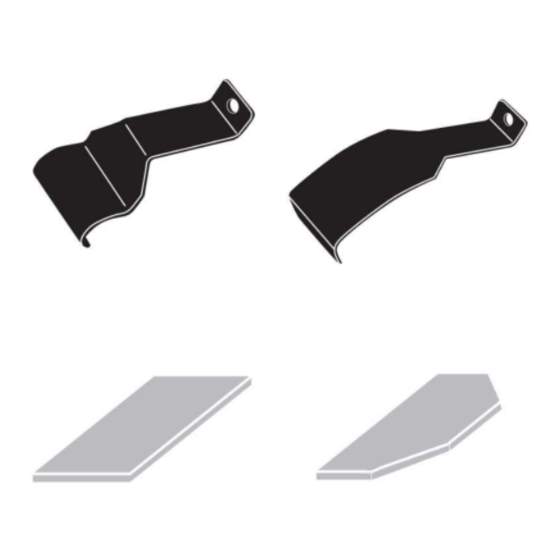

- Page 6 Fitting Kit K096W It is important to put the clamps in the correct position on the vehicle. Letters refer to the part numbers stamped on clamps. Clamp Part Number: A = 262B B = 271B Attach clamp to each leg. NOTE; clamps may have labels showing their positions on the vehicle (For example;...
- Page 7 Fitting Kit K096W Fit rubber pad (supplied with crossbar) to foot. Make sure the pad fits into the holes underneath the foot. Fitment Place crossbar on vehicle. Minimum recommended spacing between the bars is 700mm (27 1/2") (unless otherwise stated).
- Page 8 Fitting Kit K096W Press adjusting screw to adjust the leg positions on the crossbar. Tighten adjusting screw to 5 Nm (3.7 ft lb) hand tight. Tighten locking screw on both legs evenly.
- Page 9 Fitting Kit K096W Check crossbar is securely attached to the vehicle. Use keys to fit and lock covers CAUTION: Recheck all fasteners immediately after a load is applied to the crossbars. Regularly check screws are tight.
- Page 10 Fitting Kit K096W Clean the car roof and surfaces of the product that will be in contact with the car roof. Follow the fitting instructions for fitting the product to your vehicle. Make sure all steps are carried out in order.
- Page 11 Lubricate locks and adjusting screws at regular intervals. Remove the products from the vehicle when not in use. Make sure all loose parts are stored safely. Yakima Australia Pty Ltd 17 Hinkler Court Brendale QLD 4500 AUSTRALIA www.whispbar.com www.whispbar.com.au www.whispbar.co.nz...
-
Page 12: Warranty And Disclaimer
Make a claim as soon as practicable by contacting the Whispbar dealer from whom you purchased the product, who will give you instructions on how to proceed. If you are unable to contact the Whispbar dealer, or the dealer is not able to remedy the defect, you should contact Yakima as soon as practicable at: Call: 0800 4776 722 (NZ) or 1800 143 548 (AU) Email: warranty@yakima.co.nz or warranty@yakima.com.au... - Page 13 Fitting Kit K096W Alternately, you can write to Yakima at 17 Hinkler Court, Brendale QLD Australia 4500 in order to make a claim under your warranty. Upon contacting Yakima directly, you should explain as fully as possible the defect. A Yakima representative will provide you with appropriate instructions for returning the product together with a copy of the original purchase invoice or receipt to Yakima.
