K089
Fitting Kit
EN
Fitting Instructions for Basic Carrier
x 4
Revision No: 3C
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the Prorack K089 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Yakima Prorack K089

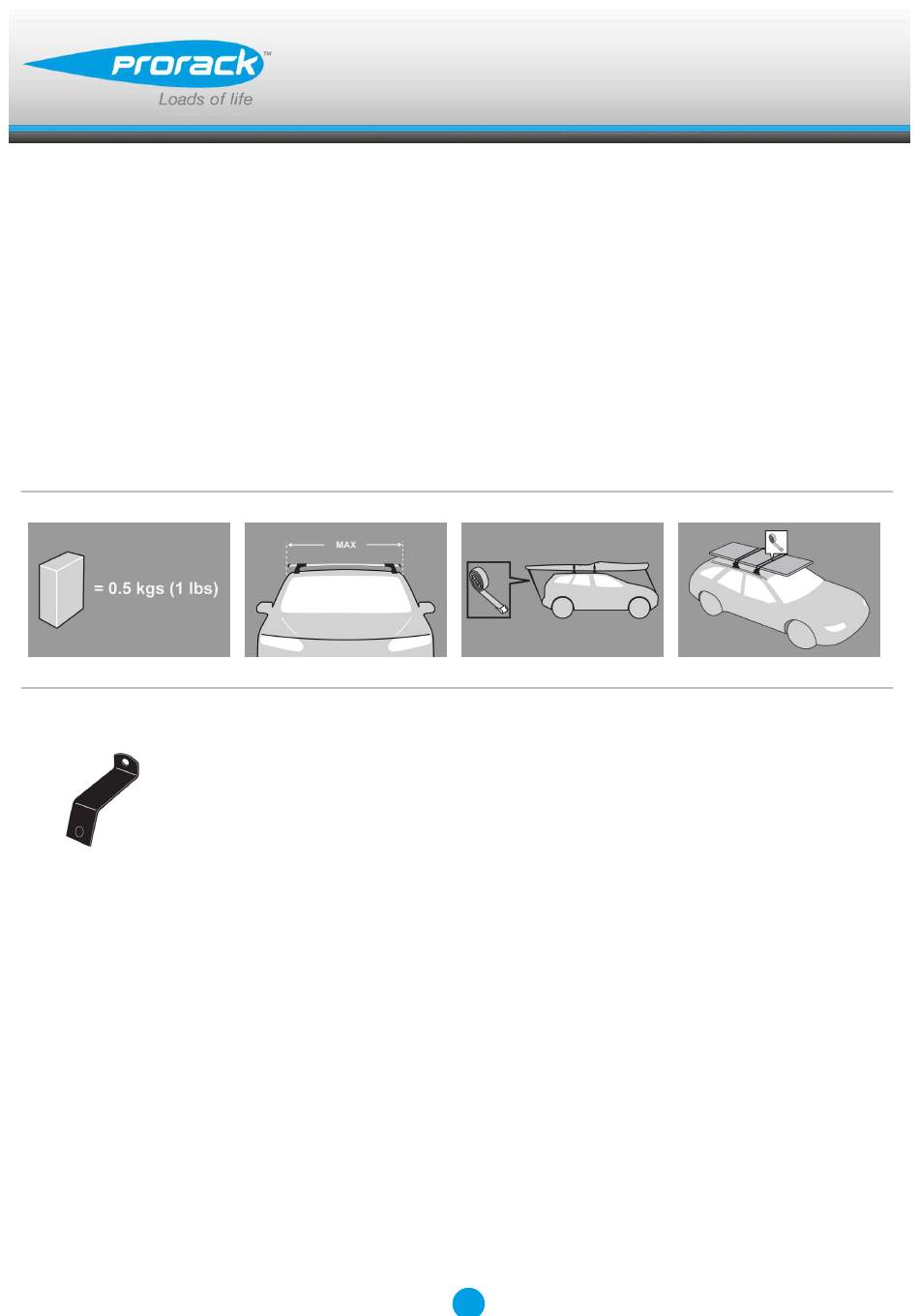

  • Page 1 K089 Fitting Kit Fitting Instructions for Basic Carrier Revision No: 3C...
  • Page 2 Fitting Kit K089 MAX kgs (lbs) Saab 900 , 5dr Hatch 94-98 50 kgs (110 lbs) 50 kgs (110 lbs) 900 , 5dr Hatch Feb 94-98 50 kgs (110 lbs) 50 kgs (110 lbs) 900 , 5dr Hatch Feb 94-Jan 98 50 kgs (110 lbs) 50 kgs (110 lbs) 9000 , 4dr Sedan 92-98...
  • Page 3 Fitting Kit K089 Xantia , 5dr Hatch Nov 93-01 50 kgs (110 lbs) 50 kgs (110 lbs) Xantia , 5dr Hatch Nov 93-01 50 kgs (110 lbs) 50 kgs (110 lbs) Xantia , 5dr Hatch Sep 93-Jan 01 50 kgs (110 lbs) 50 kgs (110 lbs) Xantia , 5dr Hatch Sep 93-Jan 01 50 kgs (110 lbs)
  • Page 4: First Time Installation

    Fitting Kit K089 First Time Installation Remove parts from inside the package and check. Contact your dealer if any parts are missing or damaged. This kit fits type A, B, C and D. These instructions show type A crossbar fitted. They also apply to type B, C and D. NOTE: Clamp images in these instructions may not be representative of the clamps in this kit...
  • Page 5 Fitting Kit K089 Use keys to remove covers. Use hex screwdriver to reverse adjusting screw 10 turns. Press adjusting screw and pull crossbar legs out. Refer to the crossbar instructions for crossbar adjustment. Ensure each end of the crossbar is adjusted equally.
  • Page 6 Fitting Kit K089 Remove locking screw. Fit clamp into clamp block at an angle as shown. Refit locking screw so that it goes through the hole in the clamp. Do not begin to tighten the locking screw.
  • Page 7 Fitting Kit K089 Fit rubber pad (supplied with crossbar) to foot. Make sure the pad fits into the holes underneath the foot. Fitment Pull back rubber seal to expose fixed points on vehicle body. Reveal the fixed points. They may be concealed behind a painted sticker.
  • Page 8 Fitting Kit K089 Place crossbar on vehicle. Minimum recommended spacing between the bars is 700mm (27 1/2") (unless otherwise stated). Please check the rear of this manual for information relating specifically to your vehicle. Adjust crossbar in or out to suit vehicle. Refer to the crossbar instructions for crossbar adjustment.
  • Page 9 Fitting Kit K089 Tighten locking screw on both legs evenly. Check crossbar is securely attached to the vehicle. Use keys to fit and lock covers...
  • Page 10 Fitting Kit K089 CAUTION: Recheck all fasteners immediately after a load is applied to the crossbars. Regularly check screws are tight.
  • Page 11: Maintenance

    Fitting Kit K089 Maintenance Clean the car roof and surfaces of the product that will be in contact with the car roof. Follow the fitting instructions for fitting the product to your vehicle. Make sure all steps are carried out in order. Set crossbars a minimum distance of 700mm (27 1/2") apart where no other distance is specified in the fitting...
  • Page 12 Lubricate locks and adjusting screws at regular intervals. Remove the products from the vehicle when not in use. Make sure all loose parts are stored safely. Yakima Australia Pty Ltd 17 Hinkler Court Brendale QLD 4500 AUSTRALIA www.whispbar.com www.whispbar.com.au www.whispbar.co.nz...
  • Page 13 Fitting Kit K089 900, 5dr Hatch 94-98 (EU) -330mm 330mm 760mm 735mm -12 -1/1ths" 13" 29 15/16ths" 28 15/16ths" 900, 5dr Hatch Feb 94-98 (NZ) -330mm 330mm 760mm 735mm -12 -1/1ths" 13" 29 15/16ths" 28 15/16ths" 900, 5dr Hatch Feb 94-Jan 98 (AU) -330mm 330mm 760mm...
  • Page 14 Fitting Kit K089 Vectra, 4dr Sedan 95-01 (EU) -250mm 450mm 790mm 775mm -9 -13/16ths" 17 11/16ths" 31 1/8ths" 30 1/2ths" Vectra, 4dr Sedan 95-01 (EU) -250mm 450mm 825mm 805mm -9 -13/16ths" 17 11/16ths" 32 1/2ths" 31 11/16ths" Vectra, 4dr Sedan 95-01 (EU) -250mm 450mm 788mm...
  • Page 15: Warranty And Disclaimer

    Make a claim as soon as practicable by contacting the Prorack dealer from whom you purchased the product, who will give you instructions on how to proceed. If you are unable to contact the Prorack dealer, or the dealer is not able to remedy the defect, you should contact Yakima as soon as practicable at: Call: 0800 4776 722 (NZ) or 1800 143 548 (AU) Email: warranty@yakima.co.nz or warranty@yakima.com.au...
  • Page 16 Fitting Kit K089 Alternately, you can write to Yakima at 17 Hinkler Court, Brendale QLD Australia 4500 in order to make a claim under your warranty. Upon contacting Yakima directly, you should explain as fully as possible the defect. A Yakima representative will provide you with appropriate instructions for returning the product together with a copy of the original purchase invoice or receipt to Yakima.
