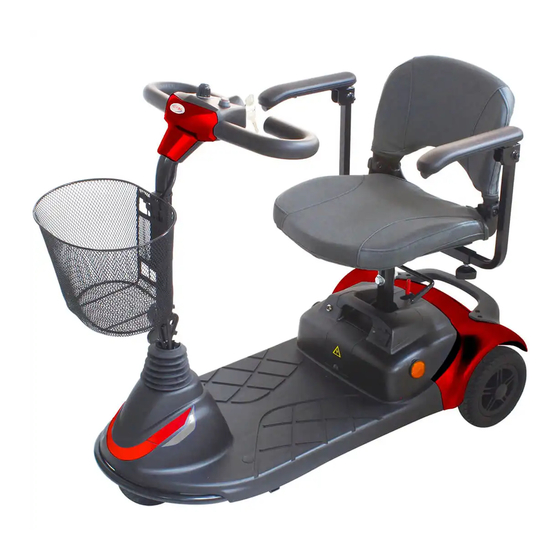

- Page 1 C.T.M. MOBILITY SCOOTER C.T.M. MOBILITY SCOOTER C.T.M. MOBILITY SCOOTER 2-Series Instruction Booklet HS-265 HS-295...
-
Page 2: Table Of Contents
2-Series Instruction Booklet TABLE OF CONTENTS INTRODUCTION ----------------------------------------------------------1 IMPORTANT PRECAUTIONS ------------------------------------------2 SAFETY INFORMATION ON ELECTROMAGNETIC INTERFERENCE (EMI) --------------------------------------------------3 IDENTIFICATION OF PARTS ------------------------------------------5 OPERATING YOUR SCOOTER ----------------------------------------6 CHARGING THE BATTERIES ------------------------------------------9 DISASSEMBLING YOUR SCOOTER --------------------------------10 FOR OPTIONAL 18Ah BATTERY PACK ----------------------------11 TROUBLESHOOTING --------------------------------------------------12 CAUTION... -
Page 3: Introduction
Also, retain this booklet for future reference. If you have any question, you can contact : C.T.M.HOMECARE PRODUCT, INC. 13815 Magnolia Ave. #B, Chino CA 91710 Toll Free : 1-866-466-8168 Tel : 909-590-1388 Fax : 909-590-3365 E-Mail : ctm@ctmhomecare.com http : //www.ctmhomecare.com or your local dealer:... -
Page 4: Important Precautions
2-Series Instruction Booklet IMPORTANT PRECAUTIONS •Only one person at a time could ride a C.T.M. Mobility Scooter. •Maximum load is 136 kg / 300 Ibs pounds. •Turn key off before getting on or off. •Always drive carefully and be aware of others using the same area. •Always use pedestrian crossings wherever possible. -
Page 5: Safety Information On Electromagnetic Interference (Emi)
2-Series Instruction Booklet SAFETY INFORMATION ON ELECTROMAGNETIC INTERFERENCE (EMI) CAUTION : It is very important that you read this information regarding the possible effects of Electromagnetic Interference on your motorized scooter. Powered wheelchairs and motorized scooters may be susceptible to electromagnetic interference (EMI), which is interfering electromagnetic energy (EM) emitted from sources such a radio stations, TV stations, amateur radio (HAM) transmitters, two-way radios, and cellular phones. - Page 6 2-Series Instruction Booklet Motorized Scooter Electromagnetic Interference : Because EM energy rapidly becomes more intense as one move closer to the transmitting antenna (source), the EM fields from hand-held radio wave sources (transceivers) are of special concern. It is possible to unintentionally bring high levels of EM energy very close to the motorized scooter control system while using these devices.
-
Page 7: Identification Of Parts
2-Series Instruction Booklet IDENTIFICATION OF PARTS Before attempting to drive this scooter on your own, it is important that you familiarize yourself with the controls, and how to operate them. Easy-To-Operate Control Flip-Up Armrests Panel & Delta Handlebar Padded Foldable Seat Tiller Angle Adjustment Seat Rotation... -
Page 8: Operating Your Scooter
2-Series Instruction Booklet OPERATING YOUR SCOOTER Before operation, please remove the Lock Nut (A) and press button of Circuit Breaker (B) to activate the system. FUNCTION OF PARTS： Main Key Switch (C) 1.Turn the key to the right Figure 4 Turn the scooter on. - Page 9 2-Series Instruction Booklet Tiller Angle Adjustment : 1.Turn the Cap (I) outward upward to disengage the pin. 2.Simultaneously, adjust the tiller fore-and-aft to the most comfortable angle. Release Cap (I) and ensure the pin is fully engaged to lock the tiller in position. Seat Rotation Adjustment : 1.Lift the Lever (J) upward to disengage the pin.
- Page 10 2-Series Instruction Booklet Basket assembling and disassembling : 1.Place the Front Basket (M) to the bracket on the tiller. 2.Remove the Front Basket (M) and place it aside. Armrest assembling and angle adjustment : 1.Adjust armrest to most comfortable length, then lock the Knob (N).
-
Page 11: Charging The Batteries
2-Series Instruction Booklet CHARGING THE BATTERIES Your C.T.M. scooter is equipped with two sealed, maintanence free 12V. 12Ah. rechargeable batteries and one 2A On-board charger. Batteries must be charged before using scooter for first time and should be recharged after each day's use. Be sure power switch is in OFF position and free-wheeling lever is not in freewheel mode. -
Page 12: Disassembling Your Scooter
2-Series Instruction Booklet DISASSEMBLING YOUR SCOOTER I. Seat Disassembling : Remove seat by lifting Seat Rotation Lever (J). Then rotate Seat (K) and lift up away from scooter. II. Battery Pack Disassembling : As indication, pull Battery Pack Handle (R) to remove Battery Box (S) from scooter. Caution : Battery Box is heavy. -
Page 13: For Optional 18Ah Battery Pack
2-Series Instruction Booklet FOR OPTIONAL 18Ah Only Before operation, please remove the Lock Nut (A) and press button of Circuit Breaker (B) to activate the system. Figure 20 Circuit Breaker : If scooter's circuit system malfunctions or over loaded, the circuit breaker will trip and automatically shut down the power to ensure driver's safety. -
Page 14: Troubleshooting
2-Series Instruction Booklet TROUBLESHOOTING Flash Description Meaning Battery Low The batteries are running low. •Recharge the batteries Low Battery Fault The batteries have run out of charge. •Recharge the batteries. High Battery Fault Battery voltage is too high. This may occur if overcharged &/or traveling down a long slope. -
Page 15: Caution
2-Series Instruction Booklet CAUTION 1.Obstacle Climbing : Your scooter can climb obstacles and curbs of up to 50mm / 2" in height. Never attempt to overcome an obstacle when on an uphill or downhill gradient! Always approach obstacles straight on! Ensure that the front wheels and rear wheels move over the obstacle in one stroke, do not stop halfway! 2.The maximum gap the scooter can drive over is 100mm / 4", •When driving scooter on ramp, adjust body center of gravity to keep scooter more safety. -
Page 16: Specification
2-Series Instruction Booklet SPECIFICATION SPECIFICATION SPECIFICATIONS HS-265 HS-295 OPTIONAL Overall Length 40.2" 40.2" 40.2" Overall Width 20" 20" 21.3" Overall Height 35" 34" 35.4" Front Wheels 8" 8" 8 1/4 " Rear Wheels 8" 8" 8 1/4 " Weight W/ Batteries 88.4 lbs 93.7 Ibs 111 Ibs...
