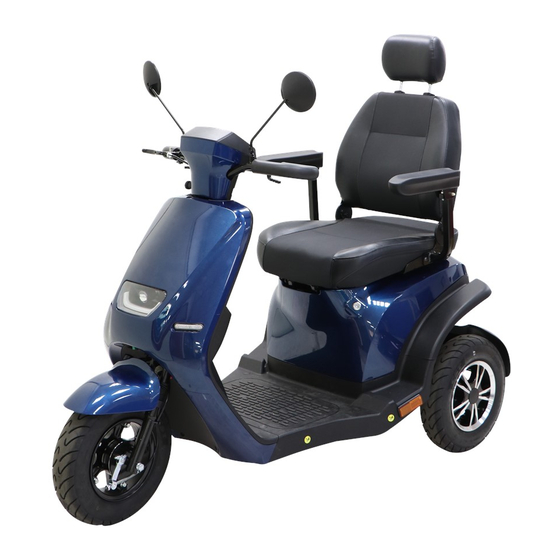

C.T.M. MOBILITY SCOOTER
C.T.M. MOBILITY SCOOTER
C.T.M. MOBILITY SCOOTER
HS-925
Instruction Booklet

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HS-925 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for CTM HS-925

Summary of Contents for CTM HS-925

  • Page 1 C.T.M. MOBILITY SCOOTER C.T.M. MOBILITY SCOOTER C.T.M. MOBILITY SCOOTER HS-925 Instruction Booklet...

  • Page 2: Table Of Contents

    HS-925 Instruction Booklet TABLE OF CONTENTS 01.INTRODUCTION ..................1 02.IMPORTANT PRECAUTIONS ..............2 2-1 BEFORE DRIVING SCOOTER 2-2 CAUTIONS WHEN DRIVING 2-3 GENERAL SAFETY INFORMATION FOR SCOOTER 2-4 CAUTIONS WHEN DRIVING ON INCLINES 2-5 CAUTIONS WHEN CLIMBING 2-6 ELECTROMAGNETIC INTERFERENCE AND WARNINGS 2-7 SAFETY WARNING AND INSTRUCTION LABELS 03.IDENTIFICATION OF PARTS...

  • Page 3: Introduction

    HS-925 Instruction Booklet 1.INTRODUCTION Thank you and congratulations on purchasing your new C.T.M. Mobility Scooter. It is designed to provide you with transportation ability indoors and outdoors. We pride ourselves on providing safe and comfortable products. Our goal is to ensure your complete satisfaction with our product.

  • Page 4: Important Precautions

    HS-925 Instruction Booklet 2.IMPORTANT PRECAUTIONS 2-1 BEFORE DRIVING SCOOTER •Before taking the first trip with mobility scooter, you should familiarize yourself well the operation of mobility scooter and with the operation elements. Please take your time to read this introduction booklet.

  • Page 5: Cautions When Driving

    HS-925 Instruction Booklet 2-2 CAUTIONS WHEN DRIVING •Please do the daily check before your journey always. (See section 7-1 Daily check.) •Do not stretch your body out on the scooter •Please make sure your safety when crossing the level crossing.

  • Page 6: General Safety Information For Scooter

    HS-925 Instruction Booklet 2-3 GENERAL SAFETY INFORMATION FOR SCOOTER •Batteries should be fully charged before using for maximum performance and longevity. (see section 6-1 Operating the charger) •The maximum load of the scooter is 136kg. Do not exceed the maximum permissible load.

  • Page 7: Cautions When Climbing

    HS-925 Instruction Booklet 2-5 CAUTIONS WHEN CLIMBING •The maximum height of obstacle and curb that scooter can climb is up to 10 cm with run-up (A). •The maximum gap that scooter can drive over is 15 cm (B). •Always overcome obstacles straight on at 90 degrees, in...
  • Page 8 HS-925 Instruction Booklet Mobility Scooter Electromagnetic Interference： Because EM energy rapidly becomes more intense as one move closer to the transmitting antenna (source), the EM fields from hand-held radio wave sources (transceivers) are of special concern. It is possible to unintentionally bring high levels of EM energy very close to the motorized scooter control system while using these devices.

  • Page 9: Safety Warning And Instruction Labels

    HS-925 Instruction Booklet 2-7 SAFETY WARNING AND INSTRUCTION LABELS Figure 2 Warning Sticker 1.Please read the Instruction Booklet carefully before using your scooter. 2.Do not drive the scooter on slippery surfaces or on slopes over 10° 3.Do not drive on highways,crowded roads,or unfamiliar areas.

  • Page 10: Identification Of Parts

    HS-925 Instruction Booklet 3.IDENTIFICATION OF PARTS Before attempting to drive this scooter on your own, it is important that you familiarize yourself with the controls, and how to operate them. Intended use : The C.T.M. Mobility Scooters provide a means by which a disabled occupant i.e.

  • Page 11: Introduction & Operation Of Control Panel

    Hazard Light Horn Headlight Speed Dial Knob Left Turn Signal Right Turn Signal Figure 5 - HS-925 Control Panel Button Name Operation Press the Hazard lights button once to switch on, press again to Hazard Light switch off Press H / L Speed button once to switch High / Low mode.

  • Page 12: Operation Of Control Panel

    HS-925 Instruction Booklet LED Indicator on control panel : •High / Low Speed Indicator : Orange light on when the [H / L] is set to “L”. •Left / Right Turn Signal Indicators : Green light •Headlight Indicator : Green light Figure 6 •Hazard Light Indicator :...
  • Page 13 HS-925 Instruction Booklet Do not set the speed at maximum when operating the scooter. Adjust the speed at maximum when inclining a slope, and adjust to minimum speed when declining. Battery Gauge : •When the scooter is in operation, the battery level will only decrease.

  • Page 14: Operation Of Scooter

    HS-925 Instruction Booklet 5.OPERATION OF SCOOTER 5-1 GERNERAL OPERATION Battery connecting wire must be connected before using the scooter for the first time. •Open the seat storage box and remove the storage box. (see section 5-1 General operation - seat storage box) Be careful of the seat falling down. (Figure 12) •Connect the wire and put the storage box back.
  • Page 15 HS-925 Instruction Booklet Brake : •Release throttle, scooter will stop automatically but still slide for a short distance. •If necessary, please use handbrake to stop scooter. (Figure 16) Figure 15 Figure 16 Tiller Angle Adjustment : •Pull up the tiller adjustment latch to adjust for 3 different angles and release to lock at a desired comfortable position.

  • Page 16: Free-Wheeling (N-D Lever)

    HS-925 Instruction Booklet Figure 19 Figure 20 Figure 21 Seat storage box : •Unlock : Turn the scooter OFF and remove the key. (see section 5-1 General operation - main key switch) Insert the key to the switch under the seat. Turn the key clockwise to open the seat storage box.

  • Page 17: Fixed Hooks

    HS-925 Instruction Booklet 5-4 FIXED HOOKS •To ensure safety during the transportation, there are four fixed hooks for fixing scooter on other vehicles. (Figure 25) •Make sure the scooter is in D position when transporting. •Do not sit on the scooter during transportation.
  • Page 18 HS-925 Instruction Booklet Figure 30 Figure 31 Figure 32 Figure 33 Figure 34 •Batteries are heavy, be careful when removing the batteries. •Do not connect battery terminal [ + ] [ - ] with any metals to avoid danger. •Connect the red terminal to red, black terminal to black.

  • Page 19: Charging The Batteries

    HS-925 Instruction Booklet 6.CHARGING THE BATTERIES 6-1 OPERATING THE CHARGER Batteries must be charged before using the scooter for the first time and should be recharged after each day use. You will need the scooter and the battery charger. •Each country may supply different charger.

  • Page 20: Information For Battery & Charger

    HS-925 Instruction Booklet 6-2 INFORMATION FOR BATTERY & CHARGER Battery : •Only be used for 12V lead-acid battery, not used for other type of battery or other voltage. •Do not turn the key on while scooter is in charging. •The scooter is using lead-acid battery. Do not add any electrolyte.

  • Page 21: Care And Maintenance

    HS-925 Instruction Booklet 7.CARE AND MAINTENANCE 7-1 DAILY CHECK Please always check your scooter before you start your every journey. Check point Inspection What to do if the inspection is failed N-D lever Check for correct function Contact your dealer.

  • Page 22: Cleaning Your Scooter

    HS-925 Instruction Booklet 7-4 CLEANING YOUR SCOOTER •Do not use any abrasive or scouring liquids for cleaning. Only use a damp cloth and gentle detergent. •Do not use hose pipe or splash water directly onto the scooter as this may cause damage to electronics.

  • Page 23: Other Information

    HS-925 Instruction Booklet 8.OTHER INFORMATION 8-1 RECYCLING & DISPOSAL •The equipment wrapping is potentially recyclable. •The metal parts are used for scrap metal recycling. The plastic parts are used for plastic recycling. •Electric components and printed circuit boards are disposed of as electronic scrap.

  • Page 24: Error Code

    HS-925 Instruction Booklet 9-2 ERROR CODE Flash Description Initial check points The batteries are running low. Battery Low •Recharge the batteries. The batteries have run out of charge. Low Battery Fault •Recharge the batteries. •Check the battery and associated connections and wiring.

  • Page 25: Options

    HS-925 Instruction Booklet 10.OPTIONS We offer below options to add functionality for your scooter, please contact the authorized dealer for more information. Decorative Light USB charger Moped Seat Do not charge when driving. Scooter Seat w/ Seat Back Scooter Seat w/ Seat Back...

  • Page 26: Technical Specifications

    HS-925 Instruction Booklet 11.TECHNICAL SPECIFICATIONS Overall Length 1590 mm / 62.6" Overall Width 690 mm / 27.2" Overall Height 1275 mm / 50.2" Front Wheels 370 mm / 15" Rear Wheels 370 mm / 15" Weight W/ Batteries 100 kg / 220 Ibs Max.
