Summary of Contents for CTM HS-328

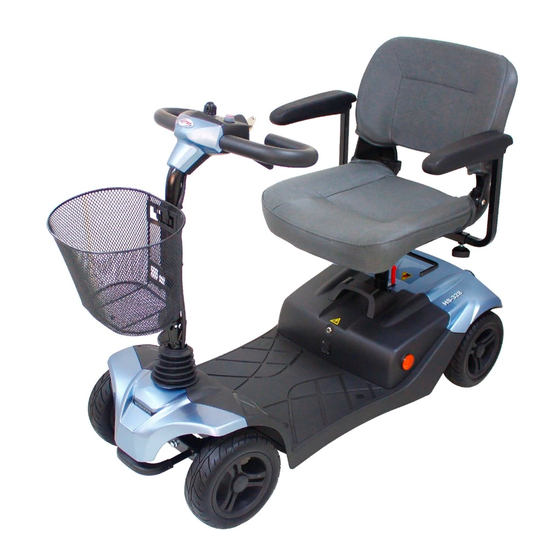

- Page 1 C.T.M. MOBILITY SCOOTER C.T.M. MOBILITY SCOOTER C.T.M. MOBILITY SCOOTER HS-328 Instruction Booklet...
-
Page 2: Table Of Contents
HS-328 Instruction Booklet TABLE OF CONTENTS INTRODUCTION ----------------------------------------------------------1 IMPORTANT PRECAUTIONS ------------------------------------------2 SAFETY INFORMATION ON ELECTROMAGNETIC INTERFERENCE (EMI) --------------------------------------------------3 -------------------------------------------5 IDENTIFICATION OF PARTS CHARGING THE BATTERIES ------------------------------------------9 DISASSEMBLING YOUR SCOOTER --------------------------------10 TROUBLESHOOTING --------------------------------------------------11 CARE AND MAINTENANCE ------------------------------------------12 CAUTION -----------------------------------------------------------------13 SPECIFICATION --------------------------------------------------------14... -
Page 3: Introduction
HS-328 Instruction Booklet INTRODUCTION Thank you and congratulations on purchasing your new C.T.M. Mobility Scooter. It is designed to provide you with transportation ability indoors and outdoors. We pride ourselves on providing safe and comfortable products. Our goal is to ensure your complete satisfaction. -
Page 4: Important Precautions
HS-328 Instruction Booklet IMPORTANT PRECAUTIONS •Only one person at a time could ride a C.T.M. Mobility Scooter. •Maximum load is 136 kg / 300 Ibs pounds. •Turn key off before getting on or off. •Always drive carefully and be aware of others using the same area. -
Page 5: Safety Information On Electromagnetic Interference (Emi)
HS-328 Instruction Booklet SAFETY INFORMATION ON ELECTROMAGNETIC INTERFERENCE (EMI) CAUTION : It is very important that you read this information regarding the possible effects of Electromagnetic Interference on your motorized scooter. Powered wheelchairs and motorized scooters may be susceptible to electromagnetic... - Page 6 HS-328 Instruction Booklet Motorized Scooter Electromagnetic Interference : Because EM energy rapidly becomes more intense as one move closer to the transmitting antenna (source), the EM fields from hand-held radio wave sources (transceivers) are of special concern. It is possible to unintentionally bring high levels of EM energy very close to the motorized scooter control system while using these devices.
-
Page 7: Identification Of Parts
Figure 1 - HS-328 Front View Rear Light (Optional Accessory) Self-Diagnostic Warning Light Battery Gauge Horn Button Reflectors Free- Wheeling Lever Speed Dial Knob Throttle Main Key Switch Anti-Tip Wheels Figure 2 - HS-328 Top Control Panel Figure 3 - HS-328 Back View... - Page 8 HS-328 Instruction Booklet Before operation, please remove the Lock Nut (A) and press button of Circuit Breaker (B) to activate the system. FUNCTION OF PARTS： Main Key Switch (C) 1.Turn the key to the right Turn the scooter on. Figure 4 2.Turn the key to the left...
- Page 9 HS-328 Instruction Booklet Tiller Angle Adjustment : 1.Turn the Cap (I) outward upward to disengage the pin. 2.Simultaneously, adjust the tiller fore-and-aft to the most comfortable angle. Release Cap (I) and ensure the pin is fully engaged to lock the tiller in position.
- Page 10 HS-328 Instruction Booklet Basket assembling and disassembling : 1.Place the Front Basket (M) to the bracket on the tiller. 2.Remove the Front Basket (M) and place it aside. Armrest assembling and angle adjustment : 1.Adjust armrest to most comfortable length, then lock the Knob (N).
-
Page 11: Charging The Batteries
Your C.T.M. scooter is equipped with two sealed, maintanence free 12V. 22Ah. rechargeable batteries and one HS-328 24V/3A charger. Batteries must be charged before using scooter for first time and should be recharged after each day's use. Be sure power switch is in OFF position and free-wheeling lever is not in freewheel mode. -
Page 12: Disassembling Your Scooter
HS-328 Instruction Booklet DISASSEMBLING YOUR SCOOTER I. Seat Disassembling : Remove seat by lifting Seat Rotation Lever (J). Then rotate Seat (K) and lift up away from scooter. II. Battery Pack Disassembling : As indication, pull Battery Pack Handle (R) to remove Battery Box (S) from scooter. -
Page 13: Troubleshooting
HS-328 Instruction Booklet TROUBLESHOOTING Flash Description Meaning Battery Low The batteries are running low. •Recharge the batteries Low Battery Fault The batteries have run out of charge. •Recharge the batteries. High Battery Fault Battery voltage is too high. This may occur if overcharged &/or traveling down a long slope. -
Page 14: Care And Maintenance
HS-328 Instruction Booklet CARE AND MAINTENANCE Recommended maintenance procedures : 1.Before using the mobility scooter, make sure all nuts and bolts are tighten. Check any parts for damage or wear and replace it if needed. Check all parts for correct placements and adequate adjustments. -
Page 15: Caution
HS-328 Instruction Booklet CAUTION 1.Obstacle Climbing : Your scooter can climb obstacles and curbs of up to 40mm / 1.6" in height. Never attempt to overcome an obstacle when on an uphill or downhill gradient! Always approach obstacles straight on! Ensure that the front wheels and rear wheels move over the obstacle in one stroke, do not stop halfway! 2.The maximum gap the scooter can drive over is 100mm / 4",... -
Page 16: Specification
HS-328 Instruction Booklet SPECIFICATION SPECIFICATION Overall Length 1120 mm / 44" Overall Width 590 mm / 23" Overall Height 935 mm / 37" 225 mm / 9" Front Wheels Rear Wheels 225 mm / 9" Weight W/ Batteries 55 kg / 121 lbs Weight Of Heaviest Piece 17.4 kg / 38 lbs...
