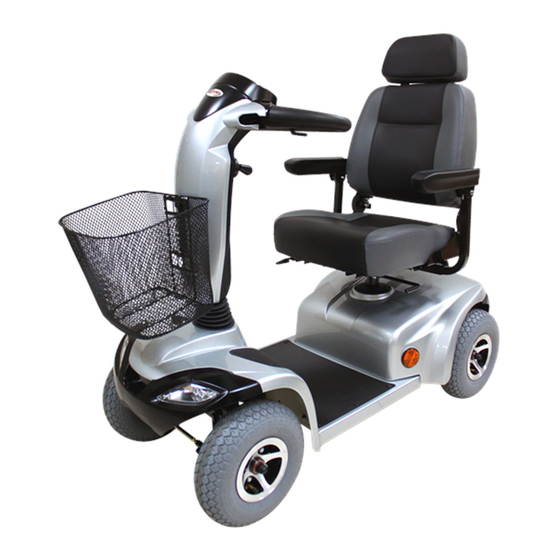

C.T.M. MOBILITY SCOOTER
C.T.M. MOBILITY SCOOTER
C.T.M. MOBILITY SCOOTER
5-Series
Instruction Booklet
HS-558
HS-559

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HS-558 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for CTM HS-558

Summary of Contents for CTM HS-558

  • Page 1 C.T.M. MOBILITY SCOOTER C.T.M. MOBILITY SCOOTER C.T.M. MOBILITY SCOOTER 5-Series Instruction Booklet HS-558 HS-559...

  • Page 2: Table Of Contents

    5-Series Instruction Booklet TABLE OF CONTENTS INTRODUCTION --------------------------------------------------------1 IMPORTANT PRECAUTIONS ----------------------------------------2 ELECTROMAGNETIC INTERFERENCE AND WARNINGS ----3 IDENTIFICATION OF PARTS ----------------------------------------5 CHARGING THE BATTERIES ----------------------------------------9 DISASSEMBLING YOUR SCOOTER -----------------------------10 ASSEMBLING YOUR SCOOTER ----------------------------------11 CARE AND MAINTENANCE ----------------------------------------12 OPERATING YOUR SCOOTER ------------------------------------13 TROUBLESHOOTING ------------------------------------------------15 TECHNICAL SPECIFICATIONS...

  • Page 3: Introduction

    5-Series Instruction Booklet INTRODUCTION Thank you and congratulation on purchasing your new C.T.M. Mobility Scooter. It is designed to provide you with transportation ability indoors and outdoors. We pride ourselves on providing safe and comfortable products. Our goal is to ensure your complete satisfaction.

  • Page 4: Important Precautions

    5-Series Instruction Booklet IMPORTANT PRECAUTIONS •Only one person at a time could ride a C.T.M. Mobility Scooter. •Maximum load is 136 kgs / 300 pounds. •Turn key off before getting on or off. •Always drive carefully and be aware of others using the same area. •Always use pedestrian crossings wherever possible.

  • Page 5: Electromagnetic Interference And Warnings

    5-Series Instruction Booklet ELECTROMAGNETIC INTERFERENCE AND WARNINGS CAUTION: It is very important that you read this information regarding the possible effects of Electromagnetic Interference on your motorized scooter. Powered wheelchairs and motorized scooters may be susceptible to electromagnetic interference (EMI), which is interfering electromagnetic energy (EM) emitted from sources such a radio stations, TV stations, amateur radio (HAM) transmitters, two-way radios, and cellular phones.
  • Page 6 5-Series Instruction Booklet Motorized Scooter Electromagnetic Interference： Because EM energy rapidly becomes more intense as one moves closer to the transmitting antenna (source), the EM fields from hand-held radio wave sources (transceivers) are of special concern. It is possible to unintentionally bring high levels of EM energy very close to the motorized scooter control system while using these devices.

  • Page 7: Identification Of Parts

    Armrest Seat Rotation Basket Lever Seat Sliding Slide Lever Reflector Head Light 11" Front and Rear Wheels Figure 1 - HS-558 / 559 Front View Power/Self-Diagnostic Warning Light Speed Dial Knob Horn Armrest Width Battery Gauge Adjustment Thumbscrews Reflectors Lever...
  • Page 8 5-Series Instruction Booklet FUNCTION OF PARTS： MAIN SWITCH (A) 1.By turning the key clockwise to ON to turn on the power 2.By turning the key anticlockwise to OFF to turn off the power. 3.By turning the key to to turn on the head light. Speed Dial Knob (B) The Rabbit means fast and Turtle is slow.
  • Page 9 5-Series Instruction Booklet Thumb Lever Pushing right thumb lever (E) moves scooter forward. Pushing left thumb lever (F) moves the scooter backward. (This can be reversed if required by local dealer.) Releasing both, engages automatic brake. These are also your accelerator. The further you depress them, the faster you go.
  • Page 10 5-Series Instruction Booklet Armrest width Adjustment Thumbscrews 1.Loosen the two thumbscrews (K) to adjust arm width tighten again to lock in at desired position. 2.Adjust the attached screw (J)'s height, to control armrest's angle. Figure 10 Figure 10 Anti-tip wheels Helps keep scooter from tipping over.

  • Page 11: Charging The Batteries

    5-Series Instruction Booklet CHARGING THE BATTERIES Batteries must be charged before using the scooter for the first time and should be recharged after each day use. You will need the scooter and the battery charger. Each country may supply different charger.

  • Page 12: Disassembling Your Scooter

    5-Series Instruction Booklet DISASSEMBLING YOUR SCOOTER Disassembling Basket By lifting the basket (O) upwards. Disassembling Seat By lifting lever (H) and seat (a) upward. Rear Compartment Cover Open the Compartment Cover (P) according to arrow's direction. Figure 13 Figure 13 Figure 14 Figure 14 Figure 15...

  • Page 13: Assembling Your Scooter

    5-Series Instruction Booklet ASSEMBLING YOUR SCOOTER To assemble scooter, you can repeat disassembly directions in reverse. Abbreviated directions are given below. Refer to Figures on pages 10 to locate parts. 1.Use the tiller adjustment to move tiller up and out of the way. 2.Place front basket.

  • Page 14: Care And Maintenance

    5-Series Instruction Booklet CARE AND MAINTENANCE Cleaning Your Scooter： If your scooter is dirty, use a damp or lightly soapy cloth to wipe it down. Do not use running water to wash or rinse scooter in order to protect electrical parts. Polish with an automotive liquid polish.

  • Page 15: Operating Your Scooter

    5-Series Instruction Booklet OPERATING YOUR SCOOTER You could make the following adjustments to increase your comfort when driving. •adjust seat position. •adjust armrest width to comfortable position. •adjust tiller's angle. 1.Before operating your scooter, check the following: •free-wheeling lever in D •speed dial knob is at turtle picture.
  • Page 16 5-Series Instruction Booklet Keep in mind these rules： •Release thumb levers and allow scooter to stop completely before changing from forward to reverse, or reverse to forward. •When turning to corner, swing front wheels widely, so back wheels will turn more tightly. •Use scooter only where it is safe for waiting.

  • Page 17: Troubleshooting

    5-Series Instruction Booklet TROUBLESHOOTING Here are some suggestions about solving problems you may have with your scooter. There is a Self-Diagnostic Warning Light on the Control Panel. To check the Self-Diagnostic Warning Light, turn on the key and count the number of blinks on the Warning Light. Flash Description Meaning...
  • Page 18 5-Series Instruction Booklet The controller may have an internal fault. Other error •Check all connections and wiring. Other Problems Low tire pressure: pump up tires to 30-50 lbs. During charging, light on charger does not change to green: Contact your authorized dealer. Scooter will not move when key is turned on: 1.Check Power Reserve Indicator on control panel, it should be lighting in green, yellow, and red zones.

  • Page 19: Technical Specifications

    5-Series Instruction Booklet TECHNICAL SPECIFICATIONS SPECIFICATIONS HS-558 HS-559 Overall Length 1200 mm / 47.2" 1200 mm / 47.2" Overall Width 620 mm / 24.4" 628 mm / 24.7" Overall Height 1190 mm / 47" 1190 mm / 47" Wheels: Front 290 mm / 11"...
