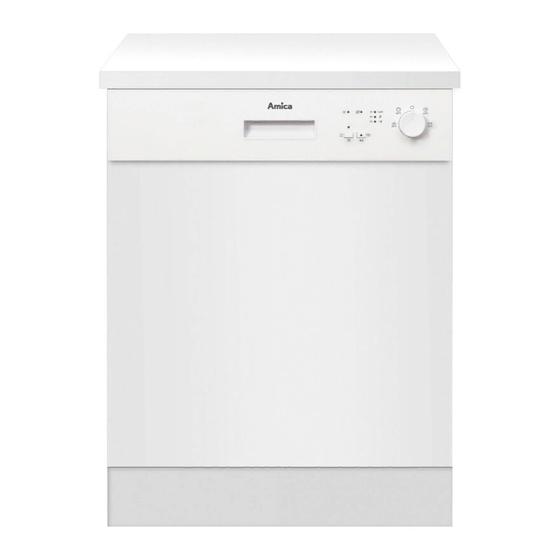

- Page 1 Dishwasher ZZV 634W UK Instruction manual Sticker with serial number of appliance...
-
Page 2: Table Of Contents
CONTENTS Programme Selection and Operating the Machine……………………………………. Safety information and Recommendations………………………....... Installing the machine ………………………………………………………………………. Positioning the machine ………………………………………………………………... • Water connections …………………............... • Water inlet hose ….……………………………………………………………………… • Water outlet hose …..………………............... • Electrical connection…………………………………………………………………….. • Preparing the machine for use ……………………………………………………………. - Page 3 Upper basket with racks Control Panel Upper spray arm Detergent and rinse-aid dispenser Lower basket Cutlery basket Lower spray arm Salt dispenser Filters Upper basket track latch Rating plate Active drying unit : This system provides better drying performance for your dishes.
-
Page 4: Programme Selection And Operating The Machine
Programme Selection and Operating the Machine 1. Door Handle have selected will start without delay. Use the door handle to open/close the If the user switches the programme door of your machine. selection button to off position after 2. Delay and Half Load Button enabling the delay time and the prog- Thanks to the delay function in your ramme is started, the activated delay... - Page 5 3. Start/Pause Key When you press the Start/Pause key, the programme you have selected with the programme selection button will start operating and the washing light will be lit. After the programme is started, the Start/Pause light will go off. You can press Start/Pause key if you wo- uld like to stop the programme.
-
Page 6: Safety Information And Recommendations
When using your dishwasher, follow the precautions listed below: This appliance is intended to made by childrenwithout be used in household and supervision. For EN60335-1 similar applications such as: This appliance is not intended -staff kitchen areas in shops, for use by persons(including offices and other working children )with reduced environments;... - Page 7 This appliance must be Have a proper outlet installed earthed. In the event of a by a qualified electrician. malfunction or breakdown, Do not abuse, sit on, or stand earthing will reduce the risk on the door or dish rack of the of an electric shock by dishwasher.
- Page 8 During installation, the power Check that the detergent powder is empty after supply must not be completion of the wash cycle. excessively or dangerously bent or flattened. Do not wash plastic items unless they are marked Do not tamper with controls. The appliance is to be dishwasher safe or the equivalent.
- Page 9 Dispose of the dishwasher packaging material correctly. All packaging materials can be recycled. Plastic parts are marked with the standard international abbreviations: for polyethylene, e.g. sheet wrapping material for polystyrene, e.g. padding material POM polyoxymethylene, e.g. plastic clips polypropylene, e.g. Salt filler Acrylonitrile Butadiene Styrene, e.g.
- Page 10 Technical specifications Capacity 12 place settings Height 820 mm - 870mm Width 598 mm Depth 57 mm Net Weight 41 kg Electricity input 220-240 V, 50 Hz Total Power 1900 W Heating Power 1800 W Pump Power 85 W Drain Pump Power 57,5 W Water supply pressure 0.03 MPa -1 MPa...
-
Page 11: Installing The Machine
INSTALLING THE MACHINE Positioning the machine When determining the place to put your machine on, take care to choose a place where you can easily load and unload your dishes. Do not put your machine in any location where there is the probability for the room temperature to fall below 0°... -
Page 12: Water Outlet Hose
Water outlet hose The water drain hose can be connected either directly to the water drain hole or to the sink outlet spigot. Using a special bent pipe (if available), the water can be drained directly into the sink via hooking the bent pipe over the edge of the sink. -
Page 13: Preparing The Machine For Use
Prior to using the machine for the first time Check whether the electricity and supply water specifications match the values indicated by the • installation instructions for the machine. Remove all packaging materials inside the machine. • Set the water softener. •... -
Page 14: Testing Strip
In order to understand whether or not the amount of softener salt in your machine is sufficient, check the transparent section on the salt compartment cap. There is sufficient salt if the transparent section is green. Salt has to be added if the transparent section is not green. Testing strip The washing effectiveness of your machine depends on the softness of the tap water. - Page 15 Adjusting salt consumption In accordance with the degree defined on the test track, perform the water hardness setting of your machine as indicated below. • Set the On/Off button (4) to off position (1). • Press and hold Start/Pause (3) key. •...
-
Page 16: Detergent Usage
Detergent usage Use a detergent specifically designed for use in domestic dishwashers. You can find powder,gel,and tablet detergents in the market that have been designed for household dishwashers. Detergent should be put into the compartment prior to starting the machine. Keep your detergents in cool, dry places out of reach of your children. -
Page 17: Filling With Rinse Aid And Making The Setting
They produce good results for certain types of usage only. If you are using this type of • detergents, you need to contact the manufacturers and find out about the suitable conditions of use. When the conditions of use of such products and the machine settings are appropriate, •... -
Page 18: Loading Your Dishwasher
Warning: Use only those rinse aid materials which are allowed for use in the machine. As rinse aid residues left as a result of overflowing will create extremely high amounts of foam and thus reduce the washing performance, remove the excess amount of rinse aid by wiping it with a rag. LOADING YOUR DISHWASHER If you properly place your dishes into the machine, you will be using it in the best way in terms of energy consumption, washing and drying performance. - Page 19 Top basket height adjustment while it is full Machine is designed to let you adjust the height of your top basket upwards or downwards, without removing it from your machine when it is full, and create large spaces at the top or bottom area of your machine as needed.
-
Page 20: Alternative Basket Loads
Alternative basket loads Lower Basket Top basket Faulty loads Important Note for Test Laboratories For detailed information on performance tests, please contact following address: “dishwasher@standardtest.info” . In your email, please provide the model name and serial number (20 digits) which you can find on the appliance door. -
Page 21: Programme Descriptions
PROGRAMME DESCRIPTIONS Programme items Reference Programme No Programme names Quick 30 min. Super 50 min. Intensive Temperatures 65°C 65°C 40°C 50°C soups, sauces, soups, sauces, coffee, milk, coffee, milk, tea, pasta, pasta, tea, cold meats, cold meats, Type of food waste eggs, pilaf, potato eggs, pilaf, potato vegetables,... -
Page 22: Operating The Machine
Operating the Machine 1.By rotating the programme selection button, energise the machine and select the suitable programme. After rotating the programme selection 2.Start the programme by button and energising the machine, pressing the Start/Pause key. the light on the Start/Pause is lit. At the very time the programme is started the light on the Start/Pause goes... -
Page 23: Cancelling The Programme
Cancelling the Programme If you would like cancel a programme while a washing programme is running on: Press Start/Pause key for 3 seconds. After 3 seconds, programme cancellation step is started and When the End light is the water inside the machine lit, the programme will is discharged for 30 seconds. -
Page 24: Maintenance And Cleaning
MAINTENANCE AND CLEANING Cleaning the machine in regular intervals prolongs the machine’s service life. Oil and lime may accumulate in the machine’s washing section. In case of such accumulation; -Fill the detergent compartment without loading any dishes into the machine, select a programme that runs at high temperature, and start the machine. -
Page 25: Spray Arms
Spray arms Check whether or not the holes for the upper and lower spray arms are clogged. If there is any clogging, remove the spray arms and clean them under water. You can remove the lower spray arm by pulling it upwards, while the upper spray arm nut can be removed by turning the nut to the left. -
Page 26: Failure Codes And What To Do In Case Of Failure
FAILURE CODES AND WHAT TO DO IN CASE OF FAILURE ERROR CODE ERROR CONTROL DESCRIPTION Wash End Start/ Pause • Make sure the water input tap is totally open and that there is no water cut. Inadequate • Close the water input tap, water supply separate the water input hose from the tap and clean the filter at the connection end of the hose. - Page 27 If one of program monitor lights is on and start/Pause light is on and off, Your machine’s door is open, shut the door. If the programme won’t start Check if the plug is connected. • Check your indoor fuses. • Be sure that the water inlet tap is turned on.
-
Page 28: Practical And Useful Information
If there are whitish stains on the dishes A very small amount of detergent is being used. • Rinse aid dosage setting at a very low level. • No special salt is being used despite the high degree of water hardness. •... - Page 29 Sheet of household dishwasher according to EU Directive 1059/2010: Manufacturer Amica Wronki S.A. Type ZZV 634W UK Standard place settings Energy efficiency class Annual energy consumption - kWh (AEC) ( 280 cycles) Energy consumption of the standard cleaning cycle 0,90...
- Page 32 Service Help Line 0844 815 8880 For the UK: please call 0818 46 46 46 For Ireland: please call IO 00789/1 5219XXXX R23 (01.2016 )
