The following instructions are provided to help you assemble the Sedona by Lynx™ cart.
IMPORTANT: Be sure to assemble on a soft surface to prevent scratching the stainless steel.
Tools required: Regular phillips-head screwdriver, small crescent wrench and gloves.
Introduction:
Your freestanding cart comes with all of the components necessary to assemble a cart for the Sedona by Lynx™ series of grills.

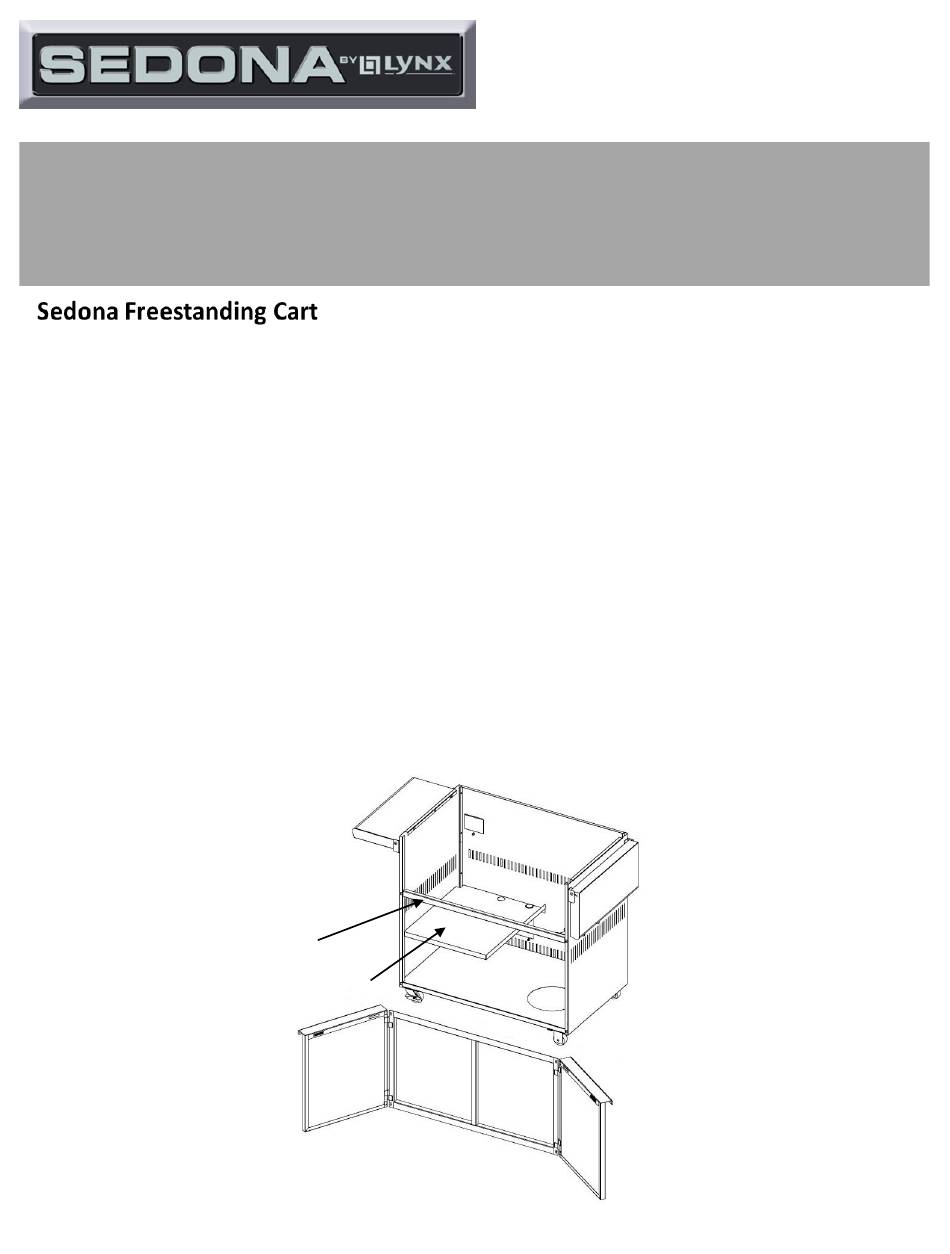

The Sedona by Lynx™ cart series is comprised of 8 sub assemblies:
1.
Back Panel Assembly
2.
Right Side Panel Assembly with Shelf
3.
Left Side Panel Assembly with Shelf
4.
Base Assembly with Wheels
5.
Interior Shelf Assembly
6.
Cross Brace Assembly
7.
Right Door
8.
Left Door (L600/700)
In addition there are 14 screws (¼-20x½) to assemble the cart and grill. There are also 4 screws with corresponding nuts
(#8-32 x 3/8) to attach the transformer assembly which is supplied with the grill.
Left Side Panel
Cross Brace
Interior Shelf
Left Door
Cabinet Door Frame
(L600/700)
Back Panel
Base Assembly
Assembly Instructions:
SEDONA L400CART
Right Side Panel
Right Door
1 Part # 33807 Rev 2016
L500CART
L600CART
& L700 CART
Advertisement
Table of Contents
Related Manuals for Lynx Sedona L400CART
Summary of Contents for Lynx Sedona L400CART
- Page 1 Tools required: Regular phillips-head screwdriver, small crescent wrench and gloves. Introduction: Your freestanding cart comes with all of the components necessary to assemble a cart for the Sedona by Lynx™ series of grills. The Sedona by Lynx™ cart series is comprised of 8 sub assemblies:...
- Page 2 Step 1. Upon opening the box and identifying the components you will need 3 parts to begin assembly. You will need the back panel and the two side panels (L & R). Please note that you will need to have these parts upside down.
- Page 3 On the frame there some notches where the base will slide into. Make sure the caster wheels sit above the frame of the cart. Use 4 1/4-20 x 1/2 screws to attach the base to the frame. Notches for Base Panel Notches for Base Panel Attach 4¼-20 x ½...
- Page 4 Step 5 Cross Bar Notch Locate the cross bar and slide it into the slots on the front of the frame. On the L400/L500 the cross bar has magnets. On the ends of the cross bar you will see inserts for the screws to attach the bar to the frame. Use 2 1/4-20 x 1/2 screws to attach the cross bar to the frame.
- Page 5 Do not use the knobs on the grill for a grip as it can damage them. Refer to the installation manual provided with the grill for the proper electrical and gas connections. Lynx Grills, Inc. Lynx Customer Care 7300 Flores St.
