Summary of Contents for Stanley SXEW217501

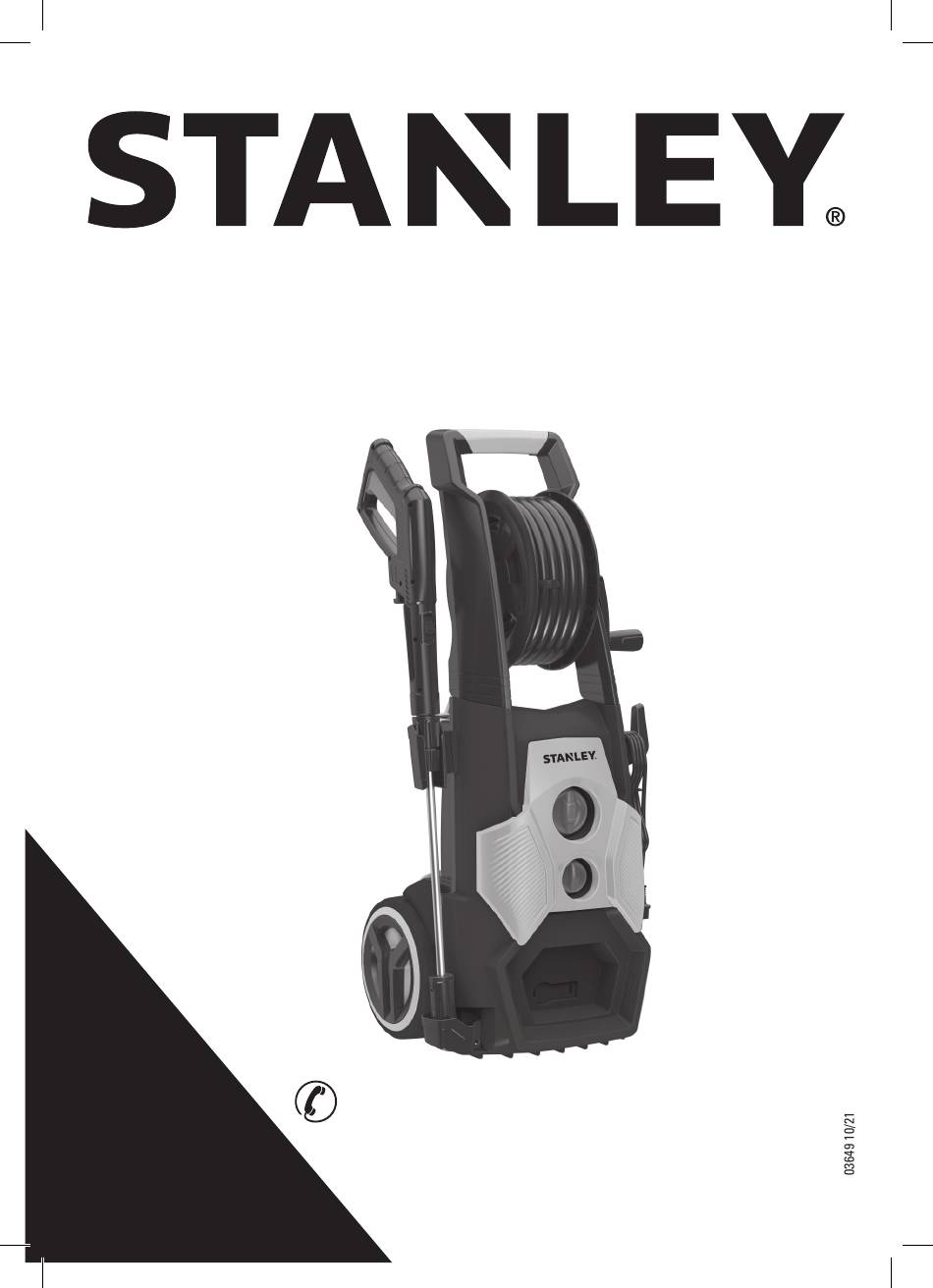

- Page 1 ELECTRIC PRESSURE WASHER 2200W 2175PSI MODEL NO. For service, spare parts or product information, SXEW217501 please contact Smart Marketing Group Pty. Ltd. AUST. 1300 660 457 N.Z. 0800 474 876...
-
Page 2: Table Of Contents
• Garden feature Specific Safety Instructions Fuel & Oil Information TECHNICAL INFORMATION Components and Controls Specifications Assembly Instructions 11 – 12 Pressure washer SXEW217501 Operating Instructions 13 – 17 Maximum pressure 2175PSI Cleaning Tips Rated pressure 1740PSI Flow rate 7.5L/min Maintenance 19 –... -
Page 3: Introduction
INTRODUCTION HOW TO CLAIM UNDER THIS WARRANTY • Call customer service. Dear Customer, • Ensure you have the following: Original purchase Thank you for purchasing this pressure washer which has receipt, Model of pressure washer, Serial number passed through our extensive quality assurance processes. of pressure washer. - Page 4 COMPLETE WARRANTY STATEMENT – PRESSURE WASHER As soon as you have purchased the pressure washer, we accessories will not be covered under this warranty. recommend that you check to make sure it is intact and that Rust and corrosion are not covered under this warranty. you read the operating instructions carefully before using it.
-
Page 5: General Safety Instructions
GENERAL SAFETY INSTRUCTIONS ASSEMBLY SELECT A PRESSURE WASHER WITH A SUFFICIENT RATING This pressure washer MUST be fully assembled by you prior to use. Failure to do so will result in the warranty being VOID. Select the right pressure washer for the job. Do not use a pressure washer to do a job for which it was not designed. - Page 6 GENERAL SAFETY INSTRUCTIONS MAINTAIN YOUR PRESSURE WASHER WITH CARE CLEANING YOUR PRESSURE WASHER When not using your pressure washer ensure the ON/OFF Always stop your pressure washer before you commence switch is ‘OFF’. Never leave the ON/OFF switch ‘ON’ as this can cleaning.
- Page 7 PERSONAL SAFETY INSTRUCTIONS CLOTHING RESPIRATORY PROTECTION Do not wear loose clothing, jewellery or anything that could When cleaning dirt, concrete, man-made fibres, especially MDF get caught in moving machinery. (Medium Density Fibre board), the resin used in these materials can be hazardous to your health. Use an approved face mask HAIR with replaceable filter.
-
Page 8: Specific Safety Instructions
SPECIFIC SAFETY INSTRUCTIONS Warning! Do not use the pressure washer in areas where • Never hose or wet people or animals. there is a risk of explosion or fire from combustible materials. • Never spray the pressure cleaner. The sparks possibly caused when using this pressure washer •... - Page 9 PIC. 1 1. Variable detergent control 2. On / Off Switch 3. Power cord holder 4. Gun with trigger 5. High pressure hose 6. Gun Holder 7. Handle 8. Lance 9. Hose reel handle 10. Adjustable nozzle 11. Wheel 12. Lance Support...
- Page 10 UNPACKING & ASSEMBLY PIC. 2 UNPACKING Note: Carefully unpack your pressure washer. Dispose of all packing material in an environmentally responsible manner. Open carton, gently lift the pressure washer clear of the carton and packaging, Remove from plastic bag. Note: Plastic bags can be a danger to young children, dispose of immediately.
- Page 11 PRESSURE HOSE TO GUN CONNECTION PIC. 4 PIC. 4 To connect hose; Push the hose fitting in until it clicks into place. Hose fitting should be locked in place. To disconnect hose; Push hose lever in towards the gun and pull the hose fitting out and release the hose lever.
-
Page 12: Operating Instructions
OPERATING INSTRUCTIONS GUN ROTATION PIC, 7 To ensure user comfort and ideal cleaning angle this model WARNING: THIS UNIT IS INTENDED TO BE USED WITH allows for the gun to rotate independent of the fitted nozzle. COLD WATER ONLY! DO NOT USE HOT WATER IN THIS To rotate the gun;... - Page 13 DETERGENT PIC. 8 This pressure washer comes with a built-in detergent bottle and variable detergent rate control. The detergent rate control is located below the ON/OFF switch while the detergent bottle is located on the rear of the pressure washer body. Only fill the detergent bottle with detergent only.
- Page 14 NOZZLES PIC. 9 Your pressure washer is supplied with these nozzles; NARROW ADJUSTABLE NOZZLE PIC. 9 SPRAY This nozzle can be adjusted while in use there is no need to stop the water flow. Being an adjustable nozzle, there are many different positions which will give a variety of different spray widths and water pressure.
- Page 15 MAINTENANCE INFORMATION PIC. 11 It is recommended after every use or when required that following items are cleaned. NOZZLE PIC. 11 When the nozzle is clogged, it will cause the pump to build pressure and may cause unit to surge, you can clean the nozzle inserting needle into the tip to rid of the deposits.
-
Page 16: Cleaning Tips
CLEANING TIPS RECOMMENDATIONS CARS, BOATS & MOTORCYCLES - WITH OR WITHOUT DETERGENT If painted surfaces are peeling or chipping, use extreme caution as pressure washer may remove the loose paint Pre-rinse vehicle with fresh water. If using vehicle wash, place from the surface. -
Page 17: Trouble Shooting
TROUBLE SHOOTING WHEN THE SWITCH IS IN THE “I” POSITION THE MACHINE WILL NOT START Possible Cause Suggested Fix Electrical socket is faulty Check plug, socket, fuses Voltage is inadequate Check that the voltage is adequate Power cord is not plugged in Plug in power cord THE PUMP DOES NOT REACH ADEQUATE PRESSURE OR FLUCTUATES Water inlet filter is clogged... - Page 18 NOTES...
- Page 19 NOTES...
- Page 20 24 month warranty. STANLEY®, The STANLEY Logo, The Notched Rectangle and the Yellow and Black Diagonal Package Design are all trademarks of the Stanley Black & Decker, Inc or an affiliate thereof and are used under license. Product manufactured...
