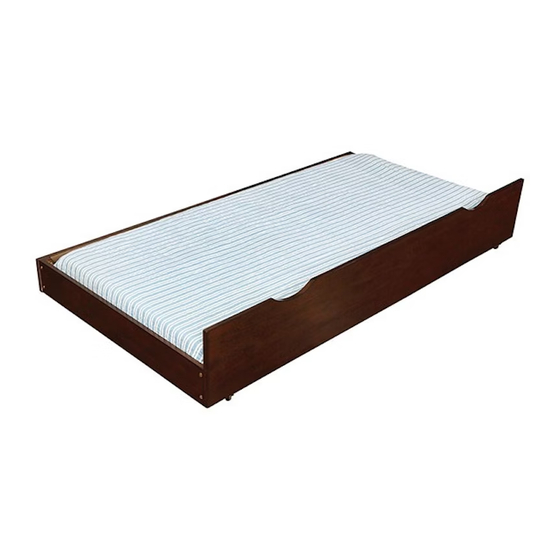

Furniture of America CM7517TR Assembly Instruction

Download this manual

For more information contact our team: service.ec@foagroup.com

ASSEMBLY RATING

The Assembly Rating is a 5-point system that

shows the degree of effort needed in

assembling a specific product (with 1 being

easy and 5 being difficult). For some

products, two persons are recommended.

EASY

Assembly Instructions

CM7517TR

DIFFICULT

Tools Required For Assembly:

Allen Wrench

Phillips Screwdriver

2 PERSONS RECOMMENDED

Page 1 of 5

(Included)

(Not Included)

Rev: 18- 10 - 03

Need help?

Do you have a question about the CM7517TR and is the answer not in the manual?

Page 1 Assembly Instructions For more information contact our team: service.ec@foagroup.com CM7517TR ASSEMBLY RATING Tools Required For Assembly: The Assembly Rating is a 5-point system that Allen Wrench shows the degree of effort needed in (Included) assembling a specific product (with 1 being easy and 5 being difficult).
Page 2 LOOSEN OVER TIME AND MAY CAUSE THE FURNITURE TO BE WOBBLY AND UNABLE TO SUPPORT ITS INTENDED WEIGHT CAPACITY. THIS MAY LEAD TO COLLAPSE AND MAY CAUSE SERIOUS INJURY. FAILURE TO FOLLOW THE GUIDELINES ABOVE MAY RESULT IN INJURY AND/OR PROPERTY DAMAGE. FURNITURE OF AMERICA.ALL RIGHTS RESERVED. Page 2 of 5...
Page 3 Before you begin, please read Page 2 of "Assembly and Care Advice". And remember, do not tighten until each step is completed or instructed. Parts List Hardware List #1 x 1pc #A x 8pcs Front Panel Bolt Ø5/16" x 1-3/8" #2 x 2pcs #B x 8pcs Side Panel...
Page 4 Align side panels (#2) to the front and back panels (#1,3), then secure by using bolts (#A) with washers (#B,C). #A x 8pcs #B x 8pcs #C x 8pcs Align slats (#4) evenly spread to the unit, then secure by using screws (#E). #E x 12pcs Page 4 of 5...
Page 5 Align bottom panel (#6) to the trundle, then secure by using screws (#E). #E x 4pcs Slide center panel (#5) to the trundle. Page 5 of 5...
