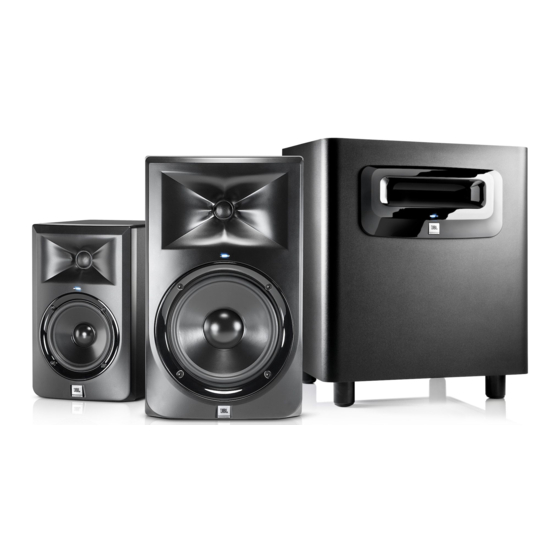

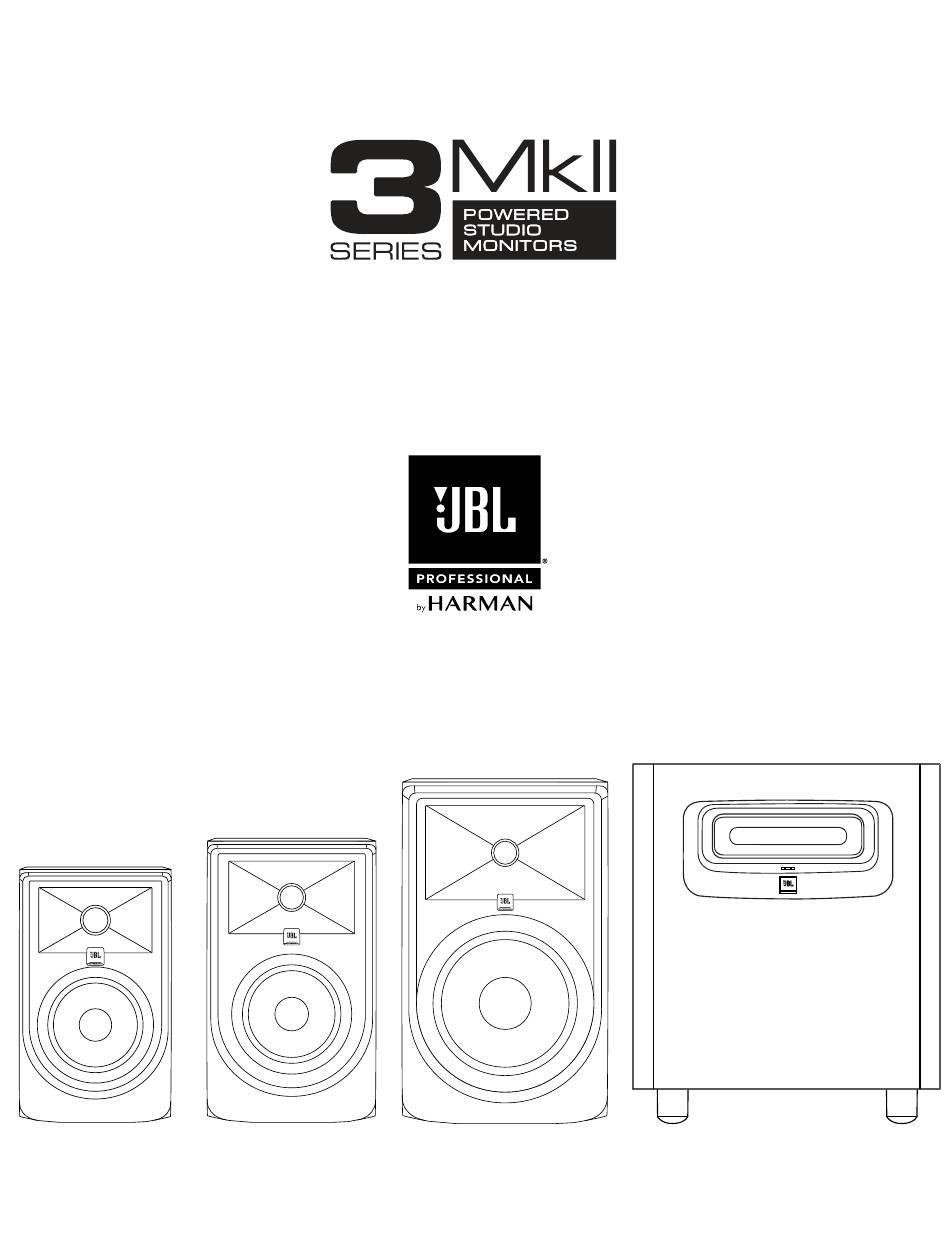

- Page 1 Owners Manual 305P MkII 306P MkII 308P MkII LSR310S 5" Powered 6" Powered 8" Powered 10" Powered Studio Monitor Studio Monitor Studio Monitor Studio Subwoofer...
- Page 2 Product Registration Thank you for your purchase of JBL 3 Series Studio Monitors To receive important information as it becomes available, please take a moment to register your 3 Series speakers at www.jblpro.com/registration.
-
Page 3: Table Of Contents
Table of Contents Section 1: Important Safety Instructions ....................... 4 Section 2: Introduction ............................5 JBL Linear Spatial Reference (LSR) Design ....................5 Image Control Waveguide ..........................5 305P, 306P, and 308P MkII Features ......................5 LSR310S Powered Studio Subwoofer Features ..................... 6 JBL Professional Reliability .......................... -
Page 4: Section 1: Important Safety Instructions
Hereby, Harman Professional declares that the equipment type ESD Warning: The icon to the left indicates text regarding potential danger JBL 305P MKII, 306P MKII, 308P MKII, are in compliance with the... -
Page 5: Section 2: Introduction
Section 2: Introduction Congratulations on your purchase of JBL Professional 3 Series Studio Monitors. The 3 Series meet JBL’s high standards for accuracy and long-term reliability in demanding professional applications. All 3 Series models incorporate JBL Professional transducer and network technologies to provide accurate frequency response, exceptional low frequency extension and high SPL capability. -
Page 6: Lsr310S Powered Studio Subwoofer Features
LSR310S POWERED STUDIO SUBWOOFER FEATURES Producing extended low frequency response into the 20Hz region, the LSR310S is the perfect match for the 3 Series MkII studio monitors. The LSR310S feature set includes: • A Magnetically-shielded low frequency transducer, equipped with a 1.5" voice coil and robust motor structure for excellent low frequency performance. -
Page 7: Section 3: Setting Up Your System
Section 3: Setting Up Your System EACH 3 SERIES CARTON INCLUDES THE FOLLOWING ITEMS: • One 3 Series MkII studio monitor or 3 Series subwoofer • One power cord • Quick setup guide • Four peel-off rubber pads (305P, 306P, and 308P MkII models only) UNPACKING When removing a speaker from its packaging, we recommend the following procedure, which will prevent damage of the high frequency transducer:... - Page 8 • Ideally, 3 Series MkII Studio Monitors should be placed on suitable speaker stands, rather than on the work surface. This will reduce resonance and deterioration of low frequency performance caused by the speaker’s mechanical coupling with the work surface. •...
-
Page 9: Audio Connections
AUDIO CONNECTIONS NOTE: Before making audio connections, ensure the VOLUME control on each 3 Series speaker/subwoofer is set to the full counter-clockwise (minimum) position. The 3 Series speakers are equipped with balanced XLR and 6mm (¼") TRS inputs for connection to professional computer audio interfaces, mixing consoles, and audio production equipment, as well as unbalanced consumer audio products such as personal music players, consumer audio receivers, and audio visual equipment. -
Page 10: Section 4: 305P, 306P, And 308P Mkii Powered Studio Monitors
Section 4: 305P, 306P, and 308P MkII Powered Studio Monitors Front View Back View FEATURES HIGH FREQUENCY TRANSDUCER (TWEETER) – This transducer reproduces high frequency signals. WAVEGUIDE – The specially designed JBL Image Control Waveguide enhances imaging and optimizes the blend of direct and reflected sound in the room, ensuring neutral sound at the mix position. POWER LED –... -
Page 11: Input Panel
INPUT PANEL XLR INPUT – Connect professional equipment to this connector using a balanced XLR plug. 6MM (¼") INPUT – Connect professional equipment to this connector using a 6mm (¼") balanced plug. Connect consumer equipment to this connector using a 6mm (¼") unbalanced plug. INPUT SENSITIVITY SWITCH –... -
Page 12: Section 5: Lsr310S Powered Studio Subwoofer
Section 5: LSR310S Powered Studio Subwoofer Front View Back View Bottom View FEATURES LOW FREQUENCY TRANSDUCER (WOOFER) – This transducer reproduces low frequency signals. POWER LED – This LED illuminates when power is connected and the POWER switch is set to ON. FEET –... -
Page 13: Input Panel
INPUT PANEL RIGHT AND LEFT XLR INPUTS – Connect professional equipment to these connectors using balanced XLR plugs. RIGHT AND LEFT 6MM (¼") – Connect professional equipment to these connectors using 6mm (¼") balanced plugs. Connect consumer equipment to these connectors using 6mm (¼") unbalanced plugs. RIGHT AND LEFT XLR OUTPUTS –... -
Page 14: Audio Connections
AUDIO CONNECTIONS Connect signal sources to either the XLR or 6mm (¼") INPUT connectors. Connect a single signal source to the speaker using either the XLR INPUT connectors, OR the 6mm (¼") TRS INPUT connectors. Do not connect multiple signal sources to the XLR and 6mm (¼") input connectors simultaneously. If the LSR310S subwoofer is being used to reproduce the .1 LFE channel in a surround sound system, connect the .1 LFE signal to either the LEFT or RIGHT input of the subwoofer. -
Page 15: Crossover Settings And Bass Management
CROSSOVER SETTINGS AND BASS MANAGEMENT “Bass management” is a term that refers to the practice of using a subwoofer to reproduce the bass frequencies of the main channels. Because of the physiology of the human ear, low frequencies are largely non-directional. Given an adequate listening distance, we can’t easily tell where bass signals are coming from. -
Page 16: Section 6: System Connections
Section 6: System Connections TWO CHANNEL SYSTEMS LEFT SPEAKER RIGHT SPEAKER (REAR PANEL) (REAR PANEL) SUBWOOFER (REAR PANEL) MIXER... -
Page 17: Surround Sound Systems
SURROUND SOUND SYSTEMS LEFT SPEAKER CENTER SPEAKER RIGHT SPEAKER (REAR PANEL) (REAR PANEL) (REAR PANEL) SUBWOOFER (REAR PANEL) COMPUTER AUDIO INTERFACE COMPUTER AUDIO SYSTEM LEFT RIGHT SURROUND SPEAKER SURROUND SPEAKER (REAR PANEL) (REAR PANEL) -
Page 18: Section 7: Troubleshooting
Section 7: Troubleshooting Issue: There is no sound from the speakers. • Confirm the power cable is connected to the speaker and the POWER switch is set to the ON position. • Make sure the POWER LED is illuminated on the front of the speaker. •... -
Page 19: Section 8: Specifications
Section 8: Specifications 305P 306P 308P LSR310S Frequency Range 27Hz 43Hz – 24kHz 39Hz – 24kHz 37Hz – 24kHz (-10dBV): 1725Hz 4th Order Acoustic 1425Hz 4th Order Acoustic 1800Hz 4th Order Acoustic Crossover: - - - Linkwitz-Riley Linkwitz-Riley Linkwitz-Riley Maximum Continuous SPL: 94 dB* 98 dB* 102 dB*... -
Page 20: Section 9: Jbl Service Contact Information
Section 9: JBL Service Contact Information MAILING ADDRESS: JBL Professional 8500 Balboa Blvd. Northridge, CA 91329 SHIPPING ADDRESS: Please contact JBL Professional Customer Service for shipping information prior to repairs. CUSTOMER SERVICE: Monday through Friday 8:00am – 5:00pm Pacific Coast Time in the U.S.A. (800) 8JBLPRO (800.852.5776) www.jblproservice.com PRODUCT REGISTRATION:... -
Page 21: Section 10: Product Warranty Information
Section 10: Product Warranty Information The JBL Limited Warranty on professional loudspeaker products (except for enclosures) remains in effect for five years from the date of the first consumer purchase. JBL amplifiers are warranted for three years from the date of original purchase. - Page 22 Part Number: 5096517-00-A...
