- Page 1 UH720SX-NB UH720SX-2NB UH710SX-NB UH710SX-2NB UH710-2TP UH720-2TP UHF CB Radio For more exciting new products please visit our website: Australia: www.uniden.com.au...
- Page 2 It is illegal to operate this radio transceiver outside of Australia and New Zealand. NOTE Do not plug in any AC Adapter plug into the EXT. SPKR/MIC (SM-065) phone jack. NOTE UNIDEN UH720SX-NB/UH710SX-NB UHF CB Radio...
-
Page 3: Table Of Contents
Dual Watch Monitor CTCSS Room Monitor Busy Channel Lockout Call Tone Roger Beep Key Beep Battery Save Keypad Lock Back Lighting CTCSS Codes and Frequencies DSC Codes Table UHF-CB Channel Guidelines UHF-CB Channels and Frequencies Warranty UNIDEN UH720SX-NB/UH710SX-NB UHF CB Radio... -
Page 4: Features
• Group Scan with Priority CH Watch in a flat open environment @ 2W • Open Scan transmit power. 6km + range is • OS/GS Scan separately noted in a flat open environment @ • Channel Memory 1W transmit power. UNIDEN UH720SX-NB/UH710SX-NB UHF CB Radio... -
Page 5: Controls & Indicators
Cigarette Lead Charger Jack Select/Keylock Button Menu/Enter Button 13. Dual Watch/Monitor Button Instant Button 14. Scan/Call Tone Transmit Button Memory On/Off & 15. Belt Clip Catch DCS/CTCSS Button 16. PTT (Push-to-talk) Button Microphone 17. Battery Cover Up Button UNIDEN UH720SX-NB/UH710SX-NB UHF CB Radio... - Page 6 G. Dual Watch Group Scan H. Battery Level Indicator Q. Channel Number Transmission Power Level Indicator (High/Low) Radio images in this manual show UH720SX-NB, however the display indicators and keys are the same for the UH710SX-NB. NOTE UNIDEN UH720SX-NB/UH710SX-NB UHF CB Radio...
-

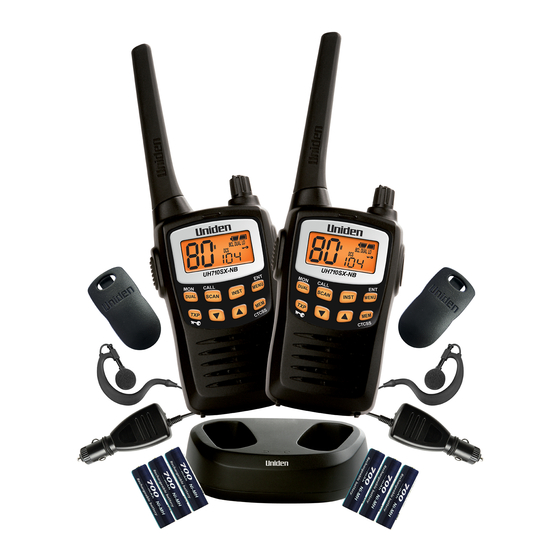

Page 7: Included In Your Uh710Sx-Nb/Uh720Sx-Nb Pack
(AAD- 065S(M)) Owner’s Manual Carry Case If any of these items are missing from the box, contact your Uniden Dealer. NOTE Optional Accessories • +12V to +24V DC Cigarette Lead Charger (CK-720) • Voice Activated (VOX) Headset (VM-041) • Leather Case (LC-710) •... -
Page 8: Getting Started
Slide the belt clip into the catch until it snaps into place. To remove the belt clip: Pinch and hold the belt clip and latch and then slide the belt clip up and out of the catch. UNIDEN UH720SX-NB/UH710SX-NB UHF CB Radio... -
Page 9: Charging Batteries Using The Desktop Charger
Duty cycle: TX 5% - RX 5% - STANDBY 90 % 50hrs typ.(AA SIZE 1800mAh ALKALINE) 50hrs typ.(AA SIZE 1800mAh Ni-MH) 20hrs typ.(AA SIZE 700mAh Ni-MH) Condition measured: Volume Level at rated power (50mW @ 16 ohms) Transmit Level; LO Standby; Battery Save ON UNIDEN UH720SX-NB/UH710SX-NB UHF CB Radio... -
Page 10: Battery Level Display
LEVEL 1 Battery approx 15% capacity LEVEL 0 Almost Empty [PTT] When SW is pressed at Level 0, the PTT Error Tone will be heard and the channel number and the battery icon will flash. NOTE UNIDEN UH720SX-NB/UH710SX-NB UHF CB Radio... -
Page 11: Low Battery Alert
If the battery level falls to Level 0 (flashing empty) the LCD display will turn off after 30sec. An error tone will sound if any key is pressed. Recharge the NiMH batteries or replace the Alkaline batteries immediately to continue using the radio. UNIDEN UH720SX-NB/UH710SX-NB UHF CB Radio... -
Page 12: Operation
SQL-1 : Max sensitivity (Threshold) SQL-2 : Med sensitivity SQL-3 : Min sensitivity (Tight) Press and hold to save setting and exit. If SQL-3 is selected SQT will flash continuously. UNIDEN UH720SX-NB/UH710SX-NB UHF CB Radio... -
Page 13: Selecting A Channel
45° angle away from your head. Speak in a clear, normal conversational voice. When you have finished speaking, release the and listen for a response then TX disappears on the LCD. BUSY appears while receiving a signal. UNIDEN UH720SX-NB/UH710SX-NB UHF CB Radio... -
Page 14: To Operate In Duplex Mode
CH01-CH08 and n appears for CH41-CH48 when duplex is selected. Press and hold to save and exit. Contact your retailer for a list of repeaters available in your area. NOTE Operation with the aid of a Repeater UNIDEN UH720SX-NB/UH710SX-NB UHF CB Radio... -
Page 15: Transmit Power Select
Scanning allows you to search for active channels programmed in the OS or GS memory. To initiate scanning, Assuming the unit is on CH01 when switched on. Press and scanning starts. SCAN flashes during scanning. UNIDEN UH720SX-NB/UH710SX-NB UHF CB Radio... -
Page 16: Open Scan (Os) Mode
2. If OS Scanning is initiated when there are no channels NOTE programmed in OS memory, an error tone will be heard and scanning will not start. UNIDEN UH720SX-NB/UH710SX-NB UHF CB Radio... -
Page 17: Group Scan(Gs) Mode
If none of the channels re- active, the radio will reinstate the Scan start channel. NOTE 2. If GS Scanning is initiated when there are no channels programmed in GS memory, an error tone will be heard and scanning will not start. UNIDEN UH720SX-NB/UH710SX-NB UHF CB Radio... -
Page 18: Priority Channel Watch During Group Scan
While scanning, the radio stops at a busy channel and receives a signal. When the received signal is over, the unit will wait for 3 seconds for the return of the signal, otherwise, the radio resumes scanning. UNIDEN UH720SX-NB/UH710SX-NB UHF CB Radio... -
Page 19: Programming The Instant Priority Channel
A double tone beep will be heard and the receiver circuit will stay open, letting in both the noise & weak signals. • Display shows BUSY. • To return to normal receive mode press and hold UNIDEN UH720SX-NB/UH710SX-NB UHF CB Radio... -
Page 20: Ctcss
DCS 1-104. Follow the steps for changing CTCSS code but select DCS code as desired. Channels 05 and 35 are used for emergency channels. CTCSS and DCS will not operate on these two channels. NOTE UNIDEN UH720SX-NB/UH710SX-NB UHF CB Radio... -
Page 21: Vox
The receive function is disabled. • RM flashes on the display. • Dual Watch function, if ON, is disabled. • Duplex mode is disabled on duplex channels. • Scan mode is disabled. • All key touch tones are disabled. UNIDEN UH720SX-NB/UH710SX-NB UHF CB Radio... -
Page 22: Busy Channel Lockout
CTCSS or DCS code. 1. Press seven times. The current BCL setting flashes. 2. Press to select desired setting. 3. Press and hold to save and exit. UNIDEN UH720SX-NB/UH710SX-NB UHF CB Radio... -
Page 23: Call Tone
Assures the user that the keypad has been properly pressed by emitting a beep tone. This tone can be switched on or off. 1. Press ten times. The current Key Beep setting flashes. 2. Press to change selection. 3. Press and hold to save and exit. UNIDEN UH720SX-NB/UH710SX-NB UHF CB Radio... -
Page 24: Battery Save
The Liquid Crystal Display (LCD) is backlit for easy viewing at night or in low light situations. The back lighting automatically switches ON every time a key (except PTT) is pressed. It turns OFF 5 secs after the last key is pressed. UNIDEN UH720SX-NB/UH710SX-NB UHF CB Radio... -
Page 25: Ctcss Codes And Frequencies
71.9 141.3 74.4 146.2 77.0 151.4 79.7 156.7 82.5 162.2 85.4 167.9 88.5 173.8 91.5 179.9 94.8 186.2 97.4 192.8 100.0 203.5 103.5 210.7 107.2 218.1 110.9 225.7 114.8 233.6 118.8 241.8 123.0 250.3 127.3 UNIDEN UH720SX-NB/UH710SX-NB UHF CB Radio... -
Page 26: Dsc Codes Table
DCS Codes Table DCS Code DCS Code DCS Code Code No. Code No. Code No. (Octal) (Octal) (Octal) UNIDEN UH720SX-NB/UH710SX-NB UHF CB Radio... -
Page 27: Uhf-Cb Channel Guidelines
The above situations are not a fault of the radio but a symptom of mixed wideband and narrowband radios in current use. It is expected that as older wideband radios are phased out this issue will be eliminated. UNIDEN UH720SX-NB/UH710SX-NB UHF CB Radio... -
Page 28: Uhf-Cb Channels And Frequencies
477.300 (CH36) 477.050 476.575 477.325 (CH37) 477.075 476.600 477.350 (CH38) 477.100 476.625 477.125 476.650 477.150 476.675 477.175 476.700 477.200 476.725 477.225 476.750 477.250 476.775 477.275 476.800 477.300 476.825 477.325 476.850 477.350 476.875 477.375 476.900 477.400 UNIDEN UH720SX-NB/UH710SX-NB UHF CB Radio... - Page 29 477.0625 476.5875 477.3375 (CH 77) 477.0875 476.6125 477.3625 (CH 78) 477.1125 476.6375 477.1375 476.6625 477.1625 476.6875 477.1875 476.7125 477.2125 476.7375 477.2375 476.7625 477.2625 476.7875 477.2875 476.8125 477.3125 476.8375 477.3375 476.8625 477.3625 476.8875 477.3875 476.9125 477.4125 UNIDEN UH720SX-NB/UH710SX-NB UHF CB Radio...
-
Page 30: Warranty
IMPORTANT: Satisfactory evidence of the original purchase is required for warranty service Please refer to our Uniden website for any details or warranty durations offered in addition to those contained below. Warrantor: The warrantor is Uniden Australia Pty Limited ABN 58 001 865 498 (“Uniden Aust”). - Page 31 Product, together with satisfactory evidence of your original purchase (such as a legible copy of the sales docket) to Uniden at the address shown below. You should contact Uniden regarding any compensation that may be payable for your expenses incurred in making a warranty claim.
- Page 32 THANK YOU FOR BUYING A UNIDEN PRODUCT. © 2014 Uniden Australia Pty Limited. Printed in Vietnam. U01UT944DZD(0)
