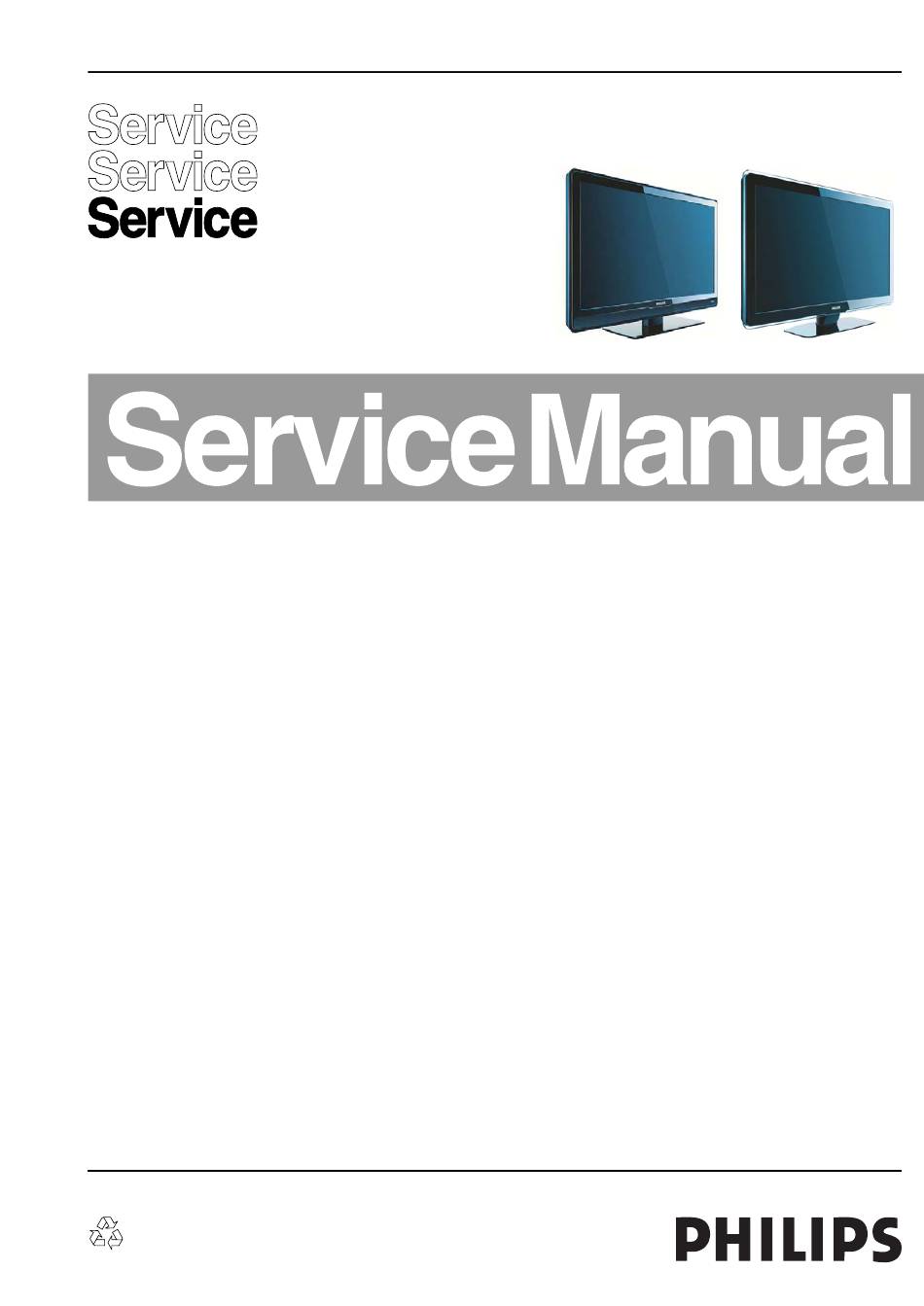

Colour Television
Contents
©
Copyright 2008 Koninklijke Philips Electronics N.V.
All rights reserved. No part of this publication may be reproduced, stored in a
retrieval system or transmitted, in any form or by any means, electronic,
mechanical, photocopying, or otherwise without the prior permission of Philips.
Published by TY 0866 BU TV Consumer Care
Page
2
7
8
9
39
40
41
42
43
44
45
46
47
Drawing PWB
(A1) 48
50-51
(A2) 49
50-51
(B02-B10) 52-96
100-109
97
98
99
110
112
113
116
122
125
138
138
Printed in the Netherlands
MG8
MG8
Contents
Subject to modification
Chassis
Q522.1E
LA
ME8
ME8
I_17750_000.eps
020608
Page
EN 3122 785 17751

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MG8 and is the answer not in the manual?

Questions and answers

Related Manuals for Philips MG8

Summary of Contents for Philips MG8

  • Page 1: Table Of Contents

    All rights reserved. No part of this publication may be reproduced, stored in a retrieval system or transmitted, in any form or by any means, electronic, mechanical, photocopying, or otherwise without the prior permission of Philips. Published by TY 0866 BU TV Consumer Care...

  • Page 2: Technical Specifications, Connections, And Chassis Overview

    EN 2 Q522.1E LA Technical Specifications, Connections, and Chassis Overview 1. Technical Specifications, Connections, and Chassis Overview Index of this chapter: 1.1.3 Multimedia 1.1 Technical Specifications 1.2 Connections Supported file formats : JPEG 1.3 Chassis Overview : MP3 : Slideshow (.alb) Notes: •...
  • Page 3 Technical Specifications, Connections, and Chassis Overview Q522.1E LA EN 3 Connections SPDIF EXT 2 EXT 1 EXT 3 SERV. U (RGB/CVBS) (RGB/CVBS) AUDIO OUT AUDIO IN TV ANTENNA AUDIO IN: LEFT / RIGHT HDMI 2 HDMI 1 HDMI 1 / DVI HDMI 2 / DVI HDMI 3 / DVI I_17750_002.eps...
  • Page 4 EN 4 Q522.1E LA Technical Specifications, Connections, and Chassis Overview 1.2.2 Rear Connections - D2- Data channel - D1+ Data channel - Shield Service Connector (UART) - D1- Data channel - Ground - D0+ Data channel - UART_TX Transmit - Shield - UART_RX Receive - D0-...
  • Page 5 Technical Specifications, Connections, and Chassis Overview Q522.1E LA EN 5 Chassis Overview MAIN SUPPLY PANEL SMALL SIGNAL KEYBOARD CONTROL BOARD PANEL H_17650_083.eps 160108 IR & LED PANEL H_17750_004.eps 250208 Figure 1-6 PWB/CBA locations 32" sets MAIN SUPPLY PANEL KEYBOARD CONTROL SMALL SIGNAL PANEL BOARD...
  • Page 6 EN 6 Q522.1E LA Technical Specifications, Connections, and Chassis Overview MAIN SUPPLY PANEL KEYBOARD CONTROL SMALL SIGNAL PANEL BOARD IR & LED PANEL I_17750_058.eps 060608 Figure 1-9 PWB/CBA locations 47" sets...

  • Page 7: Safety Instructions, Warnings, And Notes

    • Use only lead-free soldering tin Philips SAC305 with order the mass of the set by a wristband with resistance. Keep code 0622 149 00106. If lead-free solder paste is required, components and tools also at this same potential.

  • Page 8: Directions For Use

    2006 week 17). The 6 last digits contain the It is easy to do, and is a good service precaution. serial number. 3. Directions for Use You can download this information from the following websites: http://www.philips.com/support http://www.p4c.philips.com...

  • Page 9: Mechanical Instructions

    Mechanical Instructions Q522.1E LA EN 9 4. Mechanical Instructions Index of this chapter: 4.1 Cable Dressing Notes: 4.2 Service Positions • Figures below can deviate slightly from the actual situation, 4.3 Assy/Panel Removal ME8 Styling due to the different set executions. 4.4 Set Re-assembly Cable Dressing I_17750_005.eps...

  • Page 10: Cable Dressing

    EN 10 Q522.1E LA Mechanical Instructions I_17750_055.eps 050608 Figure 4-2 Cable dressing 37" I_17750_053.eps 040608 Figure 4-3 Cable dressing 42"...
  • Page 11 Mechanical Instructions Q522.1E LA EN 11 I_17750_057.eps 060608 Figure 4-4 Cable dressing 47"...

  • Page 12: Service Positions

    EN 12 Q522.1E LA Mechanical Instructions Service Positions The foam bars (order code 3122 785 90580 for two pieces) can be used for all types and sizes of Flat TVs. See figure “Foam bars” for details. Sets with a display of 42" and larger, require For easy servicing of this set, there are a few possibilities four foam bars [1].
  • Page 13 Mechanical Instructions Q522.1E LA EN 13 4.3.2 Speakers 4.3.4 Key Board Refer to next figure for details. Refer to next figure for details. 1. Remove the screws [1] and lift the whole unit from the back 1. Unplug the key board connector from the IR & LED board. cover.
  • Page 14 EN 14 Q522.1E LA Mechanical Instructions 4.3.5 Display Supply Panel Refer to next figure for details. 1. Unplug connectors [1]. 2. Remove the fixation screw [2] and be careful to not twist the earth strap. 3. Remove the fixation screws [3]. 4.
  • Page 15 Mechanical Instructions Q522.1E LA EN 15 4.3.6 Small Signal Board (SSB) Refer to next figure for details. Caution: it is mandatory to remount all different screws at their original position during re-assembly. Failure to do so may result in damaging the SSB. Refer to next figures or details.
  • Page 16 EN 16 Q522.1E LA Mechanical Instructions 4.3.7 LCD Panel 5. Remove the fixation screws [5] from the support and take it out. The support hinges from the bottom side. 6. Remove the fixation screws [6] from the SSB support and Refer to next figures for details.

  • Page 17: Set Re-Assembly

    Mechanical Instructions Q522.1E LA EN 17 Set Re-assembly To re-assemble the whole set, execute all processes in reverse order. Notes: • While re-assembling, make sure that all cables are placed and connected in their original position. See figure “Cable dressing”. •...

  • Page 18: Service Modes, Error Codes, And Fault Finding

    EN 18 Q522.1E LA Service Modes, Error Codes, and Fault Finding 5. Service Modes, Error Codes, and Fault Finding Index of this chapter: – Picture mute (blue mute or black mute). 5.1 Test Points – Automatic volume levelling (AVL). 5.2 Service Modes –...
  • Page 19 Contents of SAM: Code • Hardware Info. – A. SW Version. Displays the software version of the main software (example: Q522E-1.2.3.4 = 39mm PHILIPS AAAAB_X.Y.W.Z). MODEL: • AAAA= the chassis name. 32PF9968/10 PROD.SERIAL NO: • B= the region: A= AP, E= EU, L= LatAm, U = US.
  • Page 20 EN 20 Q522.1E LA Service Modes, Error Codes, and Fault Finding 5.2.3 Customer Service Mode (CSM) - the serial number of the SSB, which consists of seven digits. Both can be found on a sticker on the PWB of the SSB itself.
  • Page 21 Service Modes, Error Codes, and Fault Finding Q522.1E LA EN 21 the customer wants to make use of the HDMI functionality, When the TV is in protection state due to an error detected by the SSB has to be replaced. main software (MIPS protection) and SDM is activated via •...
  • Page 22 EN 22 Q522.1E LA Service Modes, Error Codes, and Fault Finding Mains Mains - WakeUp WakeUp requested requeste - Acquisition needed Semi St by Active St by (Off St by) - No data Acquisition - St by required requested and no POD present - tact SW - tact SW pushed pushed...
  • Page 23 Service Modes, Error Codes, and Fault Finding Q522.1E LA EN 23 Off/Stby to Semi Stand by or Protection Mains is applied Standby Supply starts running. All standby supply voltages become available . action holder: MIPS action holder: St-by st-by µP resets If the protection state was left by short circuiting the SDM pins, detection of a protection condition during autonomous action...
  • Page 24 EN 24 Q522.1E LA Service Modes, Error Codes, and Fault Finding The supply fault line is an OR SUPPLY-FAULT I/O line Supply fault error function of DCDC, DCDC5050 is High? and POD/CI supply switch. Enable the supply fault detection algorithm Set I²C slave address This will allow access to NVM and of Standby µP to (A0h)
  • Page 25 Service Modes, Error Codes, and Fault Finding Q522.1E LA EN 25 switch off the remaining DC/DC Log power-ok error and enter Power-ok display high ? converters protection Switch POD-MODE and ON-MODE 3-th try? I/O line high. Reset the Pacific by pulling LOW the Pacific hardware reset line during 100ms.
  • Page 26 EN 26 Q522.1E LA Service Modes, Error Codes, and Fault Finding action holder: AVC action holder: St-by autonomous action Semi Standby Wait until previous on-state is left more than 2 seconds ago. (to prevent LCD display problems) Assert RGB video blanking and audio mute Rewrite Pacific register 0x03 (output format) : this command is sometimes not processed properly by the...
  • Page 27 Service Modes, Error Codes, and Fault Finding Q522.1E LA EN 27 action holder: AVC Active action holder: St-by autonomous action Mute all sound outputs via softmute Wait 100ms Set main amplifier mute (I/O: audio-mute) Force ext audio outputs to ground (I/O: audio reset) And wait 5ms switch off LCD backlight...
  • Page 28 EN 28 Q522.1E LA Service Modes, Error Codes, and Fault Finding Semi Stand by action holder: MIPS action holder: St-by autonomous action If ambientlight functionality was used in semi -standby (lampadaire mode), switch off ambient light *) If this is not performed and the set is Delay transition until ramping down of ambient light is switched to standby when the switch off of finished.
  • Page 29 Service Modes, Error Codes, and Fault Finding Q522.1E LA EN 29 action holder: MIPS action holder: St-by autonomous action Log the appropriate error and set stand-by flag in NVM Redefine wake up reasons for protection state and transfer to stand-by µP. Switch off LCD lamp supply Wait 250ms (min.
  • Page 30 Introduction The error code buffer contains all detected errors since the last ComPair (Computer Aided Repair) is a Service tool for Philips time the buffer was erased. The buffer is written from left to Consumer Electronics products. and offers the following: right, new errors are logged at the left side, and all other errors 1.
  • Page 31 Service Modes, Error Codes, and Fault Finding Q522.1E LA EN 31 code and not the actual cause (e.g., a fault in the protection occurs it is also possible that I C2 bus is blocked (NVM). detection circuitry can also lead to a protection). C2 can be indicated in the schematics as follows: SCL- There are several mechanisms of error detection: UP-MIPS, SDA-UP-MIPS, SCL-SLAVE, SDA-SLAVE,...
  • Page 32 EN 32 Q522.1E LA Service Modes, Error Codes, and Fault Finding The Blinking LED Procedure Protections 5.6.1 Introduction 5.7.1 Software Protections The blinking LED procedure can be split up into two situations: Most of the protections and errors use either the stand-by •...
  • Page 33 Service Modes, Error Codes, and Fault Finding Q522.1E LA EN 33 5.8.3 DC/DC Converter 1. Check the ENABLE-3V3 signal (active “low”), 2. Check the voltage on pin 8 (1.5 V), 3. Check the under-voltage detection circuit (the voltage on Introduction collector of transistor 7U01-1 should be less than •...
  • Page 34 EN 34 Q522.1E LA Service Modes, Error Codes, and Fault Finding 5.8.5 SSB Replacement Follow the instructions in the flowchart in case you have to exchange the SSB. See figure “SSB replacement flowchart”. START Set is still operating? Activate SAM and save the TV settings via “Upload to USB”...
  • Page 35 How to start the software upgrade application manually: SSB. 1. Disconnect the TV from the Mains/AC Power. 2. Press the “OK” button on a Philips DVD RC-6 remote Automatic Software Upgrade control (it is also possible to use the TV remote in “DVD”...
  • Page 36 Content and Usage of the One-Zip Software File 1. Disconnect the TV from the Mains/AC Power. 2. Press the “CURSOR DOWN” button on a Philips DVD RC- Below you find a content explanation of the One-Zip file, and 6 remote control (it is also possible to use the TV remote in instructions on how and when to use it.
  • Page 37 Service Modes, Error Codes, and Fault Finding Q522.1E LA EN 37 Personal Notes: E_06532_012.eps 131004...
  • Page 38 EN 38 Q522.1E LA Service Modes, Error Codes, and Fault Finding...

  • Page 39: Block Diagrams, Test Point Overview, And Waveforms

    Block Diagrams, Test Point Overview, and Waveforms Q522.1E LA 6. Block Diagrams, Test Point Overview, and Waveforms Wiring Diagram 32” (ME8) WIRING DIAGRAM 32" (STYLING MG8 and ME8) LCD DISPLAY (1004) LVDS INPUT (50Hz) 8G50 INVERTER 14. ANALOG_PWM 13. DIM 12.

  • Page 40: Wiring Diagram >32" (Me8 & Mg8)

    Block Diagrams, Test Point Overview, and Waveforms Q522.1E LA Wiring Diagram >32” (ME8 & MG8) WIRING DIAGRAM 37", 42" and 47" (STYLING MG8 and ME8) 8402 LCD DISPLAY (1004) LVDS INPUT (1080p) LVDS INPUT (768p) 8401 8G50 8G51 DANGEROUS DANGEROUS...

  • Page 41: Block Diagram Video
