KW-DB95BT
CD RECEIVER
INSTRUCTION MANUAL
RECEPTOR CON CD
MANUAL DE INSTRUCCIONES
CD-RECEIVER
GEBRUIKSAANWIJZING
RECEPTOR CD
MANUAL DE INSTRUÇÕES

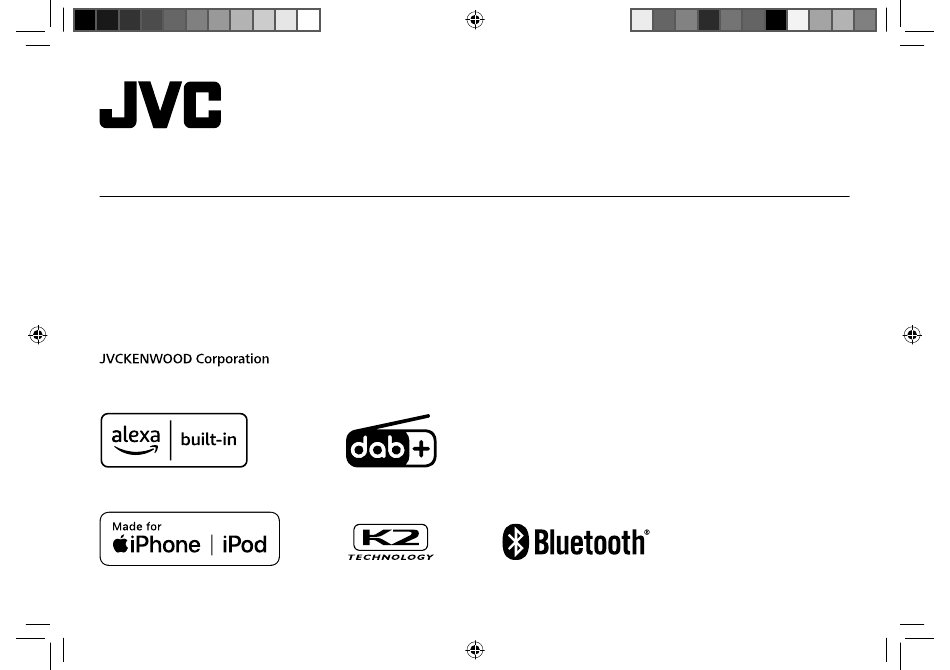

KW-DB95BT_E_B5A-3884-00_Cover_1st Draft.indd 1
KW-DB95BT_E_B5A-3884-00_Cover_1st Draft.indd 1
Data Size: B6L (182 mm x 128 mm)
Book Size: B6L (182 mm x 128 mm)
ENGLISH
ESPAÑOL
NEDERLANDS
PORTUGUÊS
B5A-3884-00 [E]
17/8/2021 10:58:56 AM
17/8/2021 10:58:56 AM

Advertisement

Table of Contents
loading

Related Manuals for JVC KW-DB95BT

Summary of Contents for JVC KW-DB95BT

  • Page 1 ENGLISH ESPAÑOL NEDERLANDS PORTUGUÊS KW-DB95BT CD RECEIVER INSTRUCTION MANUAL RECEPTOR CON CD MANUAL DE INSTRUCCIONES CD-RECEIVER GEBRUIKSAANWIJZING RECEPTOR CD MANUAL DE INSTRUÇÕES B5A-3884-00 [E] KW-DB95BT_E_B5A-3884-00_Cover_1st Draft.indd 1 KW-DB95BT_E_B5A-3884-00_Cover_1st Draft.indd 1 17/8/2021 10:58:56 AM 17/8/2021 10:58:56 AM Data Size: B6L (182 mm x 128 mm)
  • Page 2 Informatie over het weggooien van elektrische en elektronische apparatuur en batterijen (particulieren) Dit symbool geeft aan dat gebruikte elektrische, elektronische producten en batterijen niet bij het normale huishoudelijke afval mogen. Lever deze producten in bij de aangewezen inzamelingspunten, waar ze gratis worden geaccepteerd en op de juiste manier worden verwerkt, teruggewonnen en hergebruikt.
  • Page 3 Declaration of Conformity with regard to the RE Directive 2014/53/EU Declaration of Conformity with regard to the RoHS Directive 2011/65/EU Manufacturer: The marking of products using lasers JVCKENWOOD Corporation The label is attached to the chassis/case and says that the component uses laser beams that have been 3-12, Moriya-cho, Kanagawa-ku, Yokohama-shi, Kanagawa, 221-0022, JAPAN classified as Class 1.
  • Page 4 Par la présente, JVCKENWOOD déclare que Por la presente, JVCKENWOOD declara que el JVCKENWOOD ezennel kijelenti, hogy a rádiové zariadenie „KW-DB95BT“ vyhovuje l’équipement radio « KW-DB95BT » est conforme à equipo de radio “KW-DB95BT” cumple la Directiva „KW-DB95BT“ rádióberendezés megfelel a smernici 2014/53/EÚ.
  • Page 5 UNITED KINGDOM https://www.jvc.net/euukdoc/ Hereby, JVCKENWOOD declares that the radio equipment “KW-DB95BT” is in compliance with the relevant statutory requirements. The full text of the declaration of conformity is available at the following internet address: https://www.jvc.net/euukdoc/ KW-DB95BT_E_B5A-3884-00_Cover_4th Draft.indd iv...
  • Page 6 SOFTWARE LICENSE AGREEMENT Article 4 Right pertaining to the Licensed Software Any and all copyrights and other rights pertaining to the Licensed Software and related documents The software embedded in the Product (hereinafter the "Licensed Software") provided by Licensor is shall belong to the Licensor or the original holder of the right who granted to the Licensor the license or copyrighted to or sublicensable by the Licensor, and this Agreement provides for the terms and conditions sublicense for the Licensed Software (hereinafter the "Original Rightholder"), and the User shall not be...
  • Page 7 Important Notice concerning the Software Article 9 Destruction of the Licensed Software If this Agreement is terminated pursuant to the provision of Article 8, the User shall destroy the Licensed -jansson Software, any related documents and copies thereof within two (2) weeks from such date of termination. Copyright (c) 2009-2012 Petri Lehtinen <petri@digip.org>...
  • Page 8 -CMP sha2 AUTHOR: Aaron D. Gifford - http://www.aarongifford.com/ The MIT License (MIT) Copyright (c) 2014 Charles Gunyon Copyright (c) 2000-2001, Aaron D. Gifford All rights reserved. Permission is hereby granted, free of charge, to any person obtaining a copy of this software and associated documentation files (the "Software"), to deal in the Software without restriction, including without You may obtain a copy of the license at limitation the rights to use, copy, modify, merge, publish, distribute, sublicense, and/or sell copies of the...
  • Page 9 T-Kernel 2.0 Copyright (c) 1995, 1996 Carnegie-Mellon University. All rights reserved. Author: Chris G. Demetriou This product uses the source code of T-Kernel 2.0 under T-License 2.0 granted by T-Engine Forum (www.tron.org) Permission to use, copy, modify and distribute this software and its documentation is hereby granted, BSD-3-Clause provided that both the copyright notice and this permission notice appear in all copies of the software, derivative works or modified versions, and any portions thereof, and that both notices appear in supporting...

  • Page 10: Table Of Contents

    2 Set the clock and date 3 Set the basic settings Digital Radio ..................... 6 Analog Radio .................... 9 CD/USB/iPod................... 11 AUX......................14 JVC Remote Application ............... 14 Bluetooth® ....................15 Bluetooth - Connection Bluetooth - Mobile phone Bluetooth - Audio AMAZON ALEXA ..................22 Audio Settings ..................

  • Page 11: Before Use

    Before Use IMPORTANT How to read this manual • To ensure proper use, please read through this manual before using this • The displays and faceplates shown in this manual are examples used to product. It is especially important that you read and observe Warnings and provide clear explanations of the operations.

  • Page 12: Basics

    Basics Faceplate Loading slot Display window* How to reset Volume knob * Only for illustration purpose. On the faceplate Turn on the power Press SOURCE B. • Press and hold to turn off the power. Adjust the volume Turn the volume knob. Press the volume knob to mute the sound or pause playback.

  • Page 13: Getting Started

    Getting Started To adjust the clock Turn the volume knob to select [CLOCK ADJUST], then press the knob. Turn the volume knob to make the settings, then press the knob. Set the time in the order of “Hour”  “Minute”. Turn the volume knob to select [CLOCK FORMAT], then press the knob. Turn the volume knob to select [12H] or [24H], then press the knob.

  • Page 14: Digital Radio

    DAB combines several programs (called “services”) to form one For details on how to update the firmware, visit “ensemble”. <https://www.jvc.net/cs/car/>. The “primary component” (main radio station) is sometimes accompanied by a “secondary component” which can contain extra programs or other [FACTORY RESET] [YES]: Resets the settings to default (except the stored station).
  • Page 15 Digital Radio Preparation: Select a stored service Connect a DAB antenna (commercially available) to the DAB antenna Press one of the number buttons (1 to 6). jack. (Page 40) (or) Press DAB to select DAB source directly. Press Press and hold DAB to start the Service List update. Turn the volume knob to select a preset number, then press the knob.
  • Page 16 Digital Radio Other settings [DAB [TRAVEL]/[WARNINGS]/[NEWS]/[WEATHER]/[EVENT]/[SPECIAL]/ ANNOUCMNT] [RAD INFO]/[SPORTS]/[FINANCE]: Turn the volume knob to make a Press and hold MENU. selection, then press the knob. Turn the volume knob to select an item (see the following table), then “ ” appears in front of the activated announcement type. press the knob.

  • Page 17: Analog Radio

    Analog Radio Settings in memory You can store up to 18 stations for FM and 6 stations for AM. Store a station While listening to a station... Press and hold one of the number buttons (1 to 6). (or) Press and hold the volume knob until “PRESET MODE” flashes. Turn the volume knob to select a preset number, then press the knob.
  • Page 18 Analog Radio Default: [XX] [TI] [ON]: Allows the unit to temporarily switch to Traffic Information if available (“TI” indicator lights up). ; [OFF]: Cancels. [TUNER SETTING] • [TI] in AM band is for enabling traffic interruption to DAB source only. [SSM] [SSM 01–06]/[SSM 07–12]/[SSM 13–18]: Automatically presets up to 18 [PTY SEARCH]* Select a PTY code (see the following “PTY code”).

  • Page 19: Cd/Usb/Ipod

    CD/USB/iPod Insert a disc Connect an iPod/iPhone Eject disc Label side iPod/ iPhone USB input terminal Accessory of the iPod/iPhone* The source changes to CD automatically and playback starts. See “Set the playable source for iPod/iPhone” on page 12 to start playback. •...
  • Page 20 CD/USB/iPod For playable audio file, see “Playable files” on page 33. Select music drive On the faceplate While in USB source, press 6 MODE repeatedly. Reverse/Fast-forward Press and hold S / T. Stored songs in the following drive will be played back. •...
  • Page 21 CD/USB/iPod Default: [XX] Quick search (applicable only for CD source and USB source) [USB] If you have many files, you can search through them quickly. [IPHONE SETUP] [BT]: iPod BT source is available if iPod/iPhone is connected via Bluetooth. Press • If you connect the iPod/iPhone via USB input terminal, iPod USB source is Turn the volume knob to select a folder/list, then press the knob.

  • Page 22: Aux

    Preparation: • For more information, visit <https://www.jvc.net/cs/car/>. Select [ON] for [BUILT-IN AUX] in [SOURCE SELECT]. (Page 5) Preparation: Install the latest version of JVC Remote application on your device before Start listening connecting. Connect a portable audio player (commercially available). Start using JVC Remote application...

  • Page 23: Bluetooth

    Bluetooth® JVC Remote Application Default: [XX] • Depending on the Bluetooth version, operating system and the firmware version of your mobile phone, Bluetooth features may not [REMOTE APP] work with this unit. [SELECT] Selects the device ([IOS] or [ANDROID]) to use the application.
  • Page 24 • Once the pairing is completed, the Bluetooth device will remain registered in the unit even if you reset the unit. To delete the paired device, see Search and select the name of your receiver (“KW-DB95BT”) on the [DEVICE DELETE] on page 20.

  • Page 25: Bluetooth - Mobile Phone

    Bluetooth® Bluetooth — Mobile phone The following operations may differ or be unavailable depending on the connected phone. On the faceplate First incoming call... Answer a call Press or the volume knob. Reject a call Press and hold or the volume knob.
  • Page 26 Bluetooth® Default: [XX] Improve the voice quality [SETTINGS] While talking on the phone... [AUTO ANSWER] [01 SEC] to [30 SEC]: Answers an incoming call automatically in the selected Press and hold MENU. time (in seconds). ; [OFF]: Cancels. Turn the volume knob to select an item (see the following table), then press the knob.
  • Page 27 Bluetooth® [PHONEBOOK] (Applicable only if the phone supports PBAP.) Store a contact in memory 1 Press 1 J / 2 K to select the desired letter (A to Z, 0 to 9, and OTHERS). You can store up to 6 contacts into the number buttons (1 to 6). •...
  • Page 28 1 Turn the volume knob to select a device to delete, then press the knob. Search and select the name of your receiver (“KW-DB95BT”) on the 2 Turn the volume knob to select [YES] or [NO], then press the knob.
  • Page 29 Bluetooth® The connectivity result flashes on the display. Bluetooth — Audio “PAIRING OK” and/or “HANDS-FREE OK”*1 and/or “AUD.STREAM OK”*2 and/ • Operations and display indications may differ according to their availability or “PBAP OK”*3: Compatible on the connected device. *1 Compatible with Hands-Free Profile (HFP) •...

  • Page 30: Bluetooth - Audio

    Pair this unit to Alexa mobile application. information. Perform Option A or Option B. Option A: Direct Link Access the following URL or scan the QR code with your smartphone: https://www.jvc.net/car/alexa ENGLISH Data Size: B6L (182 mm x 128 mm) KW-DB95BT_E_B5A-3884-00_EN_2nd Draft_1.indd 22 KW-DB95BT_E_B5A-3884-00_EN_2nd Draft_1.indd 22...
  • Page 31 Tap “Add Device”. Tap “Automotive Accessory” or “Headphones” from the list of device types. Tap the name of your receiver (“KW-DB95BT”) and follow the instructions. Once the setup process is completed, the Alexa mobile application will establish a connection with this unit.
  • Page 32 AMAZON ALEXA Communicate with Alexa via the connected microphone. (Page 15) Start listening “THINKING...” appears when Alexa is processing your voice input. While in Alexa idle state... “SPEAKING...” appears while Alexa is responding to your voice input. “ALEXA” or display information such as playing time, song title, and etc. Speak the word “Alexa”...

  • Page 33: Audio Settings

    Audio Settings [EASY EQ] Adjusts your own sound settings. • The settings are stored to [USER] in [PRESET EQ]. • The settings made may affect the current settings of [PRO EQ]. [SUB.W SP]*1*2: [00] to [+06] (Default: [+03] [SUB.W]*1: [–50] to [+10] [00] [BASS]: [LVL–09] to [LVL+09]...
  • Page 34 Audio Settings [SUB.W [SPK-OUT]*2 (Not applicable when 3-way crossover is selected.) [SPEAKER SIZE] Depending on the crossover type you have selected (see the following LEVEL]*1 [SUB.W 00] to [SUB.W +06] ([SUB.W +03]): Adjusts [X ‘ OVER TYPE]), 2-way crossover or 3-way crossover setting items will be the output level of the subwoofer connected via speaker shown.
  • Page 35 Audio Settings Connection via speaker leads [SOUND EFFECT] You can also connect the speakers without using an external amplifier [SPACE ENHANCE] (Not applicable for FM/AM source and DAB source.) but still being able to enjoy the subwoofer output with these settings. [SMALL]/[MEDIUM]/[LARGE]: Virtually enhances the sound space.
  • Page 36 Audio Settings 2-way crossover setting items Crossover settings Below are the available setting items for 2-way crossover and 3-way [SPEAKER SIZE] crossover. [FRONT] [SIZE] [8CM]/[10CM]/[12CM]/[13CM]/[16CM]/ CAUTION [17CM]/[18CM]/[4×6]/[5×7]/[6×8]/[6×9]/ Select a crossover type according to how the speakers are connected. [7×10] (Page 40) [TWEETER] [SMALL]/[MIDDLE]/[LARGE]/[NONE] (not If you select a wrong type:...
  • Page 37 Audio Settings [SUBWOOFER [SW LPF FRQ] [30HZ]/[40HZ]/[50HZ]/[60HZ]/[70HZ]/[80HZ]/ [MID RANGE] [HPF FRQ] [30HZ]/[40HZ]/[50HZ]/[60HZ]/[70HZ]/[80HZ]/[90HZ]/ LPF]*2 [90HZ]/[100HZ]/[120HZ]/[150HZ]/[180HZ]/ [100HZ]/[120HZ]/[150HZ]/[180HZ]/[220HZ]/[250HZ]/ [220HZ]/[250HZ]/[THROUGH] [THROUGH] [SW LPF SLOPE] [–06DB]/[–12DB]/[–18DB]/[–24DB] [HPF SLOPE] [–06DB]/[–12DB] [SW LPF PHASE] [REVERSE] (180°)/ [NORMAL] (0°) [LPF FRQ] [1KHZ]/[1.6KHZ]/[2.5KHZ]/[4KHZ]/[5KHZ]/[6.3KHZ]/ [8KHZ]/[10KHZ]/[12.5KHZ]/[THROUGH] [SW LPF GAIN] [–08DB] to [00DB] [LPF SLOPE] [–06DB]/[–12DB] [PHASE] [REVERSE] (180°)/[NORMAL] (0°)
  • Page 38 Audio Settings Digital Time Alignment settings Determining the delay time automatically If you specify the distance from the currently set Digital Time Alignment sets the delay time of the speaker output to create a listening position to every speaker, the delay time more suitable environment for your vehicle.

  • Page 39: Display Settings

    Display Settings Zone identification for brightness settings Press and hold MENU. Turn the volume knob to select an item (see the following table), then press the knob. Repeat step 2 until the desired item is selected/activated or follow the instructions stated on the selected item. Press MENU to exit.
  • Page 40 Display Settings [TEXT SCROLL]*2 [SCROLL ONCE]: Scrolls the display information once. ; [COLOR] [SCROLL AUTO]: Repeats scrolling at 5-second intervals. ; [PRESET] Selects illumination colors for the buttons on different zones separately. [SCROLL OFF]: Cancels. 1 Select a zone ([ZONE 1], [ZONE 2], [ALL ZONE]). (See the illustration on •...

  • Page 41: References

    For: – Latest firmware updates and latest compatible item list • Recordable/ReWritable discs that have not been finalized. – JVC original application • 8 cm CD. Attempting to insert using an adapter may cause malfunction. – Any other latest information Visit <https://www.jvc.net/cs/car/>.
  • Page 42 References About AMAZON ALEXA Change the display information • Alexa is a third party service, therefore the specifications are subject to change without prior Each time you press MENU, the display information changes. notice. Accordingly, compatibility may be impaired or some or all of the services may become •...

  • Page 43: Troubleshooting

    Troubleshooting References Source name Display information: Main (Supplementary) Symptom Remedy CD or USB For CD-DA: Sound cannot be heard. • Adjust the volume to the optimum level. Track title (Artist) Track title (Artist) with Music Synchronization • Check the cords and connections. Effect*2 Track title (Disc title) Track title (Date)
  • Page 44 Troubleshooting Symptom Remedy Symptom Remedy Disc cannot be ejected. Press and hold to forcibly eject the disc. Be careful not “UNRESPONSIVE DEVICE” Make sure the USB device is not malfunction and reattach to drop the disc when it is ejected. If this does not solve appears.
  • Page 45 Troubleshooting Symptom Remedy Symptom Remedy No Bluetooth device is • Search from the Bluetooth device again. The connected Bluetooth • Check whether the connected Bluetooth audio player detected. • Reset the unit. (Page 4) audio player cannot be supports Audio/Video Remote Control Profile (AVRCP). controlled.

  • Page 46: Installation/Connection

    Installation/Connection Troubleshooting Symptom Remedy This section is for the professional installer. For safety’s sake, leave wiring and mounting to professionals. Consult the car audio dealer. No response from Alexa Amazon cloud was unable to analyze the voice input. after the voice input. WARNING Wrong response from Alexa misunderstood what was said or did not catch...
  • Page 47 Installation/Connection Part list for installation Installing the unit (in-dash mounting) (A) Trim plate (×1) (B) Mounting sleeve (×1) Do the required wiring. (Page 40) Bend the appropriate tabs to hold the mounting sleeve firmly in place. (C) Wiring harness (×1) (D) Extraction key (×2) Dashboard of your car (E) Flat head screw,...
  • Page 48 Installation/Connection Wiring connection Rear output/3-way crossover: Tweeter output When connecting to an external amplifier, Front output/3-way crossover: Mid range output connect its ground wire to the car’s chassis to Subwoofer output/3-way crossover: Woofer output avoid damaging the unit. Microphone input jack (Page 15) DAB antenna jack (SMB connector) Fuse (10 A) Antenna terminal...

  • Page 49: Specifications

    Specifications Frequency Range Band III 174.928 MHz — 239.200 MHz Dynamic Range 90 dB Channel Separation 85 dB Sensitivity –100 dBm MP3 Decode Compliant with MPEG-1/2 Audio Layer-3 Signal-to-Noise Ratio 80 dB WMA Decode Compliant with Windows Media Audio Antenna Connector Type AAC Decode AAC-LC “.aac”...
  • Page 50 Specifications Frequency Response (±3 dB) 20 Hz — 20 kHz Band 13 Band Input Maximum Voltage 1 000 mV Frequency 62.5/ 100/ 160/ 250/ 400/ 630/ 1k/ 1.6k/ 2.5k/ 4k/ 6.3k/ 10k/ 16k Hz Input Impedance 30 kΩ Level -09 — +09 (-9 dB — +9 dB) Version Bluetooth V4.2 1.35/ 1.5/ 2.0...
