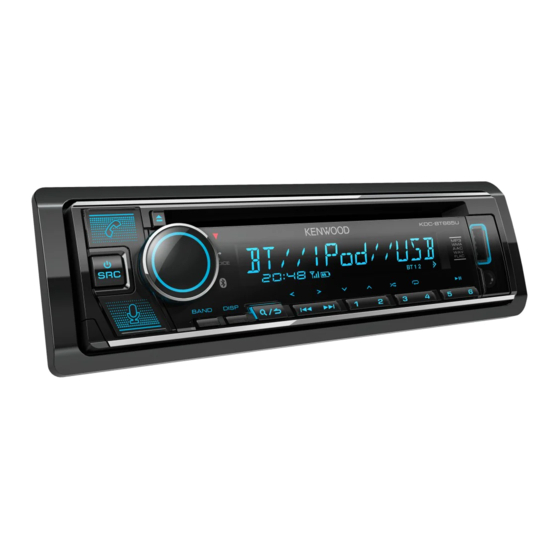

KDC-BT665U
CD-RECEIVER
INSTRUCTION MANUAL
AUTORADIO CD
MODE D'EMPLOI
CD-RECEIVER
BEDIENUNGSANLEITUNG
CD-RECEIVER
GEBRUIKSAANWIJZING
© 2022 JVCKENWOOD Corporation
KDC-BT665U_E_B5A-3887-00_Cover_1st Draft.indd 1
KDC-BT665U_E_B5A-3887-00_Cover_1st Draft.indd 1
Data Size:
B6L (182 mm x 128 mm)
Book Size:
B6L (182 mm x 128 mm)
B5A-3887-00 [EN]
7/9/2021 9:37:27 AM
7/9/2021 9:37:27 AM

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KDC-BT665U and is the answer not in the manual?

Questions and answers

Related Manuals for JVC KENWOOD KDC-BT665U

Summary of Contents for JVC KENWOOD KDC-BT665U

  • Page 1 KDC-BT665U CD-RECEIVER INSTRUCTION MANUAL AUTORADIO CD MODE D’EMPLOI CD-RECEIVER BEDIENUNGSANLEITUNG CD-RECEIVER GEBRUIKSAANWIJZING © 2022 JVCKENWOOD Corporation B5A-3887-00 [EN] KDC-BT665U_E_B5A-3887-00_Cover_1st Draft.indd 1 KDC-BT665U_E_B5A-3887-00_Cover_1st Draft.indd 1 Data Size: B6L (182 mm x 128 mm) 7/9/2021 9:37:27 AM 7/9/2021 9:37:27 AM Book Size:...
  • Page 2 Informatie over het weggooien van elektrische en elektronische apparatuur en batterijen (particulieren) Dit symbool geeft aan dat gebruikte elektrische, elektronische producten en batterijen niet bij het normale huishoudelijke afval mogen. Lever deze producten in bij de aangewezen inzamelingspunten, waar ze gratis worden geaccepteerd en op de juiste manier worden verwerkt, teruggewonnen en hergebruikt.
  • Page 3 Declaration of Conformity with regard to the RE Directive 2014/53/EU Declaration of Conformity with regard to the RoHS Directive 2011/65/EU Manufacturer: The marking of products using lasers JVCKENWOOD Corporation The label is attached to the chassis/case and says that the component uses laser beams that have been 3-12, Moriya-cho, Kanagawa-ku, Yokohama-shi, Kanagawa, 221-0022, JAPAN classified as Class 1.
  • Page 4 Slovensko Hiermit erklärt JVCKENWOOD, dass das Funkgerät “KDC-BT665U” der Niniejszym, JVCKENWOOD deklaruje, że sprzęt radiowy “KDC-BT665U” S tem JVCKENWOOD izjavlja, da je radijska oprema » KDC-BT665U « v Richtlinie 2014/53/EU entspricht. jest zgodny z dyrektywą 2014/53/UE. skladu z Direktivo 2014/53/EU.
  • Page 5 Ελληνικά HRVATSKI / SRPSKI JEZIK Українська Με το παρόν, η JVCKENWOOD δηλώνει ότι ο ραδιοεξοπλισμός JVCKENWOOD ovim izjavljuje da je radio oprema “KDC-BT665U” u Таким чином, компанія JVCKENWOOD заявляє, що «KDC-BT665U» συμμορφώνεται με την Οδηγία 2014/53/ΕΕ. skladu s Direktivom 2014/53/EU.
  • Page 6 SOFTWARE LICENSE AGREEMENT Article 4 Right pertaining to the Licensed Software Any and all copyrights and other rights pertaining to the Licensed Software and related documents The software embedded in the Product (hereinafter the "Licensed Software") provided by Licensor is shall belong to the Licensor or the original holder of the right who granted to the Licensor the license or copyrighted to or sublicensable by the Licensor, and this Agreement provides for the terms and conditions sublicense for the Licensed Software (hereinafter the "Original Rightholder"), and the User shall not be...
  • Page 7 Important Notice concerning the Software Article 9 Destruction of the Licensed Software If this Agreement is terminated pursuant to the provision of Article 8, the User shall destroy the Licensed -jansson Software, any related documents and copies thereof within two (2) weeks from such date of termination. Copyright (c) 2009-2012 Petri Lehtinen <petri@digip.org>...
  • Page 8 -CMP sha2 AUTHOR: Aaron D. Gifford - http://www.aarongifford.com/ The MIT License (MIT) Copyright (c) 2014 Charles Gunyon Copyright (c) 2000-2001, Aaron D. Gifford All rights reserved. Permission is hereby granted, free of charge, to any person obtaining a copy of this software and associated documentation files (the "Software"), to deal in the Software without restriction, including without You may obtain a copy of the license at limitation the rights to use, copy, modify, merge, publish, distribute, sublicense, and/or sell copies of the...
  • Page 9 Copyright (c) 1995, 1996 Carnegie-Mellon University. All rights reserved. T-Kernel 2.0 This product uses the source code of T-Kernel 2.0 under T-License 2.0 granted by T-Engine Forum Author: Chris G. Demetriou (www.tron.org) Permission to use, copy, modify and distribute this software and its documentation is hereby granted, BSD-3-Clause provided that both the copyright notice and this permission notice appear in all copies of the software, Copyright (c) 2000-2001, Aaron D.

  • Page 10: Table Of Contents

    Contents Before Use ....................3 References ....................30 Basics ......................3 Maintenance More information Getting Started ..................4 Change the display information 1 Select the display language, acknowledge the crossover type and Troubleshooting ..................32 cancel the demonstration 2 Set the clock and date Specifications ..................

  • Page 11: Before Use

    Before Use Basics IMPORTANT Faceplate • To ensure proper use, please read through this manual before using this product. It is especially important that you read and observe Warnings and Volume knob Loading slot Cautions in this manual. • Please keep the manual in a safe and accessible place for future reference. WARNING •...

  • Page 12: Getting Started

    Getting Started Basics On the faceplate Turn on the power Press B SRC. • Press and hold to turn off the power. Adjust the volume Turn the volume knob. Select a source • Press B SRC repeatedly. • Press B SRC, then turn the volume knob within 2 seconds.

  • Page 13: Set The Other Optional Settings

    Getting Started To adjust the clock Default: [XX] Turn the volume knob to select [CLOCK ADJUST], then press the knob. [AUDIO CONTROL] Turn the volume knob to make the settings, then press the knob. [SWITCH PREOUT] (Applicable only if [X’OVER] is set to [2WAY].) (Page 6) Set the time in the order of “Hour” ...
  • Page 14 Getting Started [P-OFF WAIT] Applicable only when the demonstration mode is turned off. Change the crossover type Sets the duration when the unit will automatically turn off (while in Press B SRC repeatedly to enter STANDBY. standby mode) to save the battery. Press and hold number buttons 4 and 5 to enter crossover select.

  • Page 15: Radio

    Radio Default: [XX] [TUNER SETTING] Selects the searching method for S / T buttons when pressed. [SEEK MODE] [AUTO1]: Automatically search for a station. ; [AUTO2]: Search for a preset station. ; [MANUAL]: Manually search for a station. [LOCAL SEEK] [ON]: Searches only stations with good reception.

  • Page 16: Cd/Usb/Ipod

    CD/USB/iPod Radio [CLOCK] Insert a disc [TIME SYNC] [ON]: Synchronizes the unit’s time to the Radio Data System station Eject disc Label side time. ; [OFF]: Cancels. • [LOCAL SEEK]/[MONO SET]/[NEWS SET]/[REGIONAL]/[AF SET]/[TI]/[PTY SEARCH] is selectable only when the band is FM1/FM2/FM3. •...
  • Page 17 CD/USB/iPod Basic operations Select music drive While in USB source, press 5 repeatedly. Stored songs in the following drive will be played back. • Selected internal or external memory of a smartphone (Mass Storage Class). • Selected drive of a multiple drive device. (This unit can support multiple drive device of up to 4 drives.
  • Page 18 CD/USB/iPod Default: [XX] Skip search (applicable only for iPod USB source and iPod BT source) [USB] If you have many files in the selected list, you can perform the following to search for a file by skipping through the list at a rate selected in [SKIP SEARCH]. [IPHONE SETUP] [BT]: iPod BT source is available if iPod/iPhone is connected via Bluetooth.

  • Page 19: Aux

    CD/USB/iPod You can listen to music from a portable audio player via the auxiliary input Alphabet search (applicable only for iPod USB source and iPod BT source) jack. You can search for a file according to the first character. Preparation: Press Select [ON] for [BUILT-IN AUX] in [SOURCE SELECT].

  • Page 20: Kenwood Remote Application

    KENWOOD Remote Application You can control the KENWOOD car receiver from iPhone/iPod touch (via Default: [XX] Bluetooth or via USB input terminal) or Android device (via Bluetooth) using [REMOTE APP] KENWOOD Remote application. • For more information, visit <https://www.kenwood.com/cs/ce/>. [SELECT] Selects the device ([IOS] or [ANDROID]) to use the application.

  • Page 21: Bluetooth

    Bluetooth features may not work with this Press B SRC to turn on the unit. unit. Search and select the name of your receiver (“KDC-BT665U”) on the • Be sure to turn on the Bluetooth function of the device to make the Bluetooth device.

  • Page 22: Bluetooth - Mobile Phone

    Bluetooth® The following operations may differ or be unavailable depending on the Auto Pairing connected phone. When you connect iPhone/iPod touch to the USB input terminal, pairing request (via Bluetooth) is automatically activated if [AUTO PAIRING] is set to On the faceplate [ON].
  • Page 23 Bluetooth® Improve the voice quality Make a call While talking on the phone... You can make a call from the call history, phonebook, or dialing the number. Call by voice is also possible if your mobile phone has the feature. Press the volume knob to enter [FUNCTION].
  • Page 24 Bluetooth® Make a call using voice recognition [PHONE BOOK] (Applicable only if the phone supports PBAP.) 1 Turn the volume knob quickly to enter alphabet search mode (if the Press and hold to activate the voice recognition of the connected phonebook contains many contacts).
  • Page 25 To return to the previous setting item, press Press and hold “PLEASE PAIR YOUR PHONE PIN 0000” appears on the display. Default: [XX] Search and select the name of your receiver (“KDC-BT665U”) on the [BT MODE] Bluetooth device. [PHONE SELECT] Operate the Bluetooth device to confirm pairing.

  • Page 26: Bluetooth - Audio

    Bluetooth® Bluetooth — Audio On the faceplate • Operations and display indications may differ according to their availability Random play Press and hold 3 to select [ALL RANDOM] or on the connected device. [GROUP RANDOM]. • Depending on the connected device, some features may not work with your device.

  • Page 27: Amazon Alexa

    Tap “Automotive Accessory” or “Headphones” from the list of device types. Setup for the first time Tap the name of your receiver (“KDC-BT665U”) and follow the For Android device instructions. Pair your device with this unit via Bluetooth. (Page 13) Start up the Alexa mobile application on your device.
  • Page 28 AMAZON ALEXA • To return to the previous source before ALEXA, press B SRC. • To activate Alexa, press or speak “Alexa”. • To cancel current listening state, press . • To cancel current thinking/speaking states and go to listening state, press or speak “Alexa”.

  • Page 29: Audio Settings

    Audio Settings AMAZON ALEXA Start listening While in Alexa idle state... Speak the word “Alexa” to the connected microphone (Page 13) to activate Alexa. (or) Press on the unit to speak with Alexa. The display shows: “LISTENING...”. Press the volume knob to enter [FUNCTION]. Communicate with Alexa via the connected microphone.
  • Page 30 Audio Settings [MANUAL EQ] Adjusts your own sound settings for each source. [BALANCE] [L15] to [R15] ([0]): Adjusts the left and right speaker output balance. • The settings are stored to [USER] in [PRESET EQ]. [VOLUME OFFSET] [–15] to [+6] ([0]): Presets the initial volume level of each source by •...
  • Page 31 Audio Settings 2-way crossover setting items Crossover settings Below are the available setting items for 2-way crossover and 3-way [SPEAKER SIZE] crossover. [FRONT] [SIZE] [8CM]/[10CM]/[12CM]/[13CM]/[16CM]/[17CM]/ [18CM]/[4×6]/[5×7]/[6×8]/[6×9]/[7×10] SPEAKER SIZE Selects according to the connected speaker size for optimum performance. [TWEETER] [SMALL]/[MIDDLE]/[LARGE]/[NONE] •...
  • Page 32 Audio Settings [SUBWOOFER LPF] [SW LPF FRQ] [30HZ]/[40HZ]/[50HZ]/[60HZ]/[70HZ]/[80HZ]/ [MID RANGE] [HPF FRQ] [30HZ]/[40HZ]/[50HZ]/[60HZ]/[70HZ]/[80HZ]/[90HZ]/ [90HZ]/[100HZ]/[120HZ]/[150HZ]/[180HZ]/ [100HZ]/[120HZ]/[150HZ]/[180HZ]/[220HZ]/[250HZ]/ [220HZ]/[250HZ]/[THROUGH] [THROUGH] [SW LPF SLOPE] [–6DB]/[–12DB]/[–18DB]/[–24DB] [HPF SLOPE] [–6DB]/[–12DB] [SW LPF PHASE] [REVERSE] (180°)/[NORMAL] (0°) [LPF FRQ] [1KHZ]/[1.6KHZ]/[2.5KHZ]/[4KHZ]/[5KHZ]/[6.3KHZ]/ [8KHZ]/[10KHZ]/[12.5KHZ]/[THROUGH] [SW LPF GAIN] [–8] to [0] [LPF SLOPE] [–6DB]/[–12DB] •...
  • Page 33 Audio Settings – [SUBWOOFER] is selectable only when [SWITCH PREOUT] is set to [SUB-W] [DTA SETTINGS] (page 5) and [SUBWOOFER SET] is set to [ON]. (Page 22) [POSITION] Selects your listening position (reference point). [ALL]: Not compensating ; [FRONT RIGHT]: Front right seat ; When 3-way crossover is selected: [FRONT LEFT]: Front left seat ;...

  • Page 34: Display Settings

    Display Settings Zone identification for color settings and brightness settings Default: [XX] [DISPLAY] [COLOR SELECT] Selects illumination colors for [ALL ZONE], [ZONE 1] and [ZONE 2] separately. 1 Select a zone. (See the illustration on left column.) 2 Select a preset color for the selected zone. (Page 31) Default: [VARIABLE SCAN] To make your own color, select [CUSTOM R/G/B].

  • Page 35: Installation/Connection

    Installation/Connection Part list for installation This section is for the professional installer. For safety’s sake, leave wiring and mounting to professionals. Consult the (A) Faceplate (×1) (B) Trim plate (×1) car audio dealer. WARNING • The unit can only be used with a 12 V DC power supply, negative ground. (C) Mounting sleeve (×1) (D) Wiring harness (×1) •...
  • Page 36 Installation/Connection Installing the unit (in-dash mounting) Removing the unit Detach the faceplate. Fit the catch pin on the extraction keys into the holes on both sides of the trim plate, then pull it out. Insert the extraction keys deeply into the slots on each side, then follow the arrows as shown on the illustration.
  • Page 37 Installation/Connection Wiring connection If your car does not have an ISO terminal: We recommend installing the unit with a commercially available custom Antenna terminal wiring harness specific for your car and leave this job to professionals for your safety. Consult your car audio dealer. Fuse (10 A) Connecting the ISO connectors on some VW/Audi or Opel (Vauxhall) automobiles...

  • Page 38: References

    References Installation/Connection Connect external components Maintenance Cleaning the unit Wipe off dirt on the faceplate with a dry silicone or soft cloth. Cleaning the connector Detach the faceplate and clean the connector gently with a cotton swab. Be careful not to damage the connector.

  • Page 39: Change The Display Information

    References Playable files About AMAZON ALEXA • Disc: • Alexa is a third party service, therefore the specifications are subject to change without prior Playable audio file: notice. Accordingly, compatibility may be impaired or some or all of the services may become MP3 (.mp3), WMA (.wma), AAC (.aac) unavailable.

  • Page 40: Troubleshooting

    Troubleshooting References Source name Display information: Main display Symptom Remedy STANDBY Source name Date back to the beginning Sound cannot be heard. • Adjust the volume to the optimum level. • Check the cords and connections. RADIO Frequency Date back to the beginning “MISWIRING CHECK WIRING Turn the power off, then check to be sure the terminals of For FM Radio Data System stations only:...
  • Page 41 Troubleshooting Symptom Remedy Symptom Remedy Playback order is not as Optical disc, the files are played in the order which they “NO DISC” Insert a playable disc into the loading slot. intended. were recorded. “TOC ERROR” Make sure the disc is clean and inserted properly. USB device, the folders are played in the order of creation “NA FILE”...
  • Page 42 Troubleshooting Symptom Remedy Symptom Remedy Phone call sound cannot be • Press 6 IW during a call to switch between hands-free The Bluetooth connection Delete the unused registered Bluetooth device from the heard from the car speakers. and private talk mode. (Page 14) between the Bluetooth unit.

  • Page 43: Specifications

    Specifications Frequency Range 87.5 MHz — 108.0 MHz (50 kHz step) USB Standard USB 1.1, USB 2.0 (High speed) Usable Sensitivity (S/N = 30 dB) 0.71 μV/75 Ω File System FAT12/16/32 Quieting Sensitivity 2.0 μV/75 Ω Maximum Supply Current DC 5 V 1.5 A (DIN S/N = 46 dB) Frequency Response (±1 dB)
  • Page 44 Specifications Frequency Response (±3 dB) 20 Hz — 20 kHz Operating Voltage 12 V DC car battery Input Maximum Voltage 1 000 mV Installation Size (W × H × D) 182 mm × 53 mm × 155.5 mm Input Impedance 30 kΩ...
  • Page 45 KDC-BT665U_E_B5A-3887-00_EN_1st Draft.indd 37 KDC-BT665U_E_B5A-3887-00_EN_1st Draft.indd 37 7/9/2021 9:37:16 AM 7/9/2021 9:37:16 AM...
  • Page 46 • Windows Media is a registered trademark or trademark of Microsoft Corporation in the United States and/or other countries. This product is protected by certain intellectual property rights of Microsoft. Use or distribution of such technology outside of this product is prohibited without a license from Microsoft. •...
